2012 MITSUBISHI OUTLANDER SPORT Owners Manual

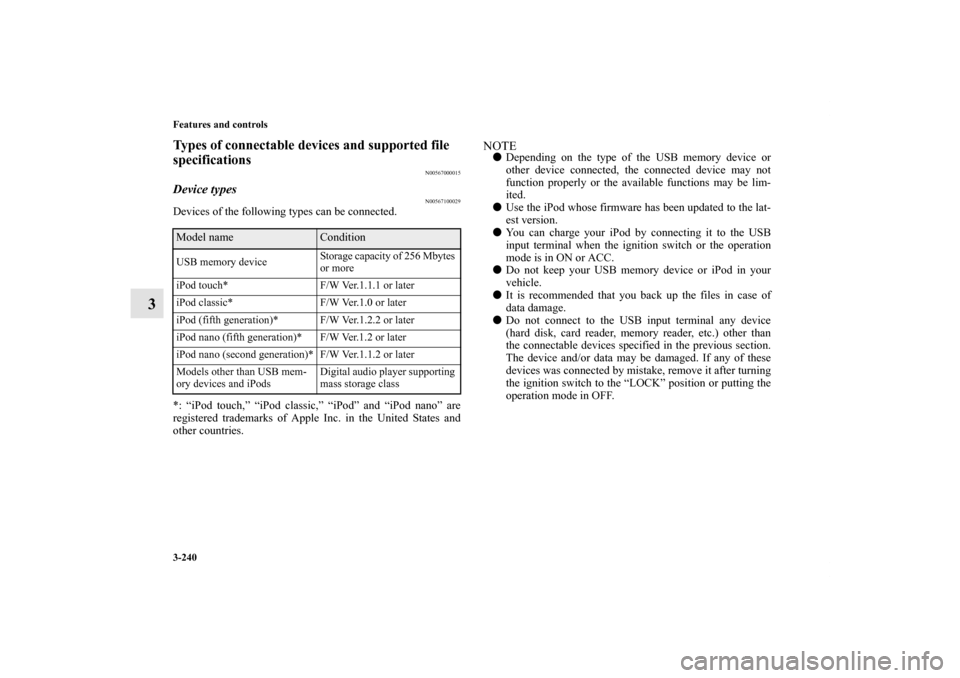

3-240 Features and controls
3
Types of connectable devices and supported file
specifications
N00567000015
Device types
N00567100029
Devices of the following types can be connected.
*: “iPod touch,” “iPod classic,” “iPod” and “iPod nano” are
registered trademarks of Apple Inc. in the United States and
other countries.
NOTE
Depending on the type of the USB memory device or
other device connected, the connected device may not
function properly or the available functions may be lim-
ited.

Use the iPod whose firmware has been updated to the lat-
est version.

You can charge your iPod by connecting it to the USB
input terminal when the ignition switch or the operation
mode is in ON or ACC.

Do not keep your USB memory device or iPod in your
vehicle.

It is recommended that you back up the files in case of
data damage.

Do not connect to the USB input terminal any device
(hard disk, card reader, memory reader, etc.) other than
the connectable devices specified in the previous section.
The device and/or data may be damaged. If any of these
devices was connected by mistake, remove it after turning
the ignition switch to the “LOCK” position or putting the
operation mode in OFF.
Model name
Condition
USB memory deviceStorage capacity of 256 Mbytes
or more
iPod touch* F/W Ver.1.1.1 or later
iPod classic* F/W Ver.1.0 or later
iPod (fifth generation)* F/W Ver.1.2.2 or later
iPod nano (fifth generation)* F/W Ver.1.2 or later
iPod nano (second generation)* F/W Ver.1.1.2 or later
Models other than USB mem-
ory devices and iPodsDigital audio player supporting
mass storage classBK0140300US.book 240 ページ ２０１１年６月２８日　火曜日　午後５時１８分

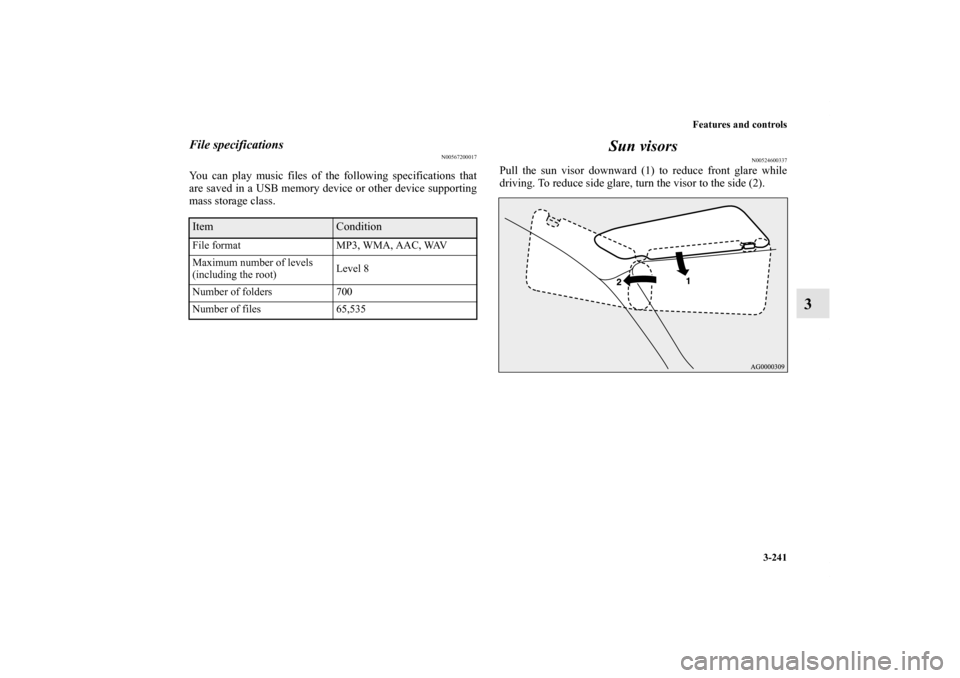

Features and controls
3-241
3
File specifications
N00567200017
You can play music files of the following specifications that
are saved in a USB memory device or other device supporting
mass storage class.
Sun visors
N00524600337
Pull the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).
Item
Condition
File format MP3, WMA, AAC, WAV
Maximum number of levels
(including the root)Level 8
Number of folders 700
Number of files 65,535
BK0140300US.book 241 ページ ２０１１年６月２８日　火曜日　午後５時１８分

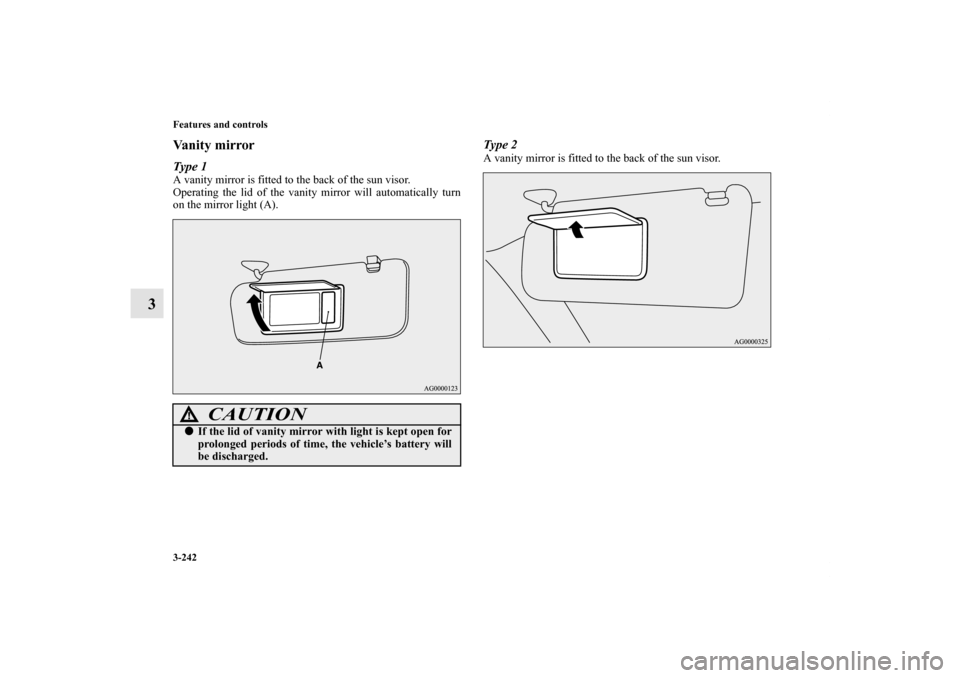

3-242 Features and controls
3
Va n i t y m i r r o rType 1A vanity mirror is fitted to the back of the sun visor.
Operating the lid of the vanity mirror will automatically turn
on the mirror light (A).
Type 2A vanity mirror is fitted to the back of the sun visor.
CAUTION
!
If the lid of vanity mirror with light is kept open for
prolonged periods of time, the vehicle’s battery will
be discharged.
BK0140300US.book 242 ページ ２０１１年６月２８日　火曜日　午後５時１８分

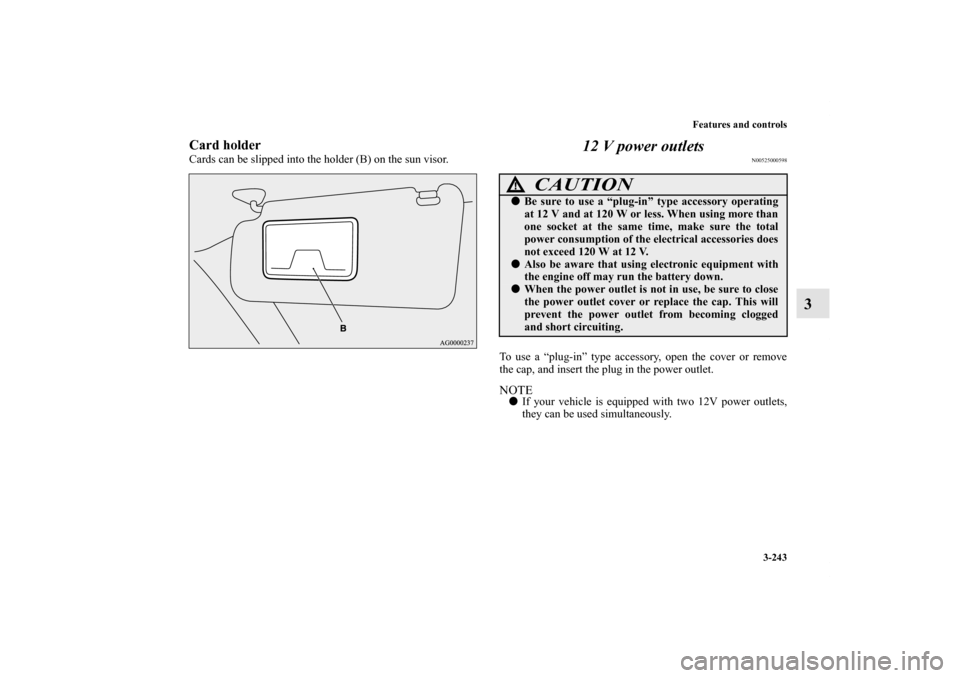

Features and controls
3-243
3
Card holderCards can be slipped into the holder (B) on the sun visor.
12 V power outlets
N00525000598
To use a “plug-in” type accessory, open the cover or remove
the cap, and insert the plug in the power outlet.NOTE
If your vehicle is equipped with two 12V power outlets,
they can be used simultaneously.
CAUTION
!
Be sure to use a “plug-in” type accessory operating
at 12 V and at 120 W or less. When using more than
one socket at the same time, make sure the total
power consumption of the electrical accessories does
not exceed 120 W at 12 V.
Also be aware that using electronic equipment with
the engine off may run the battery down.
When the power outlet is not in use, be sure to close
the power outlet cover or replace the cap. This will
prevent the power outlet from becoming clogged
and short circuiting.
BK0140300US.book 243 ページ ２０１１年６月２８日　火曜日　午後５時１８分

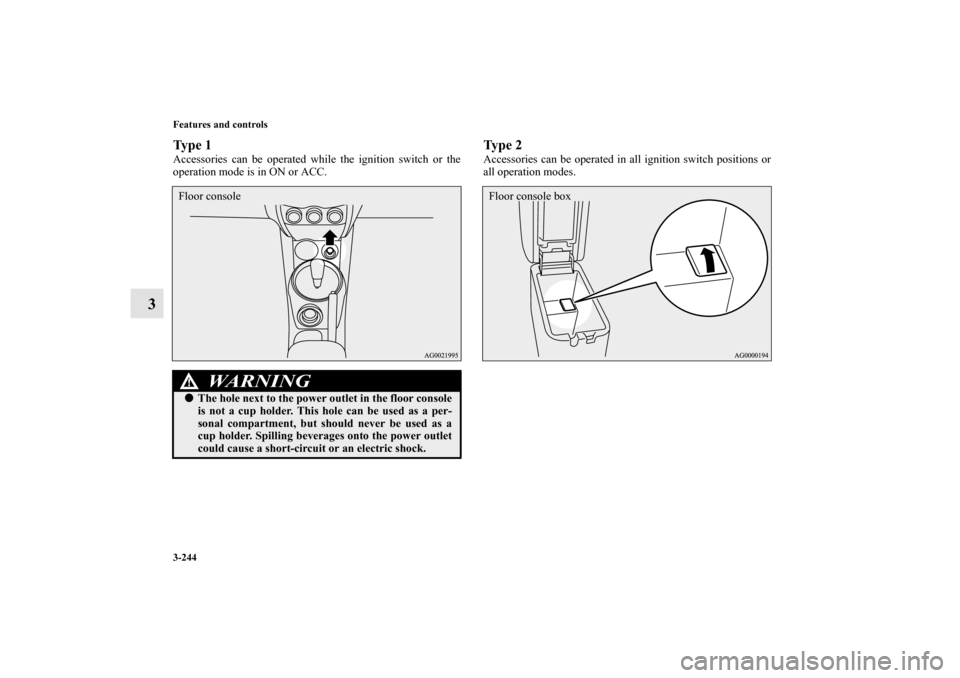

3-244 Features and controls
3
Ty p e 1Accessories can be operated while the ignition switch or the
operation mode is in ON or ACC.
Ty p e 2Accessories can be operated in all ignition switch positions or
all operation modes.
WA R N I N G
!
The hole next to the power outlet in the floor console
is not a cup holder. This hole can be used as a per-
sonal compartment, but should never be used as a
cup holder. Spilling beverages onto the power outlet
could cause a short-circuit or an electric shock.Floor console
Floor console box
BK0140300US.book 244 ページ ２０１１年６月２８日　火曜日　午後５時１８分

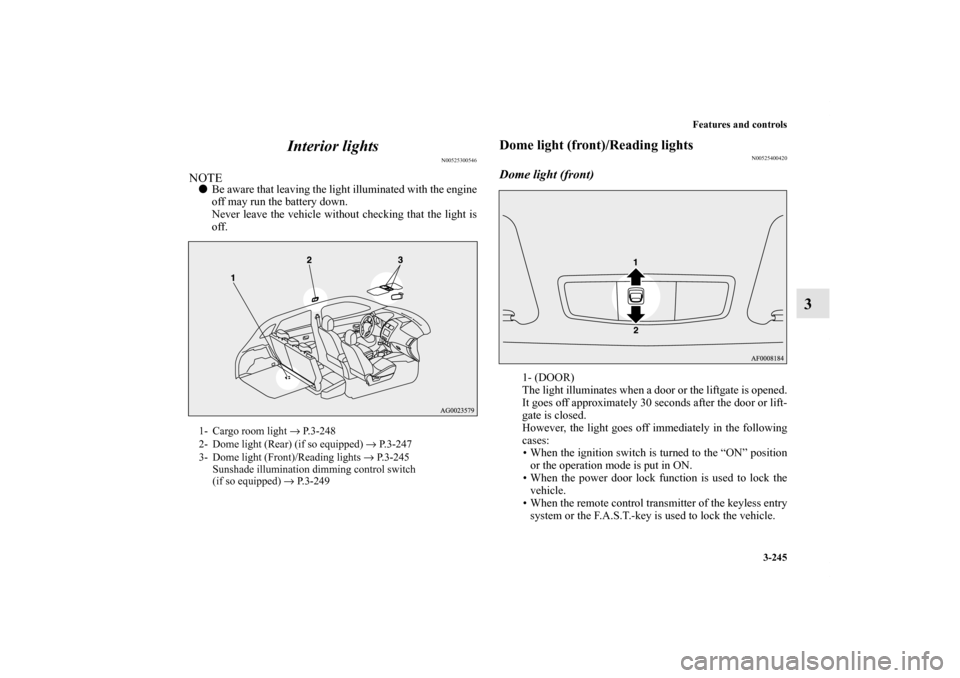

Features and controls
3-245
3 Interior lights
N00525300546
NOTE
Be aware that leaving the light illuminated with the engine
off may run the battery down.
Never leave the vehicle without checking that the light is
off.
Dome light (front)/Reading lights
N00525400420
Dome light (front)
1- (DOOR)
The light illuminates when a door or the liftgate is opened.
It goes off approximately 30 seconds after the door or lift-
gate is closed.
However, the light goes off immediately in the following
cases:
• When the ignition switch is turned to the “ON” position
or the operation mode is put in ON.
• When the power door lock function is used to lock the
vehicle.
• When the remote control transmitter of the keyless entry
system or the F.A.S.T.-key is used to lock the vehicle.
1- Cargo room light → P.3-248
2- Dome light (Rear) (if so equipped) → P.3-247
3- Dome light (Front)/Reading lights → P.3-245
Sunshade illumination dimming control switch
(if so equipped) → P.3-249
BK0140300US.book 245 ページ ２０１１年６月２８日　火曜日　午後５時１８分

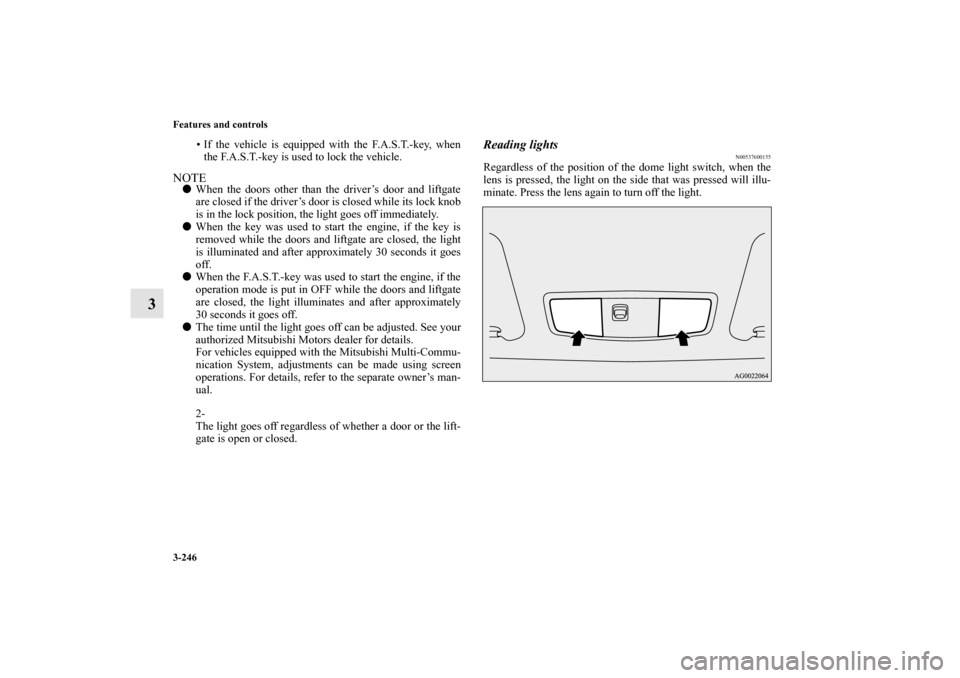

3-246 Features and controls
3
• If the vehicle is equipped with the F.A.S.T.-key, when
the F.A.S.T.-key is used to lock the vehicle.
NOTE
When the doors other than the driver’s door and liftgate
are closed if the driver’s door is closed while its lock knob
is in the lock position, the light goes off immediately.

When the key was used to start the engine, if the key is
removed while the doors and liftgate are closed, the light
is illuminated and after approximately 30 seconds it goes
off.

When the F.A.S.T.-key was used to start the engine, if the
operation mode is put in OFF while the doors and liftgate
are closed, the light illuminates and after approximately
30 seconds it goes off.

The time until the light goes off can be adjusted. See your
authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
2-
The light goes off regardless of whether a door or the lift-
gate is open or closed.
Reading lights
N00537600155
Regardless of the position of the dome light switch, when the
lens is pressed, the light on the side that was pressed will illu-
minate. Press the lens again to turn off the light.
BK0140300US.book 246 ページ ２０１１年６月２８日　火曜日　午後５時１８分

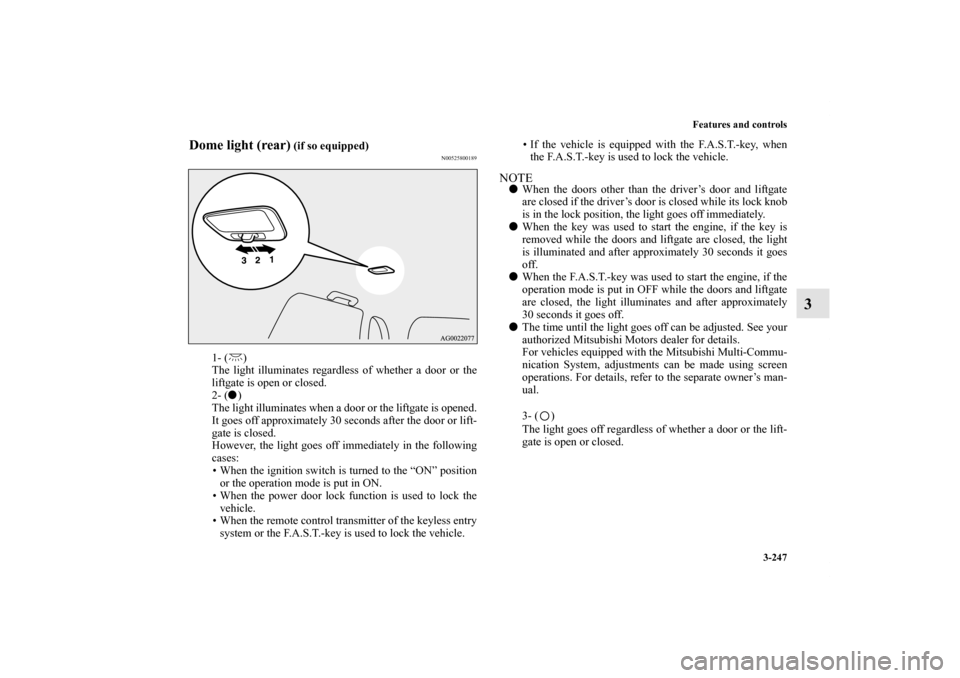

Features and controls
3-247
3
Dome light (rear)
(if so equipped)
N00525800189
1- ( )
The light illuminates regardless of whether a door or the
liftgate is open or closed.
2- (
)
The light illuminates when a door or the liftgate is opened.
It goes off approximately 30 seconds after the door or lift-
gate is closed.
However, the light goes off immediately in the following
cases:
• When the ignition switch is turned to the “ON” position
or the operation mode is put in ON.
• When the power door lock function is used to lock the
vehicle.
• When the remote control transmitter of the keyless entry
system or the F.A.S.T.-key is used to lock the vehicle.• If the vehicle is equipped with the F.A.S.T.-key, when
the F.A.S.T.-key is used to lock the vehicle.
NOTE
When the doors other than the driver’s door and liftgate
are closed if the driver’s door is closed while its lock knob
is in the lock position, the light goes off immediately.

When the key was used to start the engine, if the key is
removed while the doors and liftgate are closed, the light
is illuminated and after approximately 30 seconds it goes
off.

When the F.A.S.T.-key was used to start the engine, if the
operation mode is put in OFF while the doors and liftgate
are closed, the light illuminates and after approximately
30 seconds it goes off.

The time until the light goes off can be adjusted. See your
authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For details, refer to the separate owner’s man-
ual.
3- ( )
The light goes off regardless of whether a door or the lift-
gate is open or closed.
