3-32 Features and controls
3

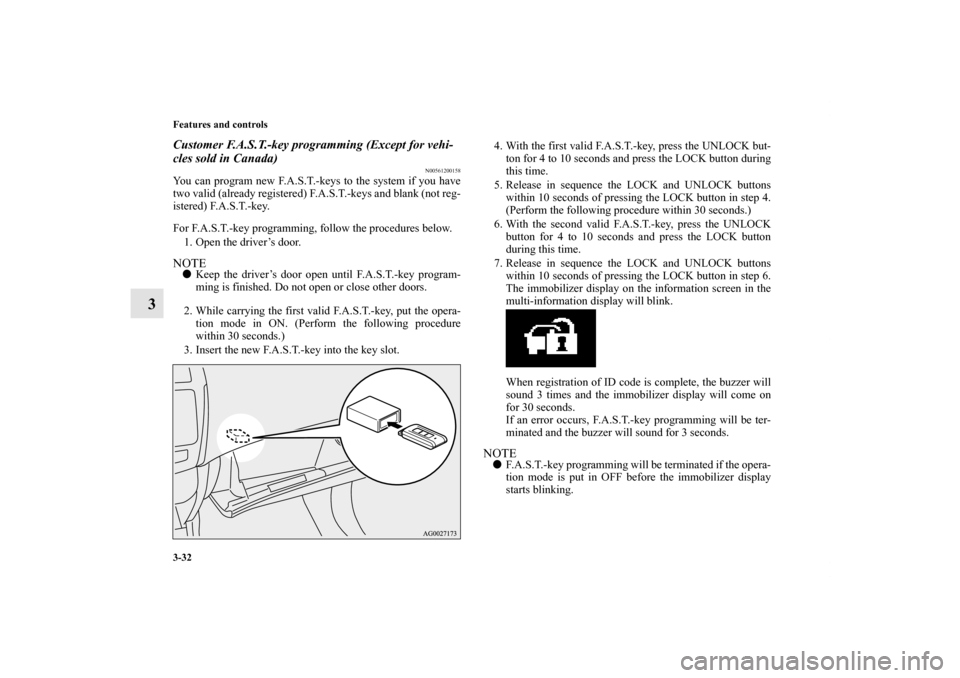

Customer F.A.S.T.-key programming (Except for vehi-
cles sold in Canada)
N00561200158
You can program new F.A.S.T.-keys to the system if you have
two valid (already registered) F.A.S.T.-keys and blank (not reg-
istered) F.A.S.T.-key.
For F.A.S.T.-key programming, follow the procedures below.
1. Open the driver’s door.NOTE
Keep the driver’s door open until F.A.S.T.-key program-
ming is finished. Do not open or close other doors.
2. While carrying the first valid F.A.S.T.-key, put the opera-
tion mode in ON. (Perform the following procedure
within 30 seconds.)
3. Insert the new F.A.S.T.-key into the key slot.4. With the first valid F.A.S.T.-key, press the UNLOCK but-
ton for 4 to 10 seconds and press the LOCK button during
this time.
5. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 4.
(Perform the following procedure within 30 seconds.)
6. With the second valid F.A.S.T.-key, press the UNLOCK
button for 4 to 10 seconds and press the LOCK button
during this time.
7. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 6.
The immobilizer display on the information screen in the
multi-information display will blink.
When registration of ID code is complete, the buzzer will
sound 3 times and the immobilizer display will come on
for 30 seconds.
If an error occurs, F.A.S.T.-key programming will be ter-
minated and the buzzer will sound for 3 seconds.
NOTE
F.A.S.T.-key programming will be terminated if the opera-
tion mode is put in OFF before the immobilizer display
starts blinking.
BK0140300US.book 32 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-33
3
8. If you wish to register another F.A.S.T.-key, repeat the
process from step 1 after the operation mode is put in
OFF.NOTE
The immobilizer display will go off immediately if the
operation mode is put in OFF.

Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.

It is not possible to register a F.A.S.T.-key if the immobi-
lizer display goes off during the procedure.

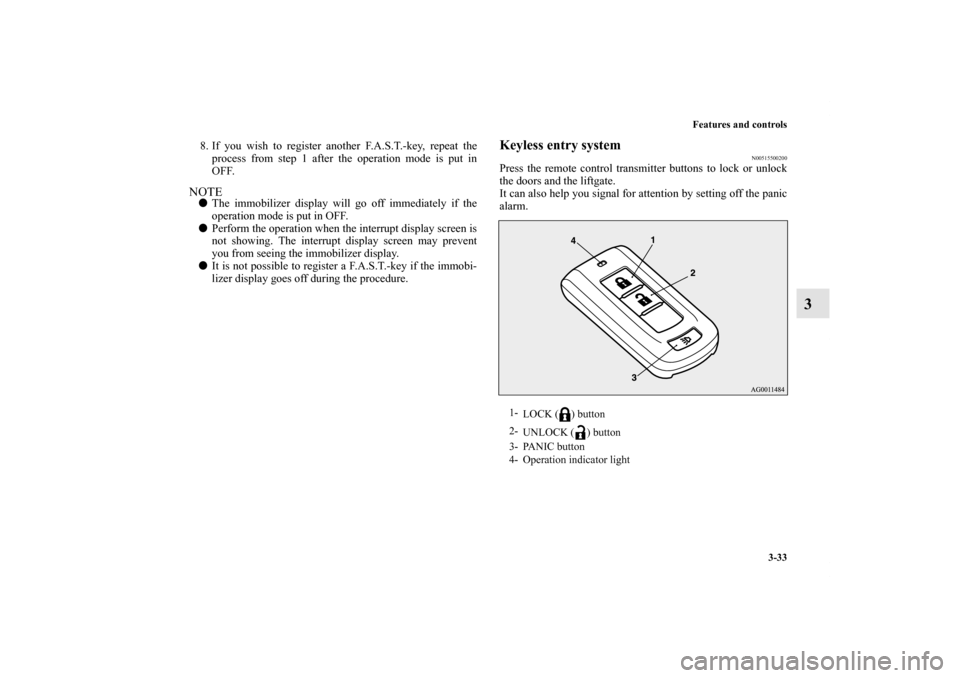

Keyless entry system
N00515500200
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm.1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Operation indicator light
BK0140300US.book 33 ページ ２０１１年６月２８日　火曜日　午後５時１８分

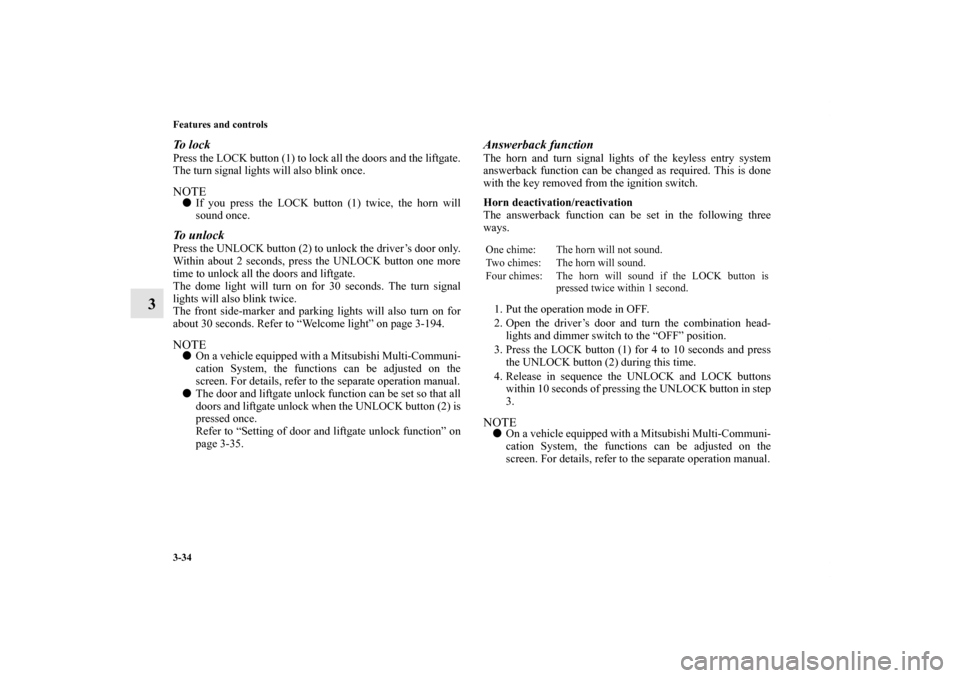

3-34 Features and controls
3
To l o c kPress the LOCK button (1) to lock all the doors and the liftgate.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice, the horn will
sound once.To unlockPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
The front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-194.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

The door and liftgate unlock function can be set so that all
doors and liftgate unlock when the UNLOCK button (2) is
pressed once.
Refer to “Setting of door and liftgate unlock function” on
page 3-35.
Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.
Horn deactivation/reactivation
The answerback function can be set in the following three
ways.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
BK0140300US.book 34 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-35
3
Turn signal light deactivation/reactivation
The answerback function from the turn signal lights can be
turned ON or OFF separately.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Buzzer deactivation/reactivation
The buzzer answerback function can be turned ON or OFF as
required.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Setting of door and liftgate unlock function
N00544600072
The door and liftgate unlock function can be set to the follow-
ing two conditions.
Each time the door and liftgate unlock function is set, a chime
will sound to tell you the condition of the door and liftgate
unlock function.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
Number of
chimes
Condition
One chime All doors and the liftgate unlock
Two chimes Driver’s door unlock only
BK0140300US.book 35 ページ ２０１１年６月２８日　火曜日　午後５時１８分

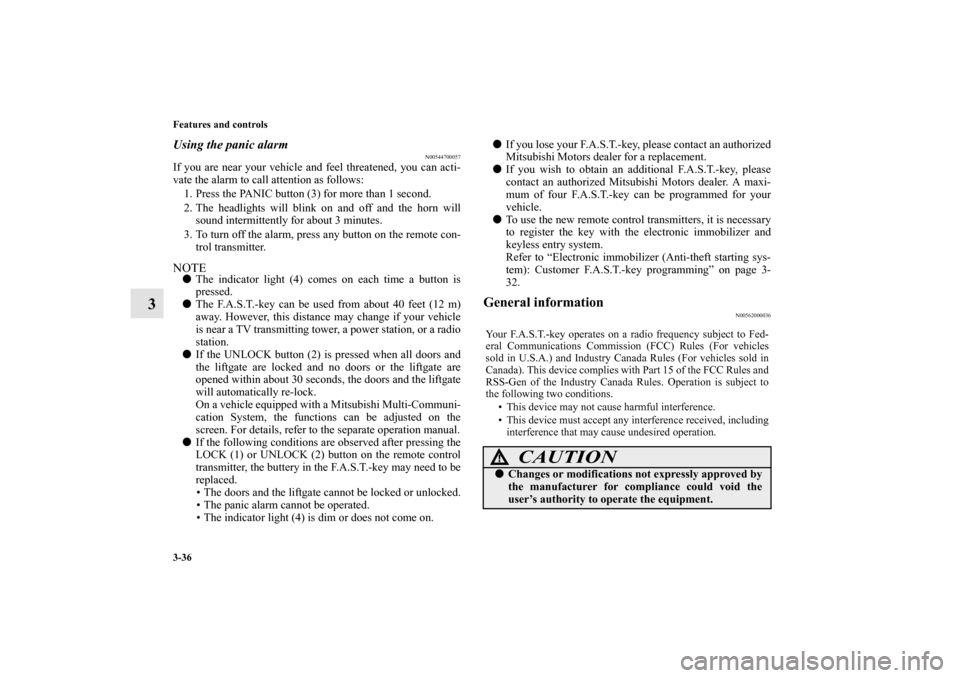

3-36 Features and controls
3
Using the panic alarm
N00544700057
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.NOTE
The indicator light (4) comes on each time a button is
pressed.

The F.A.S.T.-key can be used from about 40 feet (12 m)
away. However, this distance may change if your vehicle
is near a TV transmitting tower, a power station, or a radio
station.

If the UNLOCK button (2) is pressed when all doors and
the liftgate are locked and no doors or the liftgate are
opened within about 30 seconds, the doors and the liftgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the buttery in the F.A.S.T.-key may need to be
replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.
If you lose your F.A.S.T.-key, please contact an authorized
Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional F.A.S.T.-key, please
contact an authorized Mitsubishi Motors dealer. A maxi-
mum of four F.A.S.T.-key can be programmed for your
vehicle.

To use the new remote control transmitters, it is necessary
to register the key with the electronic immobilizer and
keyless entry system.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem): Customer F.A.S.T.-key programming” on page 3-
32.
General information
N00562000036
Your F.A.S.T.-key operates on a radio frequency subject to Fed-
eral Communications Commission (FCC) Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules (For vehicles sold in
Canada). This device complies with Part 15 of the FCC Rules and
RSS-Gen of the Industry Canada Rules. Operation is subject to
the following two conditions.
• This device may not cause harmful interference.
• This device must accept any interference received, including
interference that may cause undesired operation.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0140300US.book 36 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-37
3

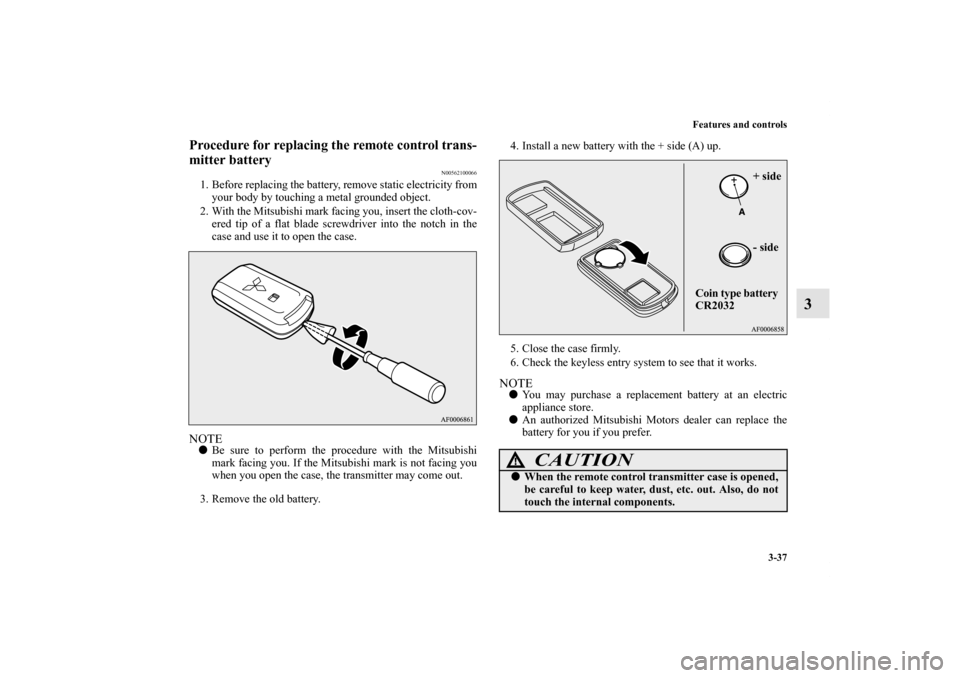

Procedure for replacing the remote control trans-
mitter battery
N00562100066
1. Before replacing the battery, remove static electricity from
your body by touching a metal grounded object.
2. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the case, the transmitter may come out.
3. Remove the old battery.4. Install a new battery with the + side (A) up.
5. Close the case firmly.
6. Check the keyless entry system to see that it works.
NOTE
You may purchase a replacement battery at an electric
appliance store.

An authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
+ side
- side
Coin type battery
CR2032
BK0140300US.book 37 ページ ２０１１年６月２８日　火曜日　午後５時１８分

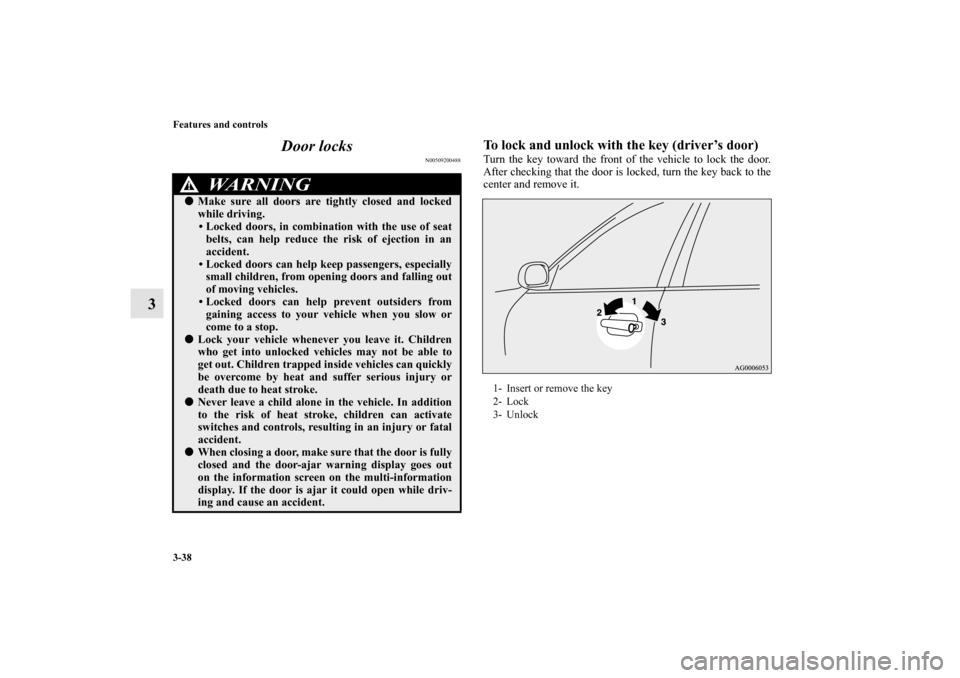

3-38 Features and controls
3Door locks
N00509200488
To lock and unlock with the key (driver’s door)Turn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.
WA R N I N G
!
Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.

Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.
Never leave a child alone in the vehicle. In addition
to the risk of heat stroke, children can activate
switches and controls, resulting in an injury or fatal
accident.
When closing a door, make sure that the door is fully
closed and the door-ajar warning display goes out
on the information screen on the multi-information
display. If the door is ajar it could open while driv-
ing and cause an accident.
1- Insert or remove the key
2- Lock
3- Unlock
BK0140300US.book 38 ページ ２０１１年６月２８日　火曜日　午後５時１８分

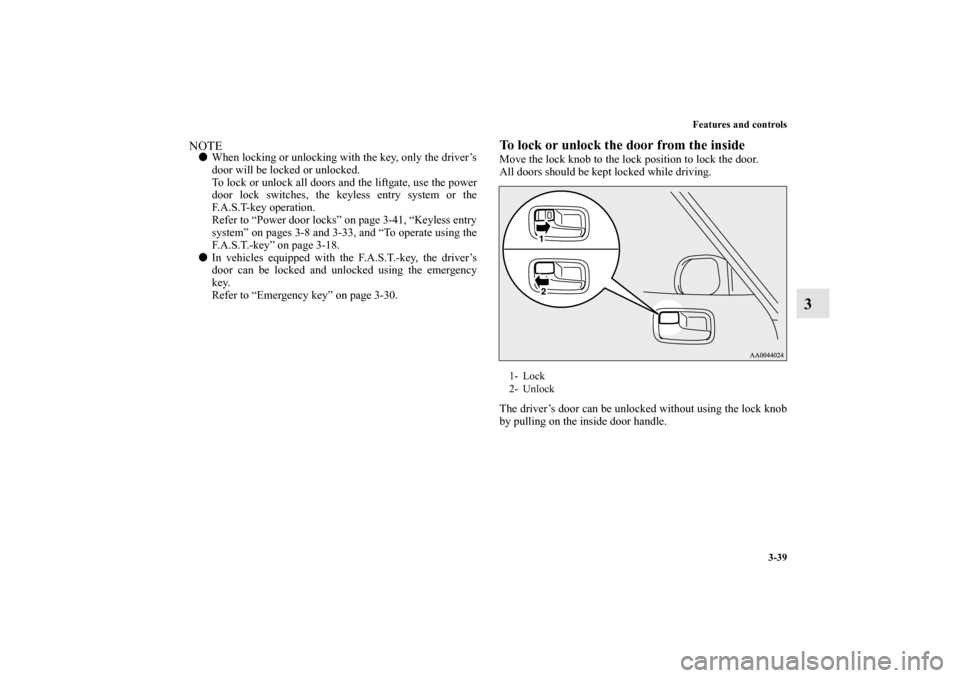

Features and controls
3-39
3
NOTE
When locking or unlocking with the key, only the driver’s
door will be locked or unlocked.
To lock or unlock all doors and the liftgate, use the power
door lock switches, the keyless entry system or the
F.A.S.T-key operation.
Refer to “Power door locks” on page 3-41, “Keyless entry
system” on pages 3-8 and 3-33, and “To operate using the
F.A.S.T.-key” on page 3-18.

In vehicles equipped with the F.A.S.T.-key, the driver’s
door can be locked and unlocked using the emergency
key.
Refer to “Emergency key” on page 3-30.
To lock or unlock the door from the insideMove the lock knob to the lock position to lock the door.
All doors should be kept locked while driving.
The driver’s door can be unlocked without using the lock knob
by pulling on the inside door handle.1- Lock
2- Unlock
BK0140300US.book 39 ページ ２０１１年６月２８日　火曜日　午後５時１８分
