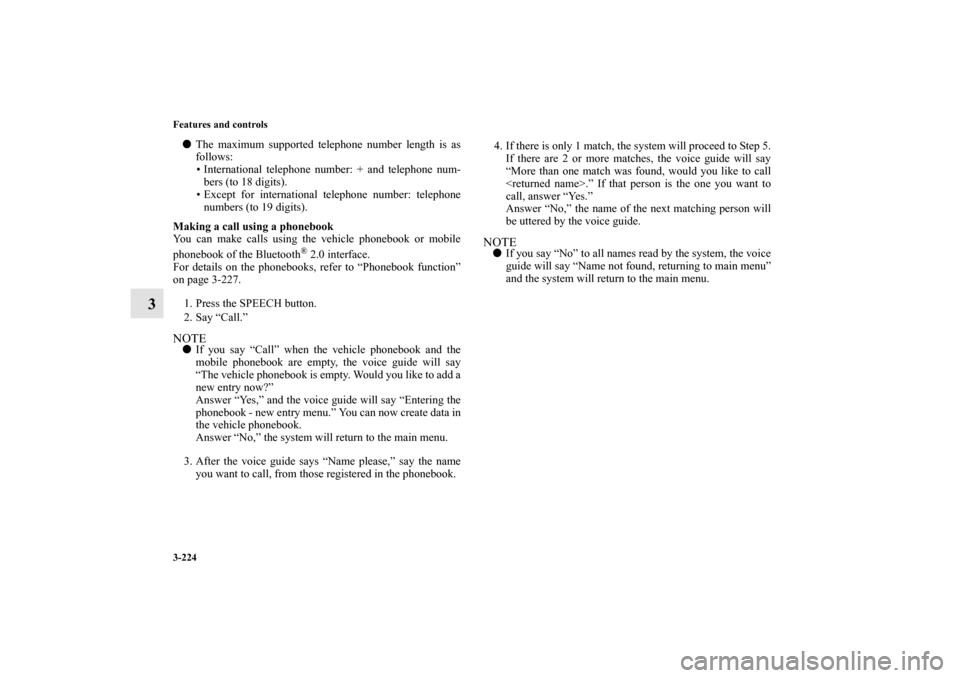

3-224 Features and controls
3

The maximum supported telephone number length is as
follows:
• International telephone number: + and telephone num-
bers (to 18 digits).
• Except for international telephone number: telephone
numbers (to 19 digits).
Making a call using a phonebook
You can make calls using the vehicle phonebook or mobile
phonebook of the Bluetooth
® 2.0 interface.
For details on the phonebooks, refer to “Phonebook function”
on page 3-227.
1. Press the SPEECH button.
2. Say “Call.”
NOTE
If you say “Call” when the vehicle phonebook and the
mobile phonebook are empty, the voice guide will say
“The vehicle phonebook is empty. Would you like to add a
new entry now?”
Answer “Yes,” and the voice guide will say “Entering the
phonebook - new entry menu.” You can now create data in
the vehicle phonebook.
Answer “No,” the system will return to the main menu.
3. After the voice guide says “Name please,” say the name
you want to call, from those registered in the phonebook.4. If there is only 1 match, the system will proceed to Step 5.
If there are 2 or more matches, the voice guide will say
“More than one match was found, would you like to call
.” If that person is the one you want to
call, answer “Yes.”
Answer “No,” the name of the next matching person will
be uttered by the voice guide.
NOTE
If you say “No” to all names read by the system, the voice
guide will say “Name not found, returning to main menu”
and the system will return to the main menu.
BK0140300US.book 224 ページ ２０１１年６月２８日　火曜日　午後５時１８分

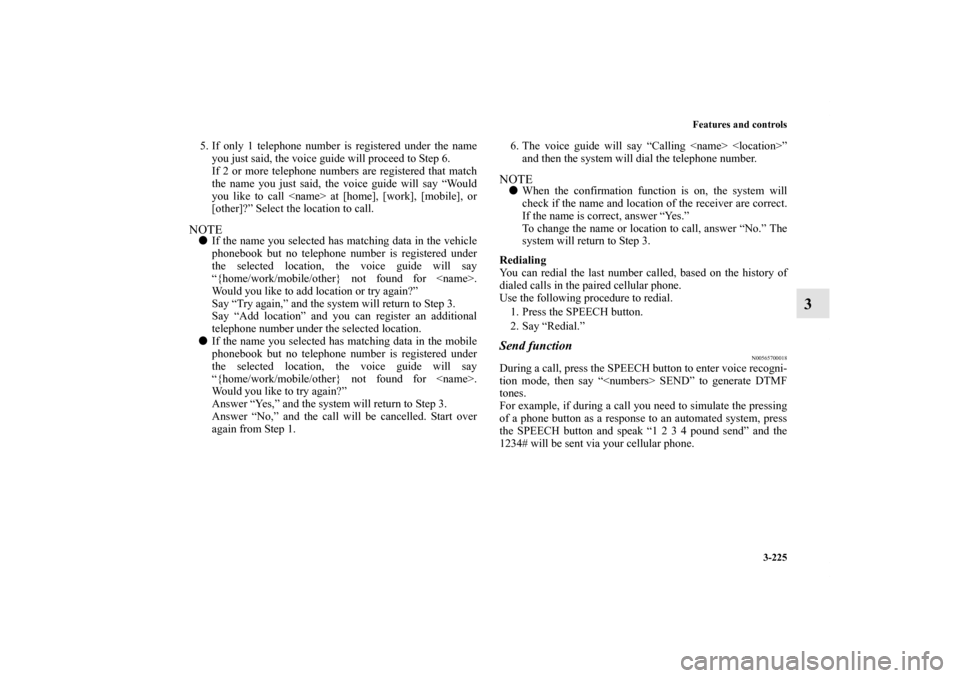

Features and controls
3-225
3
5. If only 1 telephone number is registered under the name
you just said, the voice guide will proceed to Step 6.
If 2 or more telephone numbers are registered that match
the name you just said, the voice guide will say “Would
you like to call at [home], [work], [mobile], or
[other]?” Select the location to call.NOTE
If the name you selected has matching data in the vehicle
phonebook but no telephone number is registered under
the selected location, the voice guide will say
“{home/work/mobile/other} not found for .
Would you like to add location or try again?”
Say “Try again,” and the system will return to Step 3.
Say “Add location” and you can register an additional
telephone number under the selected location.

If the name you selected has matching data in the mobile
phonebook but no telephone number is registered under
the selected location, the voice guide will say
“{home/work/mobile/other} not found for .
Would you like to try again?”
Answer “Yes,” and the system will return to Step 3.
Answer “No,” and the call will be cancelled. Start over
again from Step 1.6. The voice guide will say “Calling ”
and then the system will dial the telephone number.
NOTE
When the confirmation function is on, the system will
check if the name and location of the receiver are correct.
If the name is correct, answer “Yes.”
To change the name or location to call, answer “No.” The
system will return to Step 3.
Redialing
You can redial the last number called, based on the history of
dialed calls in the paired cellular phone.
Use the following procedure to redial.
1. Press the SPEECH button.
2. Say “Redial.”Send function
N00565700018
During a call, press the SPEECH button to enter voice recogni-
tion mode, then say “ SEND” to generate DTMF
tones.
For example, if during a call you need to simulate the pressing
of a phone button as a response to an automated system, press
the SPEECH button and speak “1 2 3 4 pound send” and the
1234# will be sent via your cellular phone.
BK0140300US.book 225 ページ ２０１１年６月２８日　火曜日　午後５時１８分

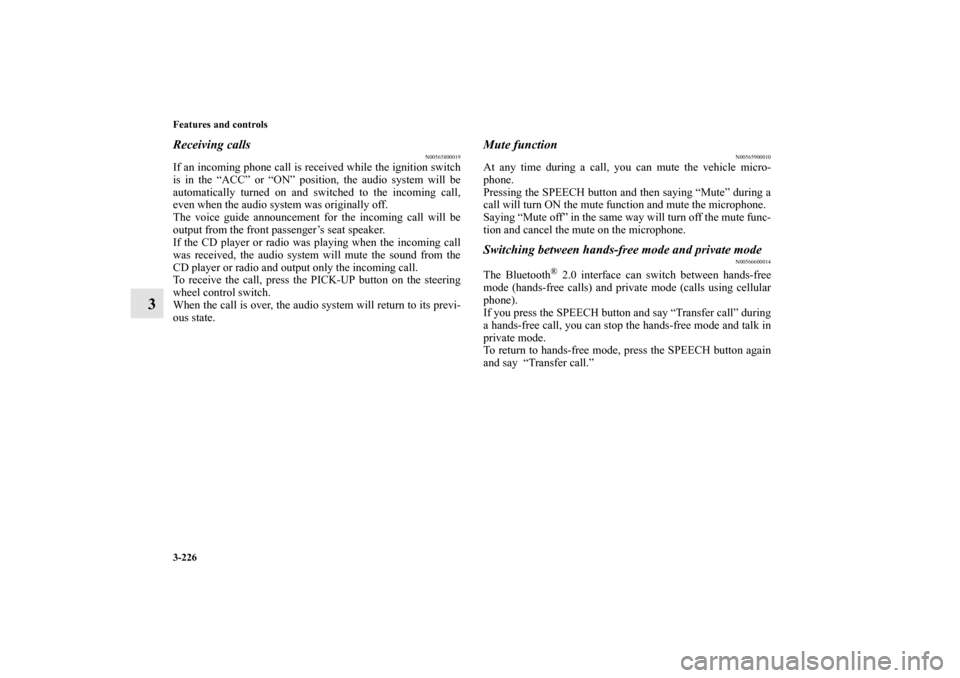

3-226 Features and controls
3
Receiving calls
N00565800019
If an incoming phone call is received while the ignition switch
is in the “ACC” or “ON” position, the audio system will be
automatically turned on and switched to the incoming call,
even when the audio system was originally off.
The voice guide announcement for the incoming call will be
output from the front passenger’s seat speaker.
If the CD player or radio was playing when the incoming call
was received, the audio system will mute the sound from the
CD player or radio and output only the incoming call.
To receive the call, press the PICK-UP button on the steering
wheel control switch.
When the call is over, the audio system will return to its previ-
ous state.
Mute function
N00565900010
At any time during a call, you can mute the vehicle micro-
phone.
Pressing the SPEECH button and then saying “Mute” during a
call will turn ON the mute function and mute the microphone.
Saying “Mute off” in the same way will turn off the mute func-
tion and cancel the mute on the microphone.Switching between hands-free mode and private mode
N00566600014
The Bluetooth
® 2.0 interface can switch between hands-free
mode (hands-free calls) and private mode (calls using cellular
phone).
If you press the SPEECH button and say “Transfer call” during
a hands-free call, you can stop the hands-free mode and talk in
private mode.
To return to hands-free mode, press the SPEECH button again
and say “Transfer call.”
BK0140300US.book 226 ページ ２０１１年６月２８日　火曜日　午後５時１８分

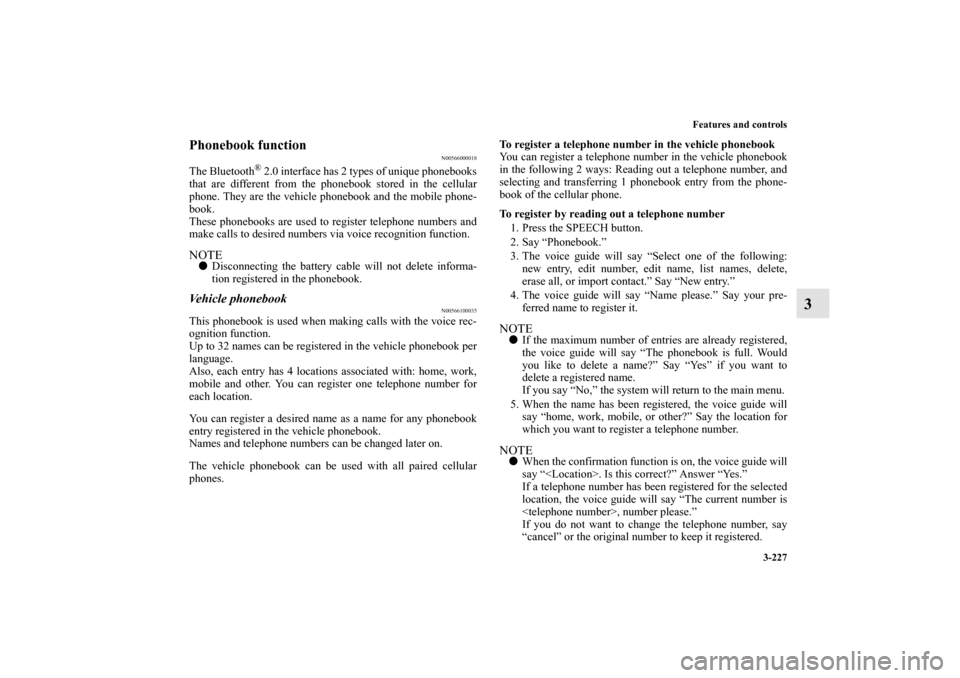

Features and controls
3-227
3
Phonebook function
N00566000018
The Bluetooth
® 2.0 interface has 2 types of unique phonebooks
that are different from the phonebook stored in the cellular
phone. They are the vehicle phonebook and the mobile phone-
book.
These phonebooks are used to register telephone numbers and
make calls to desired numbers via voice recognition function.
NOTE
Disconnecting the battery cable will not delete informa-
tion registered in the phonebook.Vehicle phonebook
N00566100035
This phonebook is used when making calls with the voice rec-
ognition function.
Up to 32 names can be registered in the vehicle phonebook per
language.
Also, each entry has 4 locations associated with: home, work,
mobile and other. You can register one telephone number for
each location.
You can register a desired name as a name for any phonebook
entry registered in the vehicle phonebook.
Names and telephone numbers can be changed later on.
The vehicle phonebook can be used with all paired cellular
phones.To register a telephone number in the vehicle phonebook
You can register a telephone number in the vehicle phonebook
in the following 2 ways: Reading out a telephone number, and
selecting and transferring 1 phonebook entry from the phone-
book of the cellular phone.
To register by reading out a telephone number
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “New entry.”
4. The voice guide will say “Name please.” Say your pre-
ferred name to register it.
NOTE
If the maximum number of entries are already registered,
the voice guide will say “The phonebook is full. Would
you like to delete a name?” Say “Yes” if you want to
delete a registered name.
If you say “No,” the system will return to the main menu.
5. When the name has been registered, the voice guide will
say “home, work, mobile, or other?” Say the location for
which you want to register a telephone number.NOTE
When the confirmation function is on, the voice guide will
say “. Is this correct?” Answer “Yes.”
If a telephone number has been registered for the selected
location, the voice guide will say “The current number is
, number please.”
If you do not want to change the telephone number, say
“cancel” or the original number to keep it registered.
BK0140300US.book 227 ページ ２０１１年６月２８日　火曜日　午後５時１８分

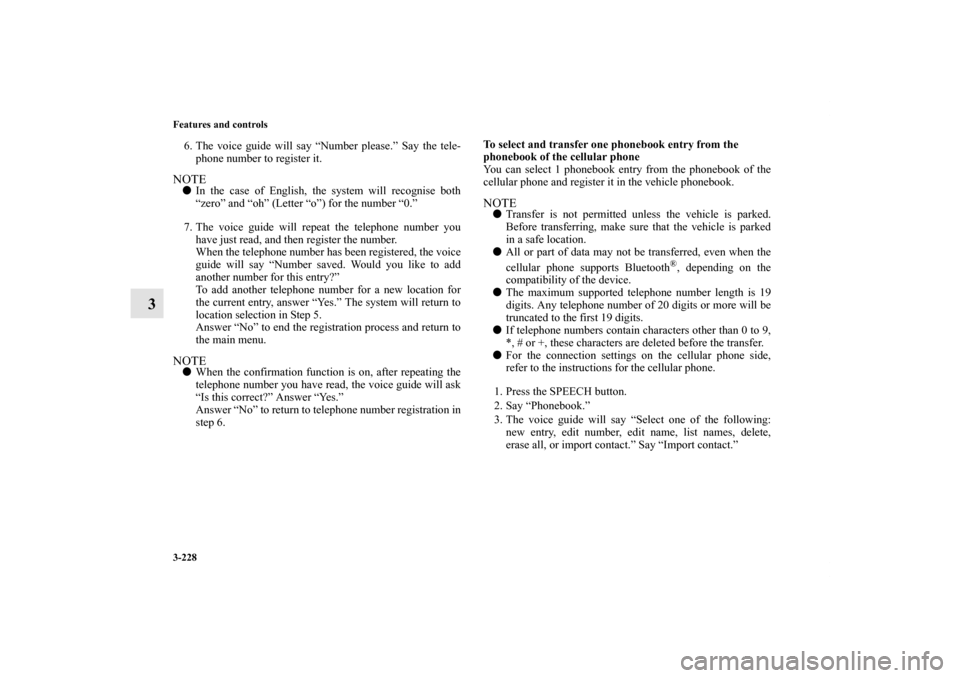

3-228 Features and controls
3
6. The voice guide will say “Number please.” Say the tele-
phone number to register it.NOTE
In the case of English, the system will recognise both
“zero” and “oh” (Letter “o”) for the number “0.”
7. The voice guide will repeat the telephone number you
have just read, and then register the number.
When the telephone number has been registered, the voice
guide will say “Number saved. Would you like to add
another number for this entry?”
To add another telephone number for a new location for
the current entry, answer “Yes.” The system will return to
location selection in Step 5.
Answer “No” to end the registration process and return to
the main menu.NOTE
When the confirmation function is on, after repeating the
telephone number you have read, the voice guide will ask
“Is this correct?” Answer “Yes.”
Answer “No” to return to telephone number registration in
step 6.To select and transfer one phonebook entry from the
phonebook of the cellular phone
You can select 1 phonebook entry from the phonebook of the
cellular phone and register it in the vehicle phonebook.
NOTE
Transfer is not permitted unless the vehicle is parked.
Before transferring, make sure that the vehicle is parked
in a safe location.

All or part of data may not be transferred, even when the
cellular phone supports Bluetooth
®, depending on the
compatibility of the device.

The maximum supported telephone number length is 19
digits. Any telephone number of 20 digits or more will be
truncated to the first 19 digits.

If telephone numbers contain characters other than 0 to 9,
*, # or +, these characters are deleted before the transfer.

For the connection settings on the cellular phone side,
refer to the instructions for the cellular phone.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Import contact.”
BK0140300US.book 228 ページ ２０１１年６月２８日　火曜日　午後５時１８分

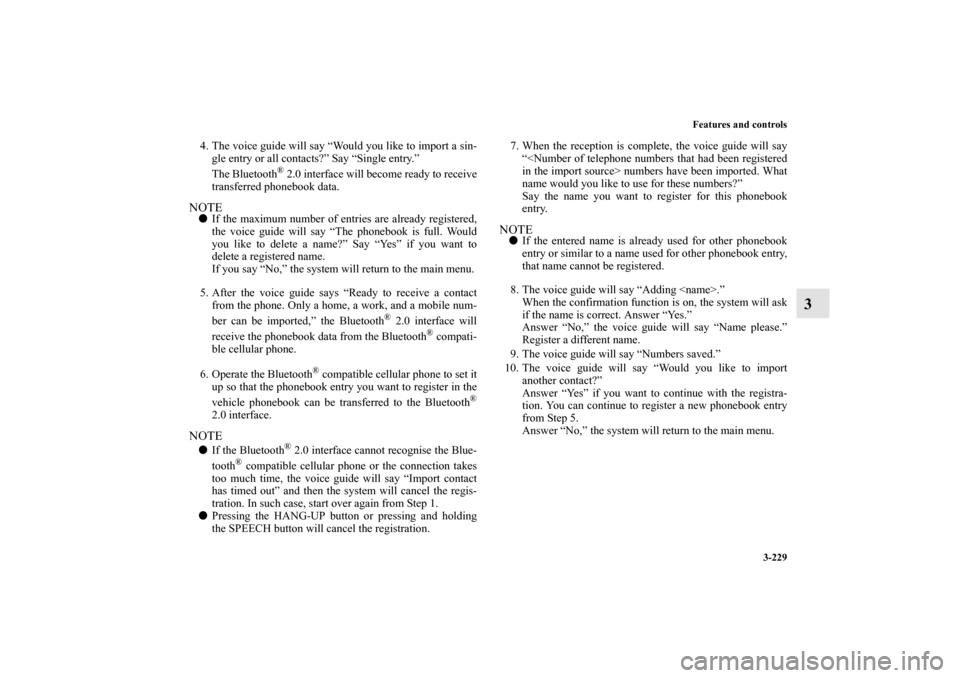

Features and controls
3-229
3
4. The voice guide will say “Would you like to import a sin-
gle entry or all contacts?” Say “Single entry.”
The Bluetooth
® 2.0 interface will become ready to receive
transferred phonebook data.
NOTE
If the maximum number of entries are already registered,
the voice guide will say “The phonebook is full. Would
you like to delete a name?” Say “Yes” if you want to
delete a registered name.
If you say “No,” the system will return to the main menu.
5. After the voice guide says “Ready to receive a contact
from the phone. Only a home, a work, and a mobile num-
ber can be imported,” the Bluetooth
® 2.0 interface will
receive the phonebook data from the Bluetooth
® compati-
ble cellular phone.
6. Operate the Bluetooth
® compatible cellular phone to set it
up so that the phonebook entry you want to register in the
vehicle phonebook can be transferred to the Bluetooth
®
2.0 interface.
NOTE
If the Bluetooth
® 2.0 interface cannot recognise the Blue-
tooth
® compatible cellular phone or the connection takes
too much time, the voice guide will say “Import contact
has timed out” and then the system will cancel the regis-
tration. In such case, start over again from Step 1.

Pressing the HANG-UP button or pressing and holding
the SPEECH button will cancel the registration.7. When the reception is complete, the voice guide will say
“ in the import source> numbers have been imported. What
name would you like to use for these numbers?”
Say the name you want to register for this phonebook
entry.
NOTE
If the entered name is already used for other phonebook
entry or similar to a name used for other phonebook entry,
that name cannot be registered.
8. The voice guide will say “Adding .”
When the confirmation function is on, the system will ask
if the name is correct. Answer “Yes.”
Answer “No,” the voice guide will say “Name please.”
Register a different name.
9. The voice guide will say “Numbers saved.”
10. The voice guide will say “Would you like to import
another contact?”
Answer “Yes” if you want to continue with the registra-
tion. You can continue to register a new phonebook entry
from Step 5.
Answer “No,” the system will return to the main menu.
BK0140300US.book 229 ページ ２０１１年６月２８日　火曜日　午後５時１８分

3-230 Features and controls
3
To change the content registered in the vehicle phonebook
You can change or delete a name or telephone number regis-
tered in the vehicle phonebook.
You can also listen to the list of names registered in the vehicle
phonebook.NOTE
The system must have at least one entry.
[Editing a telephone number]
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact”. Say “Edit number.”
4. The voice guide will say “Please say the name of the entry
you would like to edit, or say list names.” Say the name of
the phonebook entry you want to edit.NOTE
Say “List names,” and the names registered in the phone-
book will be read out in order. Refer to “Vehicle phone-
book: Listening to the list of registered names” on page 3-
227.
5. The voice guide will say “Home, work, mobile or other?”
Select and say the location where the telephone number
you want to change or add is registered.
When the confirmation function is on, the system will
check the target name and location again. Answer “Yes” if
you want to continue with the editing.
Answer “No,” the system will return to Step 3.6. The voice guide will say “Number, please.” Say the tele-
phone number you want to register.
NOTE
If the telephone number is already registered in the
selected location, the voice guide will say “The current
number is . New number, please.” Say a
new telephone number to change the current number.
7. The voice guide will repeat the telephone number.
When the confirmation function is on, the system will ask
if the number is correct. Answer “Yes.”
Answer “No,” the system will return to the Step 3.
8. Once the telephone number is registered, the voice guide
will say “Number saved” and then the system will return
to the main menu.NOTE
If the location where a telephone number was already reg-
istered has been overwritten with a new number, the voice
guide will say “Number changed” and then the system
will return to the main menu.
BK0140300US.book 230 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Features and controls
3-231
3

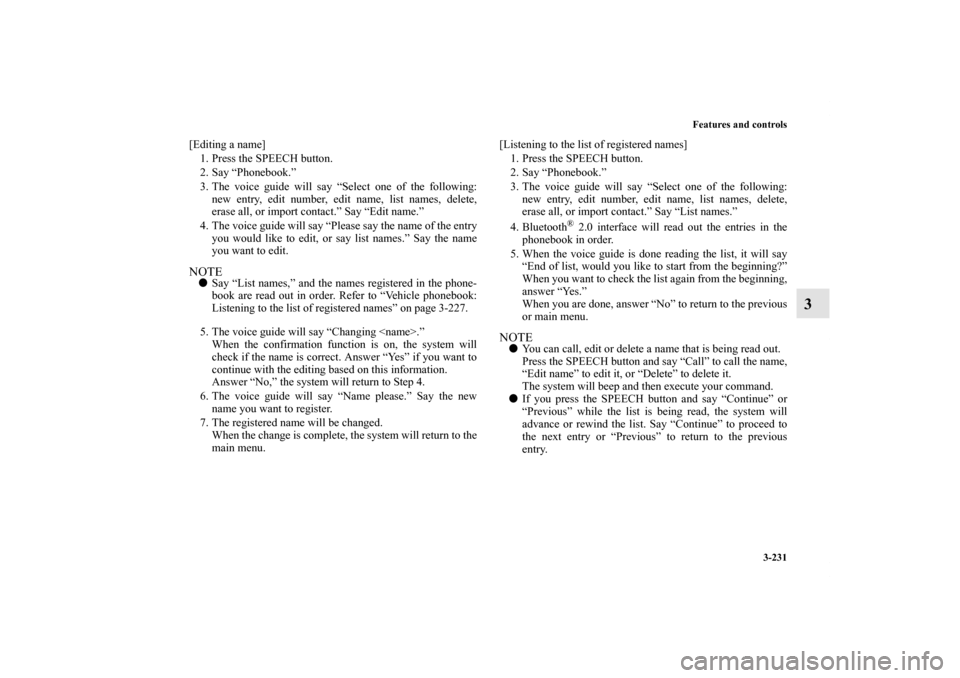

[Editing a name]
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Edit name.”
4. The voice guide will say “Please say the name of the entry
you would like to edit, or say list names.” Say the name
you want to edit.NOTE
Say “List names,” and the names registered in the phone-
book are read out in order. Refer to “Vehicle phonebook:
Listening to the list of registered names” on page 3-227.
5. The voice guide will say “Changing .”
When the confirmation function is on, the system will
check if the name is correct. Answer “Yes” if you want to
continue with the editing based on this information.
Answer “No,” the system will return to Step 4.
6. The voice guide will say “Name please.” Say the new
name you want to register.
7. The registered name will be changed.
When the change is complete, the system will return to the
main menu.[Listening to the list of registered names]
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “List names.”
4. Bluetooth
® 2.0 interface will read out the entries in the
phonebook in order.
5. When the voice guide is done reading the list, it will say
“End of list, would you like to start from the beginning?”
When you want to check the list again from the beginning,
answer “Yes.”
When you are done, answer “No” to return to the previous
or main menu.
NOTE
You can call, edit or delete a name that is being read out.
Press the SPEECH button and say “Call” to call the name,
“Edit name” to edit it, or “Delete” to delete it.
The system will beep and then execute your command.

If you press the SPEECH button and say “Continue” or
“Previous” while the list is being read, the system will
advance or rewind the list. Say “Continue” to proceed to
the next entry or “Previous” to return to the previous
entry.
BK0140300US.book 231 ページ ２０１１年６月２８日　火曜日　午後５時１８分
