Lexus parking assist-sensor
: If equipped
The distance from your vehicle to nearby obstacles when parallel
parking or maneuvering into a garage is measured by the sensors and
communicated via the multi-information display, navigation system
screen (if equipped) and a buzzer. Always check the surrounding area
when using this system.
Types of sensors
Front corner sensors
Rear corner sensors
Rear center sensors
Lexus parking assist-sensor switch
Turns the Lexus parking
assist-sensor on/off
When on, the buzzer sounds
and the indicator light comes
on to inform the driver that
the system is operational.

274
2-4. Using other driving systems
CT200h_OM_OM76067E_(EE)
Display
When the sensors detect an obstacle, a graphic is shown on the
multi information display depending on the position and distance
to the obstacle.
Multi-information display
Front corner sensor operation
Rear corner sensor operation
Rear center sensor operation
Navigation system screen (if equipped)
When the vehicle is moving
forward
A graphic is automatically dis-
played when an obstacle is
detected. The screen can be set
so that the graphic is not dis-
played. (P. 278)
When the vehicle is moving
backward
A simplified image is displayed
on the right upper corner of the
navigation system screen when
an obstacle is detected.

275
2-4. Using other driving systems
2
When driving
CT200h_OM_OM76067E_(EE)
The distance display and buzzer
When a sensor detects an obstacle, the direction of and the approx-
imate distance to the obstacle are displayed and the buzzer sounds.
Corner sensors
Detect
ion
levelMulti-
informa-
tion dis-
playNaviga-
tion sys-
tem
screen
Naviga-
tion sys-
tem
screen
(insert
display)
Approxi-
mate dis-
tance to
obstacle
Buzzer
2
(continu-
ous)(continu-
ous)(blinking)
50 to 37.5
cm (1.6 to
1.2 ft.)
Medium
3
(continu-
ous)(continu-
ous)(blinking
rapidly)
37.5 to 25
cm (1.2 to
0.8 ft.)
Fast
4
(blinking)(continu-
ous)(continu-
ous)
25 cm (0.8
ft.) or lessContinuous

276
2-4. Using other driving systems
CT200h_OM_OM76067E_(EE)Rear center sensors
Detec-
tion
levelMulti-infor-
mation dis-
play
Navigation
system
screen
(insert dis-
play)
Approximate
distance to
obstacle
Buzzer
1
(continuous)(blinking
slowly)
150 to 60 cm
(4.9 to 2.0 ft.)Slow
2
(continuous)(blinking)
60 to 45 cm
(2.0 to 1.5 ft.)Medium
3
(continuous)(blinking
rapidly)
45 to 35 cm
(1.5 to 1.2 ft.)Fast
4
(blinking)(continuous)
35 cm (1.2 ft.)
or lessContinuous

277
2-4. Using other driving systems
2
When driving
CT200h_OM_OM76067E_(EE)
Detection range of the sensors
Approximately 50 cm (1.6
ft.)
Approximately 150 cm (4.9
ft.)
Approximately 50 cm (1.6
ft.)
The diagram shows the detec-
tion range of the sensors. Note
that the sensors cannot detect
obstacles that are extremely
close to the vehicle.
The range of the sensors may
change depending on the shape
of the object etc.

278
2-4. Using other driving systems
CT200h_OM_OM76067E_(EE)

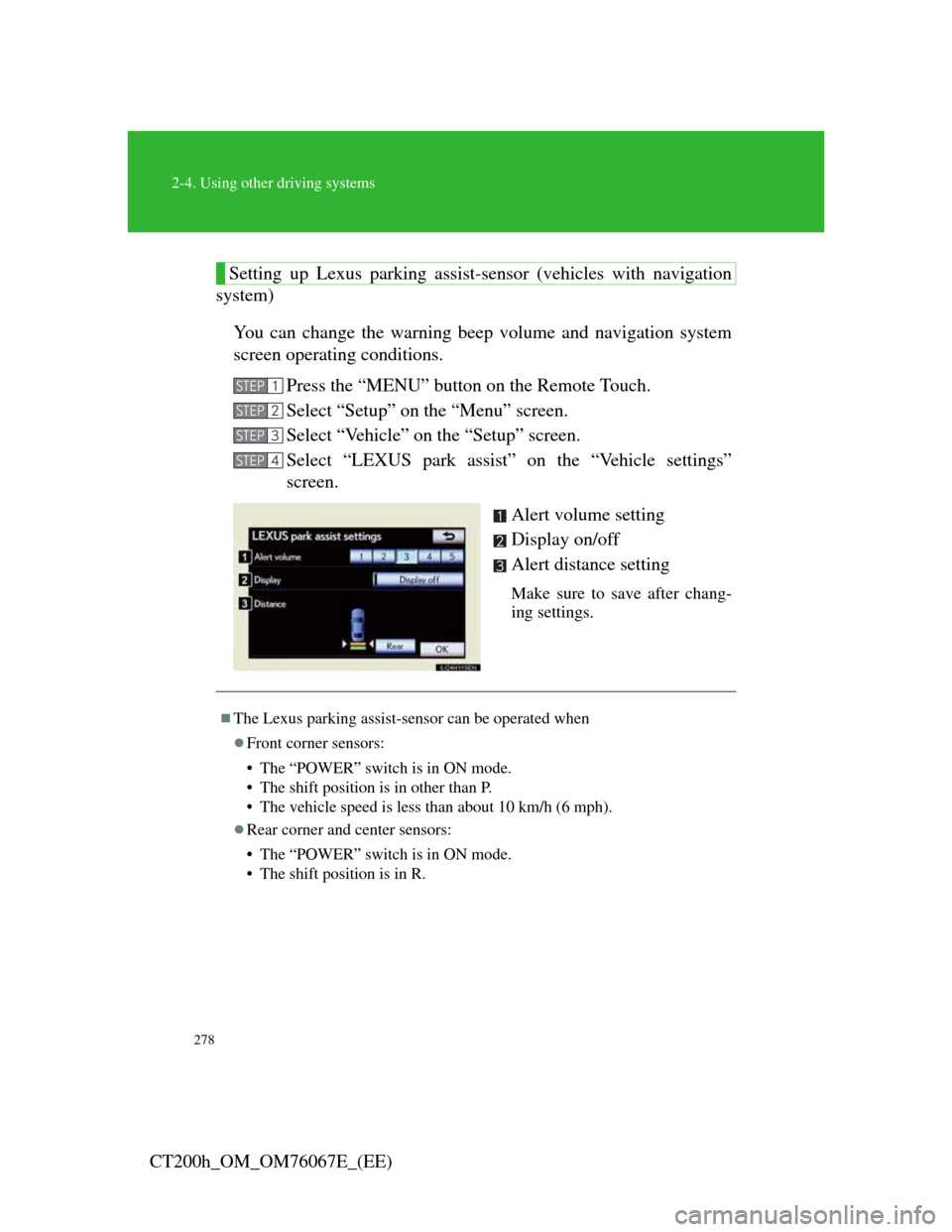

Setting up Lexus parking assist-sensor (vehicles with navigation
system)
You can change the warning beep volume and navigation system
screen operating conditions.
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “Menu” screen.
Select “Vehicle” on the “Setup” screen.
Select “LEXUS park assist” on the “Vehicle settings”
screen.
Alert volume setting
Display on/off
Alert distance setting
Make sure to save after chang-
ing settings.
STEP1
STEP2
STEP3
STEP4
The Lexus parking assist-sensor can be operated when
Front corner sensors:
• The “POWER” switch is in ON mode.
• The shift position is in other than P.
• The vehicle speed is less than about 10 km/h (6 mph).
Rear corner and center sensors:
• The “POWER” switch is in ON mode.
• The shift position is in R.

279
2-4. Using other driving systems
2
When driving
CT200h_OM_OM76067E_(EE)
Sensor detection information
Certain vehicle conditions and the surrounding environment may affect
the ability of a sensor to correctly detect an obstacle. Particular instances
where this may occur are listed below.
• There is dirt, snow or ice on a sensor.
• A sensor is frozen.
• A sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle
engines, air brakes of large vehicles, or other loud noises producing
ultrasonic waves.
• There is another vehicle equipped with parking assist sensors in the
vicinity.
• A sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or radio antenna.
• Towing eyelets are installed.
• A bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or right-angled curb.
• In harsh sunlight or intense cold weather
• A non-genuine Lexus suspension (lowered suspension etc.) is
installed.
In addition to the examples above, there are instances in which, because of
their shape, signs and other objects may be judged by a sensor to be closer
than they are.
The shape of the obstacle may prevent a sensor from detecting it. Pay
particular attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that absorb sound waves
• Sharply-angled objects
•Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction
of your vehicle

280
2-4. Using other driving systems
CT200h_OM_OM76067E_(EE)
Navigation system screen display (if equipped)
If an obstacle is detected while the vehicle is reversing, the warning indica-
tor will appear in the top right of the screen even if the display setting has
been set to off.
If a message is displayed
P. 5 7 8
CAUTION
Caution when using the Lexus parking assist-sensor
Observe the following precautions.
Failure to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
Do not use the sensor at speeds in excess of 10 km/h (6 mph).
Do not attach any accessories within the sensor range.
