4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)Front fog lights (if equipped)

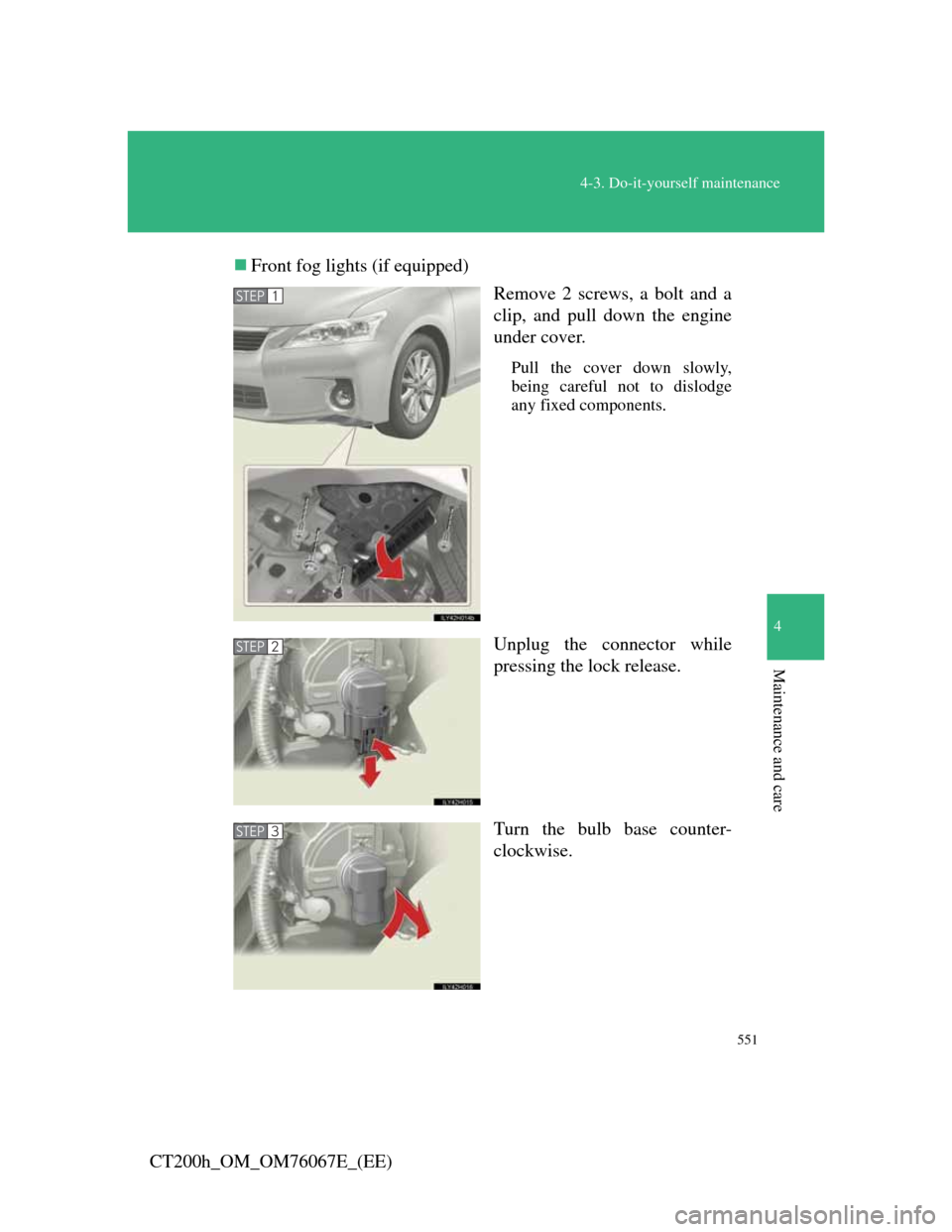

Remove 2 screws, a bolt and a
clip, and pull down the engine
under cover.
Pull the cover down slowly,
being careful not to dislodge
any fixed components.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
STEP1
STEP2
STEP3

552
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)Front turn signal lights (halogen headlights)
For the right side only: Remove the securing clips and
unclip the engine coolant reservoir hose. Then lift up the air
cleaner inlet duct. (P. 548)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
STEP1
STEP2
STEP3

553
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)Front turn signal lights (LED headlights)
Left side
Remove the power control unit
cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
STEP1
STEP2
STEP3

554
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)Right side
Move the washer fluid filler opening. (P. 549)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
STEP1
STEP2
STEP3

555
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)Rear turn signal lights
Open the back door and remove
the covers and bolts, and
remove the lamp assembly by
pulling it directly backward
from the rear of the vehicle.
Use a flathead screwdriver
wrapped in a cloth.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
STEP1
STEP2
STEP3

556
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)Back-up light/rear fog light
Open the back door and remove
the cover.
Use a flathead screwdriver
wrapped in a cloth.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
The illustrations show the removal of a back-up light from a right-
hand drive vehicle.
STEP1
STEP2
STEP3

557
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)License plate lights
Open the back door and remove
the cover.
Use a flathead screwdriver
wrapped in a cloth.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
STEP1
STEP2
STEP3

558
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Headlight low beams (LED type)
Front position lights and daytime running lights
Side turn signal lights
Stop/tail lights
High mounted stoplight
Outer foot light
After replacing the bulbs
After lifting up the air cleaner duct or
removing the power control unit cover,
return the duct or the cover to their origi-
nal positions with the clips.
Push up center portion
Insert
Press
