2012 Lexus CT200h Owner's Manual (in English)

336
3-2. Using the audio system
CT200h_OM_OM76067E_(EE)

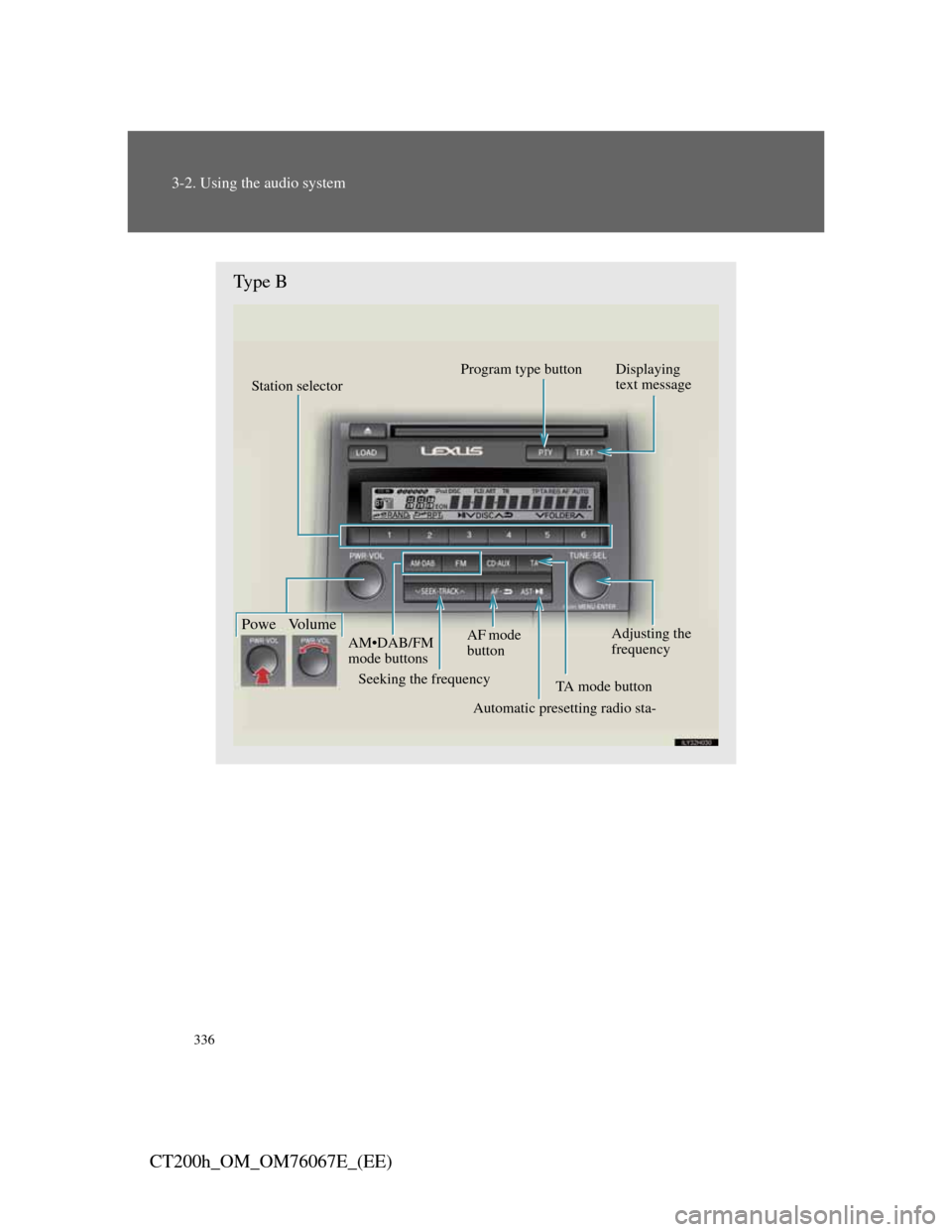

Type B
Station selector
Displaying
text message
Adjusting the
frequency
Automatic presetting radio sta- Seeking the frequency AM•DAB/FM
mode buttonsPowe Volume
Program type button
AF mode
button
TA mode button

337
3-2. Using the audio system
3
Interior features
CT200h_OM_OM76067E_(EE)
Setting station presets
Manually operation
Search for the desired stations by turning or press-
ing “”or “” on .
Press and hold the button (from
to ) the station
is to be set to until you hear a beep.
Automatically operation
Press and hold (type A) or (type B) until you hear a
beep.
Up to 6 stations are set in order of reception quality. When the
setting is complete, 2 beeps will be heard.
Type B:In the FM1 or FM2 mode, the stations automatically set
by the audio system will be set in the FM3 presets.
STEP1
STEP2

338
3-2. Using the audio system
CT200h_OM_OM76067E_(EE)
RDS (Radio Data System)
This feature allows your radio to receive station and program
information (classical, news, etc.) from radio stations which broad-
cast this information.
Listening to stations of the same network
Press (type A) or (type B).
“AF-ON”, “REG-OFF” modes:A station among those of the
same network with strong recep-
tion is selected.
“AF-ON”, “REG-ON” modes:A station among those of the
same network with strong recep-
tion and broadcasting the same pro-
gram is selected.
Each time (type A) or (type B) is pressed, the mode
changes in the following order:
“AF-ON”, “REG-OFF” “AF-ON”, “REG-ON” 
“AF-OFF”, “REG-OFF”
Selecting program type (type B)
Press .
Each time is pressed, the program type changes in the following
order:
“NEWS” “SPORTS” “TALK” “POP” “CLASSICS”

339
3-2. Using the audio system
3
Interior features
CT200h_OM_OM76067E_(EE)Traffic information
Press .
TP mode: The system automatically switches to traffic informa-
tion when a broadcast with a traffic information signal
is received.
The station returns to the previous one when the traffic
information ends.
TA mode:Traffic information can be heard only when a signal is
received. The system switches to the mute mode when
a signal is not received. In CD or MP3/WMA mode,
the system automatically switches to traffic informa-
tion when a signal is received.
The audio system returns to the mute, CD or MP3/
WMA mode when the traffic information ends.
Audio system mode changes as follows each time . is
pressed:
FM modes: “TP” “TA” off
Modes other than the radio modes: “TA” off
Emergency broadcast reception mode
“ALARM” appears in the display in the event that an emergency
broadcast is received, and the emergency broadcast is aired.

340
3-2. Using the audio system
CT200h_OM_OM76067E_(EE)
EON (Enhanced Other Network) system (for traffic announcement func-
tion)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
When the 12-volt battery is disconnected
All preset stations are erased.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the
continually changing position of the antenna, differences in signal
strength and surrounding objects, such as trains, transmitters, etc.
When (type A) or (type B) is used, automatic station selec-
tion may not be possible.
The radio antenna is mounted on the rear roof. The antenna can be
removed from the base by turning.
Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.
NOTICE
To prevent damage, remove the antenna in the following cases
The antenna will touch the ceiling of a garage.
A cover will be put on the roof.
When driving through an automatic car wash.
Any other cases where there is a risk of touching surrounding parts.

341
3-2. Using the audio system
3
Interior features
CT200h_OM_OM76067E_(EE)
Using the CD player
Type A
Displaying
text message
Selecting a track Random
playback
Powe Volume
CD eject
Repeat play
Playback

342
3-2. Using the audio system
CT200h_OM_OM76067E_(EE)
Type B
CD insertDisplaying text
message
Selecting a track Random
playback
Powe Volume
CD eject
Repeat playCD selection
Playback Playback/pause

343
3-2. Using the audio system
3
Interior features
CT200h_OM_OM76067E_(EE)
Loading a CD
Loading a CD
Ty p e A
Insert a CD.
Ty p e B
Press .
“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green,
insert a CD.
The display changes from “WAIT” to “LOAD”.
Loading multiple CDs (type B)
Press and hold until you hear a beep.
“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green,
insert a CD.
The display changes from “WAIT” to “LOAD”.
The indicator on the slot turns to amber when the CD is being
inserted.
When the indicator on the slot turns from amber to green,
insert the next CD.
Repeat the procedure for the remaining CDs.
To cancel the operation, press . If you do not insert a disc
within 15 seconds, loading will be canceled automatically.
STEP1
STEP2
STEP1
STEP2
STEP3
