Ty p e C
Normal fuse
Blown fuse
Replace the blown fuse with
a new fuse of an appropriate
amperage rating. The amper-
age rating can be found on
the fuse box lid.
Ty p e D
Normal fuse
Blown fuse
Replace the blown fuse with
a new fuse of an appropriate
amperage rating. The amper-
age rating can be found on
the fuse box lid.

536
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Fuse layout and amperage ratings
Engine compartment
FuseAmpereCircuit
1DC/DC125 AInverter and converter
2HTR50 AAir conditioning system
3RDI30 AElectric cooling fans
4CDS30 AElectric cooling fans
5RAD NO.115 AAudio system, navigation system
6S-HORN10 ANavigation system
7ENG W/P30 ACooling system
8ABS MAIN
NO.27.5 AElectronically controlled brake
system
9H-LP CLN30 AHeadlight cleaner
10P CON MTR30 AP position control system

537
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
11AMP NO.230 AAudio system
12ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection
system
13IGCT30 APCU, IGCT NO.2, IGCT NO.3
14DC/DC-S5 AInverter and converter
15P CON MAIN7.5 AP position control system, P posi-
tion switch
16AM27.5 APower management system
17ECU-B27.5 ASmart entry & start system
18MAYDAY10 ANo circuit
19ECU-B310 AAir conditioning system
20TURN & HAZ10 ATurn signal lights, emergency
flashers
21AMP NO.130 AAudio system
22ABS MAIN
NO.120 AElectronically controlled brake
system
23P/I 240 A
P position control system, horn,
headlights (low beam), back-up
light
24ABS MTR 130 AElectronically controlled brake
system
25ABS MTR 230 AElectronically controlled brake
system
26H-LP HI MAIN20 AH-LP RH HI, H-LP LH HI
FuseAmpereCircuit

538
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
27DRL7.5 ADaytime running light system
28DOOR NO.225 APower door lock system
29P/I 160 AIG2, EFI MAIN, BATT FAN
30EPS60 AElectric power steering system
31PCU10 AHybrid system
32IGCT NO.210 A
Hybrid system, P position control
system, power management sys-
tem
33IGCT NO.310 ACooling system
34DOME10 A
Luggage compartment light, over-
head module, interior lights, per-
sonal lights, vanity lights, footwell
lights
35ECU-B7.5 A
Smart entry & start system, gauges
and meters, outside rear view mir-
rors, air conditioning system, driv-
ing position memory system,
electric power steering system,
clock
36H-LP LH HI10 ALeft-hand headlight (high beam)
37H-LP RH HI10 ARight-hand headlight (high beam)
FuseAmpereCircuit

539
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
38EFI NO. 210 A
Multiport fuel injection system/
sequential multiport fuel injection
system, exhaust system, key off
pump module, electric cooling
fans
39M-HTR10 AOutside rear view mirror defoggers
40SPARE30 ASpare fuse
41SPARE10 ASpare fuse
42SPARE7.5 ASpare fuse
43EFI MAIN20 A
Multiport fuel injection system/
sequential multiport fuel injection
system, cooling system, EFI NO.2
44BATT FAN10 ABattery cooling fan
45IG220 A
Hybrid system, multiport fuel
injection system/sequential multi-
port fuel injection system, MET,
IGN, power management system
FuseAmpereCircuit

540
4-3. Do-it-yourself maintenance

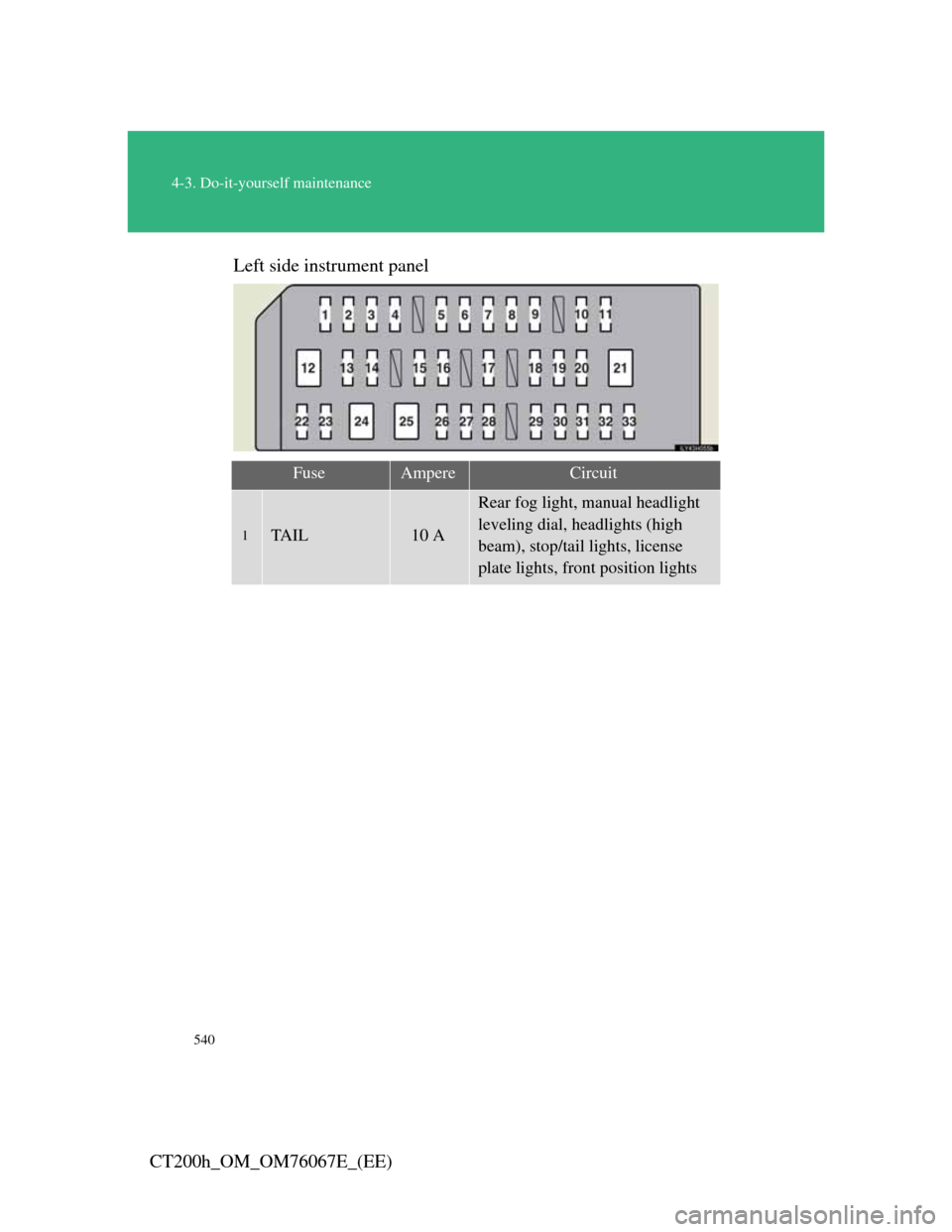

CT200h_OM_OM76067E_(EE)Left side instrument panel
FuseAmpereCircuit
1TA I L10 A
Rear fog light, manual headlight
leveling dial, headlights (high
beam), stop/tail lights, license
plate lights, front position lights

541
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
2PANEL10 A
Audio system, Lexus parking
assist-sensor switch, windshield
wiper de-icer switch, navigation
system, fuel filler door opener,
glove box light, headlight cleaner
switch, emergency flasher switch,
manual headlight leveling dial, air
conditioning system, outside rear
view mirrors, driving mode select
switch, P position switch, instru-
ment panel light control dial, shift
position indicators, seat heater
switches, heated steering wheel
switch, pre-crash braking off
switch
3IGN10 A
Electronically controlled brake
system, smart entry & start system,
multiport fuel injection system/
sequential multiport fuel injection
system, stop/tail lights, SRS air-
bags
4MET7.5 AGauges and meters
FuseAmpereCircuit

542
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
5WIP30 AWindshield wipers
6RR WIP20 ARear window wiper and washer
7WASHER15 AWindshield washer
8A/C10 AAir conditioning system
9GAUGE10 A
Windshield wiper de-icer switch,
automatic headlight leveling sys-
tem
10ECU-IG NO.210 A
Windshield wipers, Lexus parking
assist monitor, Lexus parking
assist-sensor, electronically con-
trolled brake system, navigation
system, electric power steering
system, turn signal lights, emer-
gency flashers, yaw rate and G
sensor, headlight cleaner, outside
rear view mirrors, driving mode
select switch, overhead module,
pre-crash seat belts, seat heater
switches, heated steering wheel
switch, dynamic radar cruise con-
trol
11ECU-IG NO.110 ANo circuit
12S/ROOF30 AMoon roof
FuseAmpereCircuit
