4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
13DOOR RL25 APower windows
14DOOR RR25 APower windows
15D FR DOOR25 APower windows, outside rear view
mirrors
16P FR DOOR25 APower windows, outside rear view
mirrors
17STOP10 A
Emergency brake signal, stop/tail
lights, electronically controlled
brake system, pre-crash safety sys-
tem
18RR FOG7.5 ARear fog light, stop/tail lights
19FUEL OPEN7.5 AFuel filler door opener
20OBD7.5 AOn-board diagnosis system
21PWR SEAT30 APower seat
22FR FOG15 AFront fog lights
23DBL LOCK25 ADBL LOCK
24P-PWR SEAT30 APower seat
25PSB30 APre-crash seat belts
26STRG HTR10 AHeated steering wheel
27DOOR NO.125 APower door lock system
28SEAT HTR FL10 ASeat heaters
29SEAT HTR FR10 ASeat heaters
FuseAmpereCircuit

544
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
30RAD NO.27.5 A
Audio system, Lexus parking
assist monitor, navigation system,
overhead module
31PWR OUTLET15 APower outlet
32ECU-ACC10 AAir conditioning system, outside
rear view mirror switches
33PWR OUTLET215 ANo circuit
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 546)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
FuseAmpereCircuit

545
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.

546
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
For more information about replacing other light bulbs, contact any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 664)
Removing the engine compartment covers
P. 497
Front bulb locations
Halogen headlights
Front turn signalHeadlight low
Headlight high Front fog light

547
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)
LED headlights
Rear bulb locations
Headlight high
Front turn signal Front fog light
Rear turn signal
Rear fog light
(left-hand drive
vehicles) or back-upRear fog light (right-hand
drive vehicles) or back-up
License
plate

548
4-3. Do-it-yourself maintenance
CT200h_OM_OM76067E_(EE)
Replacing light bulbs
Headlight low beams (halogen headlights)
For the right side only: Remove
the securing clips and unclip
the engine coolant reservoir
hose. Then lift up the air
cleaner inlet duct.
Unplug the connector while
pressing the lock release.
STEP1
STEP2

549
4-3. Do-it-yourself maintenance
4
Maintenance and care
CT200h_OM_OM76067E_(EE)Turn the bulb base counter-
clockwise.
Headlight high beams (halogen headlights)
For the right side only: Move
the washer fluid filler opening.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
STEP3
STEP1
STEP2
STEP3

550
4-3. Do-it-yourself maintenance

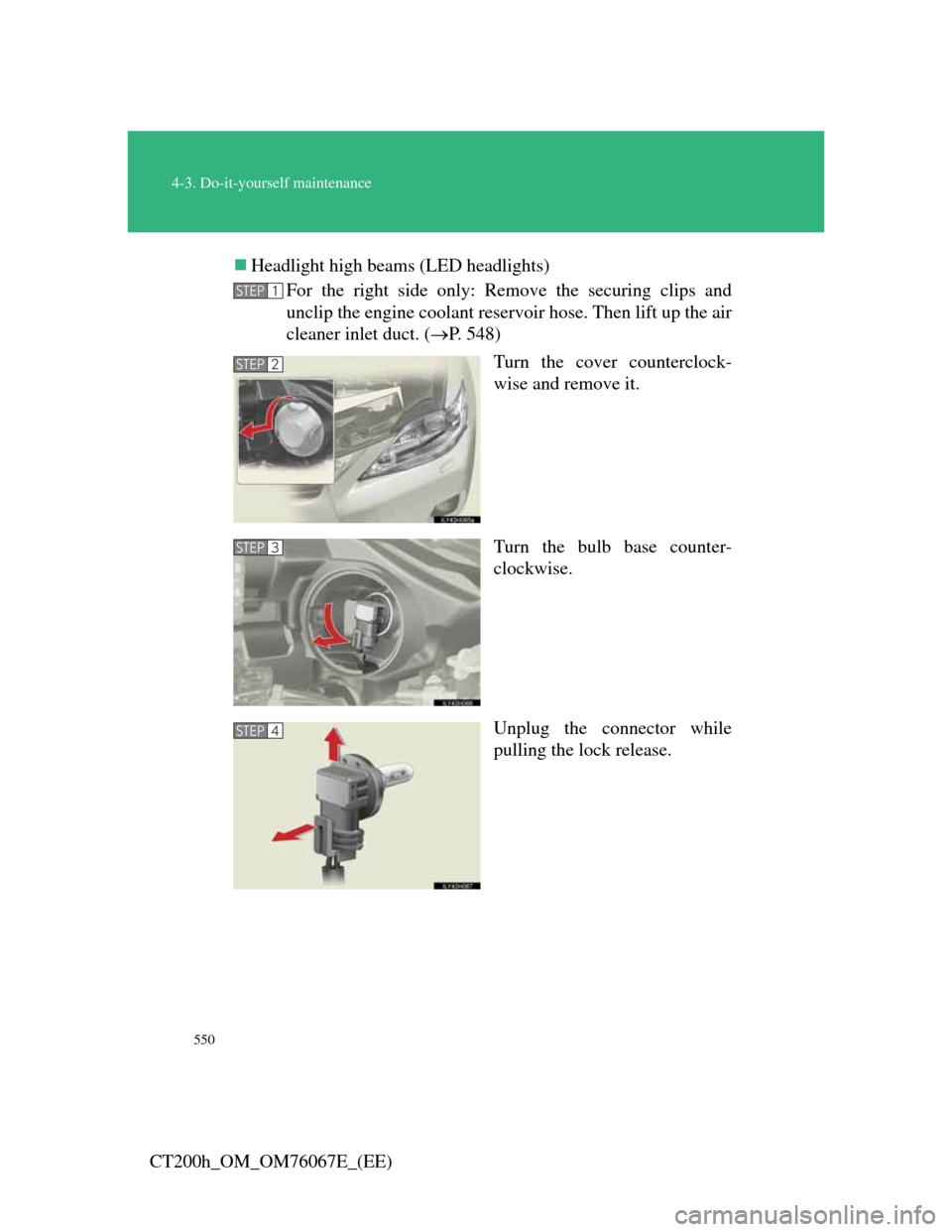

CT200h_OM_OM76067E_(EE)Headlight high beams (LED headlights)
For the right side only: Remove the securing clips and
unclip the engine coolant reservoir hose. Then lift up the air
cleaner inlet duct. (P. 548)
Turn the cover counterclock-
wise and remove it.
Turn the bulb base counter-
clockwise.
Unplug the connector while
pulling the lock release.
STEP1
STEP2
STEP3
STEP4
