2012 Lexus CT200h Owner's Manual (in English)

5
583
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
Warning messageDetailsCorrection procedure
Indicates that the hood
is not fully closedClose the hood.
Indicates that the back
door is not fully closed
If the vehicle reaches a
speed of 5 km/h
(3 mph), a buzzer
sounds to indicate that
the back door is not
yet fully closed.
Close the back door.
(Flashes)
Indicates that the moon
roof is not fully closed
(with the “POWER”
switch off, and the
driver’s door open)
Close the moon roof.
Warns the rear passen-
ger to fasten his/her seat
belt
If a rear passenger
once fastens their seat
belt and then unfastens
it, the warning mes-
sage will appear on the
display and a buzzer
*1
will sound.
Fasten the seat belt.

584
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
Warning messageDetailsCorrection procedure
(Flashes)
Indicates, if the vehicle
reaches a speed of 5 km/
h (3 mph), that the park-
ing brake is still engaged
Release the parking
brake.
(Flashes)
Indicates that the
“POWER” switch is
turned off or turned to
ACCESSORY mode
and the driver’s door is
opened while the lights
are turned on.
Turn the lights off.
(If equipped)
Indicates that Lexus
parking assist-sensor is
dirty or covered with
ice
Clean the sensor.

5
585
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
Warning messageDetailsCorrection procedure
(If equipped)
Indicates that the radar
cruise control sensor is
dirty or covered with
ice
Clean the sensor.
(If equipped)
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distanceIf the windshield wipers
are on, turn them off or
set them to either inter-
mittent or slow mode.
(Flashes)
(If equipped)
Indicates that your vehi-
cle is nearing the vehi-
cle ahead (in vehicle to
vehicle distance control
mode)
Slow the vehicle by
applying the brakes.
(Flashes)
(If equipped)
Indicates that there is a
high possibility of a
frontal collision, or that
the pre-crash braking
function is operating
Slow the vehicle by
applying the brakes.

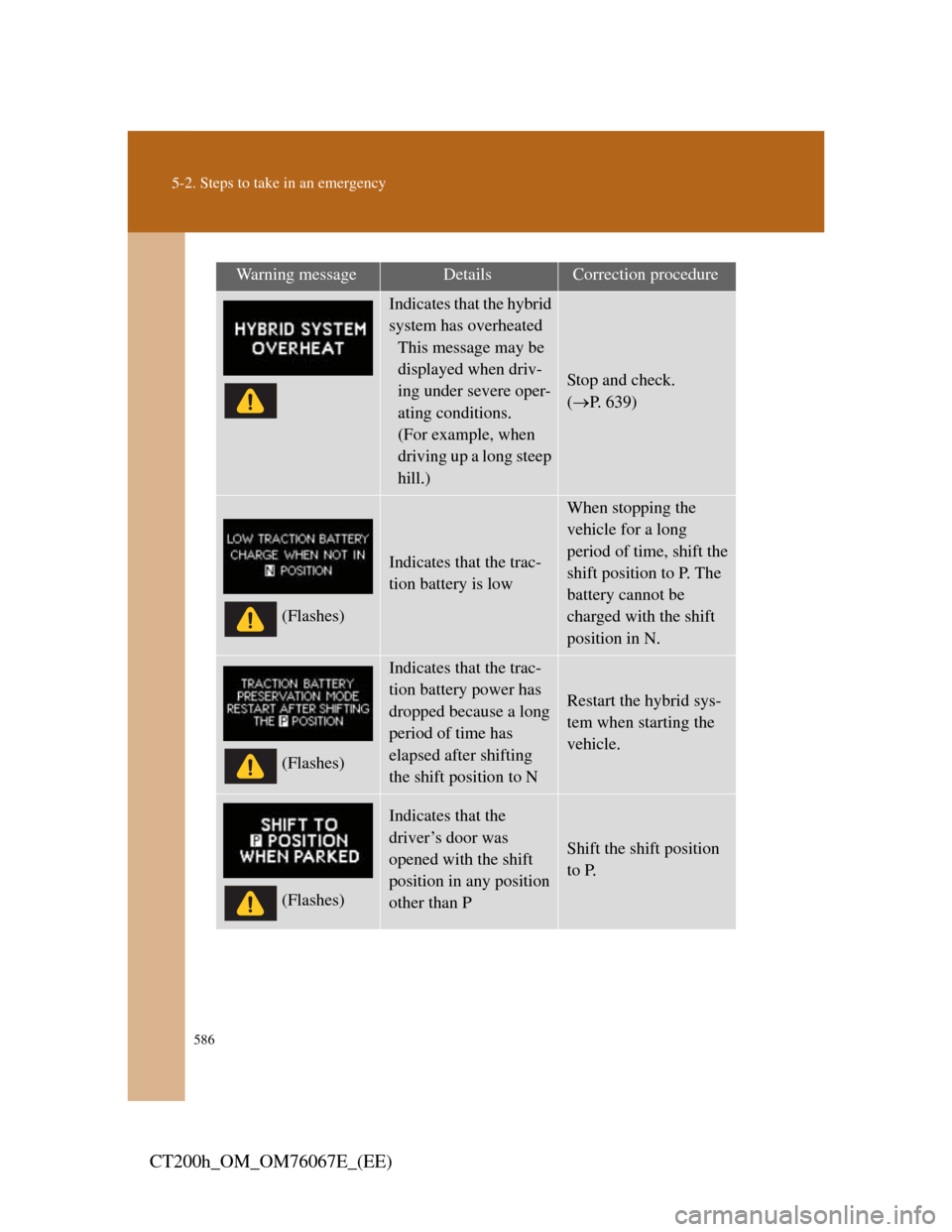

586
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
Warning messageDetailsCorrection procedure
Indicates that the hybrid
system has overheated
This message may be
displayed when driv-
ing under severe oper-
ating conditions.
(For example, when
driving up a long steep
hill.)
Stop and check.
(P. 639)
(Flashes)
Indicates that the trac-
tion battery is low
When stopping the
vehicle for a long
period of time, shift the
shift position to P. The
battery cannot be
charged with the shift
position in N.
(Flashes)
Indicates that the trac-
tion battery power has
dropped because a long
period of time has
elapsed after shifting
the shift position to N
Restart the hybrid sys-
tem when starting the
vehicle.
(Flashes)
Indicates that the
driver’s door was
opened with the shift
position in any position
other than P
Shift the shift position
to P.

5
587
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
Warning messageDetailsCorrection procedure
(Flashes)
Indicates that the accel-
erator pedal is
depressed while the
shift position is in N.Release the accelerator
pedal and shift the shift
position to D or R.
Indicates that the EV
drive mode is not avail-
able
*2
The reason the EV
drive mode is not
available (the vehicle
is idling, battery
charge is low, speed is
higher than the EV
drive mode operating
speed range, accelera-
tor pedal is depressed
too much) may be dis-
played.
Use the EV drive mode
when it becomes avail-
able.

588
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)*
1: Rear passengers’ seat belt buzzer
The rear passengers’ seat belt buzzer sounds to alert the driver that the
rear seat belt is not fastened. The buzzer sounds for 30 seconds after the
vehicle reaches a speed of 20 km/h (12 mph). Then, if the seat belt is still
unfastened, the buzzer will sound in a different tone for 90 more seconds.
*2: For the EV drive mode operating conditions (P. 204).
Warning messageDetailsCorrection procedure
(Flashes 3
times)
Indicates that the EV
drive mode has been
automatically can-
celled
*2
The reason the EV
drive mode is not
available (the battery
charge is low, speed is
higher than the EV
drive mode speed
range, accelerator
pedal is depressed too
much) may be dis-
played.
Drive the vehicle for a
while.

5

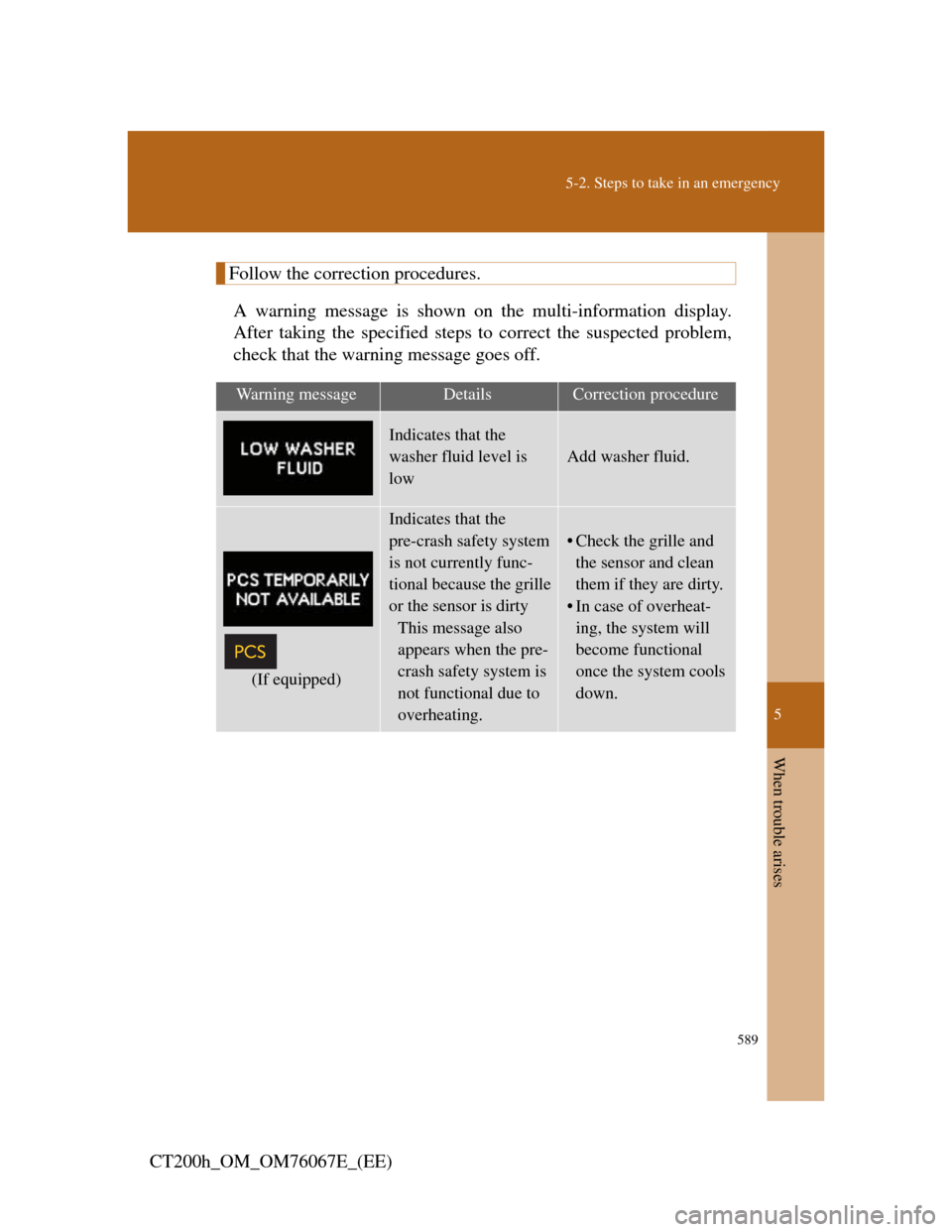

589
5-2. Steps to take in an emergency
When trouble arises
CT200h_OM_OM76067E_(EE)
Follow the correction procedures.
A warning message is shown on the multi-information display.
After taking the specified steps to correct the suspected problem,
check that the warning message goes off.
Warning messageDetailsCorrection procedure
Indicates that the
washer fluid level is
low
Add washer fluid.
(If equipped)
Indicates that the
pre-crash safety system
is not currently func-
tional because the grille
or the sensor is dirty
This message also
appears when the pre-
crash safety system is
not functional due to
overheating.
• Check the grille and
the sensor and clean
them if they are dirty.
• In case of overheat-
ing, the system will
become functional
once the system cools
down.

590
5-2. Steps to take in an emergency
CT200h_OM_OM76067E_(EE)
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Interior
buzzerExte-
rior
buzzer
Warning messageDetailsCorrection
procedure
Once
(Flashes)
The electronic
key is not
detected when
an attempt is
made to start the
hybrid system.
Start the hybrid
system with the
electronic key
present.
