2011 LEXUS RX350 Owners Manual

Scheduled Maintenance Log
Complimentary Second
Scheduled Maintenance
Service: 12 Months or
10,000 Miles
Lexus also provides your second
scheduled maintenance service at no
charge. The service is performed at
12 months or 10,000 miles, whichev-
er occurs first. To obtain this service,
contact your Lexus dealership. Your
complimentary service will include
these items:
•Replace engine oil with 0W-20
oil; replace oil filter
•Reset maintenance reminder
light
•Rotate tires
•Visually inspect brake pads,
calipers and rotors
•Check installation of driver’s
floor mat
•Road-test vehicle
If you do the majority of your driving
under certain special operating con-
ditions, additional items are included
in this service. See the “12 Months or
10,000 Miles” chart on page 48.
SCHEDULED MAINTENANCE LOG
MAINTENANCE
46
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀3฀9฀-฀4฀7฀b฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀1฀9฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀6

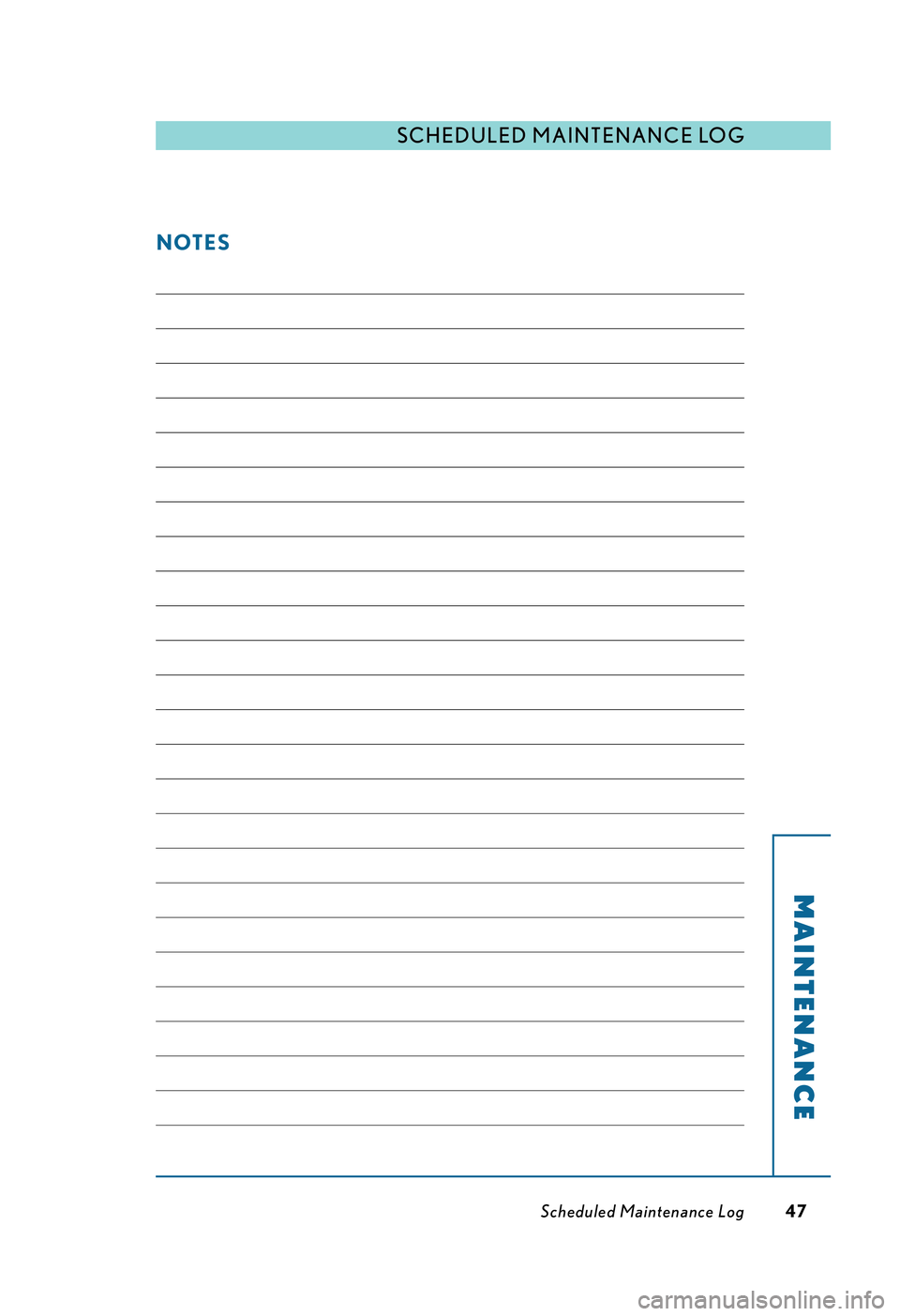

Scheduled Maintenance Log
NOTES
SCHEDULED MAINTENANCE LOG

MAINTENANCE
47
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀3฀9฀-฀4฀7฀b฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀1฀9฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀7

SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log48
6 Months or 5,000 Miles 1
12 Months or 10,000 Miles 2
R eplace engine oil with 0W-20 oil; r eplace
oil filter
Reset maintenance reminder light
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
If you drive primarily under either
of these special operating conditions,
perform these additional items:
Driving off-road, on dirt roads or on
dusty roads:
Inspect axle shaft boots
Inspect ball joints and dust covers
Inspect engine air filter
Inspect steering linkage and boots
Re-torque nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier
or heavy vehicle loading:
Re-tor que nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
Date: ________ Mileage: ________

1
This service, excluding maintenance required for special operating conditions, is complimentary when performed by an
authorized Lexus dealership.
2
This service is complimentary when performed by an authorized Lexus dealership. Inspect and adjust all fluid levels
Program Lexus Personalized Settings, if
requested
Reset maintenance reminder light
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
Note: If you drive primarily under certain special
operating conditions, you should also replace the
engine oil with 0W-20 oil and replace the oil filter.
See page 44 for conditions that apply. Some con-
ditions require additional maintenance. See below.
If you drive primarily under either
of these special operating conditions,
perform these additional items:
Driving off-road, on dirt roads or on
dusty roads:
Inspect axle shaft boots
Inspect ball joints and dust covers
Inspect engine air filter
Inspect steering linkage and boots
Re-torque nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier
or heavy vehicle loading:
Re-tor que nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
Date: ________ Mileage: ________
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀8

SCHEDULED MAINTENANCE LOG

MAINTENANCE
Scheduled Maintenance Log49
18 Months or 15,000 Miles
Clean air conditioner filter
Inspect and adjust all fluid levels
Replace Smart Key battery
Reset maintenance reminder light
Re-torque nuts and bolts of drive shaft (AWD)
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
Inspect the following:
___ Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Engine coolant (see page 70)
___Exhaust pipes and mountings
Note: If 0W-20 oil was not used at last oil change, or if you drive primarily under certain special operating
conditions, you should also replace the engine oil with 0W-20 oil and replace the oil filter. See page 44 for
conditions that apply. Some conditions require additional maintenance. See below.
If you drive primarily under either of these special operating conditions, perform these
additional items:
Driving off-road, on dirt roads or on dusty roads:
Inspect engine air filter
Tighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier or heavy vehicle loading:
R eplace rear differential oil (AWD)
Replace transfer case oil (AWD)
Tighten nuts and bolts on chassis ___R ack and pinion assembly
___Rear differential oil (AWD)
___Steering linkage and boots
___Transfer case oil (AWD)
Date: ___________________________ Mileage: __________________________
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀9

SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log50
2 4 Months or 20,000 Miles
R eplace engine oil with 0W-20 oil; r eplace
oil filter
Reset maintenance reminder light
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
If you drive primarily under either
of these special operating conditions,
perform these additional items:
Driving off-road, on dirt roads or on
dusty roads:
Inspect axle shaft boots
Inspect ball joints and dust covers
Inspect engine air filter
Inspect steering linkage and boots
Re-torque nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier
or heavy vehicle loading:
Re-tor que nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis 30 Months or 25,000 Miles
Date: ________ Mileage: ________Date: ________ Mileage: ________

Inspect and adjust all fluid levels
Reset maintenance reminder light
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under cer tain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under either
of these special operating conditions,
perform these additional items:
Driving off-road, on dirt roads or on
dusty roads:
Inspect axle shaft boots
Inspect ball joints and dust covers
Inspect engine air filter
Inspect steering linkage and boots
Re-torque nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier
or heavy vehicle loading:
Re-tor que nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀5฀0

SCHEDULED MAINTENANCE LOG

MAINTENANCE
Scheduled Maintenance Log5 1
36 Months or 30,000 Miles
R eplace engine oil with 0W-20 oil; replace oil filter
Reset maintenance reminder light
Rotate tires
Re-torque nuts and bolts of drive shaft (AWD)
Replace air conditioner filter
Replace brake fluid
Replace engine air filter
Inspect the following:
___ Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Brake rotor thickness and runout
___Engine coolant (see page 70)
___Exhaust pipes and mountings
___Fuel lines and connections, fuel tank band
and fuel tank vapor vent s y stem hoses
If you drive primarily under either of these special operating conditions, perform these
additional items:
Driving off-road, on dirt roads or on dusty roads:
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier or heavy vehicle loading:
R eplace rear differential oil (AWD)
Replace transfer case oil (AWD)
Tighten nuts and bolts on chassis ___F uel tank cap gasket
___Rack and pinion assembly
___Rear differential oil (AWD)
___Steering linkage and boots
___Transfer case oil (AWD)
___Transmission for signs of leakage R eplace Smart Key batter y
V isually inspect brake pads, caliper s
and rotors
Check installation of driver’s floor mat
Road-test vehicle
Date: ___________________________ Mileage: __________________________
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀5฀1

SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log5 2
4 2 Months or 35,000 Miles 48 Months or 40,000 Miles
R eplace engine oil with 0W-20 oil; r eplace
oil filter
Reset maintenance reminder light
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
If you drive primarily under either
of these special operating conditions,
perform these additional items:
Driving off-road, on dirt roads or on
dusty roads:
Inspect axle shaft boots
Inspect ball joints and dust covers
Inspect engine air filter
Inspect steering linkage and boots
Re-torque nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier
or heavy vehicle loading:
Re-tor que nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
Date: ________ Mileage: ________Date: ________ Mileage: ________
Inspect and adjust all fluid levels
Reset maintenance reminder light
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under cer tain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under either
of these special operating conditions,
perform these additional items:
Driving off-road, on dirt roads or on
dusty roads:
Inspect axle shaft boots
Inspect ball joints and dust covers
Inspect engine air filter
Inspect steering linkage and boots
Re-torque nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier
or heavy vehicle loading:
Re-tor que nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀5฀2

SCHEDULED MAINTENANCE LOG

MAINTENANCE
Scheduled Maintenance Log53
54 Months or 45,000 Miles
Clean air conditioner filter
Inspect and adjust all fluid levels
Replace Smart Key battery
Reset maintenance reminder light
Re-torque nuts and bolts of drive shaft (AWD)
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
Inspect the following:
___ Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Engine coolant (see page 70)
___Exhaust pipes and mountings
Note: If 0W-20 oil was not used at last oil change, or if you drive primarily under certain special operating
conditions, you should also replace the engine oil with 0W-20 oil and replace the oil filter. See page 44 for
conditions that apply. Some conditions require additional maintenance. See below.
If you drive primarily under either of these special operating conditions, perform these
additional items:
Driving off-road, on dirt roads or on dusty roads:
Inspect engine air filter
Tighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier or heavy vehicle loading:
R eplace rear differential oil (AWD)
Replace transfer case oil (AWD)
Tighten nuts and bolts on chassis ___R ack and pinion assembly
___Rear differential oil (AWD)
___Steering linkage and boots
___Transfer case oil (AWD)
Date: ___________________________ Mileage: __________________________
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀5฀3
