2011 LEXUS RX350 Owners Manual

580
5-2. Steps to take in an emergency
If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using the other
keys and the key number stamped on your key number plate.

5

When trouble arises
581
5-2. Steps to take in an emergency
If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Use the mechanical key (→P. 2 7 )
in order to perform the following
operations (driver’s door only):
Locks all the doors
Closes the windows and moon
roof (turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows and moon
roof (turn and hold)
If communication between the electronic key and vehicle is interrupted
(→P. 36) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors can be opened or
the engine can be started by following the procedure below.

582
5-2. Steps to take in an emergency

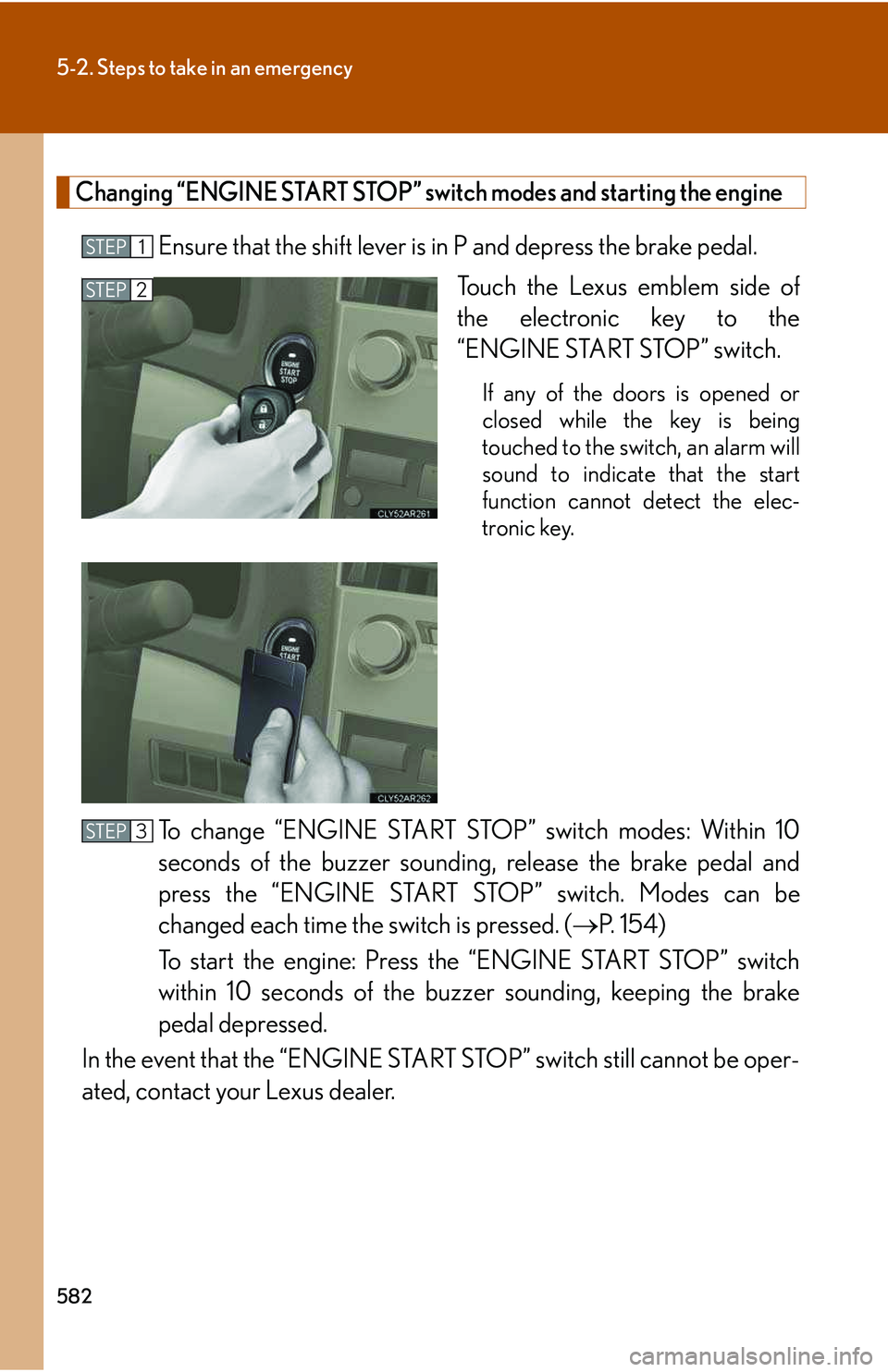

Changing “ENGINE START STOP” switch modes and starting the engine
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of
the electronic key to the
“ENGINE START STOP” switch.
If any of the doors is opened or
closed while the key is being
touched to the switch, an alarm will
sound to indicate that the start
function cannot detect the elec-
tronic key.
To change “ENGINE START STOP” switch modes: Within 10
seconds of the buzzer sounding, release the brake pedal and
press the “ENGINE START STOP” switch. Modes can be
changed each time the switch is pressed. (→P. 1 5 4 )
To start the engine: Press the “ENGINE START STOP” switch
within 10 seconds of the buzzer sounding, keeping the brake
pedal depressed.
In the event that the “ENGINE START STOP” switch still cannot be oper-
ated, contact your Lexus dealer.
STEP1
STEP2
STEP3

5

When trouble arises
583
5-2. Steps to take in an emergency
nStopping the engine
Shift the shift lever to P and press the “ENGINE START STOP” switch as you nor-
mally do when stopping the engine.
nReplacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery is depleted.
(→P. 4 9 6 )

584
5-2. Steps to take in an emergency
If the battery is discharged
The following procedures may be used to start the engine if the vehicle’s
battery is discharged.
You can call your Lexus dealer or a qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.
Open the hood. Remove the battery cover. (→P. 465)
Connect the jumper cables according to the following procedure:
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle
Connect a positive jumper cable clamp to the positive (+) battery
terminal on the second vehicle
STEP1
STEP2

5

When trouble arises
585
5-2. Steps to take in an emergency
nStarting the engine when the battery is discharged
The engine cannot be started by push-starting.
nTo prevent battery discharge
lTurn off the headlights and the audio system while the engine is off.
lTurn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic.
nWhen the battery is removed or discharged
The power back door must be initialized. (→P. 6 3 0 )
Connect a negative cable clamp to the negative (-) battery terminal
on the second vehicle
Connect the clamp at the other end of the negative cable to a solid,
stationary, unpainted metallic point away from the battery and any
moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain that level for approximately 5 min-
utes to recharge the battery of your vehicle.
Open and close any of the doors with the “ENGINE START
STOP” switch off.
Maintain the engine speed of the second vehicle and start the
engine of your vehicle by turning the “ENGINE START STOP”
switch to IGNITION ON mode.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order from which they were con-
nected.
Once the engine starts, have the vehicle inspected at your Lexus
dealer as soon as possible.
STEP3
STEP4
STEP5
STEP6

586
5-2. Steps to take in an emergency

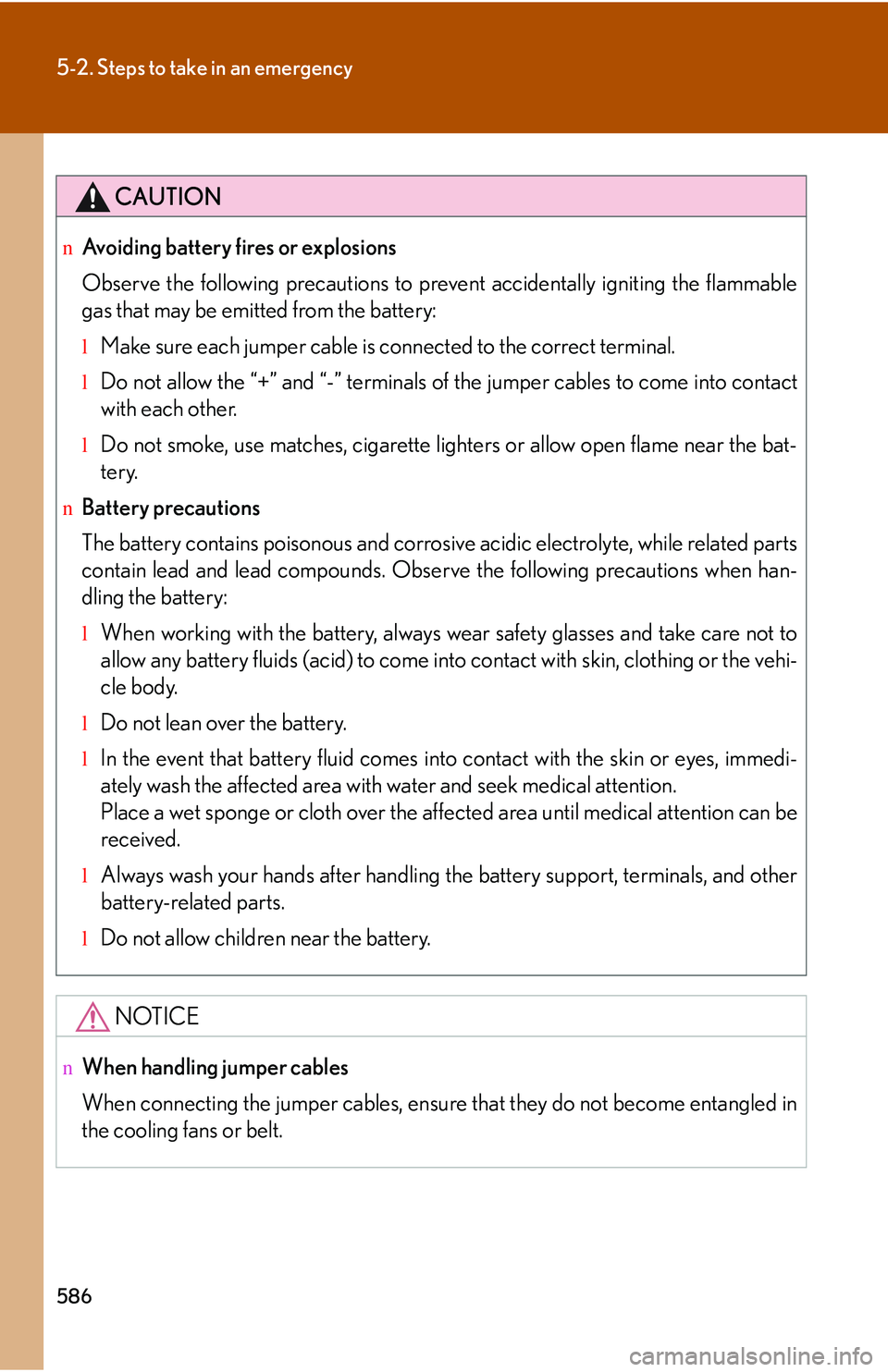

CAUTION
nAvoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery:
lMake sure each jumper cable is connected to the correct terminal.
lDo not allow the “+” and “-” terminals of the jumper cables to come into contact
with each other.
lDo not smoke, use matches, cigarette lighters or allow open flame near the bat-
tery.
nBattery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts
contain lead and lead compounds. Observe the following precautions when han-
dling the battery:
lWhen working with the battery, always wear safety glasses and take care not to
allow any battery fluids (acid) to come into contact with skin, clothing or the vehi-
cle body.
lDo not lean over the battery.
lIn the event that battery fluid comes into contact with the skin or eyes, immedi-
ately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
lAlways wash your hands after handling the battery support, terminals, and other
battery-related parts.
lDo not allow children near the battery.
NOTICE
nWhen handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled in
the cooling fans or belt.

5

When trouble arises
587
5-2. Steps to take in an emergency
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from under the hood.
If you see steam:
Stop the engine. Carefully lift the hood after the steam sub-
sides and then restart the engine.
If you do not see steam:
Leave the engine running and carefully lift the hood.
Remove the engine compartment cover. (→P. 464)
Check to see if the cooling fan is operating.
If the fan is operating:
Wait until the temperature of the engine (shown on the instru-
ment panel) begins to fall and then stop the engine.
If the fan is not operating:
Stop the engine immediately and call your Lexus dealer.
After the engine has cooled
down sufficiently, check the
engine coolant level and inspect
the radiator core (radiator) for
any leaks.
STEP1
STEP2
STEP3
STEP4
STEP5
