2011 LEXUS RX350 Owners Manual

80
1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
nWearing a seat belt
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury.
lEnsure that all passengers wear a seat belt.
lAlways wear a seat belt properly.
lEach seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
lLexus recommends that children be seated in the rear seat and always use a seat
belt and/or an appropriate child restraint system.
lTo achieve a proper seating position, do not recline the seat more than necessary.
The seat belt is most effective when the occupants are sitting up straight and well
back in the seats.
lDo not wear the shoulder belt under your arm.
lAlways wear your seat belt low and snug across your hips.
nAdjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or accident.
(→P. 76 )
nSeat belt pretensioners
lDo not place anything, such as a cushion, on the front passenger's seat. Doing so
will disperse the passenger's weight, which prevents the sensor from detecting
the passenger's weight properly. As a result, the seat belt pretensioner for the
front passenger's seat may not activate in the event of a collision.
lIf the pretensioner has activated, the SRS warning light will come on. In that case,
the seat belt cannot be used again and must be replaced at your Lexus dealer.

81
1-3. Adjustable components (seats, mirrors, steering wheel)
1

Before driving

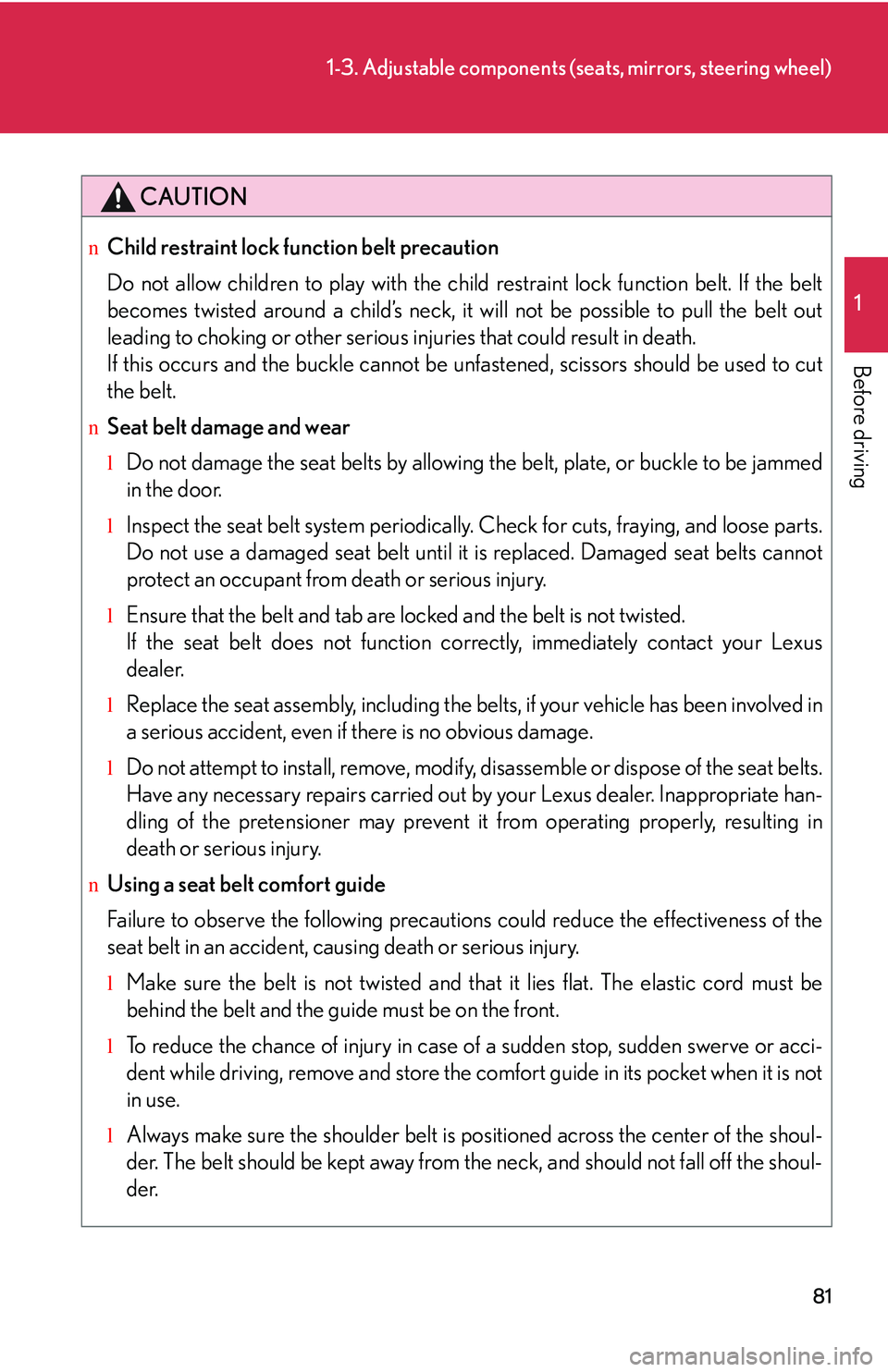

CAUTION
nChild restraint lock function belt precaution
Do not allow children to play with the child restraint lock function belt. If the belt
becomes twisted around a child’s neck, it will not be possible to pull the belt out
leading to choking or other serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
nSeat belt damage and wear
lDo not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.
lInspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.
lEnsure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.
lReplace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.
lDo not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-
dling of the pretensioner may prevent it from operating properly, resulting in
death or serious injury.
nUsing a seat belt comfort guide
Failure to observe the following precautions could reduce the effectiveness of the
seat belt in an accident, causing death or serious injury.
lMake sure the belt is not twisted and that it lies flat. The elastic cord must be
behind the belt and the guide must be on the front.
lTo reduce the chance of injury in case of a sudden stop, sudden swerve or acci-
dent while driving, remove and store the comfort guide in its pocket when it is not
in use.
lAlways make sure the shoulder belt is positioned across the center of the shoul-
der. The belt should be kept away from the neck, and should not fall off the shoul-
der.

82
1-3. Adjustable components (seats, mirrors, steering wheel)

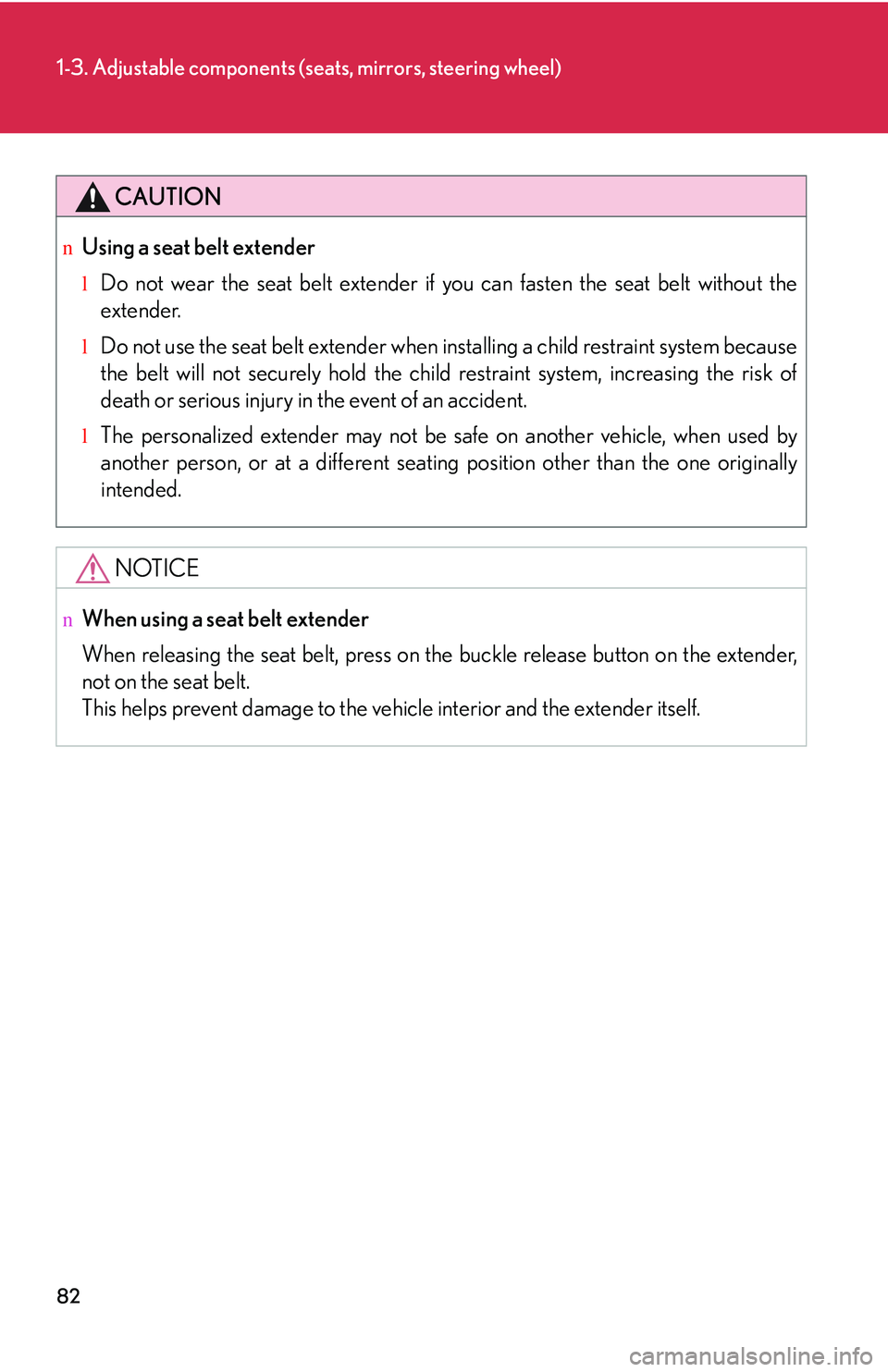

CAUTION
nUsing a seat belt extender
lDo not wear the seat belt extender if you can fasten the seat belt without the
extender.
lDo not use the seat belt extender when installing a child restraint system because
the belt will not securely hold the child restraint system, increasing the risk of
death or serious injury in the event of an accident.
lThe personalized extender may not be safe on another vehicle, when used by
another person, or at a different seating position other than the one originally
intended.
NOTICE
nWhen using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

83
1
1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving
Steering wheel
Auto tilt away
When the “ENGINE START
STOP” switch is turned off, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
Turning the “ENGINE START
STOP” switch to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.
The steering wheel can be adjusted to a comfortable position.
Operating the switch moves the steering wheel in the following direc-
tions:
Up
Down
Away from the driver
Toward the driver

84
1-3. Adjustable components (seats, mirrors, steering wheel)
nThe steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode*.
*: Vehicles with driving position memory: If the driver's seat belt is fastened, the
steering wheel can be adjusted regardless of “ENGINE START STOP” switch
mode.
nAutomatic adjustment of the steering position (vehicles with driving position
memory)
A desired steering position can be entered to memory and recalled automatically
by the driving position memory. (→P. 7 0 )
nNotes for the auto tilt away function (vehicles with driving position memory)
The auto tilt away function can only operate when the “ENGINE START STOP”
switch has been turned off, the driver seat belt has been unfastened and the driver’s
seat movement (→P. 621) is in a setting other than off.
When the driver fastens the seat belt again, the steering wheel will return to the
original position. (→P. 6 3 )
CAUTION
nCaution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.

85
1
1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving
Anti-glare inside rear view mirror
Adjusting the height of rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
In automatic mode, sensors are used to detect the headlights of vehicles
behind and the reflected light is automatically reduced.
Turns automatic mode on/ off
The indicator comes on when
automatic mode is turned on.
The mirror will revert to auto-
matic mode each time the
“ENGINE START STOP” switch
is turned to IGNITION ON
mode.Indicator
nTo prevent sensor error
To ensure that the sensors operate properly,
do not touch or cover them.

86
1-3. Adjustable components (seats, mirrors, steering wheel)

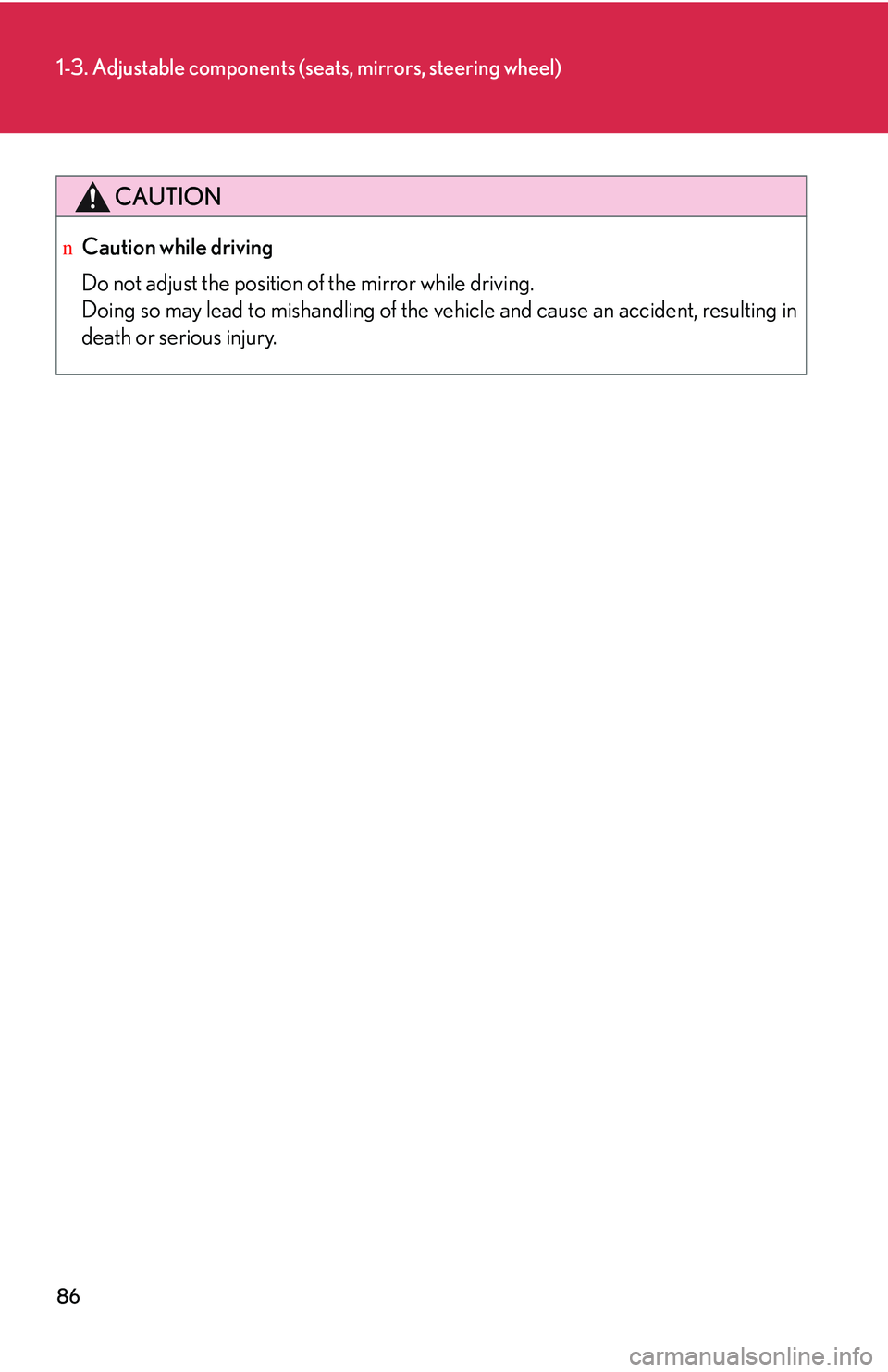

CAUTION
nCaution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.

87
1
1-3. Adjustable components (seats, mirrors, steering wheel)

Before driving

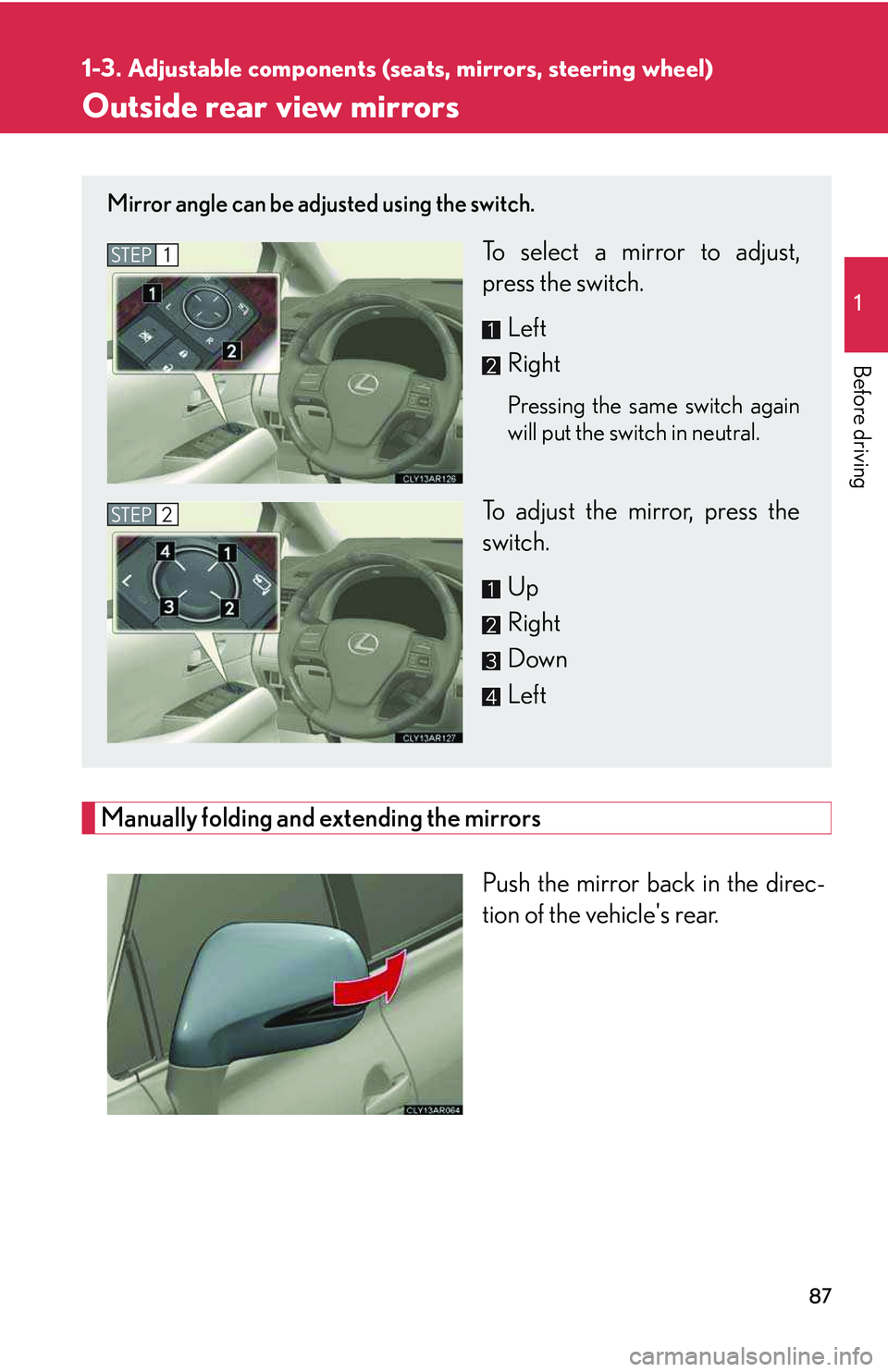

Outside rear view mirrors
Manually folding and extending the mirrors
Push the mirror back in the direc-
tion of the vehicle's rear.
Mirror angle can be adjusted using the switch.
To select a mirror to adjust,
press the switch.
Left
Right
Pressing the same switch again
will put the switch in neutral.
To adjust the mirror, press the
switch.
Up
Right
Down
Left
STEP1
STEP2
