2011 LEXUS RX350 Owners Manual

96
1-4. Opening and closing the windows and moon roof

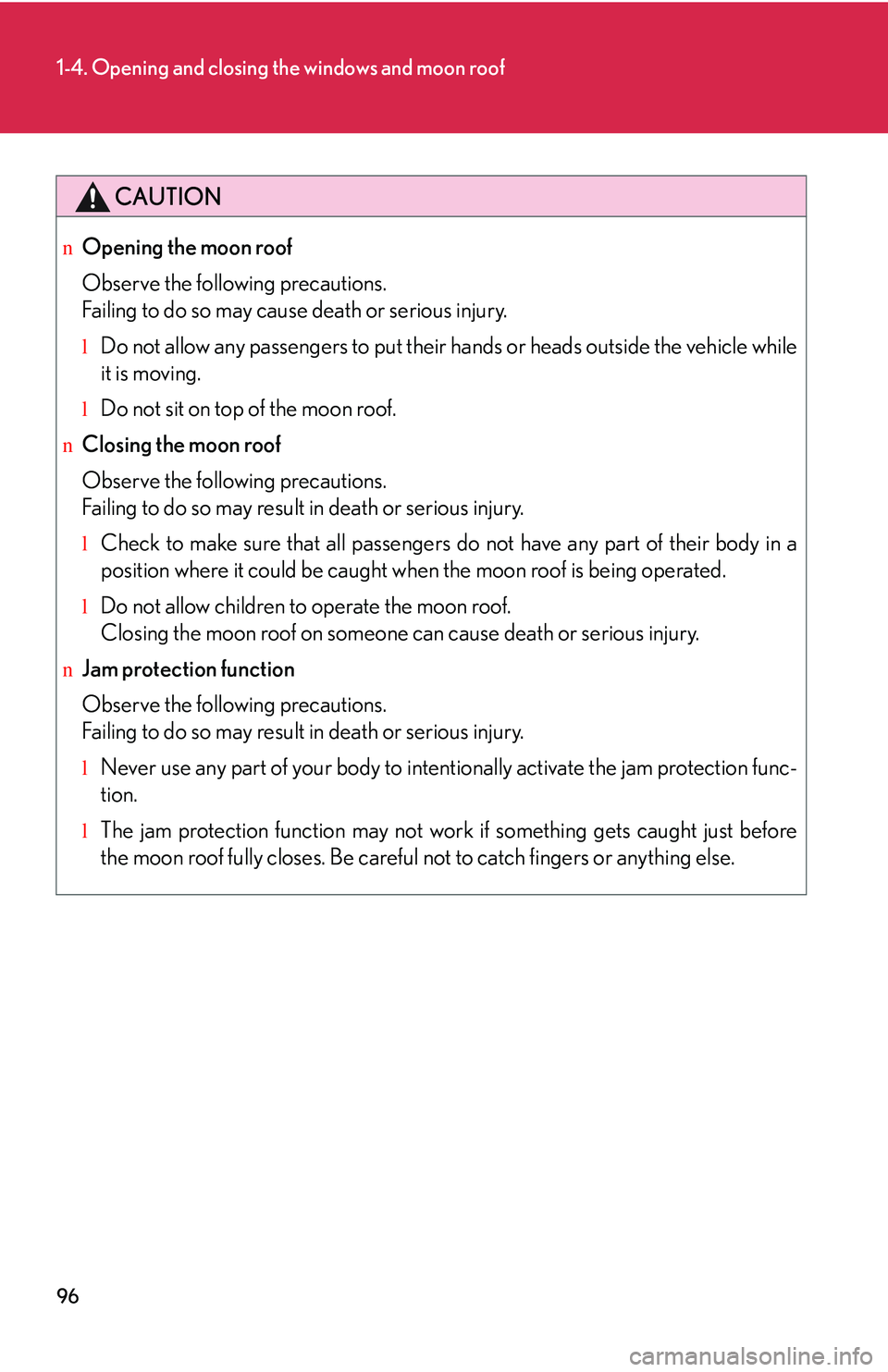

CAUTION
nOpening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
lDo not allow any passengers to put their hands or heads outside the vehicle while
it is moving.
lDo not sit on top of the moon roof.
nClosing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
lCheck to make sure that all passengers do not have any part of their body in a
position where it could be caught when the moon roof is being operated.
lDo not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
nJam protection function
Observe the following precautions.
Failing to do so may result in death or serious injury.
lNever use any part of your body to intentionally activate the jam protection func-
tion.
lThe jam protection function may not work if something gets caught just before
the moon roof fully closes. Be careful not to catch fingers or anything else.

97
1

Before driving
1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
nBefore refueling the vehicle
Turn the “ENGINE START STOP” switch off and ensure that all the
doors and windows are closed.
nOpening the fuel tank cap
Press the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
open.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP1
STEP2
STEP3

98
1-5. Refueling

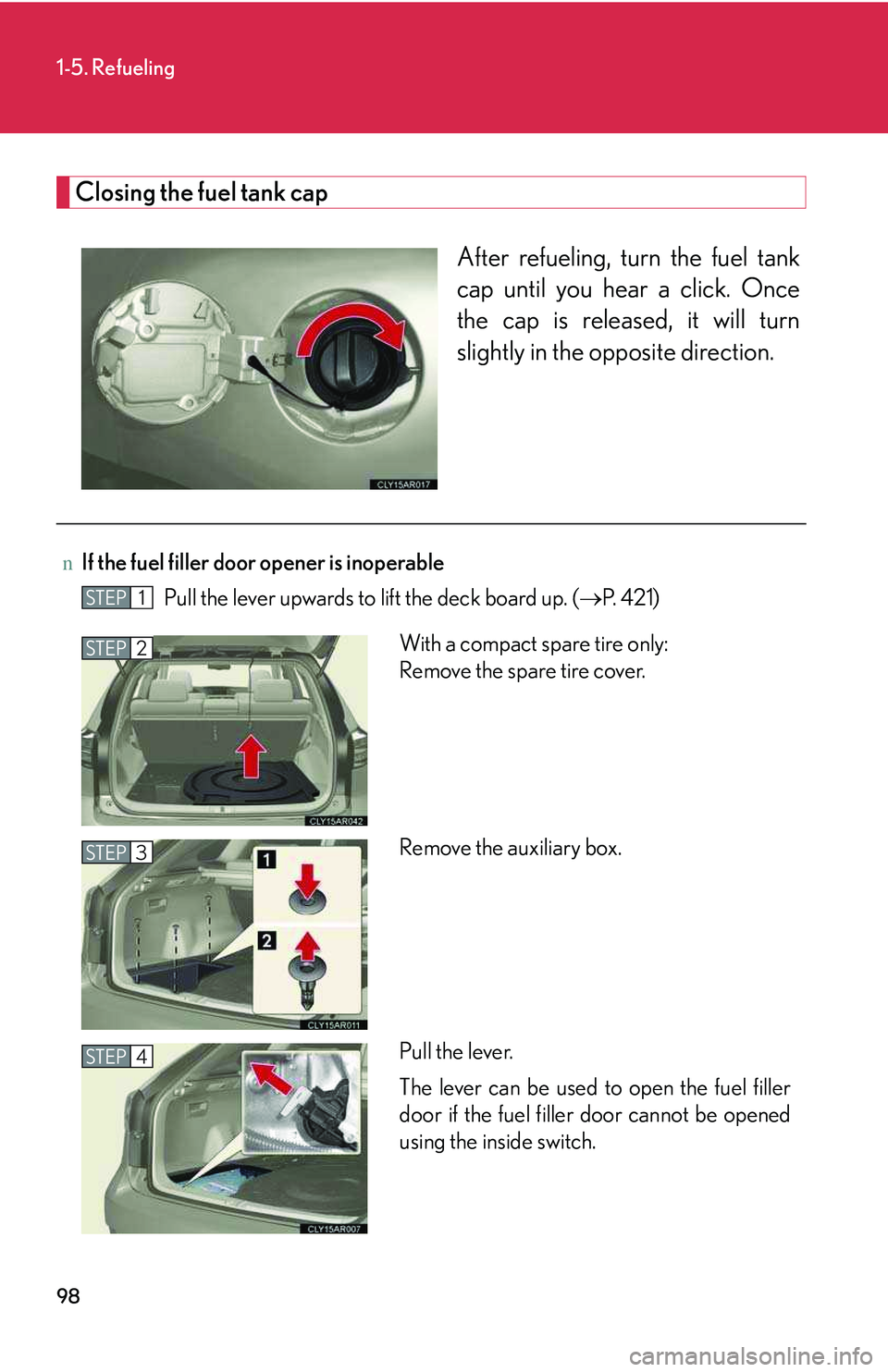

Closing the fuel tank cap
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
nIf the fuel filler door opener is inoperable
Pull the lever upwards to lift the deck board up. (→P. 4 2 1 )STEP1
With a compact spare tire only:
Remove the spare tire cover.
Remove the auxiliary box.
Pull the lever.
The lever can be used to open the fuel filler
door if the fuel filler door cannot be opened
using the inside switch.
STEP2
STEP3
STEP4

99
1-5. Refueling
1

Before driving
CAUTION
nWhen refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may
result in death or serious injury.
lAfter exiting the vehicle and before opening the fuel door, touch an unpainted
metal surface to discharge any static electricity. It is important to discharge static
electricity before refueling because sparks resulting from static electricity can
cause fuel vapors to ignite while refueling.
lAlways hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out of the filler neck and cause injury.

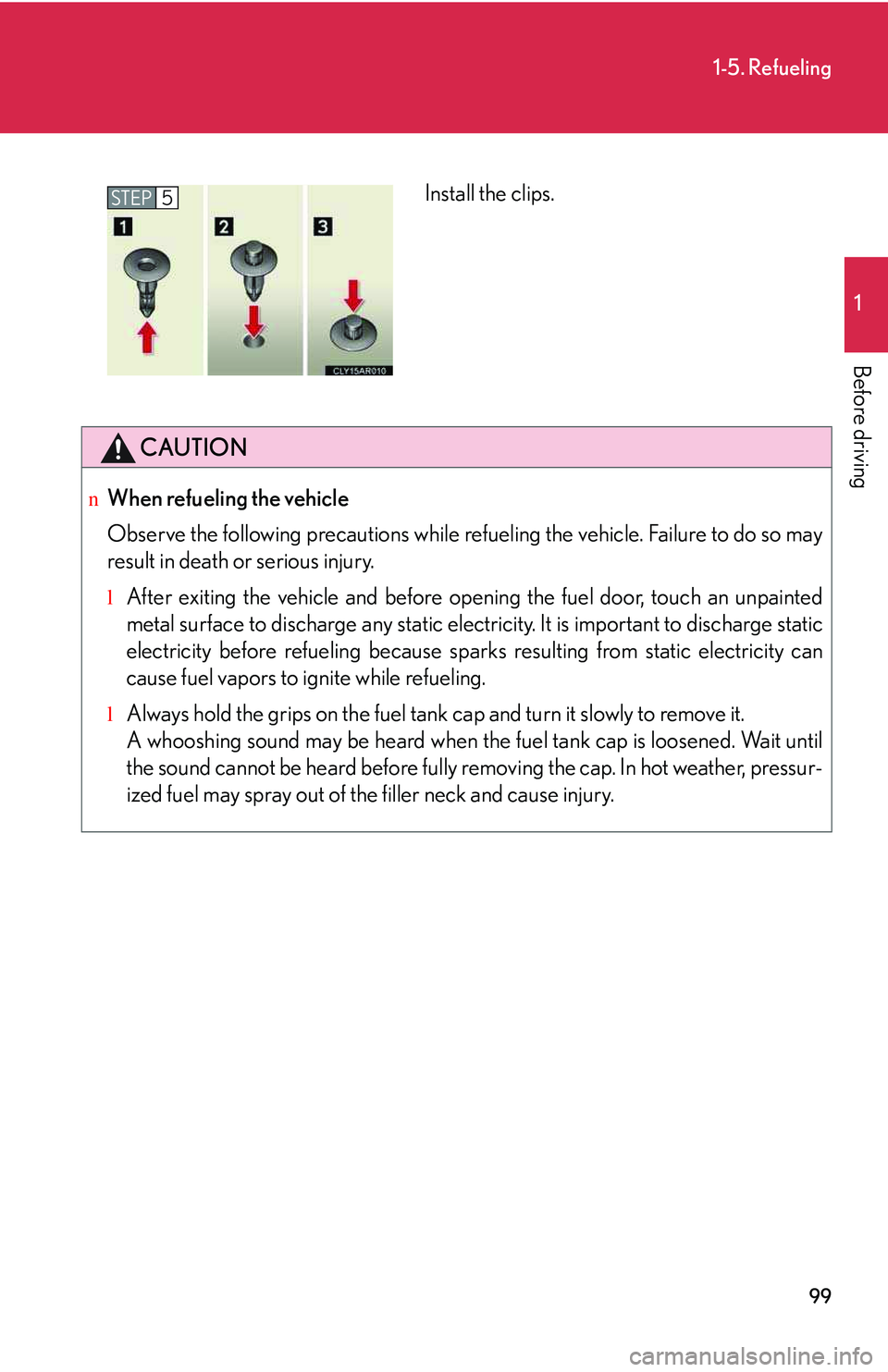

Install the clips.STEP5

100
1-5. Refueling

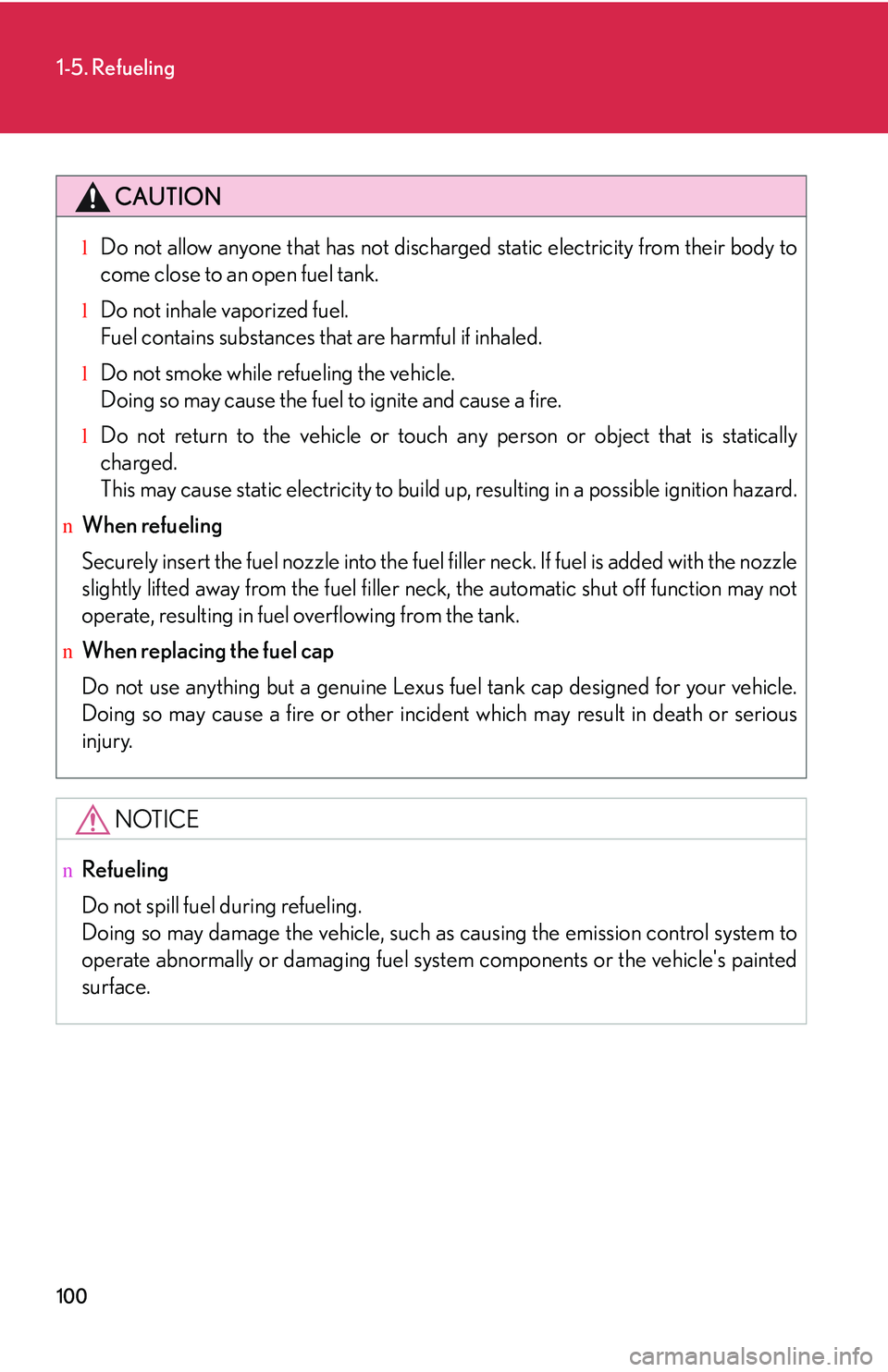

CAUTION
lDo not allow anyone that has not discharged static electricity from their body to
come close to an open fuel tank.
lDo not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
lDo not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
lDo not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
nWhen refueling
Securely insert the fuel nozzle into the fuel filler neck. If fuel is added with the nozzle
slightly lifted away from the fuel filler neck, the automatic shut off function may not
operate, resulting in fuel overflowing from the tank.
nWhen replacing the fuel cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Doing so may cause a fire or other incident which may result in death or serious
injury.
NOTICE
nRefueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control system to
operate abnormally or damaging fuel system components or the vehicle's painted
surface.

101
1

Before driving
1-6. Theft deterrent system
Engine immobilizer system
nSystem maintenance
The vehicle has a maintenance-free type engine immobilizer system.
nConditions that may cause the system to malfunction
lIf the grip portion of the key is in contact with a metallic object
lIf the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle
The vehicle's keys have built-in transponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle's
on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned off to
indicate that the system is oper-
ating.
The indicator light stops flashing
after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.

102
1-6. Theft deterrent system
nCertifications for the engine immobilizer system
For vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-1
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
For vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes:
(1) il ne doit pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt
à accepter tout brouillage radioélectrique reçu, même si ce brouillage est
susceptible de compromettre le fonctionnement du dispositif.
CAUTION
nCertifications for the immobilizer system
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE
nTo ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.

103
1
1-6. Theft deterrent system

Before driving
Alarm
The system sounds the alarm and flashes the lights when forcible entry is
detected.
nTriggering of the alarm
The alarm is triggered in the following situations when the alarm is
set:
lA locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key.
lThe hood is opened.
lSome models: The back door window is tapped or broken.
nSetting the alarm system
Close the doors and hood, and
lock all the doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
nDeactivating or stopping the alarm
Do one of the following to deactivate or stop the alarms:
lUnlock the doors.
lTurn the “ENGINE START STOP” switch to ACCESSORY or
IGNITION ON mode, or start the engine. (The alarm will be
deactivated or stopped after a few seconds.)
