2011 LEXUS RX350 Owners Manual

136
1-7. Safety information

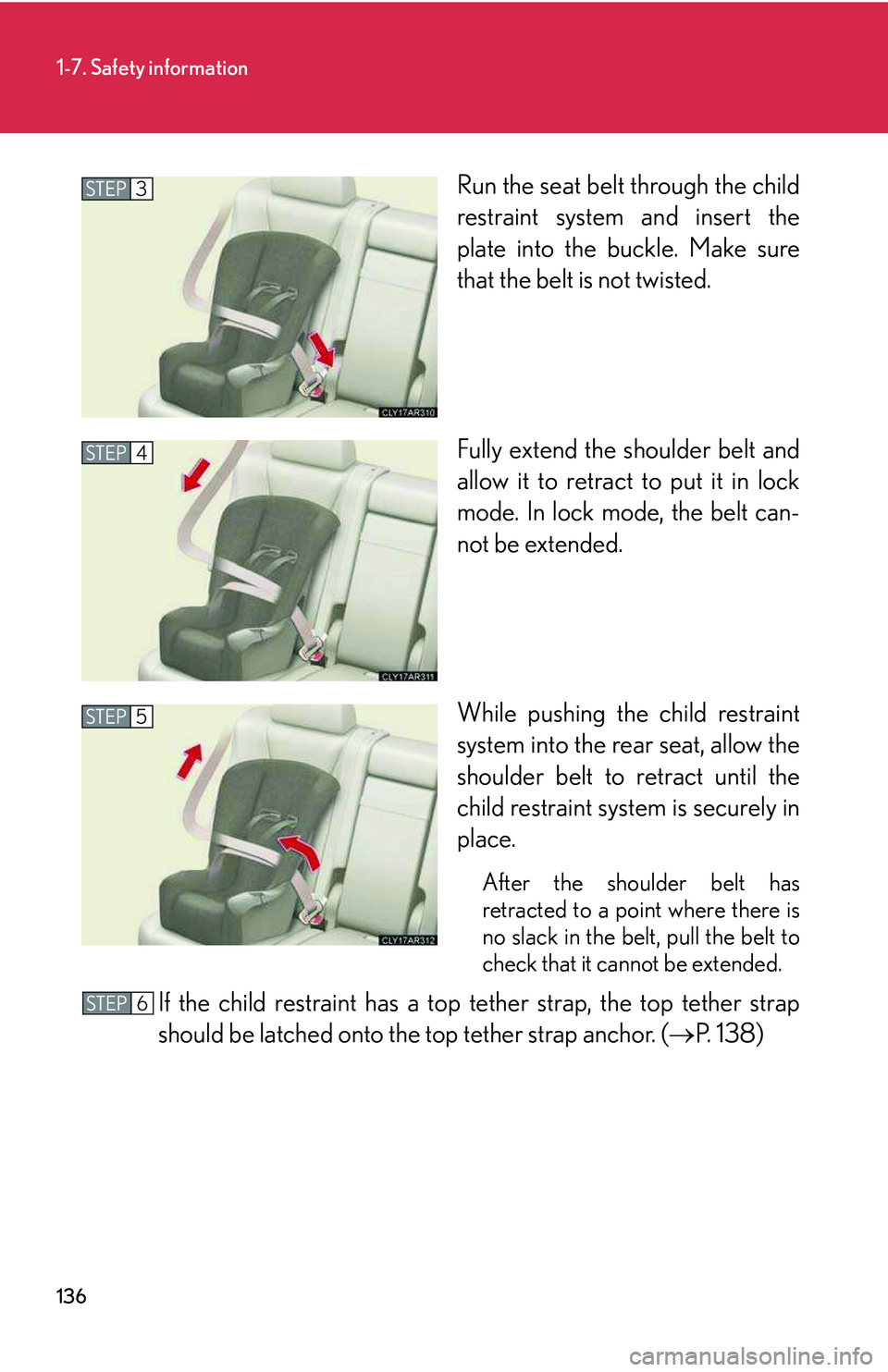

Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
child restraint system is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (→P. 1 3 8 )
STEP3
STEP4
STEP5
STEP6

137
1-7. Safety information
1

Before driving

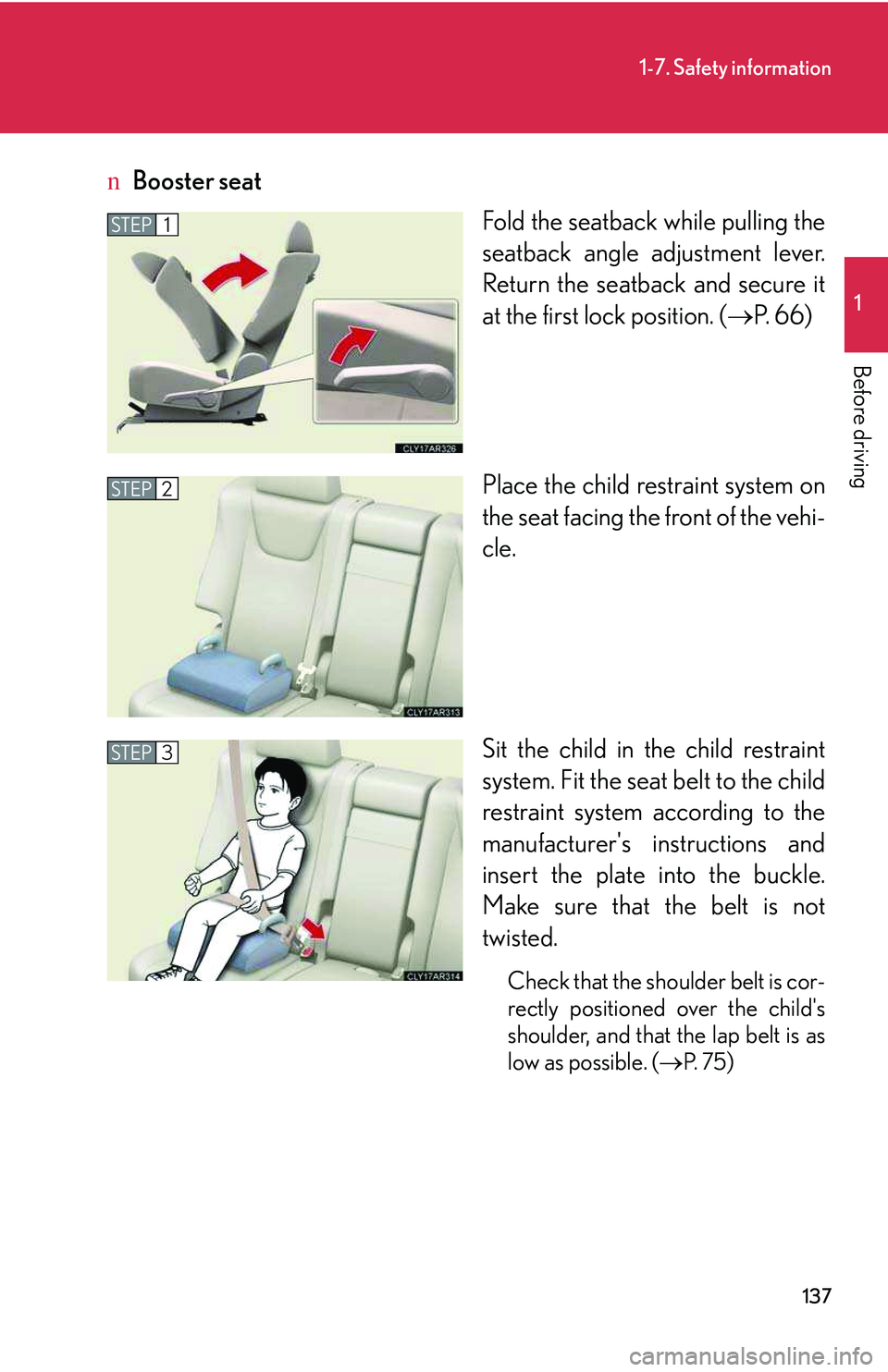

nBooster seat
Fold the seatback while pulling the
seatback angle adjustment lever.
Return the seatback and secure it
at the first lock position. (→P. 66)
Place the child restraint system on
the seat facing the front of the vehi-
cle.
Sit the child in the child restraint
system. Fit the seat belt to the child
restraint system according to the
manufacturer's instructions and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Check that the shoulder belt is cor-
rectly positioned over the child's
shoulder, and that the lap belt is as
low as possible. (→P. 7 5)
STEP1
STEP2
STEP3

138
1-7. Safety information

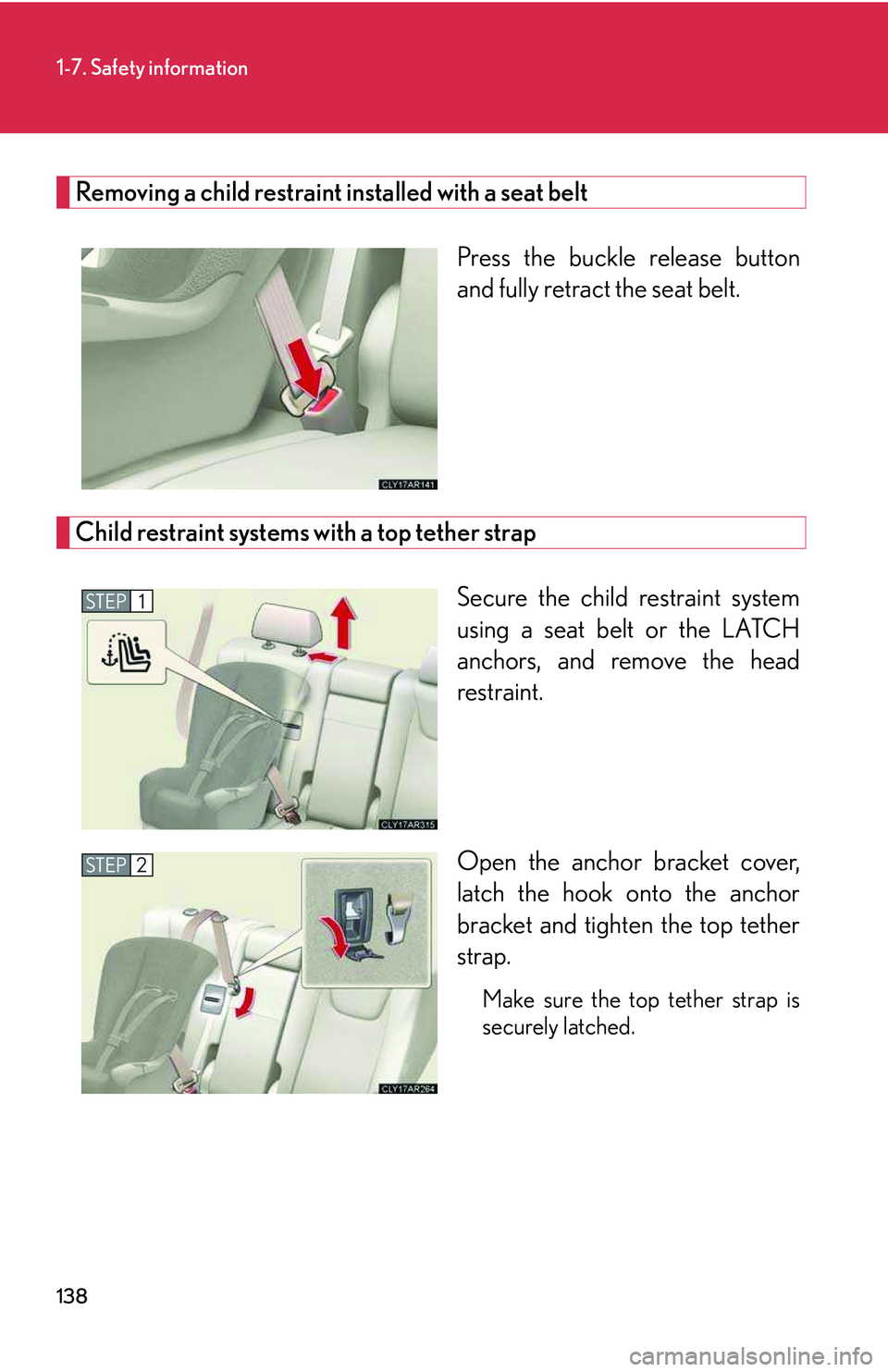

Removing a child restraint installed with a seat belt
Press the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strap
Secure the child restraint system
using a seat belt or the LATCH
anchors, and remove the head
restraint.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
STEP1
STEP2

139
1-7. Safety information
1

Before driving

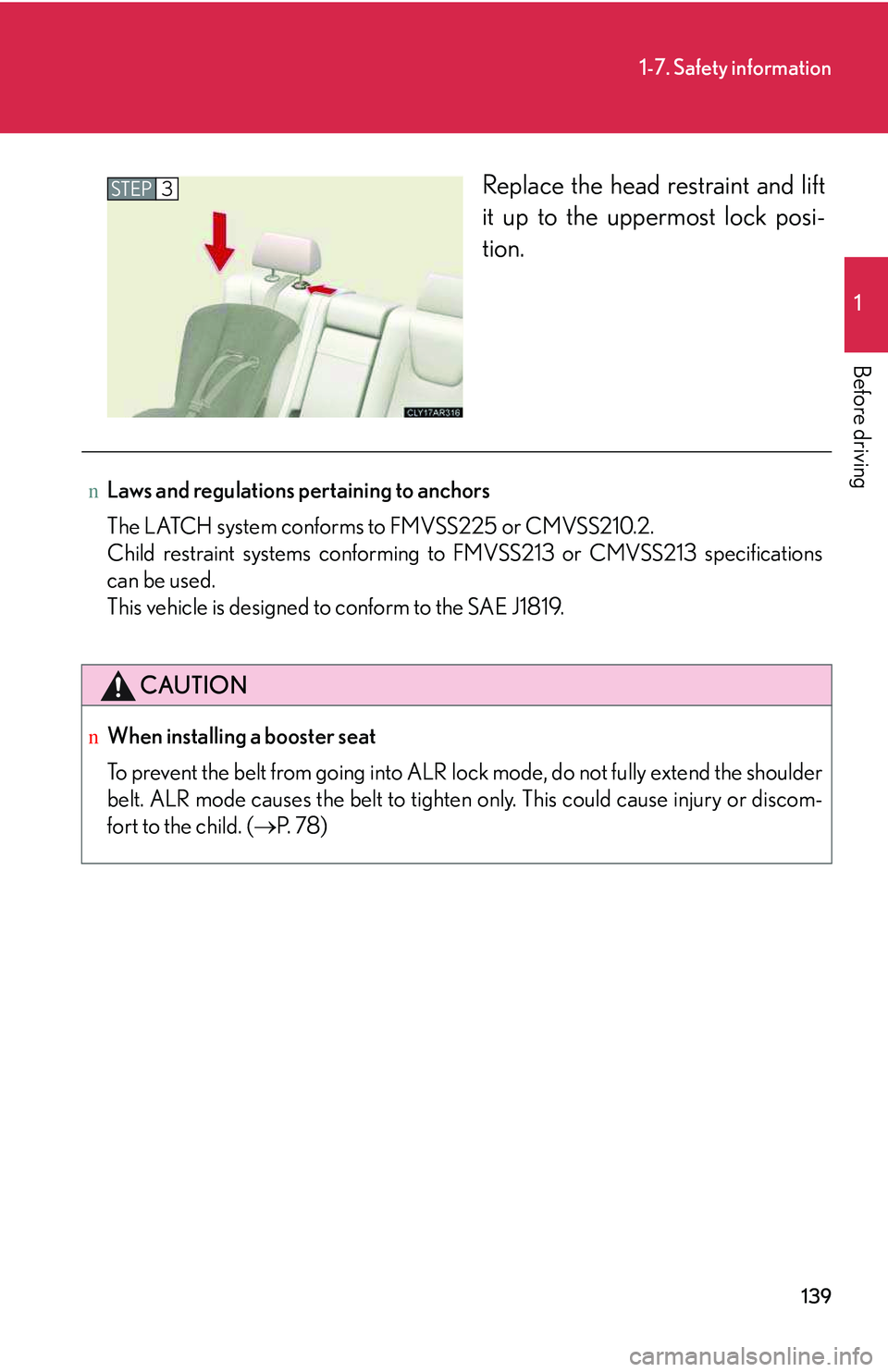

Replace the head restraint and lift
it up to the uppermost lock posi-
tion.
STEP3
nLaws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
nWhen installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoulder
belt. ALR mode causes the belt to tighten only. This could cause injury or discom-
fort to the child. (→P. 7 8 )

140
1-7. Safety information

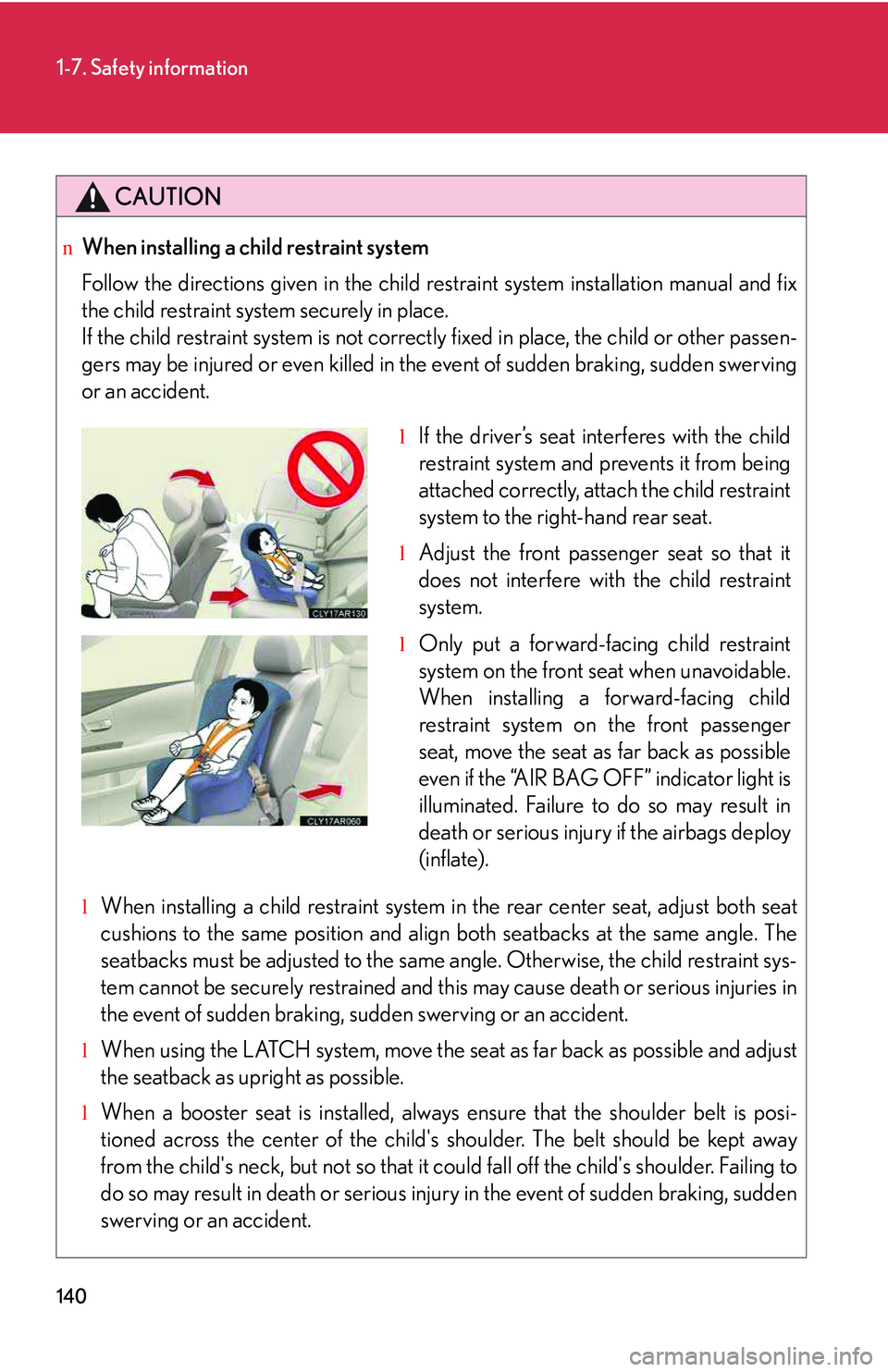

CAUTION
nWhen installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passen-
gers may be injured or even killed in the event of sudden braking, sudden swerving
or an accident.
lWhen installing a child restraint system in the rear center seat, adjust both seat
cushions to the same position and align both seatbacks at the same angle. The
seatbacks must be adjusted to the same angle. Otherwise, the child restraint sys-
tem cannot be securely restrained and this may cause death or serious injuries in
the event of sudden braking, sudden swerving or an accident.
lWhen using the LATCH system, move the seat as far back as possible and adjust
the seatback as upright as possible.
lWhen a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child's shoulder. The belt should be kept away
from the child's neck, but not so that it could fall off the child's shoulder. Failing to
do so may result in death or serious injury in the event of sudden braking, sudden
swerving or an accident.
lIf the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
lAdjust the front passenger seat so that it
does not interfere with the child restraint
system.
lOnly put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible
even if the “AIR BAG OFF” indicator light is
illuminated. Failure to do so may result in
death or serious injury if the airbags deploy
(inflate).

141
1-7. Safety information
1

Before driving

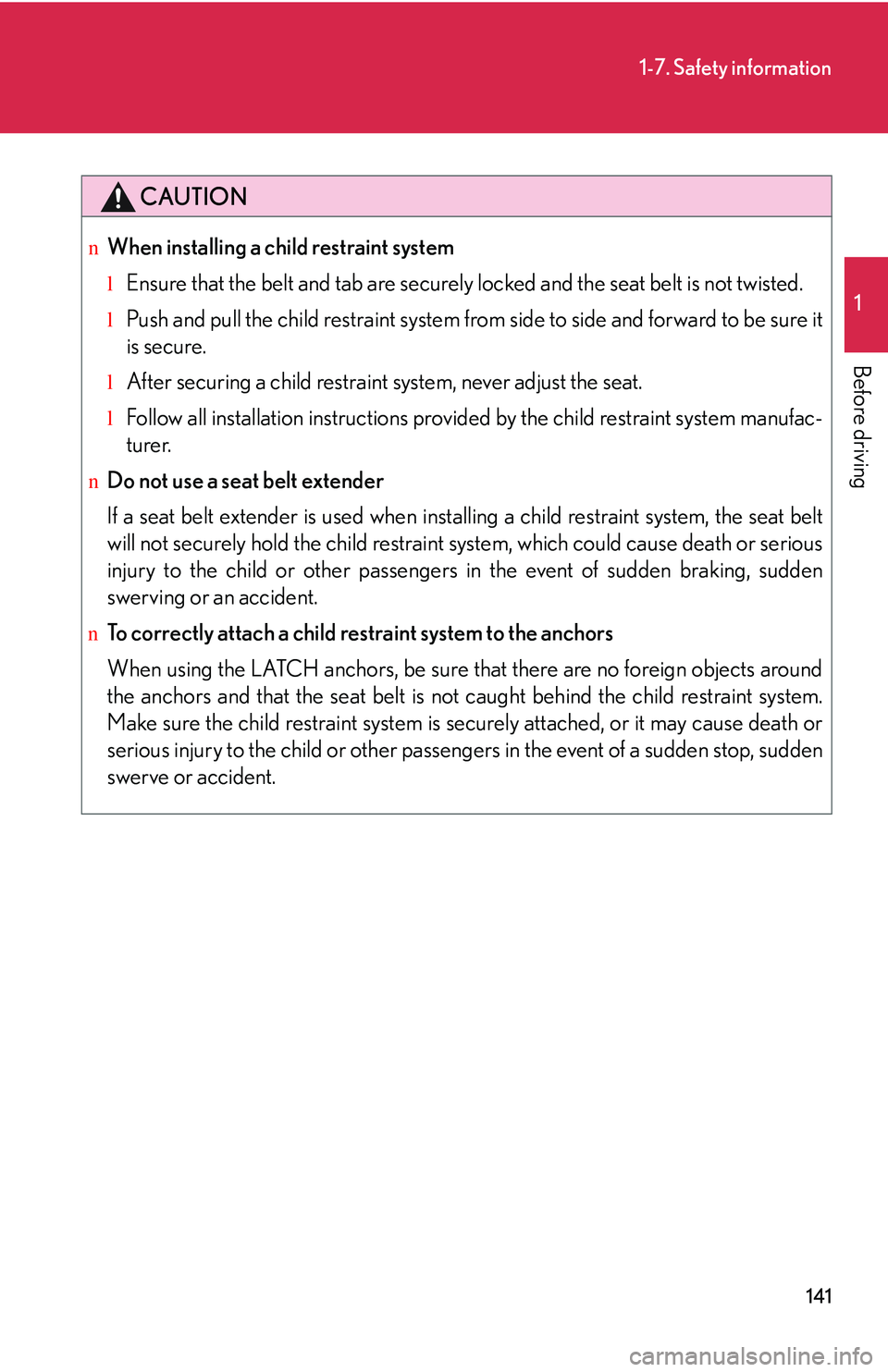

CAUTION
nWhen installing a child restraint system
lEnsure that the belt and tab are securely locked and the seat belt is not twisted.
lPush and pull the child restraint system from side to side and forward to be sure it
is secure.
lAfter securing a child restraint system, never adjust the seat.
lFollow all installation instructions provided by the child restraint system manufac-
turer.
nDo not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the seat belt
will not securely hold the child restraint system, which could cause death or serious
injury to the child or other passengers in the event of sudden braking, sudden
swerving or an accident.
nTo correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects around
the anchors and that the seat belt is not caught behind the child restraint system.
Make sure the child restraint system is securely attached, or it may cause death or
serious injury to the child or other passengers in the event of a sudden stop, sudden
swerve or accident.

142
1-7. Safety information

144
2-1. Driving procedures
Driving the vehicle
Starting off on a steep uphill
Make sure that the parking brake is set and shift the shift lever to
D.
Gently depress the accelerator pedal.
Release the parking brake.
The following procedures should be observed to ensure safe driving.
nStarting the engine
→P. 1 5 3
nDriving
With the brake pedal depressed, shift the shift lever to D.
(→P. 1 5 9 )
Release the parking brake. (→P. 164)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
nStopping
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the
shift lever to P or N. (→P. 1 5 9 )
n Parking the vehicle
With the shift lever in D, depress the brake pedal.
Set the parking brake. (→P. 1 6 4 )
Shift the shift lever to P. (→P. 1 5 9 )
If parking on a hill, block the wheels as needed.
Press the “ENGINE START STOP” switch to stop the engine.
Lock the door, making sure that you have the electronic key on
your person.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
