2011 LEXUS RX350 maintenance schedule

248
2-5. Driving information
NOTICE
nWhen you drive through water
If driving through water, such as when crossing shallow streams, first check the
depth of the water and the bottom of the stream for firmness. Drive slowly and avoid
deep water.
nInspection after off-road driving
lSand and mud that has accumulated around brake discs may affect braking effi-
ciency and may damage brake system components.
lAlways perform a maintenance inspection after each day of off-road driving that
has taken you through rough terrain, sand, mud, or water. For scheduled mainte-
nance information, refer to the “Warranty and Services Guide/Owner’s Manual
Supplement/Scheduled Maintenance”.

266
2-5. Driving information
lWhen restarting after parking on a slope:
With the transmission in the P position, start the engine. Be sure
to keep the brake pedal depressed.
Shift into 3, 2, 1, or the R position (if reversing).
Release the parking brake and brake pedal, and slowly pull or
back away from the wheel blocks. Stop and apply the brakes.
Have someone retrieve the blocks.
nBefore towing
Check that the following conditions are met:
lThe vehicle's tires are properly inflated. (→P. 4 8 7 )
lTrailer tires are inflated according to the trailer manufacturer's recommendation.
lAll trailer lights work.
lAll lights work each time you connect them.
lThe trailer ball is set up at the proper height for the coupler on the trailer.
lThe vehicle remains level when a loaded or unloaded trailer is hitched. Do not
drive if the vehicle is not level, and check for improper tongue load, overloading,
worn suspension, or other possible causes.
lThe trailer cargo is securely loaded.
lThe rear view mirrors conform to all applicable federal, state/provincial or local
regulations. If they do not, install rear view mirrors appropriate for towing pur-
poses.
nBreak-in schedule
If your vehicle is new or equipped with any new power train components (such as
an engine, transmission, differential and wheel bearing), Lexus recommends that
you do not tow a trailer until it has been driven for over 500 miles (800 km).
However, avoid full throttle acceleration.
nMaintenance
lIf you tow a trailer, your vehicle will require more frequent maintenance due to
the additional load. (See “Warranty and Services Guide”, “Owner's Manual Sup-
plement” or “Scheduled Maintenance”.)
lRetighten the fixing bolts of the towing ball and bracket after approximately 600
miles (1000 km) of trailer towing.
STEP1
STEP2
STEP3
STEP4

450
4-2. Maintenance
Maintenance requirements
nRepair and replacement
It is recommended that genuine Lexus parts be used for repair to ensure perfor-
mance of each system. If non-Lexus parts are used in replacement or if a repair
shop other than a Lexus dealer performs repairs, confirm the warranty coverage.
To ensure safe and economical driving, day-to-day care and regular main-
tenance are essential. It is the owner’s responsibility to perform regular
checks. Lexus recommends performing the following maintenance:
nGeneral maintenance
General maintenance should be performed on a daily basis. This
can be done by yourself or by a Lexus dealer.
nScheduled maintenance
Scheduled maintenance should be performed at specified intervals
according to the maintenance schedule.
For details about maintenance items and schedules, refer to the “War-
ranty and Service Guide”, “Owner’s Manual Supplement” or “Scheduled
Maintenance”.
nDo-it-yourself maintenance
You can perform some maintenance procedures yourself.
Please be aware that do-it-yourself maintenance may affect war-
ranty coverage.
The use of Lexus Repair Manuals is recommended.
For details about warranty coverage, refer to the separate “Owner’s
Guide”, “Warranty and Service Guide”, “Owner’s Manual Supplement”
or “Warranty Booklet”.

478
4-3. Do-it-yourself maintenance

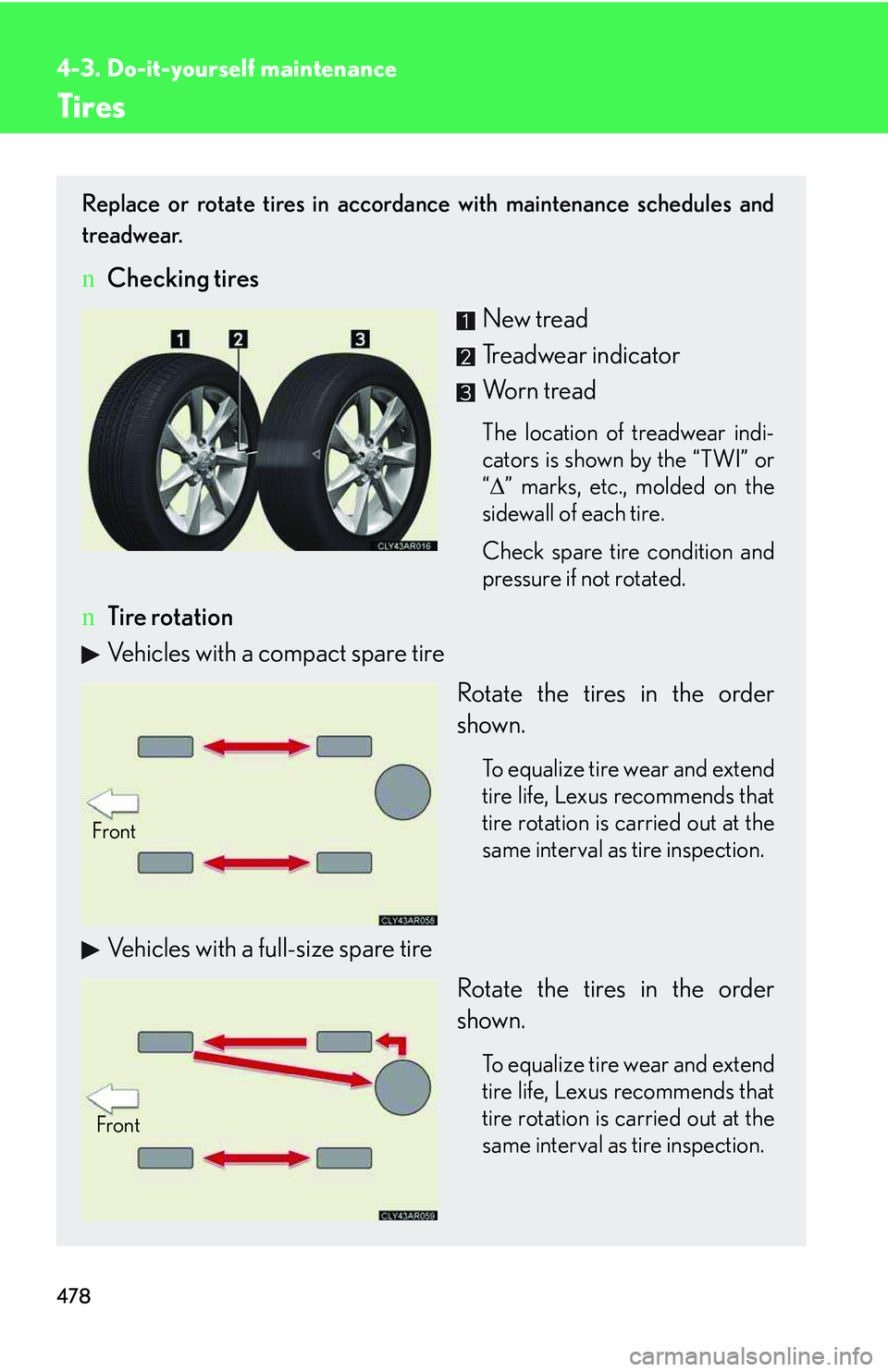

Tires
Replace or rotate tires in accordance with maintenance schedules and
treadwear.
nChecking tires
New tread
Treadwear indicator
Worn tread
The location of treadwear indi-
cators is shown by the “TWI” or
“∆” marks, etc., molded on the
sidewall of each tire.
Check spare tire condition and
pressure if not rotated.
nTire rotation
Vehicles with a compact spare tire
Rotate the tires in the order
shown.
To equalize tire wear and extend
tire life, Lexus recommends that
tire rotation is carried out at the
same interval as tire inspection.
Vehicles with a full-size spare tire
Rotate the tires in the order
shown.
To equalize tire wear and extend
tire life, Lexus recommends that
tire rotation is carried out at the
same interval as tire inspection.
Front
Front

494
4-3. Do-it-yourself maintenance
nChecking interval
Inspect and replace the air conditioning filter according to the maintenance sched-
ule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the “Owner's
Manual Supplement” or “Scheduled Maintenance”.)
nIf air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
To remove the filter case, lift it
up and pull it out. Replace the fil-
ter with a new one.
The “↑UP” mark shown on the
filter should be pointing up.
nCleaning method
If the filter is dirty, clean by blow-
ing compressed air through the
filter from the underside.
Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at
72 psi (500 kPa, 5.0 kgf/cm2
or bar).
If an air gun is not available,
have the filter cleaned by
your Lexus dealer.
STEP6

From everyone at Lexus, thank you
for purchasing one of our vehicles.
Your Lexus is designed to deliver
uncompromising luxury and perform-
ance. We are committed to providing
you with an ownership experience
that is second to none, and we look
forward to serving you in the years
ahead. Welcome to the Lexus family!
Taking Delivery of Your
New Lexus
As you take delivery of your new
vehicle, there are some important
services you should know about.
These include:
Lexus Personalized Settings: Your
vehicle includes a variety of electronic
features that can be personalized to
your preferences. For example, doors
can be programmed to remain locked
when you shift into “Park.” See your
dealer for details.
Pre-Delivery Service: Your dealership
has performed a thorough service to
prepare your vehicle for delivery. This
includes initializing certain electronic
features, such as the one-touch power
windows.
Scheduled Maintenance: Your vehi-
cle requires maintenance every six
months or 5,000 miles, whichever
comes first. See page 44 for details.
Dealership Service Department:
Your service department is commit-
ted to helping you keep your Lexus
performing at its best. Your dealer will
provide you with the department’s
hours of operation, appointment
procedures and information on any
special services.
Warranty Coverage: Your Lexus is
covered by one of the finest warran-
ties in the industry. See page 15 for a
summary of coverages.
Roadside Assistance: Roadside assis-
tance is provided for 48 months from
your vehicle’s in-service date, regard-
less of mileage. See page 6 for details.
Again, thank you for choosing Lexus.
We wish you many years of safe and
pleasurable driving.
WELCOME TO THE LEXUS FAMILY
1
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀1฀-฀8฀c฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀6฀:฀3฀8฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀1

TABLE OF CONTENTS
OWNER AMENITIES
Complimentary Services
First Scheduled Maintenance Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Second Scheduled Maintenance Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Loaner Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Travel Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Roadside Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Other Benefits and Assistance
Quality Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Vehicle Service History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Vehicle Service Agreements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Body Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
The Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
WARRANTY INFORMATION
Introduction
If You Need Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
The Lexus Commitment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 4
Warranty Coverages at a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Your Warranties in Detail
General Warranty Provisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
New Vehicle Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Federal Emission Control Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀1฀-฀8฀c฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀6฀:฀3฀8฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀2

California Emission Control Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Tire Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Your Responsibilities
Operation and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Obtaining Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
MAINTENANCE INFORMATION
Introduction
The Importance of Scheduled Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39.
Maintenance and Lexus Warranty Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Lexus Dealership Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1
General Maintenance and Regular Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Scheduled Maintenance Log
Determining Your Maintenance Interval: Months vs. Mileage . . . . . . . . . . . . . . . . . . 44
Special Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Complimentary First Scheduled Maintenance Service . . . . . . . . . . . . . . . . . . . . . . . . . 45
Complimentary Second Scheduled Maintenance Service . . . . . . . . . . . . . . . . . . . . . . 46
Scheduled Maintenance Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Explanation of Maintenance Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Vehicle Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
