2011 LEXUS RX350 Owners Manual

419
3-7. Other interior features
3

Interior features
Coat hooks
CAUTION
nItems that must not be hung on the hook
Do not hang a coat hanger or other hard or sharp object on the hook. If the SRS
curtain shield airbags deploy, these items may become projectiles that cause death
or serious injury.
To use the coat hook, push it in.

420
3-7. Other interior features
Floor mat
CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering with the
pedals while driving. An unexpectedly high speed may result or it may become diffi-
cult to stop the vehicle, leading to a serious accident.
nWhen installing the driver's floor mat
lDo not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
lOnly use floor mats designed for the driver's seat.
lAlways install the floor mat securely using the retaining hooks (clips) provided.
lDo not use two or more floor mats on top of each other.
lDo not place the floor mat bottom-side up or upside-down.
nBefore driving
Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix them securely in place onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
The shape of the retaining hooks
(clips) and the fixing procedure
of the floor mat for your vehicle
may differ from those shown in
the illustration. For details, refer
to the floor mat retention clip
installation instructions supplied
with the clips.
lCheck that the floor mat is securely fixed in
the right place with all the provided retain-
ing hooks (clips). Be especially careful to
perform this check after cleaning the floor.
lWith the engine stopped and the shift lever
in P, fully depress each pedal to the floor to
make sure it does not interfere with the
floor mat.

421
3-7. Other interior features
3

Interior features

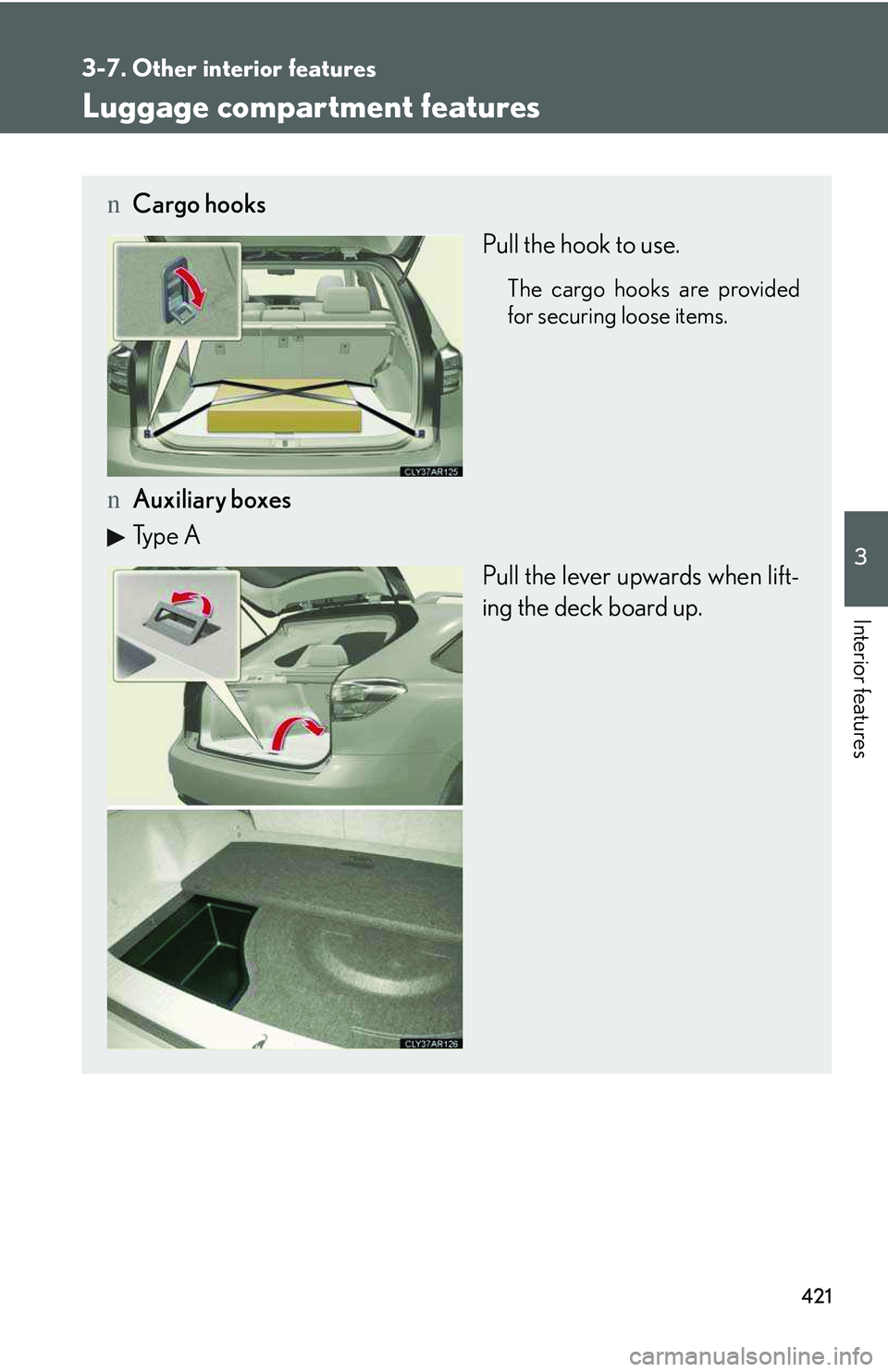

Luggage compartment features
nCargo hooks
Pull the hook to use.
The cargo hooks are provided
for securing loose items.
nAuxiliary boxes
Type A
Pull the lever upwards when lift-
ing the deck board up.

422
3-7. Other interior features
Type B
Pull the strap upwards when lift-
ing the cover up.

423
3-7. Other interior features
3

Interior features
nLuggage cover
Attach the hooks to the hook
brackets on the rear seat seat-
back.
Pull out the luggage cover and
hook it onto the anchors.
STEP1
STEP2

424
3-7. Other interior features
Removing the luggage covers
Front luggage cover
Press the buttons to remove the
luggage cover.
Rear luggage cover
Detach the outer clips of the rear
luggage cover from the back door.
STEP1

425
3-7. Other interior features
3

Interior features
Detach the inner clips of the rear
luggage cover from the back door.
STEP2
nInstalling the rear luggage cover
lEnsure that the luggage cover is in the proper installation position.
Push the clips of the rear luggage cover into the indentions on the back door
until they are locked into place.
lCheck that the rear luggage cover is securely attached.
CAUTION
nWhen the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.

426
3-7. Other interior features
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufactured
under license from HomeLink®.
Programming the HomeLink® (for U.S.A. owners)
The HomeLink® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
nProgramming the HomeLink®
Point the remote control transmit-
ter for the device 1 to 3 in. (25 to
75 mm) from the HomeLink®
control buttons.
Keep the HomeLink® indicator
light in view while programming.
The garage door opener can be programmed to operate garage doors,
gates, entry doors, door locks, home lighting systems, security systems, and
other devices.
STEP1
