Page 105 of 821
32
1-2. Opening, closing and locking the doors
Unlocking and locking the side doors (front door handles only)
Grip the handle to unlock the
door.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are
locked.
Touch the lock sensor (the inden-
tation on the upper part of the
door handle) to lock the doors.
Unlocking and locking the back door
Press the button to unlock the
door.
The door cannot be unlocked for 3
seconds after the door is locked.
Page 106 of 821
33
1-2. Opening, closing and locking the doors
1
Before driving

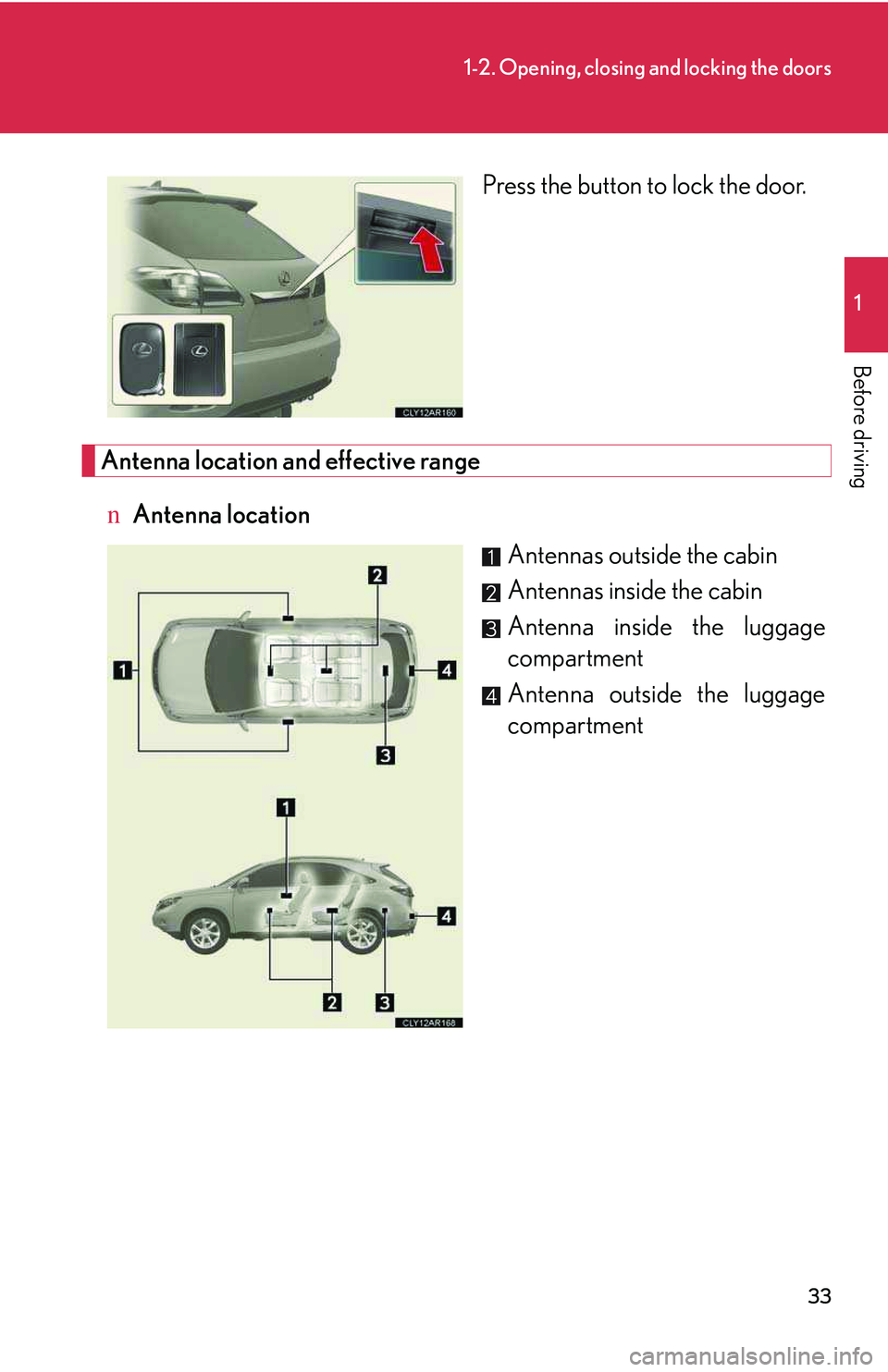

Press the button to lock the door.
Antenna location and effective range
nAntenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna inside the luggage
compartment
Antenna outside the luggage
compartment
Page 107 of 821
34
1-2. Opening, closing and locking the doors
nEffective range (areas within which the electronic key is detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
an outside door handle. (Only
the doors detecting the key
can be operated.)
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.
nOperation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: Once; Unlocked: Twice)
nWhen the door cannot be locked by the lock sensor on the upper part of the door
handle
Touch both lock sensors on the upper and
lower part of the door handle simultaneously.
Page 108 of 821

35
1-2. Opening, closing and locking the doors
1
Before driving
nAlarms and warning indicators
A combination of exterior and interior alarms as well as warning messages shown
on the multi-information display is used to prevent theft of the vehicle and accidents
resulting from erroneous operation. Take appropriate measures in response to any
warning message on the multi-information display. ( →P. 545)
The following table describes circumstances and correction procedures when only
alarms are sounded.
nSecurity feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 10
seconds.
An attempt was made to lock
the vehicle while a door was
open.
Close all of the doors
and lock the doors
again.
Interior alarm pings
repeatedly
The “ENGINE START
STOP” switch was turned to
ACCESSORY mode while
the driver's door is open (The
driver's door was opened
when the “ENGINE START
STOP” switch is in ACCES-
SORY mode.)
Close the driver's door.
The “ENGINE START
STOP” switch was turned off
while the driver's door is
open.
Close the driver's door.
Page 109 of 821
36
1-2. Opening, closing and locking the doors

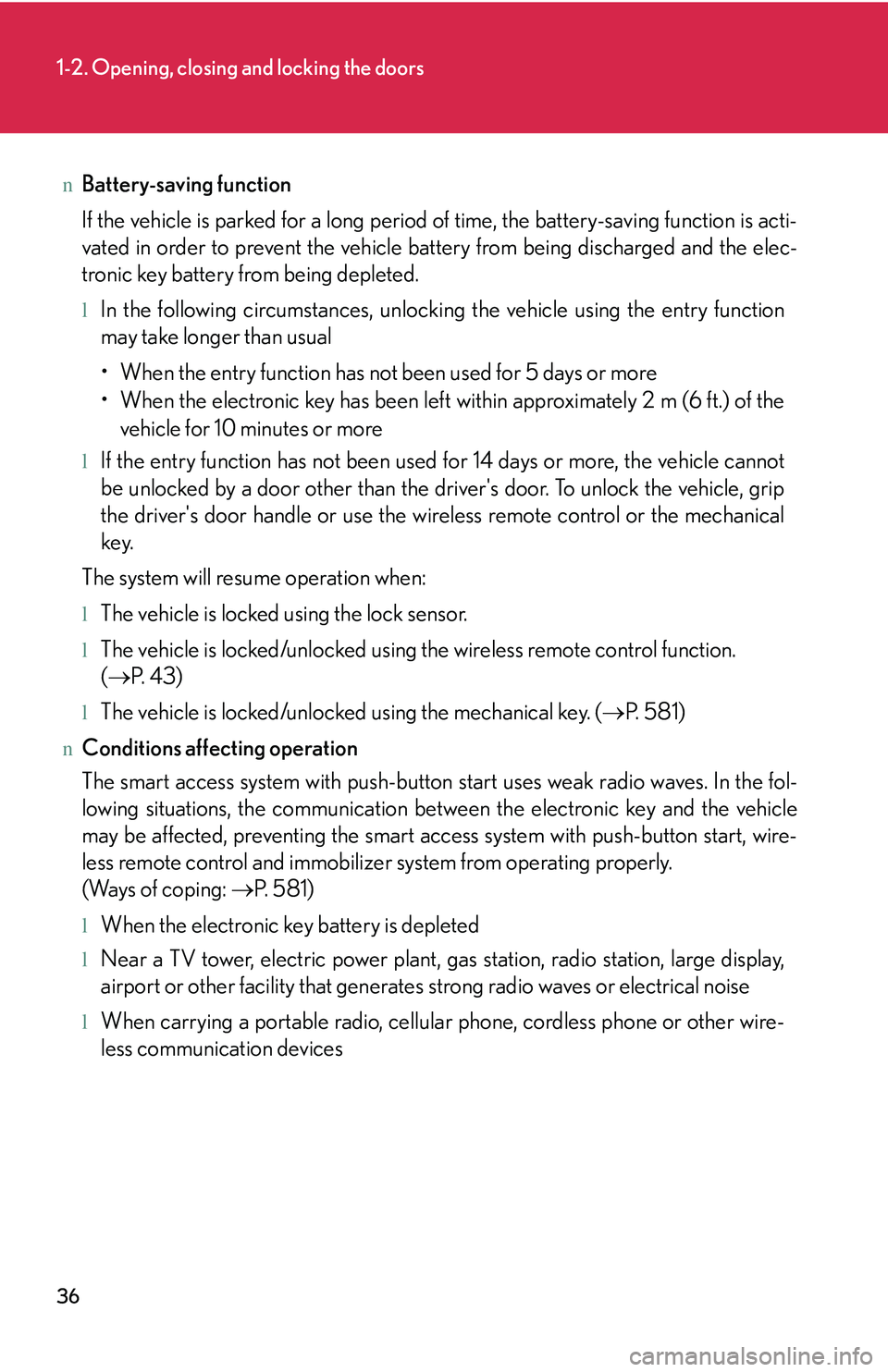

nBattery-saving function
If the vehicle is parked for a long period of time, the battery-saving function is acti-
vated in order to prevent the vehicle battery from being discharged and the elec-
tronic key battery from being depleted.
lIn the following circumstances, unlocking the vehicle using the entry function
may take longer than usual
Page 110 of 821
37
1-2. Opening, closing and locking the doors
1
Before driving

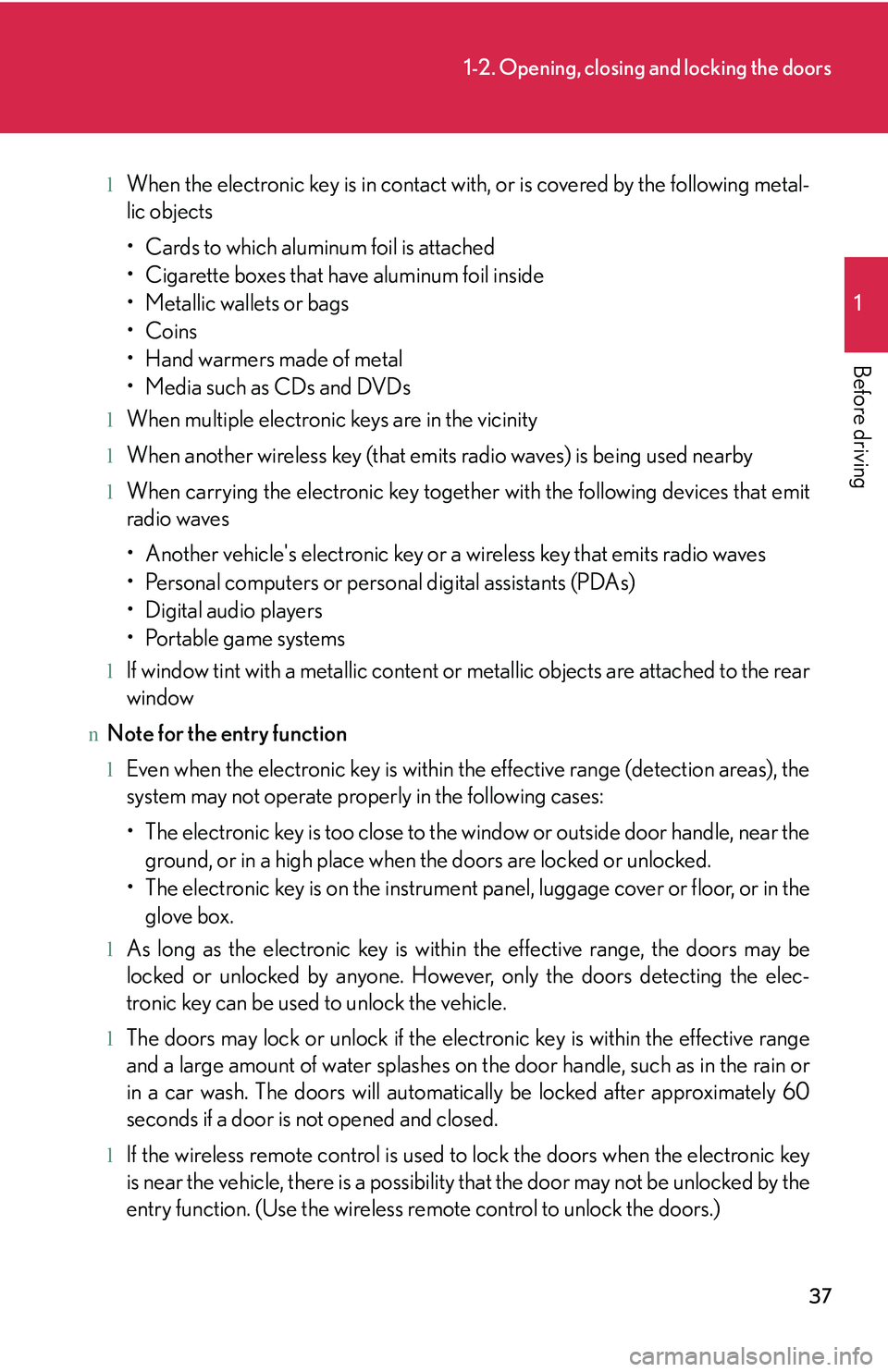

lWhen the electronic key is in contact with, or is covered by the following metal-
lic objects
Page 111 of 821

38
1-2. Opening, closing and locking the doors
nNotes for locking the doors
lTouching the door lock sensor while wearing gloves may delay or prevent lock
operation. Remove the gloves and touch the lock sensor again.
lWhen the lock operation is performed using the lock sensor, recognition signals
will be shown up to two consecutive times. After this, no recognition signals will
be given.
lIf the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. Place the key in a position 6 ft.
(2 m) or more separate from the vehicle while the vehicle is being washed. (Take
care to ensure that the key is not stolen.)
lIf the electronic key is inside the vehicle and a door handle becomes wet during
a car wash, a message may be shown on the multi-information display and a
buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.
lThe lock sensor may not work properly if it comes into contact with ice, snow,
mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock
sensor on the lower part of the door handle.
lFingernails may scrape against the door during operation of the door handle.
Be careful not to injure fingernails or damage the surface of the door.
nNotes for the unlocking function
lGripping the door handle when wearing a glove may not unlock the door.
lA sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.
lIf there is another electronic key in the detection area, it may take slightly longer
to unlock the doors after the door handle is gripped.
nWhen the vehicle is not driven for extended periods
lTo prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m)
of the vehicle.
lThe smart access system with push-button start can be deactivated in advance.
( →P. 6 2 1 )
Page 112 of 821

39
1-2. Opening, closing and locking the doors
1
Before driving
nTo operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)
nIf the smart access system with push-button start does not operate properly
lLocking and unlocking the doors: Use the mechanical key. ( →P. 5 8 1 )
lStarting the engine: →P. 5 8 2
nElectronic key battery depletion
lThe standard battery life is 1 to 2 years. (The card key battery life is about a year
and a half.)
lIf the battery becomes low, an alarm will sound in the cabin when the engine
stops. ( →P. 5 5 6 )
lAs the electronic key always transmits radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indicate
that the electronic key battery may be depleted. Replace the battery when nec-
essary. ( →P. 4 9 6 )
