2011 LEXUS RX350 Owners Manual

EXPLANATION OF MAINTENANCE ITEMS
MAINTENANCE
Scheduled Maintenance Log70
Engine Coolant
When inspecting, visually check
the level of the engine coolant on the
see-through reservoir. Add coolant
as necessary. When replacing, drain
and flush the cooling system and refill
with coolant. Always use Genuine
Toyota Super Long-Life Coolant or
similar high-quality non-silicate,
nonamine, non-nitrate, non-borate
ethylene-glycol coolant with long-life
hybrid organic acid technology (i.e.,
a combination of low phosphates and
organic acids). A qualified technician
should perform these operations.
Check the radiator and condenser
for blockage by leaves, dirt or insects
and clean if necessary. Also check
the hose connections for corrosion
and condition of installation.
Note:Initial replacement of engine
coolant is at 120 months/100,000
miles. Replace every 60 months/
50,000 miles thereafter.
Engine Oil and Oil Filter
Replace the oil filter and drain and
refill the engine oil at specified inter-
vals. SAE 0W-20 oil is the best
choice for good fuel economy and
good starting in cold weather. If SAE
0W-20 is not available, SAE 5W-20
may be used; however, it must be
replaced with SAE 0W-20 at the next
oil change. See your Lexus dealer for
oil specifically formulated for your
vehicle’s engine. For instructions on
how to reset the reminder light, refer
to your Owner’s Manual.
Note:If you do the majority of your
driving under any of the special oper-
ating conditions indicated on page
44, you should replace the engine oil
and oil filter every six months or
5,000 miles, regardless of the oil
used or the certification of the vehicle.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes,
muffler and hangers for cracks,
deterioration and damage. Start
the engine and listen carefully for
any exhaust leakage. Tighten connec-
tions and replace parts as necessary.
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀7฀0

EXPLANATION OF MAINTENANCE ITEMS

MAINTENANCE
Scheduled Maintenance Log71
Fuel Lines and Connections, Fuel
Tank Band and Fuel Tank Vapor
Vent System Hoses
Visually inspect for corrosion, dam-
age, cracks, and loose or leaking
connections. Tighten connections
and replace parts as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterio-
ration and damage and replace if
necessary.
Nuts and Bolts on Chassis
Check that tightness of the seat-
mounting bolts and front/rear suspen-
sion-member retaining bolts matches
torque measurements specified in the
Repair Manual.
Rack and Pinion Assembly
Inspect the rack and pinion assembly
for signs of leakage, damage and
loose electrical connections. Tighten
connections and if you discover any
leakage or damage, have it repaired
immediately by a qualified technician.
Road Test
While driving the vehicle, check for
proper operation of engine, transmis-
sion, brakes and steering. Also check
the parking brake, and check for
abnormal noise or vibration from
any part of the vehicle.
Spark Plugs
Replace at specified interval. Install
new plugs of the same type as origi-
nally equipped (see your Owner’s
Manual). A qualified technician should
perform this operation. To ensure
optimum engine performance,
replace only with Denso FK20HR11
plugs or equivalent.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering
wheel. Inspect the linkage for bending
and damage and the dust boots for
deterioration, cracks and damage.
Replace any damaged parts. A quali-
fied technician should perform these
operations.
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀7฀1

EXPLANATION OF MAINTENANCE ITEMS
MAINTENANCE
Scheduled Maintenance Log72
Timing Chain
The timing chain requires no periodic
inspection.
Tire-Pressure Warning Sensors
A tire-pressure sensor is mounted on
each full-size wheel. These sensors
do not require periodic maintenance.
When a sensor’s long-life lithium bat-
tery becomes discharged, the battery
should be replaced by a qualified
technician following procedures in
Lexus service and repair publications.
Tire Rotation
Tires should be rotated according
to the instructions in your Owner’s
Manual. When rotating tires, check
tire pressure and check tires for dam-
age and uneven wear. If the spare is
not rotated, check the condition and
pressure of the spare.
Transfer Case Oil
Check for correct oil level and
inspect each component for signs of
leakage. If you discover any leakage,
have it repaired immediately by a
qualified technician. For correct oil,
refer to your Owner’s Manual.
Transmission
The transmission and transmission
fluid are a completely sealed unit.
Therefore, periodic checks and
replacement of the transmission fluid
are not required, and there is no dip-
stick on the transmission. Any repairs
that require adding or replacing fluid
should be performed by a qualified
technician following precedures in
Lexus service and repair publications.
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀7฀2

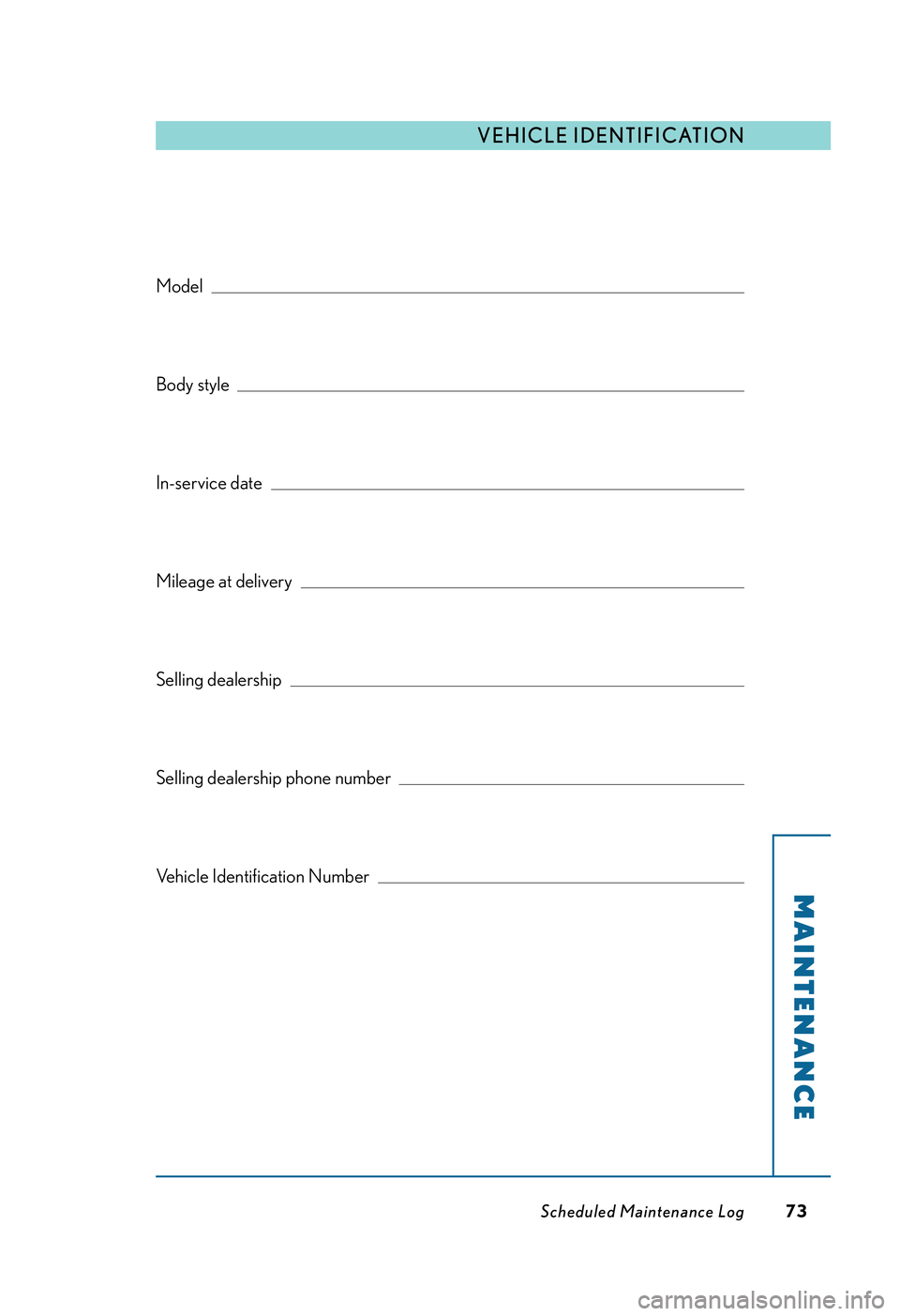

VEHICLE IDENTIFICATION

MAINTENANCE
Scheduled Maintenance Log73
Model
Body style
In-service date
Mileage at delivery
Selling dealership
Selling dealership phone number
Vehicle Identification Number
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀7฀3

*See scheduled maintenance log for maintenance interval.
74
INDEX
Air conditioner filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 68
Axle shaft boots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 68
Ball joints and dust covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 68
Body inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 68
Body repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Brakes
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44, 68
Lines and hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 68
Pads, calipers and rotors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 69
Complimentary services
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4, 45–46
Other services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–6
Differential oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 69
Dispute resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9–1 3, 2 1
Drive belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 69
Drive shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 69
Driver’s floor mat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 69
Emergency repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37–38
Engine air filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 69
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42, 48–67*, 70
Engine oil and filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42, 48–67*, 70
Exhaust pipes and mountings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 70
Fuel lines and connections, fuel tank band and
fuel tank vapor vent system hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 7 1
Fuel tank cap gasket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 7 1
Inspections, general maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42–43
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀7฀4

75

INDEX
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Lexus Personalized Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1, 4, 45
Loaner vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Maintenance
As related to warranty coverage . . . . . . . . . . . . . . . . . . . . . . . . . . .25, 29, 31, 35, 40
Complimentary first and second services . . . . . . . . . . . . . . . . . . . . . . . . . . .4, 45–46
Explanation of maintenance items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68–72
General maintenance and inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42–43
Importance of maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Maintenance intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Scheduled maintenance log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67
Where to obtain maintenance . . . . . . . . . . . . . . . . . . . . . . .inside front cover, 35, 41
Nuts and bolts on chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 7 1
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 70
Owner responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25, 29, 31, 35–38
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 16, 25, 31, 36
Pre-delivery service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Quality control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Rack and pinion assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 7 1
Road test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 7 1
Roadside assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1, 6
Service agreements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Service history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Smog-check tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26, 32
Spark plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63, 7 1
Steering linkage and boots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 7 1
*See scheduled maintenance log for maintenance interval.
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀7฀5

76
INDEX
Timing chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Tire inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 72
Tire-pressure warning sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Tires, warranty coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Transfer case oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 72
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48–67*, 72
Travel protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Warranty coverages
Basic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
California Emission Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28–33
Corrosion perforation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 9
Coverages at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 5
Federal Emission Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22–27
General provisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 6–1 7
Powertrain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 8
Restraint systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 8
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 9
What is not covered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 1 9–21, 23, 3 0
*See scheduled maintenance log for maintenance interval.
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀7฀6

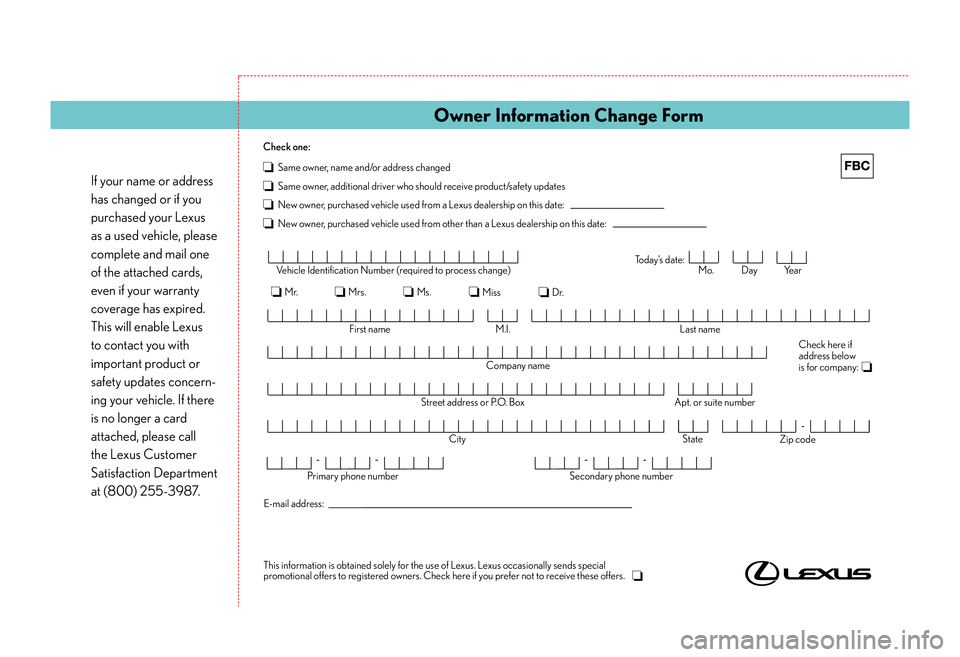

If your name or address
has changed or if y ou
pur chased your L exus
as a used vehicle, please
complete and mail one
of the attached car ds,
ev en if your w arranty
cover age has e xpired.
This will enable L exus
to contact you with
important product or
safety updates concern-
ing your vehicle. If ther e
is no longer a card
attached, please call
the Lexus Customer
Satisfaction D epartment
at (800) 255-3987.
This information is obtained solely for the use of Lexus. Lexus occasionally sends special
promotional offers to registered owners. Check here if you prefer not to receive these offers. Check here if
address below
is for company:
oFirst name M.I. Last name
Company name
Street address or P.O. Box Apt. or suite number
City State
Zip code
Primary phone number Secondary phone number
E-mail address: o Mr.
o Mrs.
o Ms.
o Miss
o Dr. Vehicle Identification Number (required to process change) Mo. Day
Year T oday
