2011 LEXUS RX350 Owners Manual

64
1-3. Adjustable components (seats, mirrors, steering wheel)

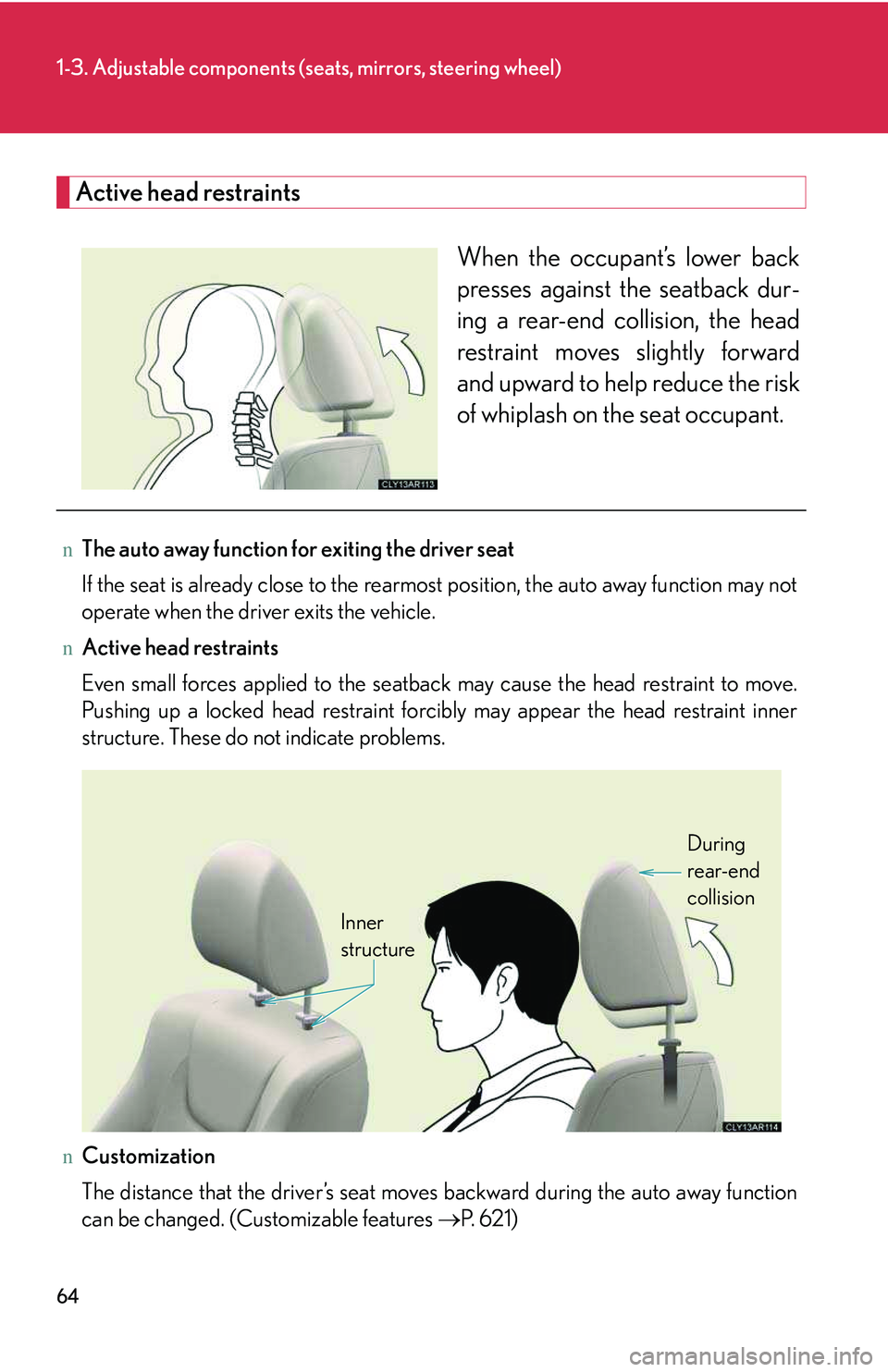

Active head restraints
When the occupant’s lower back
presses against the seatback dur-
ing a rear-end collision, the head
restraint moves slightly forward
and upward to help reduce the risk
of whiplash on the seat occupant.
nThe auto away function for exiting the driver seat
If the seat is already close to the rearmost position, the auto away function may not
operate when the driver exits the vehicle.
nActive head restraints
Even small forces applied to the seatback may cause the head restraint to move.
Pushing up a locked head restraint forcibly may appear the head restraint inner
structure. These do not indicate problems.
nCustomization
The distance that the driver’s seat moves backward during the auto away function
can be changed. (Customizable features →P. 6 2 1 )
Inner
structure
During
rear-end
collision

65
1-3. Adjustable components (seats, mirrors, steering wheel)
1

Before driving

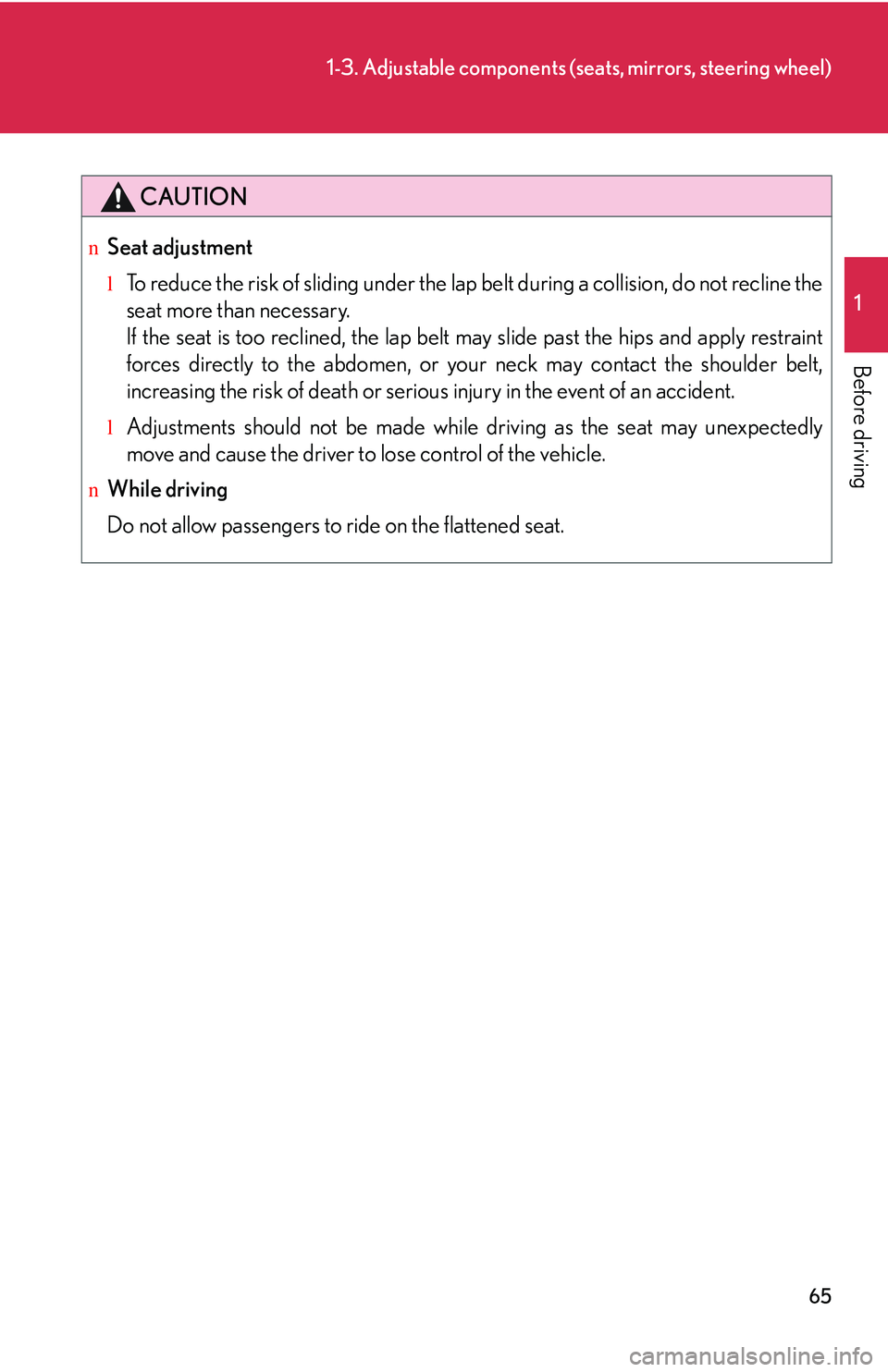

CAUTION
nSeat adjustment
lTo reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
lAdjustments should not be made while driving as the seat may unexpectedly
move and cause the driver to lose control of the vehicle.
nWhile driving
Do not allow passengers to ride on the flattened seat.

66
1-3. Adjustable components (seats, mirrors, steering wheel)
Rear seats
Folding down the rear seatbacks
nBefore folding down the rear seatbacks
Stow all the head restraints and the
rear center seat belt buckle.
Seat position adjustment lever
Seatback angle adjustment lever

67
1-3. Adjustable components (seats, mirrors, steering wheel)
1

Before driving
Stow the seat belts inside the rear
seat side pockets.
When not in use, the seat belts
should be stored inside the rear
seat side pockets at all times.
nFolding down the rear seatbacks
From inside
Pull the seatback angle adjustment
lever.
To return the rear seatbacks to
their original positions, lift them up
until they lock.
From outside
Pull the levers.
Left side lever: Folds down the
left side rear seat
Right side lever: Folds down the
right side and
center rear seats
To return the rear seatbacks to
their original positions, lift them up
until they lock.

68
1-3. Adjustable components (seats, mirrors, steering wheel)

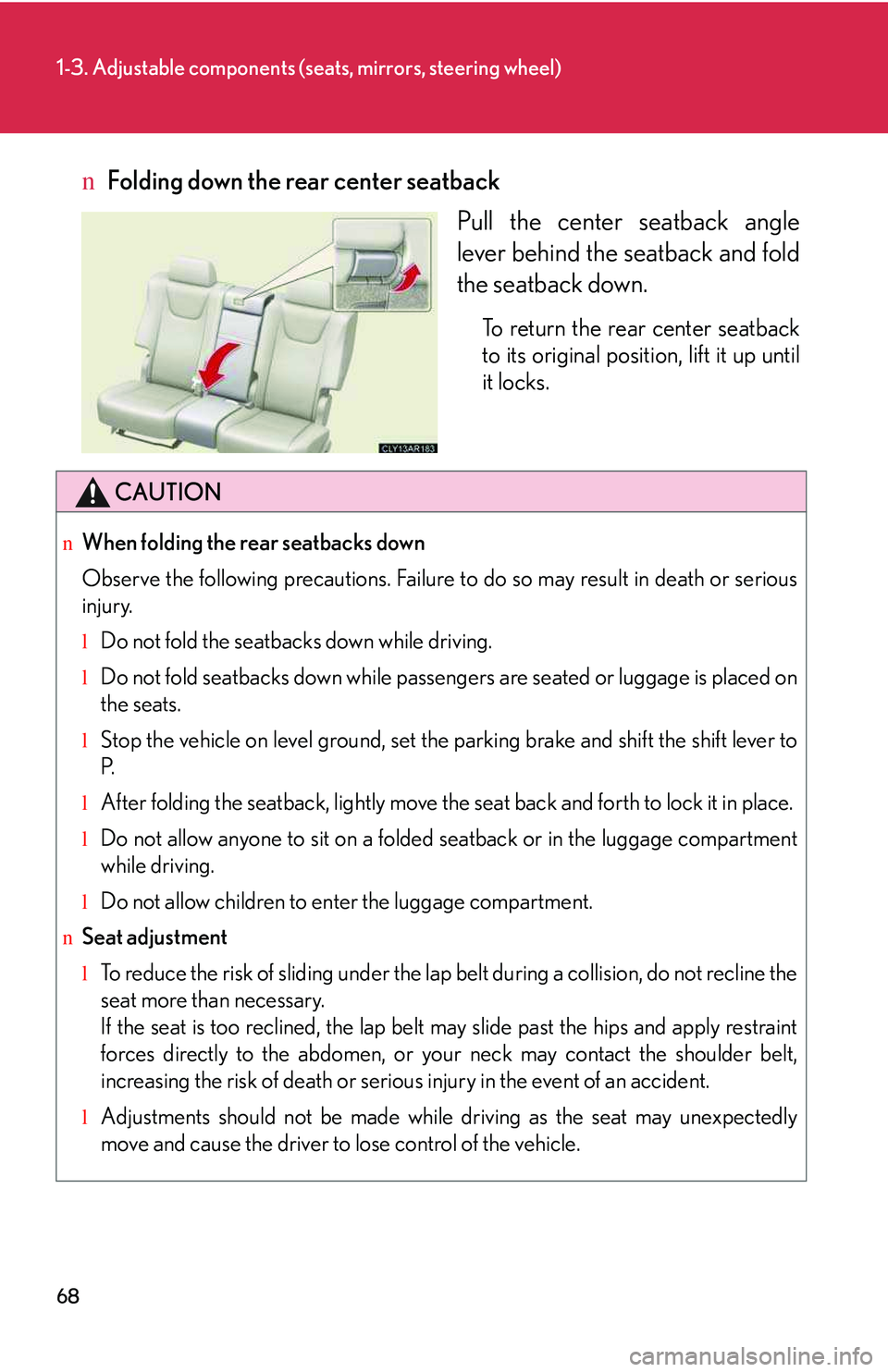

nFolding down the rear center seatback
Pull the center seatback angle
lever behind the seatback and fold
the seatback down.
To return the rear center seatback
to its original position, lift it up until
it locks.
CAUTION
nWhen folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or serious
injury.
lDo not fold the seatbacks down while driving.
lDo not fold seatbacks down while passengers are seated or luggage is placed on
the seats.
lStop the vehicle on level ground, set the parking brake and shift the shift lever to
P.
lAfter folding the seatback, lightly move the seat back and forth to lock it in place.
lDo not allow anyone to sit on a folded seatback or in the luggage compartment
while driving.
lDo not allow children to enter the luggage compartment.
nSeat adjustment
lTo reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
lAdjustments should not be made while driving as the seat may unexpectedly
move and cause the driver to lose control of the vehicle.

69
1-3. Adjustable components (seats, mirrors, steering wheel)
1

Before driving
CAUTION
nAfter returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or serious
injury.
lMake sure the seatback is securely locked by pushing it forward and rearward on
the top.
lCheck that the seat belts are not twisted or caught in the seatback.
NOTICE
nStowing the center seat belt buckle
Before folding down the rear seatbacks, stow the center seat belt buckle to prevent
it from becoming caught in the seatbacks.

70
1-3. Adjustable components (seats, mirrors, steering wheel)
Driving position memory∗
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button. It is also possible to set this function to activate auto-
matically when the doors are unlocked.
Three different driving positions can be entered into memory.
nEntering a position to memory
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel and outside rear view
mirrors to the desired positions.
Press the “SET” button, then
within 3 seconds press button
“1”, “2” or “3” until the signal
beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
nRecalling the memorized position
Check that the shift lever is set in P.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Press button “1”, “2” or “3” until
the signal beeps to recall the
desired position.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
∗: If equipped

71
1-3. Adjustable components (seats, mirrors, steering wheel)
1

Before driving
Linking driving position memory with door unlock operation
Record your driving position to button “1”, “2” or “3” before performing
the following:
Carry only the key (including the card key) to which you want to link the
driving position. If 2 or more keys are in the vehicle, the driving position
cannot be linked properly.
Shift the shift lever to P and close the driver's door. Turn the
“ENGINE START STOP” switch to IGNITION ON mode.
Press the desired button (“1”, “2” or
“3”) to recall the position. Then,
while keep pressing the button,
press the driver's door lock
switches (either lock or unlock)
until the signal beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver's
door is opened.
STEP1
STEP2
