2011 LEXUS RX350 Owners Manual

65

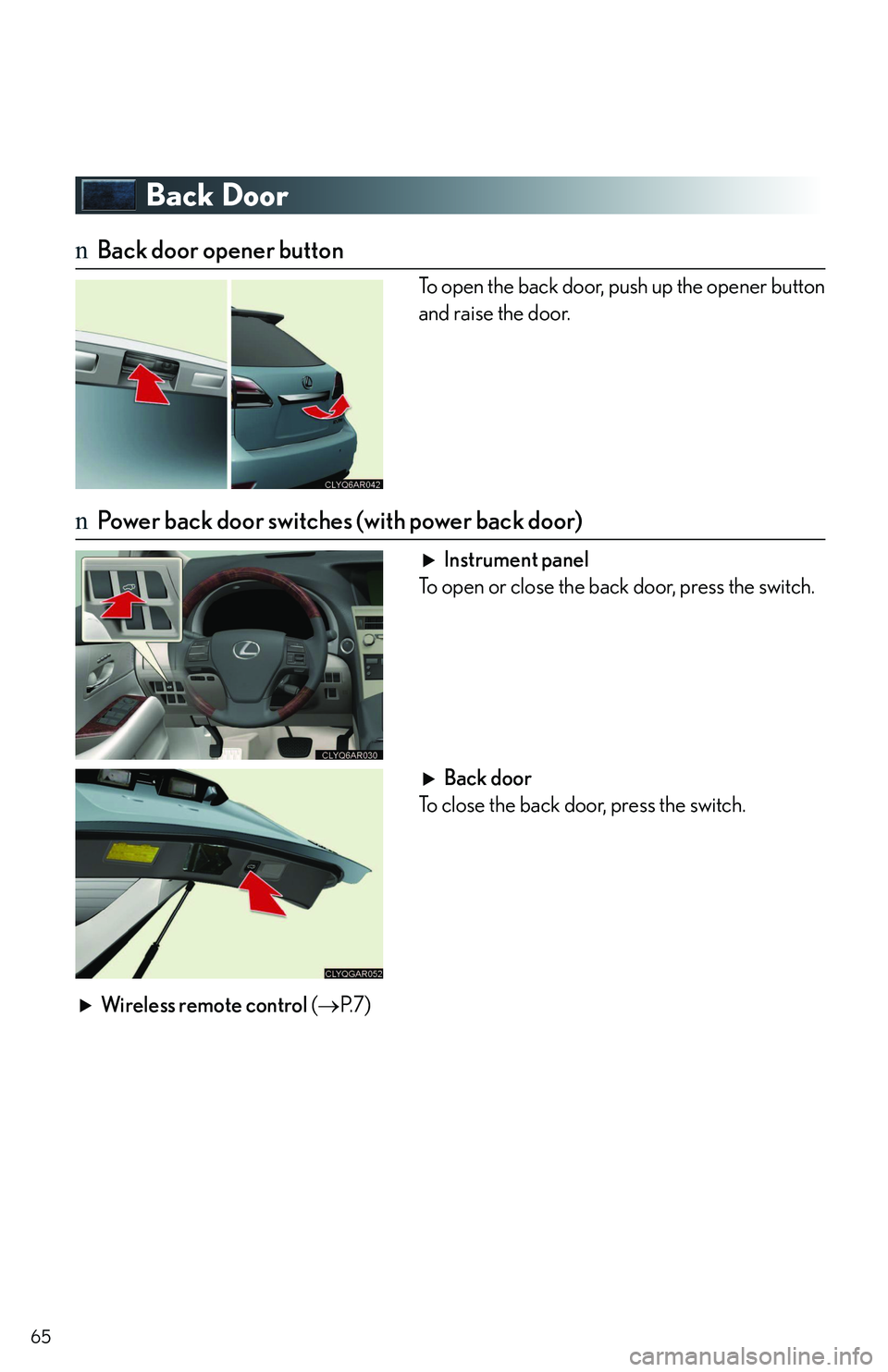

Back Door
nBack door opener button
To open the back door, push up the opener button
and raise the door.
nPower back door switches (with power back door)
Instrument panel
To open or close the back door, press the switch.
Back door
To close the back door, press the switch.
Wireless remote control (→P. 7 )

66
nBack door closer (with power back door)
If the back door is left slightly open, it will close automatically.
nTurning the power back door system on and off (with power back door)
To disable the system, turn off the main switch in
the glove box.
On
Off
When the power back door system is disabled,
the back door cannot be opened using the wire-
less remote control or power back door switch.
Fuel Tank Cap
Press the fuel filler door opener.
Slowly remove the cap by turning it counter-
clockwise.
After the cap is removed, it can be hung on the
inside of the fuel filler door.
1
2

What to do if ...
67
List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)Malfunction
indicator lamp
Electric power steering
system warning light
(Canada)Pre-collision system
warning light*1
SRS warning light
(Flashing and then continu-ously on)
Tire pressure warning light
(U.S.A.)
“ABS” warning light
(Canada)
Follow the correction procedures.
Open door warning light
(On the center panel)
Front passenger’s seat belt
reminder light
Low fuel level warning light
(Illuminate no flashing)
Tire pressure warning light*2
(On the instru-ment panel)
Driver’s seat belt
reminder light
Master warning light
For further information, refer to the Owner's Manual.

68
*1 : If equipped*2: It also turn on due to natural causes such as natural air leaks or tire inflation pressure
changes caused by temperature (the status of the full-sized spare tire, if equipped, is also checked). Adjust the tire inflation pressure.
See the Owner's Manual
Tu r n s i g n a l i n d i c a t o rRadar cruise control
indicator*1
Headlight high beam indicatorIntuitive parking assist-sensor
indicator*1
Automatic high beam
indicator*1“AFS OFF” indicator*1
Headlight indicator (U.S.A.)Slip indicator
Tail light indicator (Canada)VSC off indicator
Front fog light indicatorEco Driving Indicator Light
“ECT SNOW” indicatorSRS airbag on-off indicator*1
All-wheel drive lock
indicator*1SRS airbag on-off indicator*1
Cruise control indicator
For further information, refer to the Owner's Manual.

What to do if ...
69
If the electronic key does not operate
properly
nUnlocking and locking the doors
To unlock or lock the vehicle, use the mechanical
key. (driver's door only) The mechanical key is
stored inside the electronic key.
Locks
Unlocks
nStarting the engine
Depress the brake pedal.
Touch the Lexus emblem side of the electronic
key to the “ENGINE START STOP” switch.
Press the “ENGINE START STOP” switch
within 10 seconds of the buzzer, keeping the
brake pedal depressed.
*: If equipped
1
2
Card key*
If the electronic key battery becomes depleted, replace it with a new battery. For instruc-
tions on replacing the battery, refer to the Owner's Manual. If you need further assistance,
contact your Lexus dealer.

70
If the engine doesn't start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the engine.
Make sure that the steering wheel lock is
released.
To release it, press the “ENGINE START STOP”
switch while gently turning the wheel left or right.
Brake pedal
Steering wheel lock
If the engine still does not start, see the Owner's Manual for more information or contact
your Lexus dealer.

What to do if ...
71
Electronic Key Alarm
The electronic key alarm uses an alarm and warning messages to indicate that the electronic
key has been used improperly. Take appropriate measure in response to any warning mes-
sages that are displayed. In some cases, an alarm may sound without an accompanying
warning message. If so, follow the correction procedure in the table below.
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 10 seconds.
An attempt was made to
lock the vehicle while a
door was open.
Close all of the doors and
lock the doors again.
Interior alarm pings
continuously.
The “ENGINE START
STOP” switch was turned
to ACCESSORY mode
while the driver's door was
open (or the driver's door
was opened while the
“ENGINE START STOP”
switch was in ACCES-
SORY mode).
Close the driver's door.
The “ENGINE START
STOP” switch was turned
off while the driver's door
was open.
Close the driver's door.

72

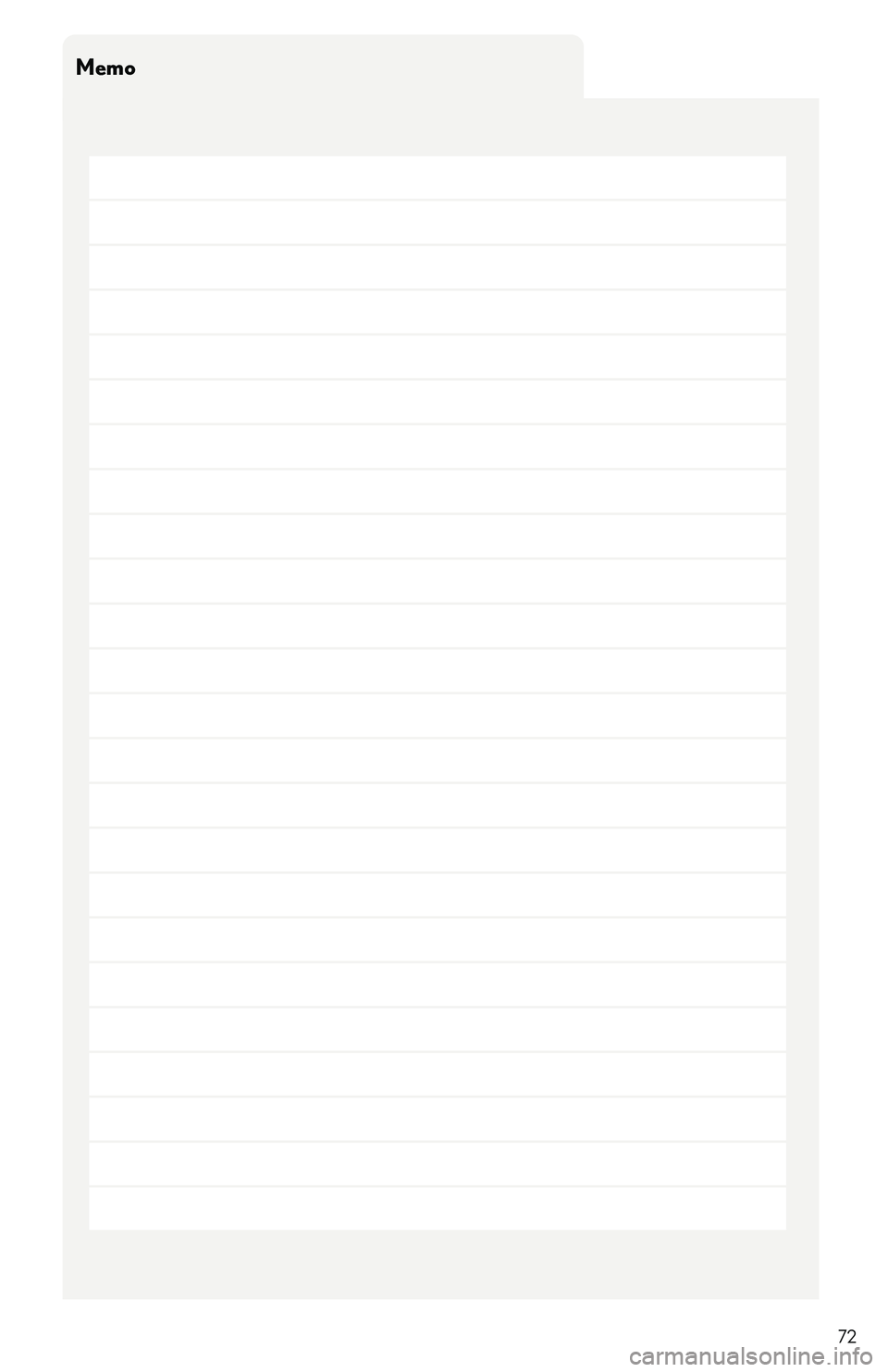

Memo
