2011 LEXUS RX350 display

2
Hands-free System For Cellular Phone (without navigation system)
Bluetooth® phone pairing.......................................................................................................... 41
Calling by number ......................................................................................................................... 42
Calling by name.............................................................................................................................. 42
Phonebook transfer ...................................................................................................................... 43
Registering a speed dial.............................................................................................................. 44
Headlights ................................................................................................................................................ 19
Head-up Display ................................................................................................................................... 18
Intuitive Parking Assist..........................................................................................................................11
Keys .............................................................................................................................................................. 7
Lexus Enform with Safety Connect ...............................................................................................61
Moon Roof .............................................................................................................................................. 64
Multi-information Display and Switch .......................................................................................... 12
Navigation System
Register home ................................................................................................................................. 26
Destination input ⎯⎯ Search by address ........................................................................ 27
Destination input ⎯⎯ Search points of interest by name ..........................................28
Destination input ⎯⎯ Search points of interest by category ................................... 29
Destination input ⎯⎯ Search points of interest by telephone number ...............30
Portable Audio Device Ports ......................................................................................................... 58
Power Windows ................................................................................................................................... 64
Rear Window Wiper and Washer................................................................................................ 23
Remote Touch
Basic operation............................................................................................................................... 24
Start .....................................................................................................................................................25
Display ................................................................................................................................................25
Safety Connect .....................................................................................................................................59
Smart Access System with Push-button Start ............................................................................8
Theft Deterrent System ........................................................................................................................ 9
Turn Signal Lever ...................................................................................................................................17
Voice Command System
Basic operation...............................................................................................................................52
Command list ..................................................................................................................................53
Windshield Wipers and Washer ...................................................................................................20

3
OverviewInstrument Panel
Inside lock buttons P.63
Door lock switches
P.63
Power window switches
P.64
Window lock switch
P.64
Headlight switch
Automatic high beam
Turn signal lever
P.19
P.22
P.17
Multi-information
display P.12Power back door switch ∗ P.65
Fuel filler door opener P.66

4
Windshield wiper and washer switch
Rear window wiper and washer switch
P.20
P.23
Engine (ignition) switch P.10
Power back door main
switch ∗ P.66
∗ : If equipped
Remote Touch ∗ P.24
Head-up display main switch ∗ P.18

9
Theft Deterrent System
nEngine immobilizer system
The engine immobilizer system prevents the
engine from being started in the event that an
attempt is made to start the vehicle using an
unregistered key.
The security indicator light flashes to indicate that
the system is set.
nAlarm
The system sounds the alarm and flashes lights when an attempt to steal the vehicle is
detected.
To set the alarm: close the doors and hood, and lock all doors. The security indicator light
comes on to indicate that the alarm is in its preparation state. When the indicator light
begins to flash, the system is armed.
To deactivate or stop the alarm: turn the “ENGINE START STOP” switch to ACCESSORY
or IGNITION ON mode, start the engine, or unlock the doors.
nSteering lock
The steering wheel locks when the “ENGINE
START STOP” switch is turned off and the driver’s
door is opened.
When the steering lock cannot be released, the
green indicator light on the “ENGINE START
STOP” switch will flash and a message will be
shown on the multi-information display. To release
it, press the “ENGINE START STOP” switch
while gently turning the steering wheel left or
right.
The theft deterrent system includes the following features to help protect your vehicle
from theft.

11
Intuitive Parking Assist (If Equipped)
Owners of models equipped with a navigation system should refer to the “Navigation System
Owner's Manual”.
nTurning the system on and off
Press the menu switch
Press the “ENTER” switch upwards or down-
wards until the Intuitive parking assist-sensor
mark appears in the multi-information display.
Press the “ENTER” switch to select on/off.
Press the menu switch to change to the normal
display.
nScreen display
Sensors are used to detect obstacles near the
vehicle. The distance to a detected obstacle is
shown by the number of indicator bars.
Indicates obstacles detected by the corner
sensors
Indicates obstacles detected by the back sen-
sors
The system uses a screen display and buzzer to inform the driver of obstacles near the
vehicle when parking or driving at low speed.
1
2

12
Multi-information Display and Switch
nMulti-information switches
Menu switch
Changes modes to electronic features control
mode, customization mode or back to normal
display mode.
“ENTER” switch
Changes trip information items. This switch is
also used to turn on/off electronic features
controls and to change customization settings.
nDisplay contents
The multi-information display shows information about your vehicle, including the items
shown below.
1
2
Trip information contentsSwitching display items
Current fuel consumption
Pressing the “ENTER” switch upwards or
downwards.
Average fuel consumption after refuel-
ing
Average fuel consumption
Average vehicle speed
Cruising range
Multi-information display OFF
Eco Driving Indicator Zone Display
1
2
3
4
5
6
7

13
*: If equipped
Electronic features control contentsSetting electronic features controls
Intuitive parking assist*→P. 1 1
Snow modeFor details, see the Owner's Manual.
AFS*For details, see the Owner's Manual.
1
2
3
Other contentsCustomizing settings and other informa-
tion to be displayed
Outside temperature
For details, see the Owner's Manual.Customization
Dynamic radar cruise control settings*
Wa r n i n g m e s s a g e
nWhen using Intuitive parking assist-sensor or dynamic radar cruise control the appro-
priate display is shown on the screen.
nIn the event that a problem is detected in any of the vehicle's systems, a warning message is
shown on the multi-information display.

14

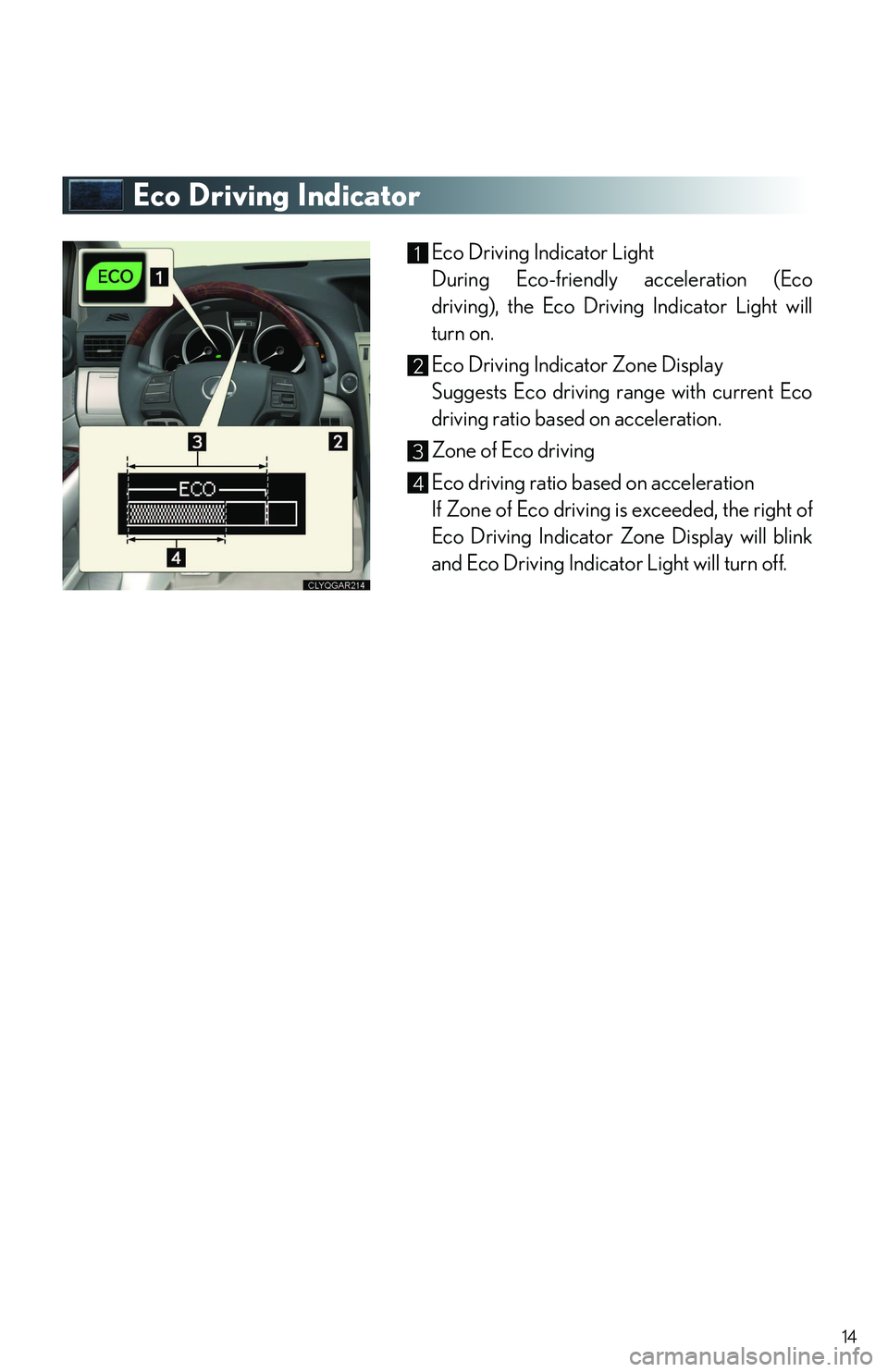

Eco Driving Indicator
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light will
turn on.
Eco Driving Indicator Zone Display
Suggests Eco driving range with current Eco
driving ratio based on acceleration.
Zone of Eco driving
Eco driving ratio based on acceleration
If Zone of Eco driving is exceeded, the right of
Eco Driving Indicator Zone Display will blink
and Eco Driving Indicator Light will turn off.
1
2
3
4
