2010 Hyundai H-1 (Grand Starex) Manuel du propriétaire (in French)

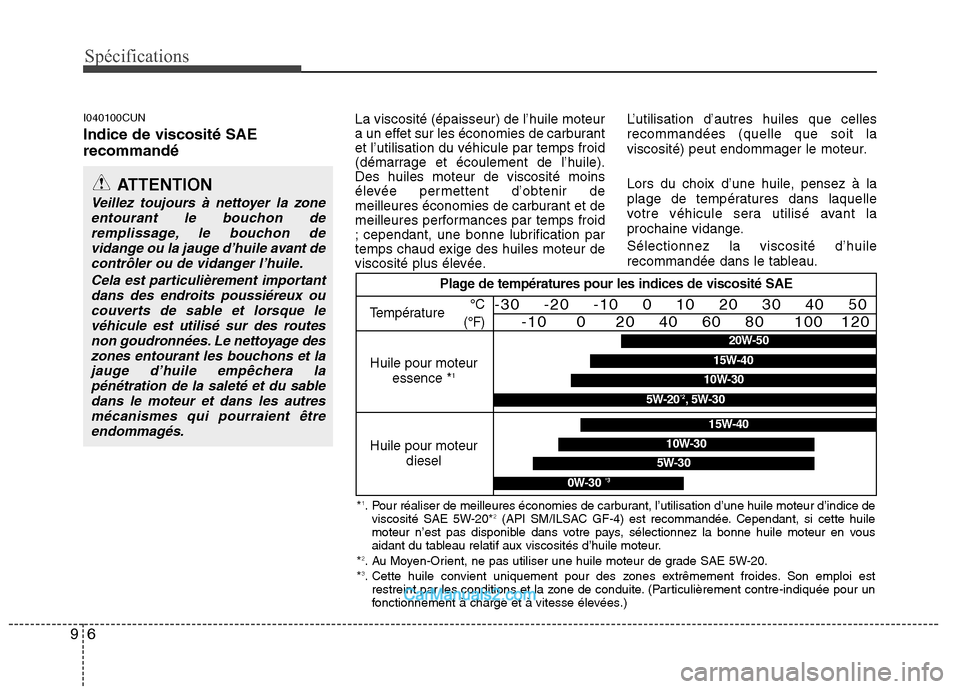

Spécifications
6
9
I040100CUN Indice de viscosité SAE recommandé La viscosité (épaisseur) de l’huile moteur
a un effet sur les économies de carburantet l’utilisation du véhicule par temps froid
(démarrage et écoulement de l’huile).Des huiles moteur de viscosité moins
élevée permettent d’obtenir de
meilleures économies de carburant et de
meilleures performances par temps froid
; cependant, une bonne lubrification par
temps chaud exige des huiles moteur de
viscosité plus élevée.L’utilisation d’autres huiles que celles recommandées (quelle que soit la
viscosité) peut endommager le moteur.
Lors du choix d’une huile, pensez à la
plage de températures dans laquelle
votre véhicule sera utilisé avant la
prochaine vidange. Sélectionnez la viscosité d’huile
recommandée dans le tableau.
ATTENTION
Veillez toujours à nettoyer la zone
entourant le bouchon deremplissage, le bouchon de
vidange ou la jauge d’huile avant decontrôler ou de vidanger l’huile.
Cela est particulièrement importantdans des endroits poussiéreux ou couverts de sable et lorsque le
véhicule est utilisé sur des routesnon goudronnées. Le nettoyage deszones entourant les bouchons et lajauge d’huile empêchera la
pénétration de la saleté et du sable dans le moteur et dans les autresmécanismes qui pourraient être endommagés.
Plage de températures pour les indices de viscosité SAE
Température
Huile pour moteur essence * 1°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Huile pour moteur diesel
5W-30
15W-40
10W-30
0W-30 *3
*1
. Pour réaliser de meilleures économies de carburant, l’utilisation d’une huile moteur d’indice de
viscosité SAE 5W-20* 2
(API SM/ILSAC GF-4) est recommandée. Cependant, si cette huile
moteur n’est pas disponible dans votre pays, sélectionnez la bonne huile moteur en vous
aidant du tableau relatif aux viscosités d’huile moteur.
* 2
. Au Moyen-Orient, ne pas utiliser une huile moteur de grade SAE 5W-20.
* 3
. Cette huile convient uniquement pour des zones extrêmement froides. Son emploi est
restreint par les conditions et la zone de conduite. (Particulièrement contre-indiquée pour un
fonctionnement à charge et à vitesse élevées.)
20W-50
10W-30
15W-40
5W-20 *2
, 5W-30

IIndex

Index
2
I
Airbag - Système de retenue supplémentaire···························3-37
Ampoules··················································································7-65
Avant de conduire·······································································5-3
Balais d'essuie-glace·································································7-38
Batterie ·····················································································7-40
Boîte-pont automatique ····························································5-11
Boîte-pont manuelle ···································································5-8
Capot ························································································4-22
Carburants···················································································1-2
Ceintures des sécurité ·······························································3-14
Clés ·····························································································4-2
Combiné d'instruments ·····························································4-34
Compartiment moteur ································································2-6
Compartiment moteur ································································7-2
Conditions de conduite particulieres ········································5-33
Conduite en hiver ·····································································5-39 Dégivrage ·················································································4-62
Dégivrage et désembuage du pare-brise ··································4-75
Démarrage d'urgence ··································································6-4
Démarrage du moteur ·································································5-6
Differentiel a blocage ······························································5-30
Dimensions ·················································································9-2
Éclairage ···················································································4-51
Éclairage intérieur ····································································4-59
En cas d'urgence pendant la conduite ········································6-2
En cas de surchauffe du moteur ·················································6-7
Entretien effectué par le propriétaire··········································7-6
Équipements intérieurs ·····························································4-79
Espace de rangement ································································4-77
Essuie-glaces et lave-glaces ·····················································4-56
Esthétique du véhicule ·····························································7-72
Étiquette d'homologation du véhicule ········································8-2
Étiquette de pression et spécifìcations des pneus ······················8-3
Explication des éléments d'entretien programmés ···················7-19
A
B
C
D
E

I3

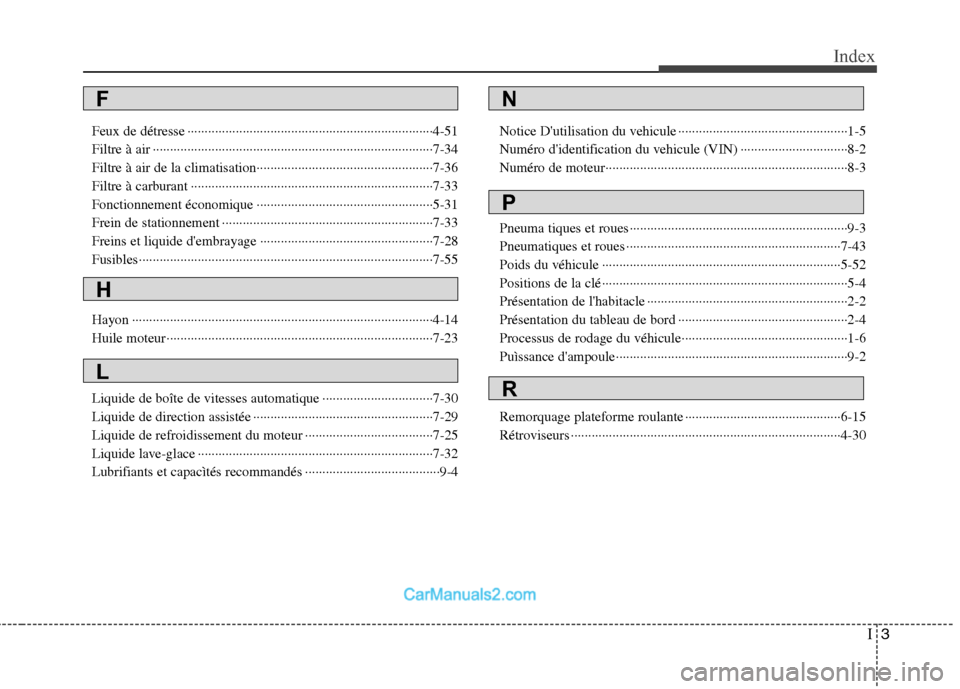

Index
Feux de détresse ·······································································4-51
Filtre à air ·················································································7-34Filtre à air de la climatisation···················································7-36
Filtre à carburant ······································································7-33
Fonctionnement économique ···················································5-31
Frein de stationnement ·····························································7-33
Freins et liquide d'embrayage ··················································7-28
Fusibles·····················································································7-55
Hayon ·······················································································4-14
Huile moteur·············································································7-23
Liquide de boîte de vitesses automatique ································7-30
Liquide de direction assistée ····················································7-29
Liquide de refroidissement du moteur ·····································7-25
Liquide lave-glace ····································································7-32
Lubrifiants et capacìtés recommandés ·······································9-4 Notice D'utilisation du vehicule ·················································1-5
Numéro d'identification du vehicule (VIN) ·······························8-2
Numéro de moteur······································································8-3
Pneuma tiques et roues ·······························································9-3
Pneumatiques et roues ······························································7-43
Poids du véhicule ·····································································5-52
Positions de la clé ·······································································5-4
Présentation de l'habitacle ··························································2-2
Présentation du tableau de bord ·················································2-4
Processus de rodage du véhicule················································1-6
Puìssance d'ampoule···································································9-2
Remorquage plateforme roulante ·············································6-15
Rétroviseurs ··············································································4-30
F
H
L
N
P
R

Index
4
I
Service d'entretien programmé···················································7-8
Services d'entretien·····································································7-4
Si le moteur refuse de démarrer ·················································6-3
Si un pneu est à plat ···································································6-8
Siège ···························································································3-2
Signalisation sur la route ····························································6-2
Symboles sur le combiné d'instruments ·····································1-7
Système anti-pollution······························································7-79
Système audio ··········································································4-84
Système d'ouverture des portes à distance sans clé ···················4-5
Systeme d'aide au stationnement arriere ··································4-48
Système d'alarme antivol ····························································4-7
Système de commande manuelle de la climatisation···············4-63
Système de freinage ·································································5-18
Système de retenue pour enfant ···············································3-25 Tractation d'une remorque························································5-43
Trappe à carburant ····································································4-24
Utilisation de ce manuel ·····························································1-2
Verrouillage des portes ·······························································4-9
Vitres ························································································4-17
Volant························································································4-28
U
V
