2009 LAMBORGHINI GALLARDO Workshop Manual

1
L714 08 17 05
A
CD
Fig.1Fig.2
Fig.3
FFFFF
E
B
® Automobili Lamborghini S.p.A.7KHLQIRUPDWLRQDQGSURFHGXUHVSXEOLVKHGEHORZDUHVWULFWO\FRQ¿GHQWLDODQGH[FOXVLYHO\IRUWKH/DPERUJKLQL'HDOHU1HWZRUNDQG$XWKRUL]HG6HUYLFH3RLQWV$OOFRS\ULJKWVDUHSURSHUW\RI$XWRPRELOL
/DPERUJKLQL6S$EDVHGRQFRS\ULJKWODZ$OORIWKH3')FKDSWHUVLQWKH:(%ZRUNVKRSPDQXDOVGHVFULEHGEHORZDUHEDVHGRQLQIRUPDWLRQDYDLODEOHDWWKHWLPHRISXEOLFDWLRQ7KHFRPSDQ\UHVHUYHV
WKH ULJKW WR PDNH XSGDWHV DQG PRGL¿FDWLRQV 7KH IROORZLQJ DUH SURKLELWHG UHSULQWLQJ UHSURGXFWLRQIRUZDUGLQJ WR XQDXWKRUL]HG SHRSOH DQGRU WKLUG SDUWLHV DQG WUDQVODWLRQ LQFOXGLQJ SDUWLDO ZLWKRXW
ZULWWHQDXWKRUL]DWLRQIURP$XWRPRELOL/DPERUJKLQL6S$

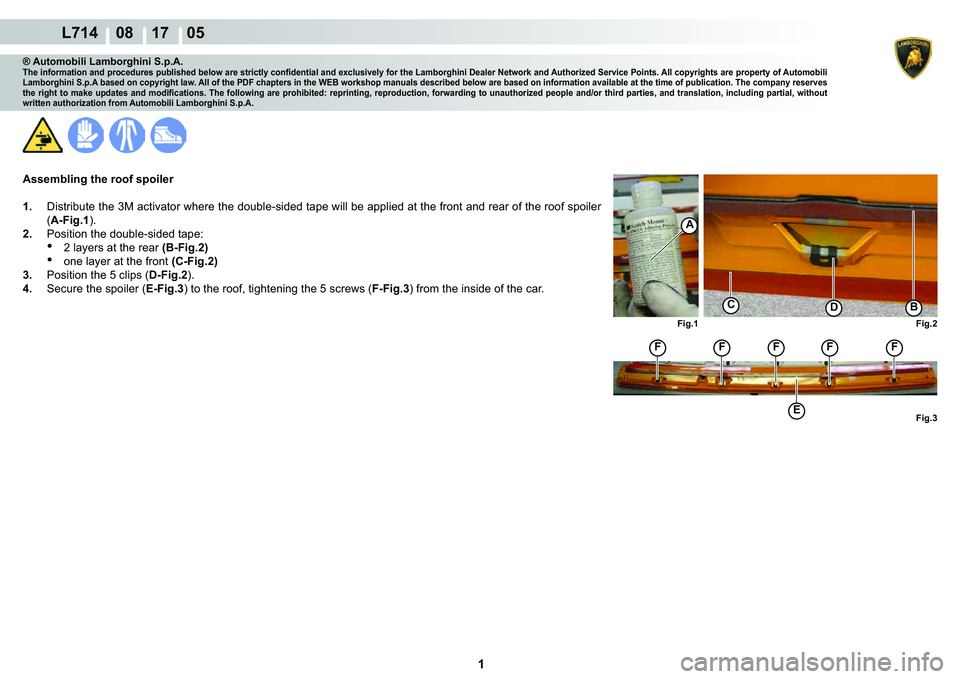

Assembling the roof spoiler 1. Distribute the 3M activator where the double-sided tape will be applied at the front and rear of the roof spoiler
(A-Fig.1 ).
2. Position the double-sided tape:
• 2 layers at the rear (B-Fig.2)
• one layer at the front (C-Fig.2)
3. Position the 5 clips ( D-Fig.2).
4. Secure the spoiler ( E-Fig.3) to the roof, tightening the 5 screws ( F-Fig.3) from the inside of the car.

1
L714 08 19 03
Fig.1
C
Fig.2
C
ABB
® Automobili Lamborghini S.p.A.7KHLQIRUPDWLRQDQGSURFHGXUHVSXEOLVKHGEHORZDUHVWULFWO\FRQ¿GHQWLDODQGH[FOXVLYHO\IRUWKH/DPERUJKLQL'HDOHU1HWZRUNDQG$XWKRUL]HG6HUYLFH3RLQWV$OOFRS\ULJKWVDUHSURSHUW\RI$XWRPRELOL
/DPERUJKLQL6S$EDVHGRQFRS\ULJKWODZ$OORIWKH3')FKDSWHUVLQWKH:(%ZRUNVKRSPDQXDOVGHVFULEHGEHORZDUHEDVHGRQLQIRUPDWLRQDYDLODEOHDWWKHWLPHRISXEOLFDWLRQ7KHFRPSDQ\UHVHUYHV
WKH ULJKW WR PDNH XSGDWHV DQG PRGL¿FDWLRQV 7KH IROORZLQJ DUH SURKLELWHG UHSULQWLQJ UHSURGXFWLRQIRUZDUGLQJ WR XQDXWKRUL]HG SHRSOH DQGRU WKLUG SDUWLHV DQG WUDQVODWLRQ LQFOXGLQJ SDUWLDO ZLWKRXW
ZULWWHQDXWKRUL]DWLRQIURP$XWRPRELOL/DPERUJKLQL6S$

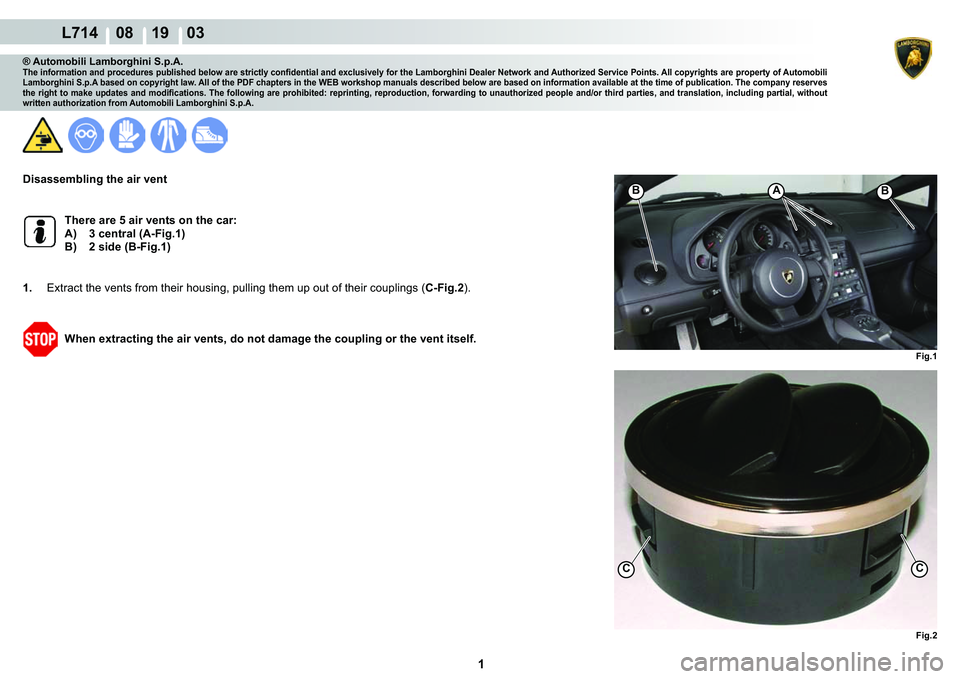

'LVDVVHPEOLQJWKHDLUYHQW
7KHUHDUHDLUYHQWVRQWKHFDU
A) 3 central (A-Fig.1)
B) 2 side (B-Fig.1)
1. Extract the vents from their housing, pulling them up out of their couplings ( C-Fig.2
).
:KHQH[WUDFWLQJWKHDLUYHQWVGRQRWGDPDJHWKHFRXSOLQJRUWKHYHQWLWVHOI

1
L714 08 19 05
Fig.1
A
Fig.2
B
1
2345
® Automobili Lamborghini S.p.A.7KHLQIRUPDWLRQDQGSURFHGXUHVSXEOLVKHGEHORZDUHVWULFWO\FRQ¿GHQWLDODQGH[FOXVLYHO\IRUWKH/DPERUJKLQL'HDOHU1HWZRUNDQG$XWKRUL]HG6HUYLFH3RLQWV$OOFRS\ULJKWVDUHSURSHUW\RI$XWRPRELOL
/DPERUJKLQL6S$EDVHGRQFRS\ULJKWODZ$OORIWKH3')FKDSWHUVLQWKH:(%ZRUNVKRSPDQXDOVGHVFULEHGEHORZDUHEDVHGRQLQIRUPDWLRQDYDLODEOHDWWKHWLPHRISXEOLFDWLRQ7KHFRPSDQ\UHVHUYHV
WKH ULJKW WR PDNH XSGDWHV DQG PRGL¿FDWLRQV 7KH IROORZLQJ DUH SURKLELWHG UHSULQWLQJ UHSURGXFWLRQIRUZDUGLQJ WR XQDXWKRUL]HG SHRSOH DQGRU WKLUG SDUWLHV DQG WUDQVODWLRQ LQFOXGLQJ SDUWLDO ZLWKRXW
ZULWWHQDXWKRUL]DWLRQIURP$XWRPRELOL/DPERUJKLQL6S$
$VVHPEOLQJWKHDLUYHQW
7RDVVHPEOHWKHDLUYHQWVWKHGDVKERDUGPXVWEHSODFHGRQDZRUNEHQFK
1. Insert the vents in their housing following the guide ( A-Fig.1) and press them into place.
2. Position the adhesive foam ( B-Fig.2) on the back of the dashboard around the base of the 5 vents.
• Assemble the dashboard (086805).

1
L714 08 21 03
Fig.1 Fig.2
BA
DC
® Automobili Lamborghini S.p.A.7KHLQIRUPDWLRQDQGSURFHGXUHVSXEOLVKHGEHORZDUHVWULFWO\FRQ¿GHQWLDODQGH[FOXVLYHO\IRUWKH/DPERUJKLQL'HDOHU1HWZRUNDQG$XWKRUL]HG6HUYLFH3RLQWV$OOFRS\ULJKWVDUHSURSHUW\RI$XWRPRELOL
/DPERUJKLQL6S$EDVHGRQFRS\ULJKWODZ$OORIWKH3')FKDSWHUVLQWKH:(%ZRUNVKRSPDQXDOVGHVFULEHGEHORZDUHEDVHGRQLQIRUPDWLRQDYDLODEOHDWWKHWLPHRISXEOLFDWLRQ7KHFRPSDQ\UHVHUYHV
WKH ULJKW WR PDNH XSGDWHV DQG PRGL¿FDWLRQV 7KH IROORZLQJ DUH SURKLELWHG UHSULQWLQJ UHSURGXFWLRQIRUZDUGLQJ WR XQDXWKRUL]HG SHRSOH DQGRU WKLUG SDUWLHV DQG WUDQVODWLRQ LQFOXGLQJ SDUWLDO ZLWKRXW
ZULWWHQDXWKRUL]DWLRQIURP$XWRPRELOL/DPERUJKLQL6S$
Disassembling the wheel arch
7KHUH DUH  ZKHHO DUFK DVVHPEOLHV RQ WKH FDU RQH ZKHHO DUFK DVVHPEO\ IRU HDFK ZKHHO (DFK ZKHHODUFKDVVHPEO\LVGLYLGHGLQWRHOHPHQWV
A) Front wheel arch element (A-Fig.1 )
B) Rear wheel arch element (B-Fig.1 )
3UHOLPLQDU\RSHUDWLRQVWKHVDPHIRUGLVDVVHPEOLQJERWKRIWKHZKHHODUFKHOHPHQWV• Lift the vehicle on the car lift (000000).
• Remove the wheel corresponding to the wheel arch you wish to disassemble (060103).
A) Disassembling the front wheel arch element 1. Unscrew the screws ( C-Fig.2) securing the front wheel arch element.
2. Remove the front wheel arch element.
B) Disassembling the rear wheel arch element1. Unscrew the screws ( D-Fig.2) securing the rear wheel arch element.
2. Remove the rear wheel arch element.

1
L714 08 21 05
Fig.1 Fig.2
BA
DC
® Automobili Lamborghini S.p.A.7KHLQIRUPDWLRQDQGSURFHGXUHVSXEOLVKHGEHORZDUHVWULFWO\FRQ¿GHQWLDODQGH[FOXVLYHO\IRUWKH/DPERUJKLQL'HDOHU1HWZRUNDQG$XWKRUL]HG6HUYLFH3RLQWV$OOFRS\ULJKWVDUHSURSHUW\RI$XWRPRELOL
/DPERUJKLQL6S$EDVHGRQFRS\ULJKWODZ$OORIWKH3')FKDSWHUVLQWKH:(%ZRUNVKRSPDQXDOVGHVFULEHGEHORZDUHEDVHGRQLQIRUPDWLRQDYDLODEOHDWWKHWLPHRISXEOLFDWLRQ7KHFRPSDQ\UHVHUYHV
WKH ULJKW WR PDNH XSGDWHV DQG PRGL¿FDWLRQV 7KH IROORZLQJ DUH SURKLELWHG UHSULQWLQJ UHSURGXFWLRQIRUZDUGLQJ WR XQDXWKRUL]HG SHRSOH DQGRU WKLUG SDUWLHV DQG WUDQVODWLRQ LQFOXGLQJ SDUWLDO ZLWKRXW
ZULWWHQDXWKRUL]DWLRQIURP$XWRPRELOL/DPERUJKLQL6S$

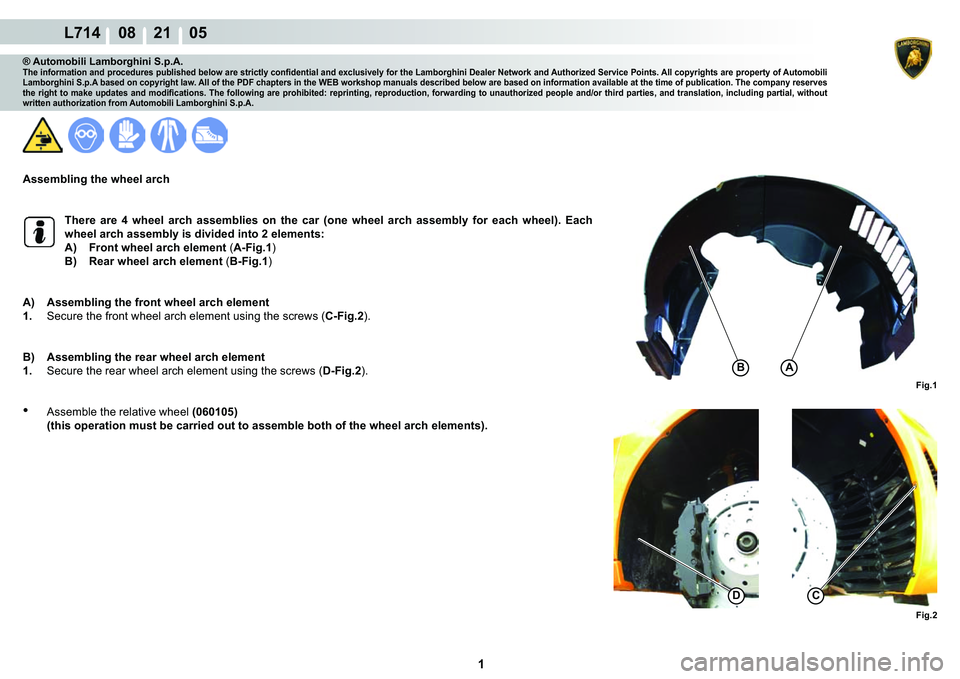

Assembling the wheel arch
7KHUH DUH  ZKHHO DUFK DVVHPEOLHV RQ WKH FDU RQH ZKHHO DUFK DVVHPEO\ IRU HDFK ZKHHO (DFK ZKHHODUFKDVVHPEO\LVGLYLGHGLQWRHOHPHQWV
A) Front wheel arch element (A-Fig.1 )
B) Rear wheel arch element (B-Fig.1 )
A) Assembling the front wheel arch element1. Secure the front wheel arch element using the screws ( C-Fig.2).
B) Assembling the rear wheel arch element1. Secure the rear wheel arch element using the screws ( D-Fig.2).
• Assemble the relative wheel (060105)
(this operation must be carried out to assemble both of the wheel arch elements).

1
L714 08 25 03
® Automobili Lamborghini S.p.A.7KHLQIRUPDWLRQDQGSURFHGXUHVSXEOLVKHGEHORZDUHVWULFWO\FRQ¿GHQWLDODQGH[FOXVLYHO\IRUWKH/DPERUJKLQL'HDOHU1HWZRUNDQG$XWKRUL]HG6HUYLFH3RLQWV$OOFRS\ULJKWVDUHSURSHUW\RI$XWRPRELOL
/DPERUJKLQL6S$EDVHGRQFRS\ULJKWODZ$OORIWKH3')FKDSWHUVLQWKH:(%ZRUNVKRSPDQXDOVGHVFULEHGEHORZDUHEDVHGRQLQIRUPDWLRQDYDLODEOHDWWKHWLPHRISXEOLFDWLRQ7KHFRPSDQ\UHVHUYHV
WKH ULJKW WR PDNH XSGDWHV DQG PRGL¿FDWLRQV 7KH IROORZLQJ DUH SURKLELWHG UHSULQWLQJ UHSURGXFWLRQIRUZDUGLQJ WR XQDXWKRUL]HG SHRSOH DQGRU WKLUG SDUWLHV DQG WUDQVODWLRQ LQFOXGLQJ SDUWLDO ZLWKRXW
ZULWWHQDXWKRUL]DWLRQIURP$XWRPRELOL/DPERUJKLQL6S$
7KLVVHFWLRQH[SODLQVKRZWRGLVDVVHPEOH $)URQWFDUÀRRU %5HDUFDUÀRRUVC6LGHFDUÀRRUV
'&HQWHUFDUÀRRU

2
L714 08 25 03
)LJ
%
C
A
® Automobili Lamborghini S.p.A.7KHLQIRUPDWLRQDQGSURFHGXUHVSXEOLVKHGEHORZDUHVWULFWO\FRQ¿GHQWLDODQGH[FOXVLYHO\IRUWKH/DPERUJKLQL'HDOHU1HWZRUNDQG$XWKRUL]HG6HUYLFH3RLQWV$OOFRS\ULJKWVDUHSURSHUW\RI$XWRPRELOL
/DPERUJKLQL6S$EDVHGRQFRS\ULJKWODZ$OORIWKH3')FKDSWHUVLQWKH:(%ZRUNVKRSPDQXDOVGHVFULEHGEHORZDUHEDVHGRQLQIRUPDWLRQDYDLODEOHDWWKHWLPHRISXEOLFDWLRQ7KHFRPSDQ\UHVHUYHV
WKH ULJKW WR PDNH XSGDWHV DQG PRGL¿FDWLRQV 7KH IROORZLQJ DUH SURKLELWHG UHSULQWLQJ UHSURGXFWLRQIRUZDUGLQJ WR XQDXWKRUL]HG SHRSOH DQGRU WKLUG SDUWLHV DQG WUDQVODWLRQ LQFOXGLQJ SDUWLDO ZLWKRXW
ZULWWHQDXWKRUL]DWLRQIURP$XWRPRELOL/DPERUJKLQL6S$

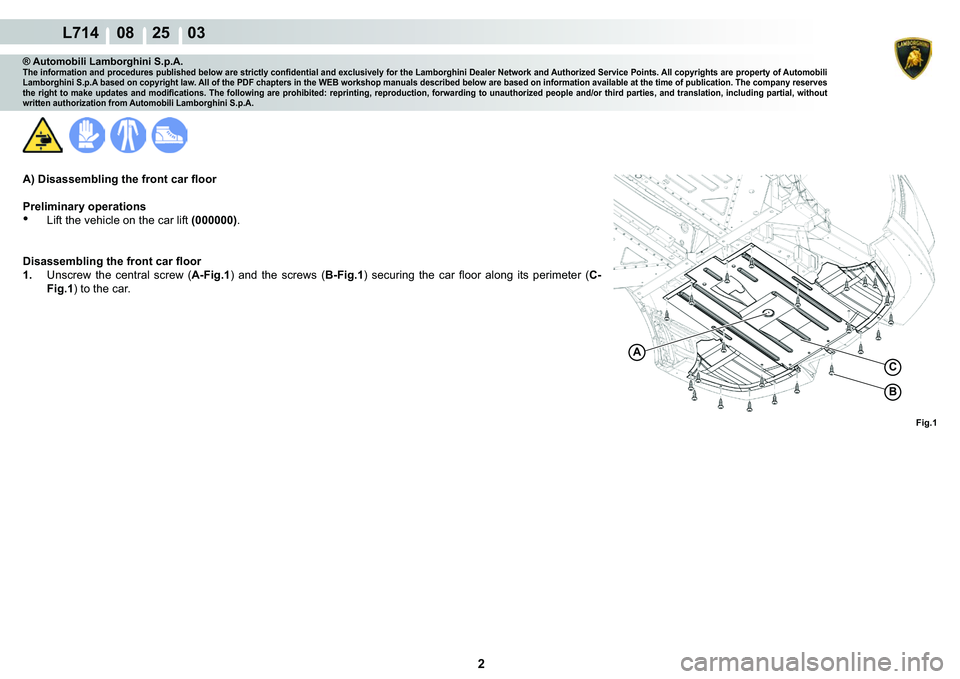

$'LVDVVHPEOLQJWKHIURQWFDUÀRRU 3UHOLPLQDU\RSHUDWLRQV •Lift the vehicle on the car lift (000000).
'LVDVVHPEOLQJWKHIURQWFDUÀRRU 1. Unscrew the central screw ( $)LJ) and the screws ( %)LJ VHFXULQJ WKH FDU ÀRRU DORQJ LWV SHULPHWHU  C-
)LJ ) to the car.

3
L714 08 25 03
)LJ
%A
%A
® Automobili Lamborghini S.p.A.7KHLQIRUPDWLRQDQGSURFHGXUHVSXEOLVKHGEHORZDUHVWULFWO\FRQ¿GHQWLDODQGH[FOXVLYHO\IRUWKH/DPERUJKLQL'HDOHU1HWZRUNDQG$XWKRUL]HG6HUYLFH3RLQWV$OOFRS\ULJKWVDUHSURSHUW\RI$XWRPRELOL
/DPERUJKLQL6S$EDVHGRQFRS\ULJKWODZ$OORIWKH3')FKDSWHUVLQWKH:(%ZRUNVKRSPDQXDOVGHVFULEHGEHORZDUHEDVHGRQLQIRUPDWLRQDYDLODEOHDWWKHWLPHRISXEOLFDWLRQ7KHFRPSDQ\UHVHUYHV
WKH ULJKW WR PDNH XSGDWHV DQG PRGL¿FDWLRQV 7KH IROORZLQJ DUH SURKLELWHG UHSULQWLQJ UHSURGXFWLRQIRUZDUGLQJ WR XQDXWKRUL]HG SHRSOH DQGRU WKLUG SDUWLHV DQG WUDQVODWLRQ LQFOXGLQJ SDUWLDO ZLWKRXW
ZULWWHQDXWKRUL]DWLRQIURP$XWRPRELOL/DPERUJKLQL6S$

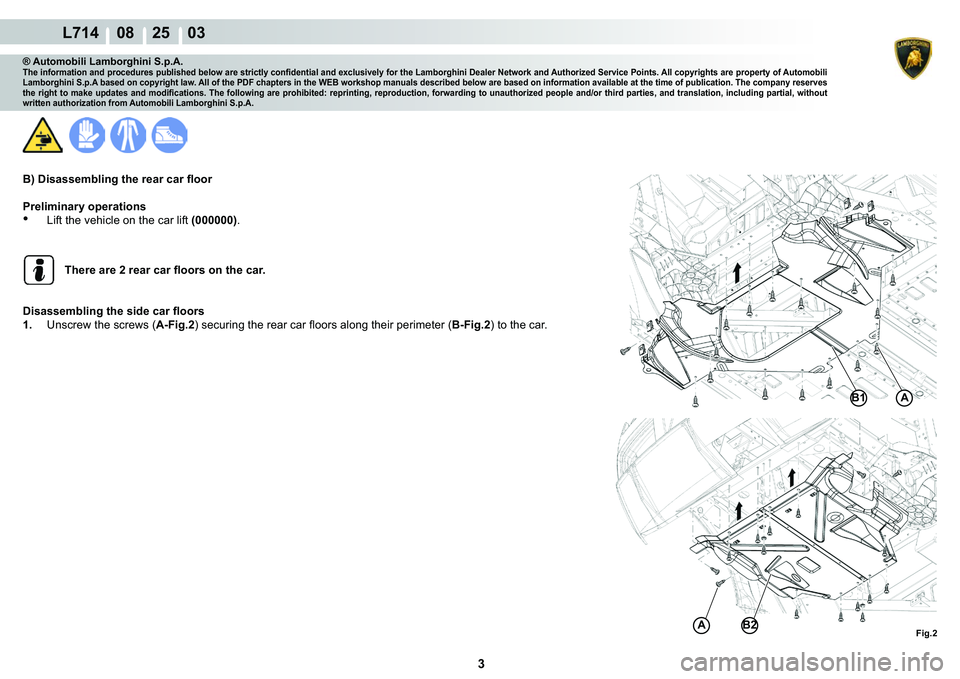

%'LVDVVHPEOLQJWKHUHDUFDUÀRRU 3UHOLPLQDU\RSHUDWLRQV •Lift the vehicle on the car lift (000000).
7KHUHDUHUHDUFDUÀRRUVRQWKHFDU
'LVDVVHPEOLQJWKHVLGHFDUÀRRUV1. Unscrew the screws ( $)LJ2VHFXULQJWKHUHDUFDUÀRRUVDORQJWKHLUSHULPHWHU %)LJ2) to the car.
