9
PRACTICAL INFORMATION

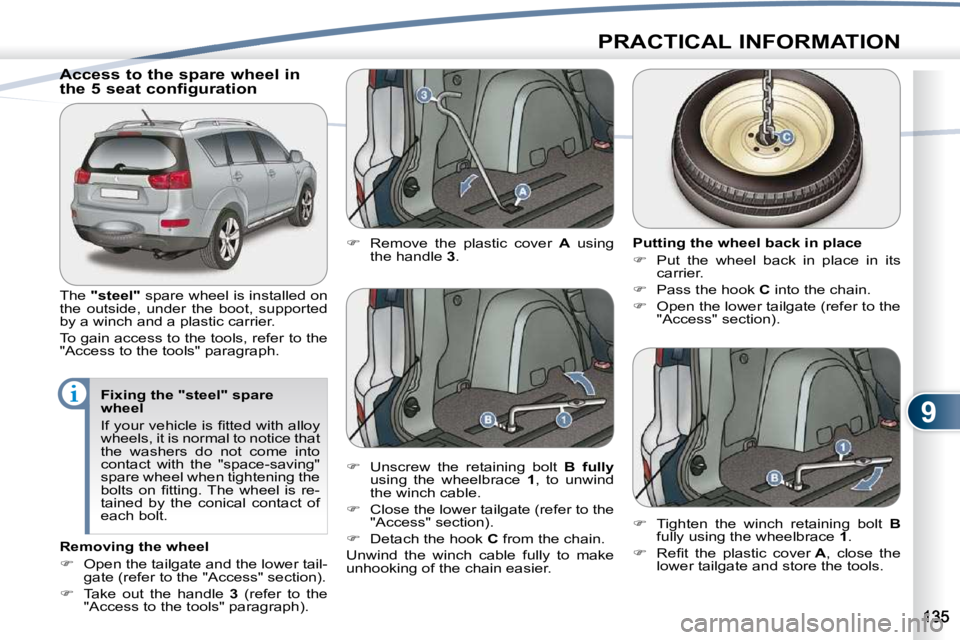

Access to the spare wheel in
the 5 seat configuration
The "steel" spare wheel is installed on
the outside, under the boot, supported
by a winch and a plastic carrier.
To gain access to the tools, refer to the
"Access to the tools" paragraph.
Fixing the "steel" spare
wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice that
the washers do not come into
contact with the "space-saving"
spare wheel when tightening the
bolts on fi tting. The wheel is re-
tained by the conical contact of
each bolt.
Removing the wheel

 Open the tailgate and the lower tail-
gate (refer to the "Access" section).

 Take out the handle 3 (refer to the
"Access to the tools" paragraph).
 Remove the plastic cover A using
the handle 3 . Putting the wheel back in place

 Put the wheel back in place in its
carrier.

 Pass the hook C into the chain.

 Open the lower tailgate (refer to the
"Access" section).

 Unscrew the retaining bolt B fully
using the wheelbrace 1 , to unwind
the winch cable.

 Close the lower tailgate (refer to the
"Access" section).

 Detach the hook C from the chain.
Unwind the winch cable fully to make
unhooking of the chain easier.
 Tighten the winch retaining bolt B
fully using the wheelbrace 1 .

 Refi t the plastic cover A , close the
lower tailgate and store the tools.

9
PRACTICAL INFORMATION
Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: if possible,
park the vehicle on level, stable
and non-slippery ground.
Apply the handbrake, switch
off the ignition and engage fi rst
gear to lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
Never go underneath a vehicle
raised using a jack; use a stand.

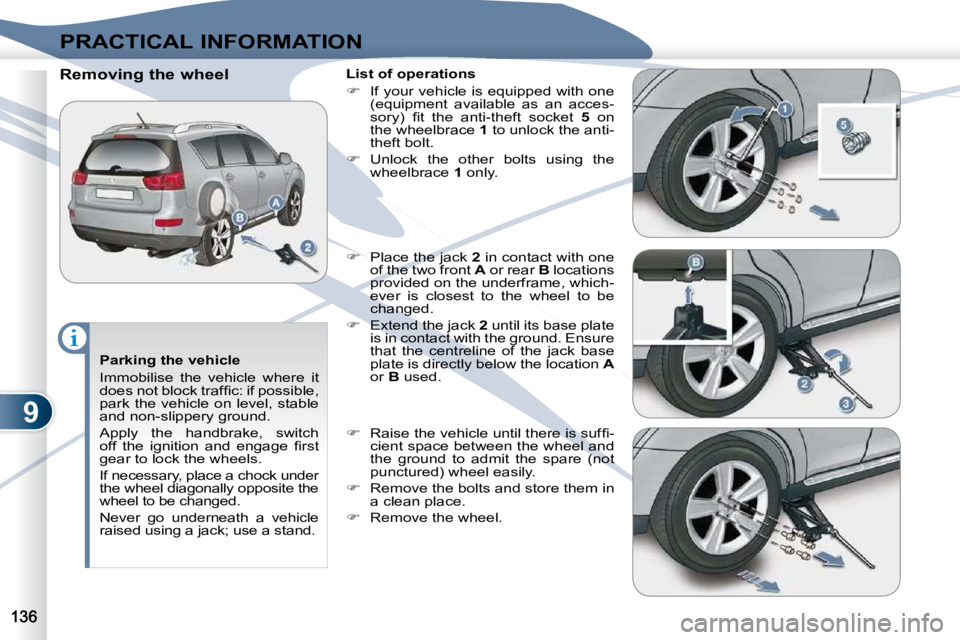

Removing the wheel
List of operations

 If your vehicle is equipped with one
(equipment available as an acces-
sory) fi t the anti-theft socket 5 on
the wheelbrace 1 to unlock the anti-
theft bolt.

 Unlock the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is suffi -
cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.

9
PRACTICAL INFORMATION
After changing a wheel
When using the "space-saving"
spare wheel, do not exceed a
speed of 50 mph (80 km/h).
Have the tightening of the bolts
and the pressure of the spare
wheel checked by a PEUGEOT
dealer without delay.
Have the punctured wheel re-
paired and replace it on the vehi-
cle as soon as possible.

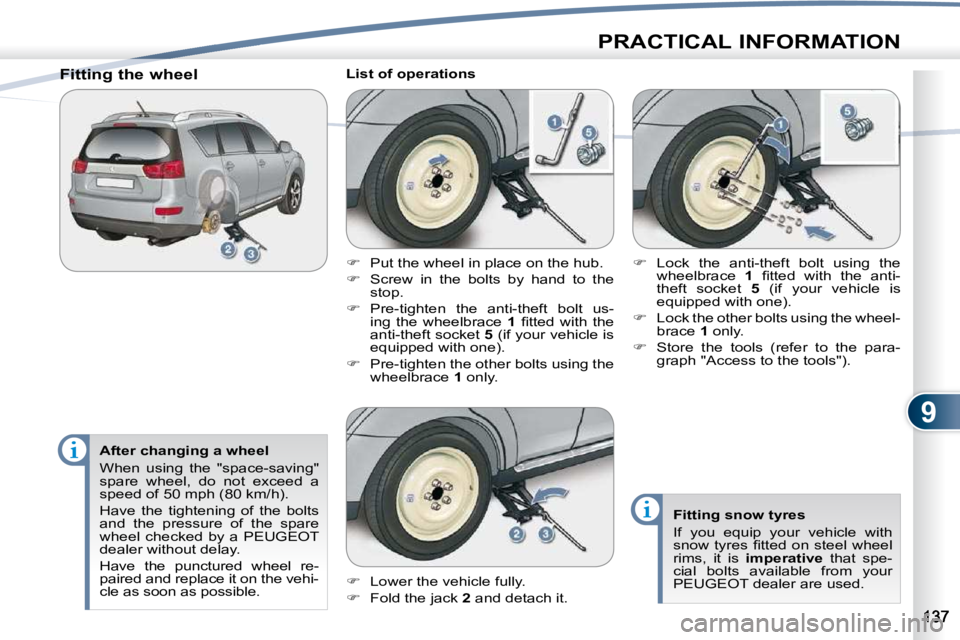

Fitting the wheel
List of operations

 Lower the vehicle fully.

 Fold the jack 2 and detach it.
 Lock the anti-theft bolt using the
wheelbrace 1 fi tted with the anti-
theft socket 5 (if your vehicle is
equipped with one).

 Lock the other bolts using the wheel-
brace 1 only.

 Store the tools (refer to the para-
graph "Access to the tools").
Fitting snow tyres
If you equip your vehicle with
snow tyres fi tted on steel wheel
rims, it is imperative that spe-
cial bolts available from your
PEUGEOT dealer are used.

 Put the wheel in place on the hub.

 Screw in the bolts by hand to the
stop.

 Pre-tighten the anti-theft bolt us-
ing the wheelbrace 1 fi tted with the
anti-theft socket 5 (if your vehicle is
equipped with one).

 Pre-tighten the other bolts using the
wheelbrace 1 only.

9
PRACTICAL INFORMATION
CHANGING CHANGING A BULB
Handle the bulbs using a dry
cloth.

Do not clean the headlamps
using a dry or abrasive cloth,
or using detergent or solvent
products, use a sponge and
soapy water. In some climatic conditions (e.g.
low temperature or humidity),
the presence of misting on the
internal surface of the glass of
the headlamps and rear lamps
is normal; it disappears after
the lamps have been on for a
few minutes.

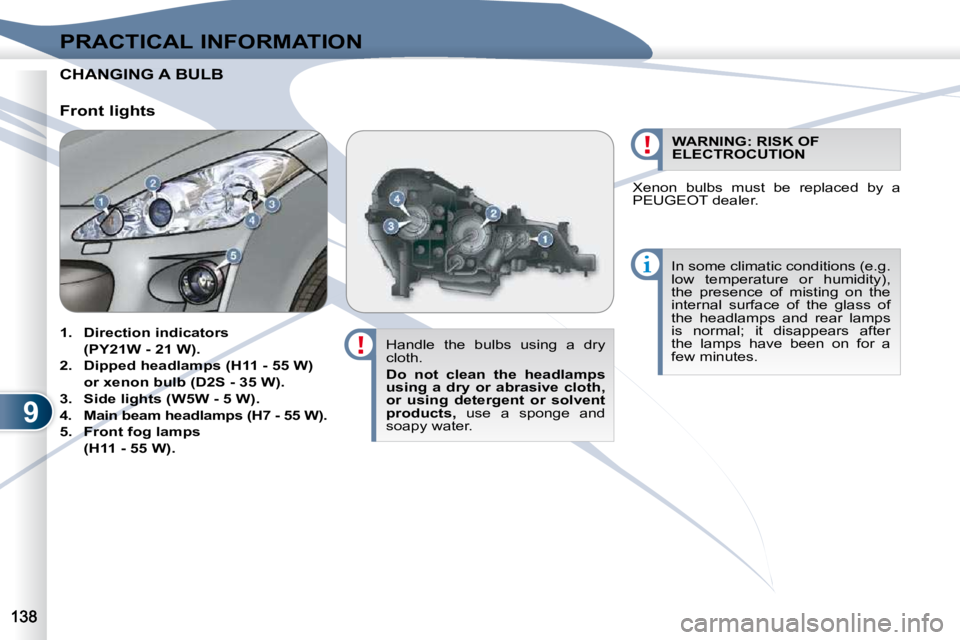

Front lights

1. Direction indicators
(PY21W - 21 W).

2. Dipped headlamps (H11 - 55 W)
or xenon bulb (D2S - 35 W).

3. Side lights (W5W - 5 W).

4. Main beam headlamps (H7 - 55 W).

5. Front fog lamps
(H11 - 55 W). WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be replaced by a
PEUGEOT dealer.

9
PRACTICAL INFORMATION

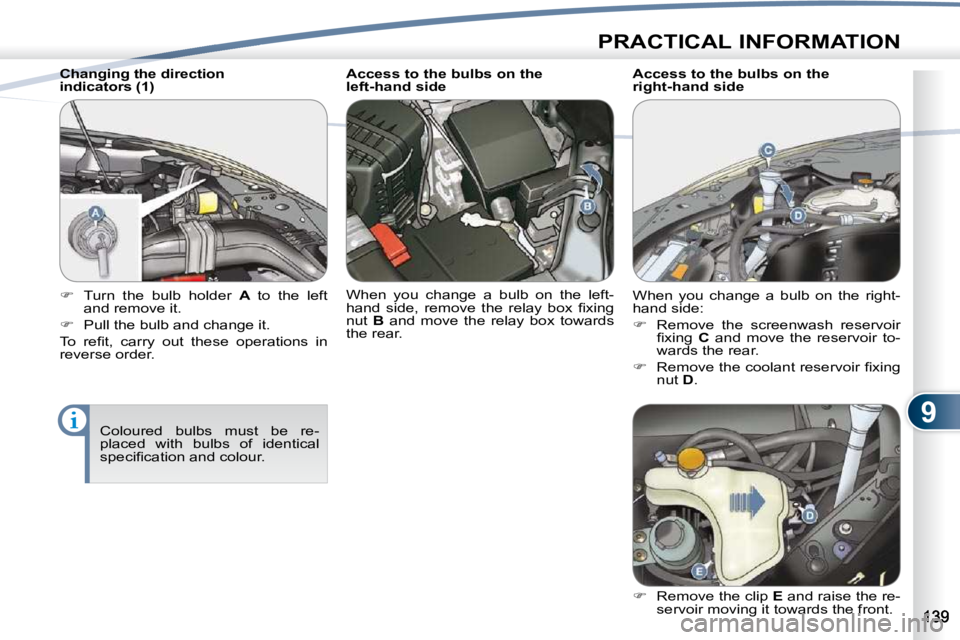

Changing the direction
indicators (1) Coloured bulbs must be re-
placed with bulbs of identical
specifi cation and colour.

 Turn the bulb holder A to the left
and remove it.

 Pull the bulb and change it.
To refi t, carry out these operations in
reverse order. Access to the bulbs on the
left-hand side
When you change a bulb on the left-
hand side, remove the relay box fi xing
nut
B and move the relay box towards
the rear. Access to the bulbs on the
right-hand side
When you change a bulb on the right-
hand side:

 Remove the screenwash reservoir
fi xing C and move the reservoir to-
wards the rear.

 Remove the coolant reservoir fi xing
nut D .

 Remove the clip E and raise the re-
servoir moving it towards the front.

9
PRACTICAL INFORMATION
Changing the side lights (3)

 Unscrew the cover H .

 Disconnect the connector.

 Turn the bulb holder I a quarter of a
turn and remove it.

 Pull the bulb and change it.
To refi t, carry out these operations in
reverse order.

 Unscrew the cover F .

 Disconnect the connector.

 Turn the bulb G to the left and re-
move it.
To refi t, carry out these operations in
reverse order.

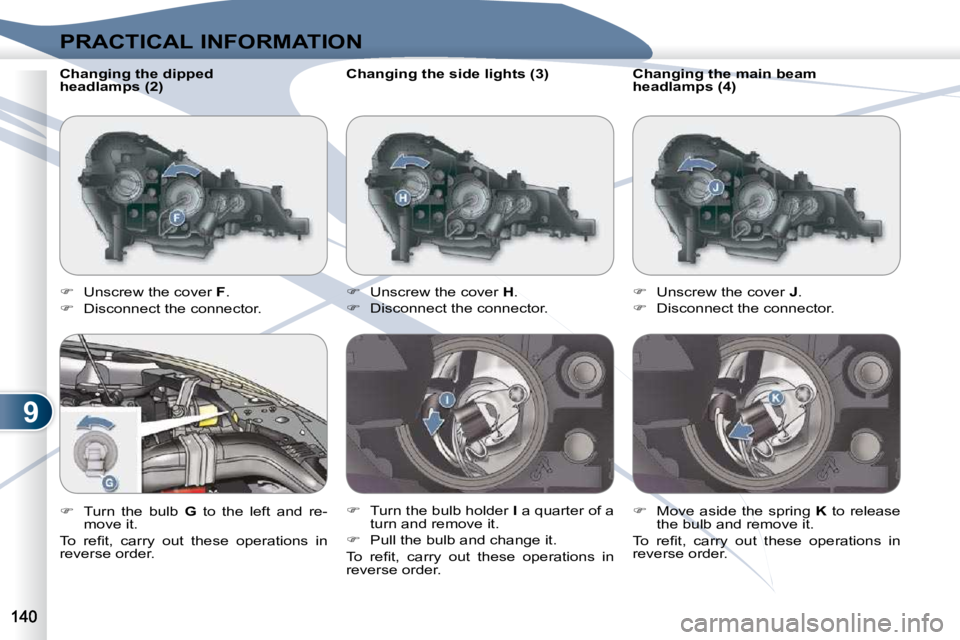

Changing the dipped
headlamps (2)
Changing the main beam
headlamps (4)

 Unscrew the cover J .

 Disconnect the connector.

 Move aside the spring K to release
the bulb and remove it.
To refi t, carry out these operations in
reverse order.

9
PRACTICAL INFORMATION

 Push the repeater A towards the
rear and detach it.

 Unclip the repeater.

 Disconnect the repeater connector
and change the repeater.
To refi t, carry out these operations in
reverse order.
To obtain repeaters, contact a PEUGEOT
dealer.

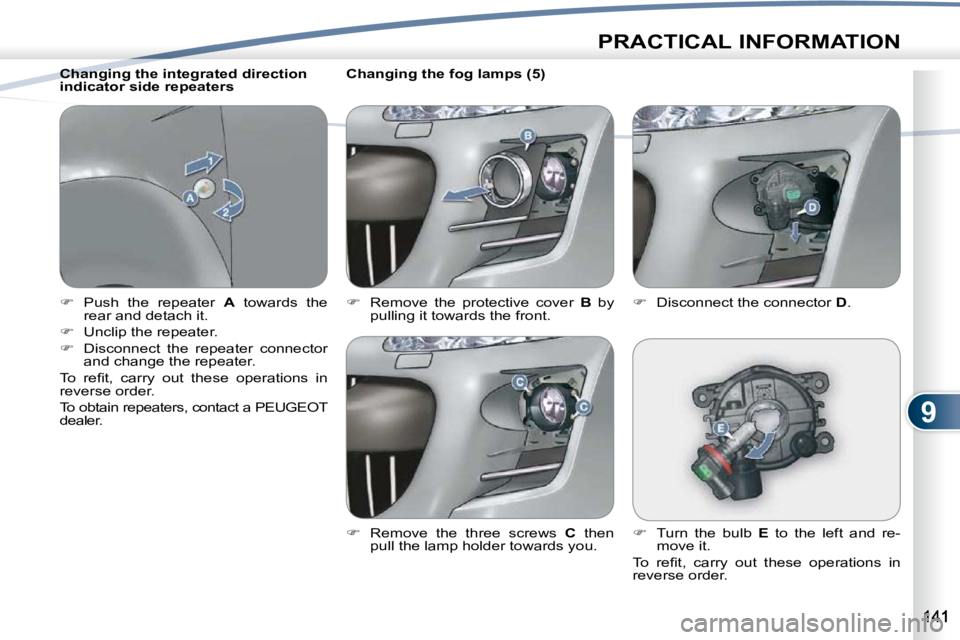

Changing the integrated direction
indicator side repeaters

 Remove the protective cover B by
pulling it towards the front.
Changing the fog lamps (5)

 Remove the three screws C then
pull the lamp holder towards you.
 Disconnect the connector D .

 Turn the bulb E to the left and re-
move it.
To refi t, carry out these operations in
reverse order.

9
PRACTICAL INFORMATION

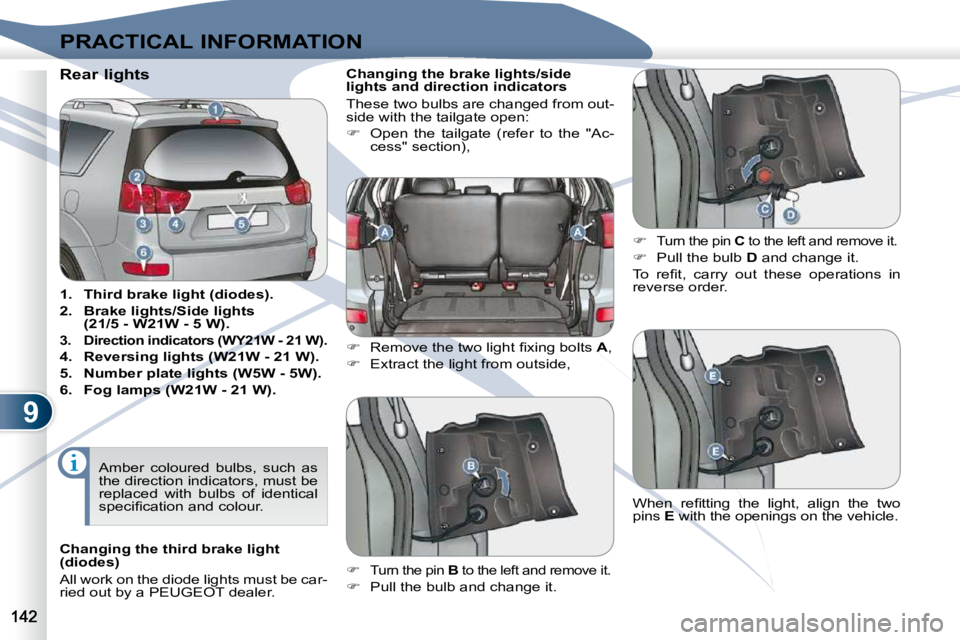

Rear lights

1. Third brake light (diodes).

2. Brake lights/Side lights
(21/5 - W21W - 5 W).

3. Direction indicators (WY21W - 21 W).

4. Reversing lights (W21W - 21 W).

5. Number plate lights (W5W - 5W).

6. Fog lamps (W21W - 21 W). Changing the brake lights/side
lights and direction indicators
These two bulbs are changed from out-
side with the tailgate open:

 Open the tailgate (refer to the "Ac-
cess" section),

 Remove the two light fi xing bolts A ,

 Extract the light from outside,

Turn the pin C to the left and remove it.

 Pull the bulb D and change it.
To refi t, carry out these operations in
reverse order.

 Turn the pin B to the left and remove it.

 Pull the bulb and change it. When refi tting the light, align the two
pins
E with the openings on the vehicle.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cation and colour.
Changing the third brake light
(diodes)
All work on the diode lights must be car-
ried out by a PEUGEOT dealer.
