INSTRUMENTS and CONTROLS

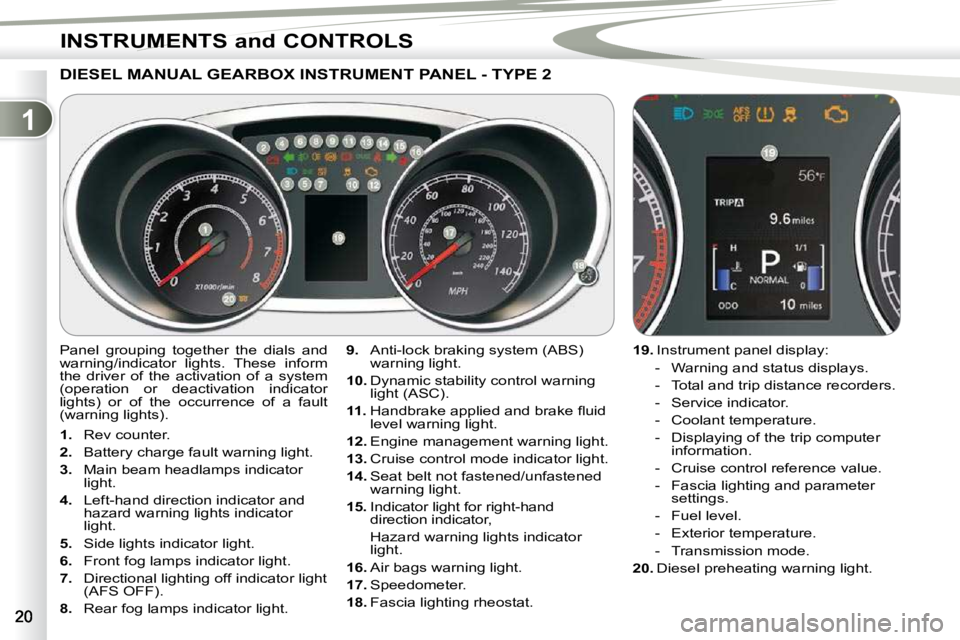

DIESEL MANUAL GEARBOX INSTRUMENT PANEL - TYPE 2

9. Anti-lock braking system (ABS)
warning light.

10. Dynamic stability control warning
light (ASC).

11. Handbrake applied and brake fl uid
level warning light.

12. Engine management warning light.

13. Cruise control mode indicator light.

14. Seat belt not fastened/unfastened
warning light.

15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator light.

16. Air bags warning light.

17. Speedometer.

18. Fascia lighting rheostat.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).

1. Rev counter.

2. Battery charge fault warning light.

3. Main beam headlamps indicator
light.

4. Left-hand direction indicator and
hazard warning lights indicator
light.

5. Side lights indicator light.

6. Front fog lamps indicator light.

7. Directional lighting off indicator light
(AFS OFF).

8. Rear fog lamps indicator light.
19. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.

20. Diesel preheating warning light.

1
INSTRUMENTS and CONTROLS

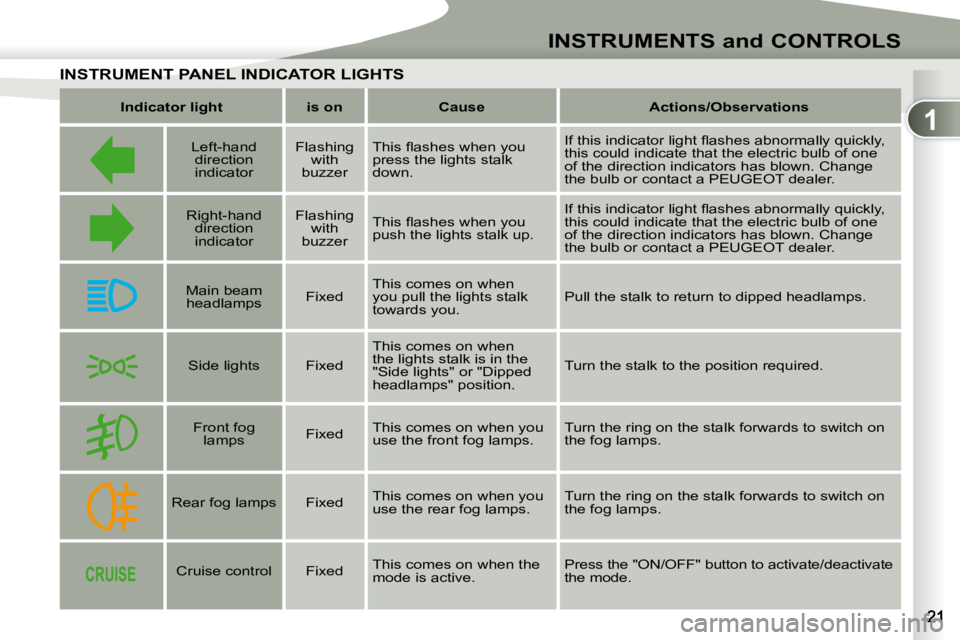

INSTRUMENT PANELINSTRUMENT PANEL INDICATOR LIGHTS

Indicator light is on Cause Actions/
Observations
Left-hand
direction
indicator Flashing
with
buzzer This fl ashes when you
press the lights stalk
down. If this indicator light fl ashes abnormally quickly,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a PEUGEOT dealer.
Right-hand
direction
indicator Flashing
with
buzzer This fl ashes when you
push the lights stalk up. If this indicator light fl ashes abnormally quickly,
this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a PEUGEOT dealer.
Main beam
headlamps Fixed This comes on when
you pull the lights stalk
towards you. Pull the stalk to return to dipped headlamps.
Side lights Fixed This comes on when
the lights stalk is in the
"Side lights" or "Dipped
headlamps" position. Turn the stalk to the position required.
Front fog
lamps Fixed This comes on when you
use the front fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Rear fog lamps Fixed This comes on when you
use the rear fog lamps. Turn the ring on the stalk forwards to switch on
the fog lamps.
Cruise control Fixed This comes on when the
mode is active. Press the "ON/OFF" button to activate/deactivate
the mode.

1
INSTRUMENTS and CONTROLS

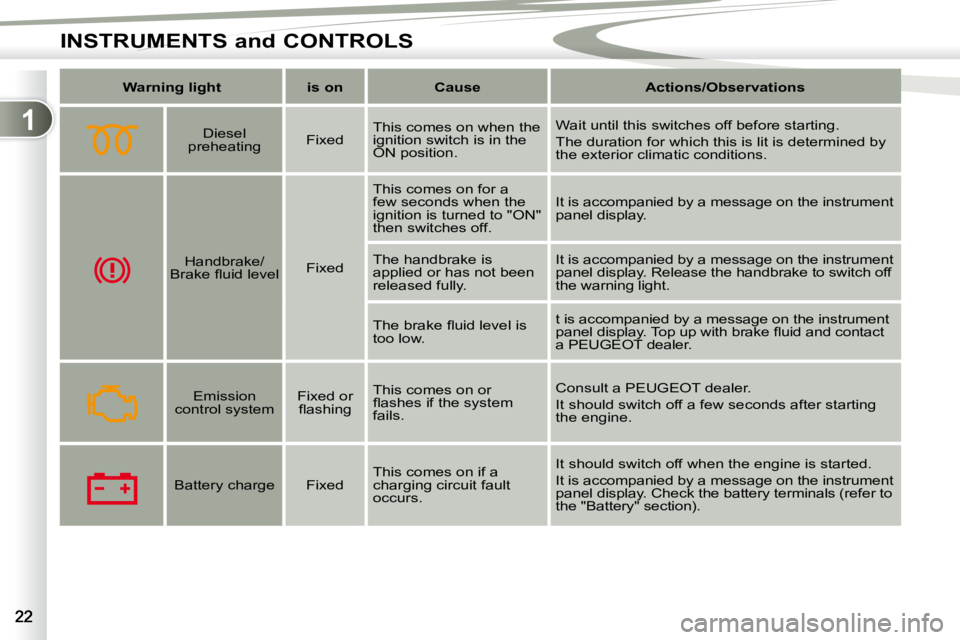

Warning light is on Cause Actions/Observations
Diesel
preheating Fixed This comes on when the
ignition switch is in the
ON position. Wait until this switches off before starting.
The duration for which this is lit is determined by
the exterior climatic conditions.
Handbrake/
Brake fl uid level Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then switches off.
It is accompanied by a message on the instrument
panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the instrument
panel display. Release the handbrake to switch off
the warning light.
The brake fl uid level is
too low. t is accompanied by a message on the instrument
panel display. Top up with brake fl uid and contact
a PEUGEOT dealer.
Emission
control system Fixed or
fl ashing This comes on or
fl ashes if the system
fails. Consult a PEUGEOT dealer.
It should switch off a few seconds after starting
the engine.
Battery charge Fixed
This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the instrument
panel display. Check the battery terminals (refer t
o
the "Battery" section).

1
INSTRUMENTS and CONTROLS

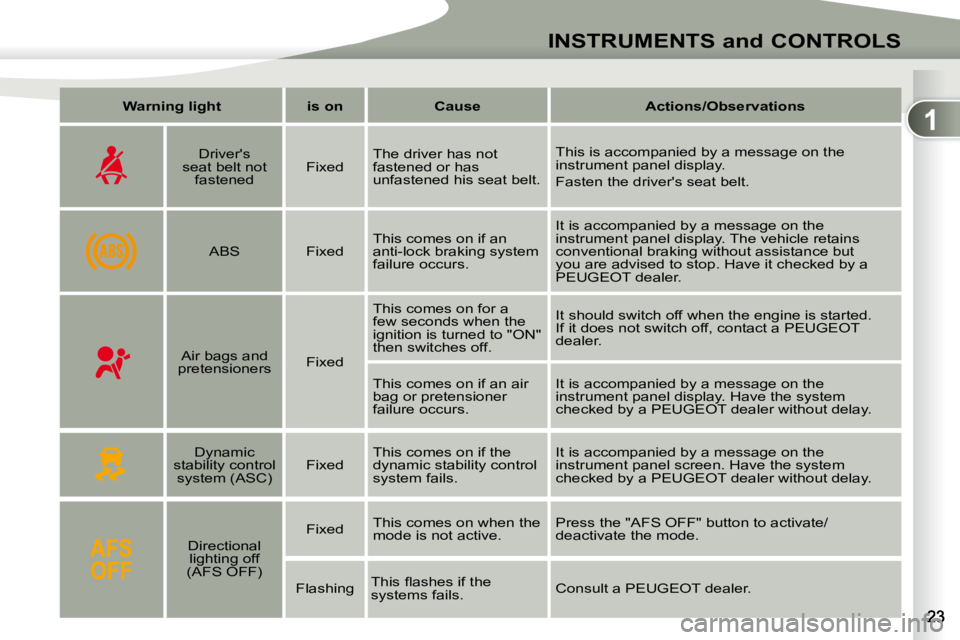

Warning light is on Cause Actions/Observations
Driver's
seat belt not fastened Fixed The driver has not
fastened or has
unfastened his seat belt. This is accompanied by a message on the
instrument panel display.
Fasten the driver's seat belt.
ABS Fixed
This comes on if an
anti-lock braking system
failure occurs. It is accompanied by a message on the
instrument panel display. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by a
PEUGEOT dealer.
Air bags and
pretensioners Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then switches off.
It should switch off when the engine is started.
If it does not switch off, contact a PEUGEOT
dealer.
This comes on if an air
bag or pretensioner
failure occurs. It is accompanied by a message on the
instrument panel display. Have the system
checked by a PEUGEOT dealer without delay.
Dynamic
stability control system (ASC) Fixed This comes on if the
dynamic stability control
system fails. It is accompanied by a message on the
instrument panel screen. Have the system
checked by a PEUGEOT dealer without delay.
Directional
lighting off
(AFS OFF) Fixed
This comes on when the
mode is not active. Press the "AFS OFF" button to activate/
deactivate the mode.
Flashing This fl ashes if the
systems fails. Consult a PEUGEOT dealer.

1
INSTRUMENTS and CONTROLS
Each time the engine is started: a series of warning lights and/or messages come on applying a checking self test. They
switch off after a few seconds. Engine running: the warning light or the message becomes a warning if it remains on
continuously or fl ashes. This initial warning may be accompanied by an audible signal and a message on the display. Do not
ignore these warnings.
The messages displayed may vary between the type 1 instrument pan el and the type 2 instrument panel.
When the cause of the appearance of the warning light o r warning message has been rectifi ed, the warning disappears fro m
the display automatically. If the cause of the warning is n ot rectifi ed, you can return to the previous screen at any time b y
pressing the INFO button on the fascia.
The symbol "!" is displayed.
To return to the previous screen (with the "!" symbol), you must press the INFO button several times.

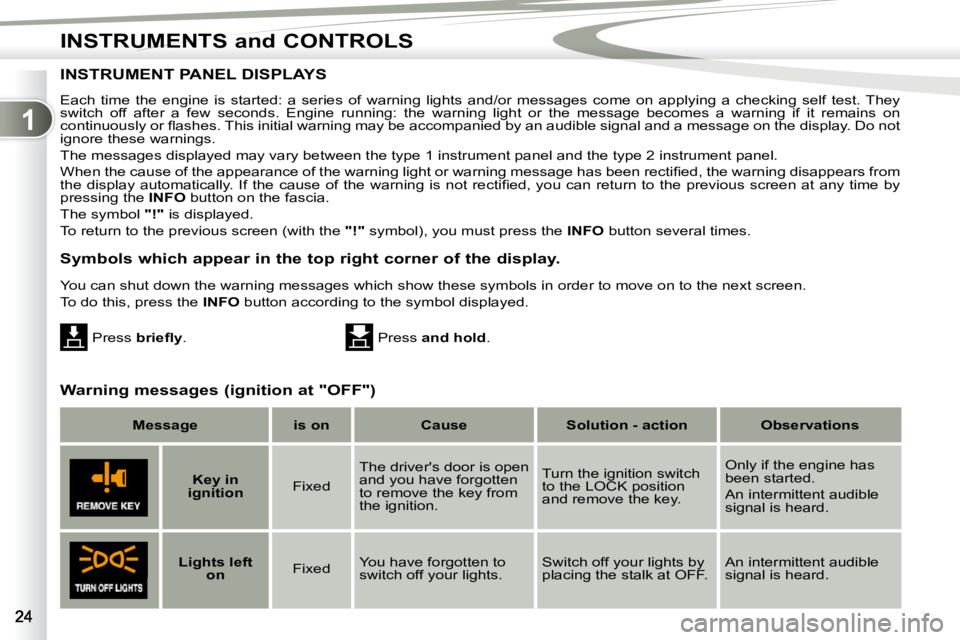

INSTRUMENT PANEL DISPLAYS
Warning messages (ignition at "OFF")
You can shut down the warning messages which show these symbol
s in order to move on to the next screen.
To do this, press the INFO button according to the symbol displayed.
Press briefl y . Press and hold .
Symbols which appear in the top right corner of the dis
play.

Message is on Cause Solution - action Observations

Key in
ignition Fixed The driver's door is open
and you have forgotten
to remove the key from
the ignition. Turn the ignition switch
to the LOCK position
and remove the key. Only if the engine has
been started.
An intermittent audible
signal is heard.

Lights left
on Fixed You have forgotten to
switch off your lights. Switch off your lights by
placing the stalk at OFF. An intermittent audible
signal is heard.

1
INSTRUMENTS and CONTROLS

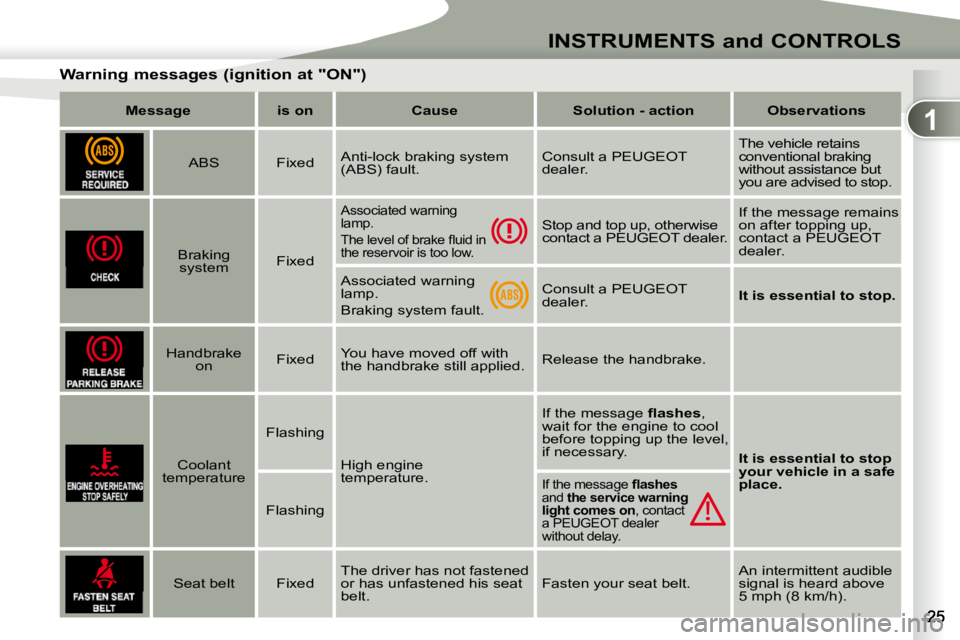

Warning messages (ignition at "ON")
Message is on Cause Solution - action Observations
ABS Fixed Anti-lock braking system
(ABS) fault. Consult a PEUGEOT
dealer. The vehicle retains
conventional braking
without assistance but
you are advised to stop.
Braking
system Fixed
Associated warning
lamp.
The level of brake fl uid in
the reservoir is too low. Stop and top up, otherwise
contact a PEUGEOT dealer. If the message remains
on after topping up,
contact a PEUGEOT
dealer.
Associated warning
lamp.
Braking system fault. Consult a PEUGEOT
dealer.

It is essential to stop.
Handbrake
on Fixed You have moved off with
the handbrake still applied. Release the handbrake.

Coolant
temperature Flashing
High engine
temperature. If the message
fl ashes ,
wait for the engine to cool
before topping up the level,
if necessary.
It is essential to stop
your vehicle in a safe
place.
Flashing
If the message fl ashes and the service warning light comes on , contact
a PEUGEOT dealer
without delay.
Seat belt Fixed The driver has not fastened
or has unfastened his seat
belt. Fasten your seat belt. An intermittent audible
signal is heard above
5 mph (8 km/h).

1
!
INSTRUMENTS and CONTROLS

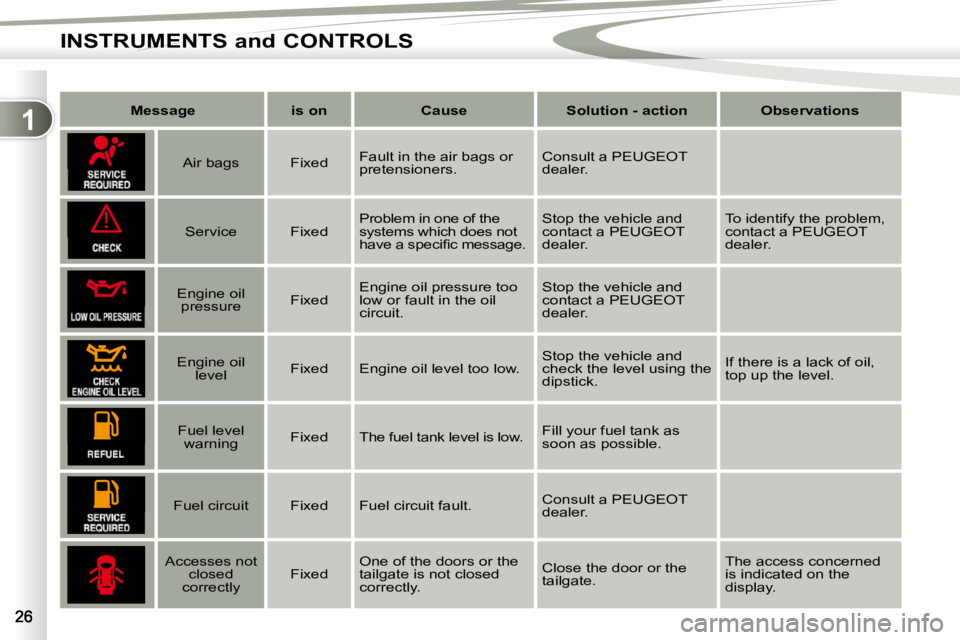

Message is on Cause Solution - action Observations
Air bags Fixed Fault in the air bags or
pretensioners. Consult a PEUGEOT
dealer.

Service Fixed Problem in one of the
systems which does not
have a specifi c message. Stop the vehicle and
contact a PEUGEOT
dealer. To identify the problem,
contact a PEUGEOT
dealer.
Engine oil
pressure Fixed Engine oil pressure too
low or fault in the oil
circuit. Stop the vehicle and
contact a PEUGEOT
dealer.

Engine oil level Fixed Engine oil level too low. Stop the vehicle and
check the level using the
dipstick. If there is a lack of oil,
top up the level.
Fuel level
warning Fixed The fuel tank level is low. Fill your fuel tank as
soon as possible.

Fuel circuit Fixed Fuel circuit fault. Consult a PEUGEOT
dealer.

Accesses not closed
correctly Fixed One of the doors or the
tailgate is not closed
correctly. Close the door or the
tailgate. The access concerned
is indicated on the
display.

1
INSTRUMENTS and CONTROLS

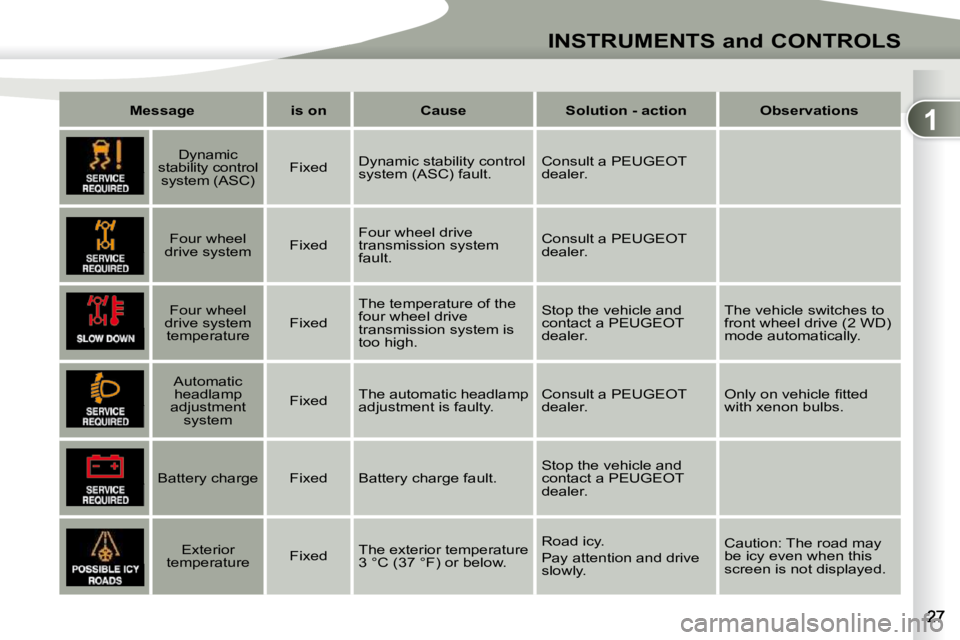

Message is on Cause Solution - action Observations
Dynamic
stability control system (ASC) Fixed
Dynamic stability control
system (ASC) fault. Consult a PEUGEOT
dealer.

Four wheel
drive system Fixed Four wheel drive
transmission system
fault. Consult a PEUGEOT
dealer.

Four wheel
drive system temperature Fixed The temperature of the
four wheel drive
transmission system is
too high. Stop the vehicle and
contact a PEUGEOT
dealer.
The vehicle switches to
front wheel drive (2 WD)
mode automatically.

Automatic
headlamp
adjustment system Fixed
The automatic headlamp
adjustment is faulty. Consult a PEUGEOT
dealer. Only on vehicle fi tted
with xenon bulbs.
Battery charge Fixed Battery charge fault. Stop the vehicle and
contact a PEUGEOT
dealer.

Exterior
temperature Fixed The exterior temperature
3 °C (37 °F) or below. Road icy.
Pay attention and drive
slowly. Caution: The road may
be icy even when this
screen is not displayed.
