2009.5. PEUGEOT 4007 Owners Manual

4
VISIBILITY

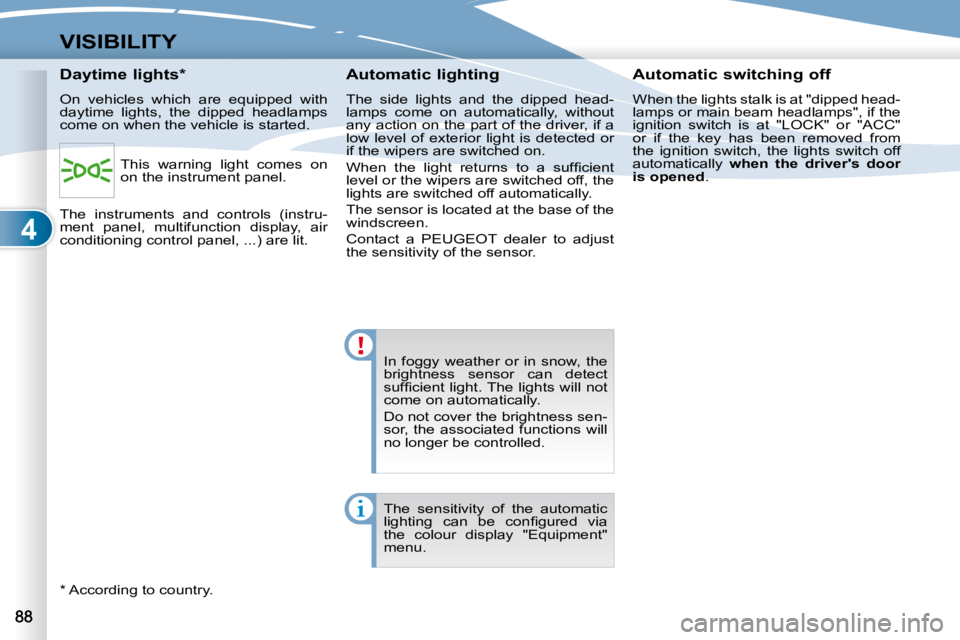

In foggy weather or in snow, the
brightness sensor can detect
suffi cient light. The lights will not
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.
Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC"
or if the key has been removed from
the ignition switch, the lights switch off
automatically
when the driver's door
is opened .
Automatic lighting
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
When the light returns to a suffi cient
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
The sensitivity of the automatic
lighting can be confi gured via
the colour display "Equipment"
menu.
This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
conditioning control panel, ...) are lit.

4
VISIBILITY

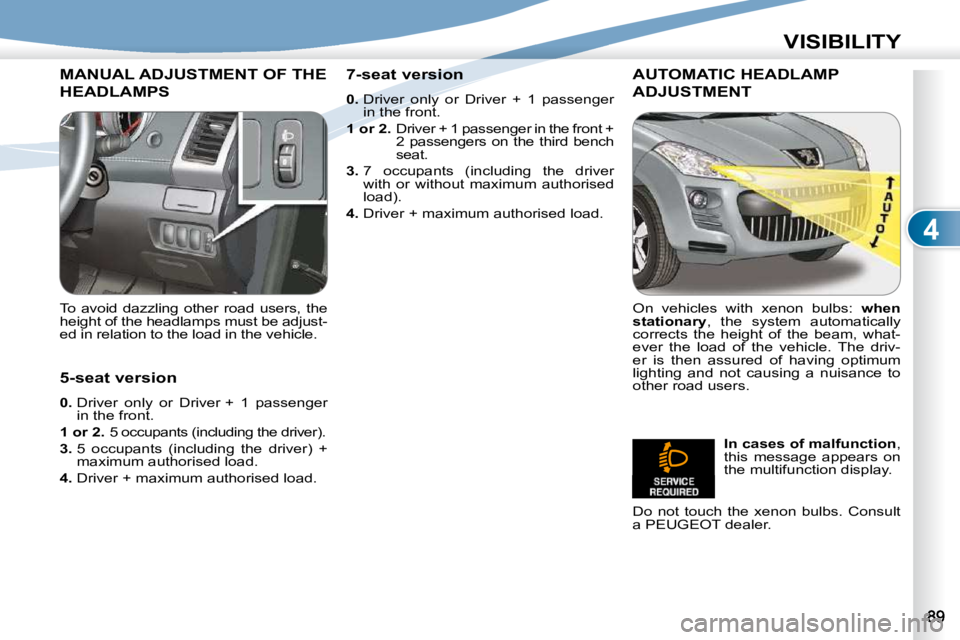

MANUAL ADJUSTMENT OF THE
HEADLAMPS
To avoid dazzling other road users, the
height of the headlamps must be adjust-
ed in relation to the load in the vehicle.
AUTOMATIC HEADLAMP
ADJUSTMENT
On vehicles with xenon bulbs: when
stationary , the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driv-
er is then assured of having optimum
lighting and not causing a nuisance to
other road users.

In cases of malfunction ,
this message appears on
the multifunction display.
7-seat version

0. Driver only or Driver + 1 passenger
in the front.

1 or 2. Driver + 1 passenger in the front +
2 passengers on the third bench
seat.

3. 7 occupants (including the driver
with or without maximum authorised
load).

4. Driver + maximum authorised load.
5-seat version

0. Driver only or Driver + 1 passenger
in the front.

1 or 2. 5 occupants (including the driver).

3. 5 occupants (including the driver) +
maximum authorised load.

4. Driver + maximum authorised load.
Do not touch the xenon bulbs. Consult
a PEUGEOT dealer.

4
VISIBILITY
DIRECTIONAL LIGHTING DIRECTIONAL LIGHTING
With dipped or main beams or in au-
tomatic mode, this function allows the
light beam:
- to light the inside of a bend over a wider angle.
It is most useful when travelling at low and medium speed (urban driv-
ing, winding road, intersections,
parking manoeuvres...).
- to follow the direction of the road.
Activation
This function is activated from a certain
angle of rotation of the steering wheel.

with directional lighting

without directional lighting

4
VISIBILITY

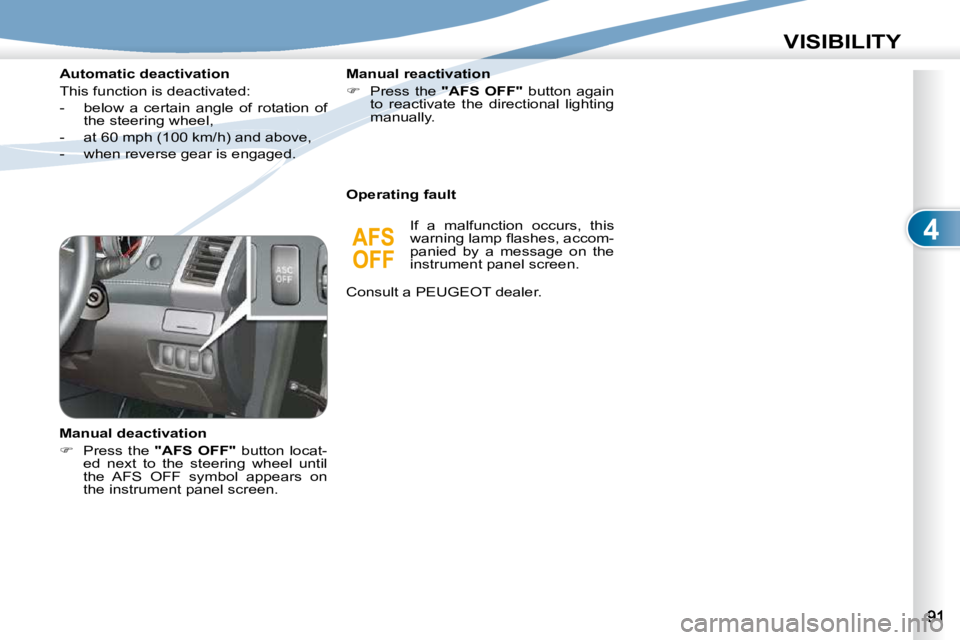

Automatic deactivation
This function is deactivated:
- below a certain angle of rotation of the steering wheel,
- at 60 mph (100 km/h) and above,
- when reverse gear is engaged.
Manual deactivation

 Press the "AFS OFF" button locat-
ed next to the steering wheel until
the AFS OFF symbol appears on
the instrument panel screen. Manual reactivation

 Press the "AFS OFF" button again
to reactivate the directional lighting
manually.
Operating fault If a malfunction occurs, this
warning lamp fl ashes, accom-
panied by a message on the
instrument panel screen.
Consult a PEUGEOT dealer.

4
VISIBILITY
WIPER CONTROLS WIPER CONTROLS Manual controls
The wiper commands are issued directly
by the driver by means of the stalk A and
the ring B .
single wipe.
Windscreen wipers

A. wiping speed selection stalk:
park.
intermittent (the speed can be
set manually),
slow.
fast.

B. intermittence or rain sensor sensitivity
adjustment ring.
You can increase or decrease:

4
VISIBILITY

B. rear wiper selection ring:
park.
intermittent wipe.
wipe with screen wash.
Rear wiper
The wiper wipes twice then switches to
intermittent mode with an interval of a
few seconds.
Keep the ring in this position to operate
the screen wash with several wipes of
the wiper.
The intermittence of the rear wiper
can be confi gured via the colour
display "Equipment" menu.

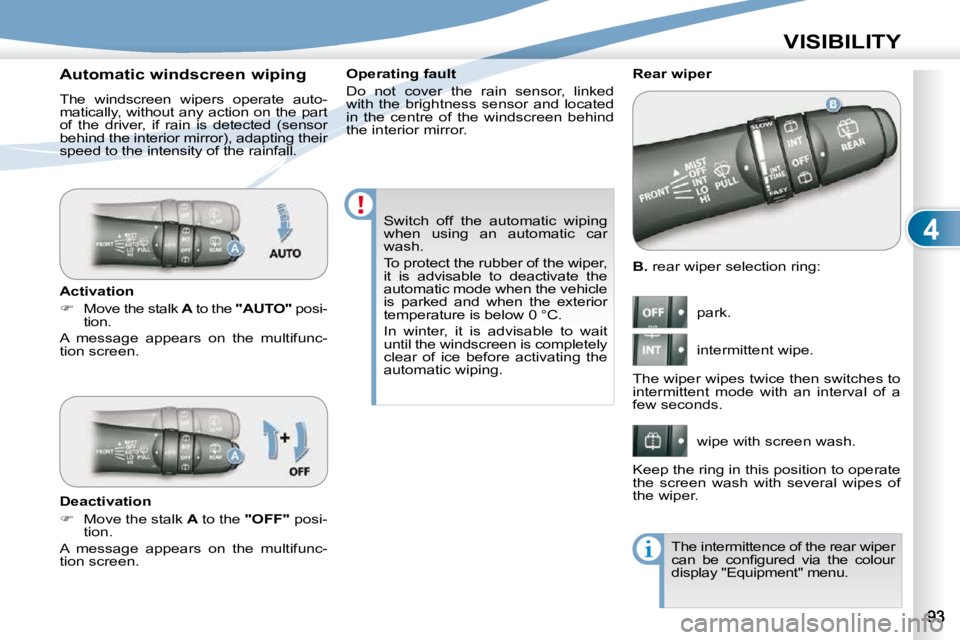

Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
behind the interior mirror), adapting their
speed to the intensity of the rainfall.
Activation

 Move the stalk A to the "AUTO" posi-
tion.
A message appears on the multifunc-
tion screen.
Deactivation

 Move the stalk A to the "OFF" posi-
tion.
A message appears on the multifunc-
tion screen. Operating fault
Do not cover the rain sensor, linked
with the brightness sensor and located
in the centre of the windscreen behind
the interior mirror.
Switch off the automatic wiping
when using an automatic car
wash.
To protect the rubber of the wiper,
it is advisable to deactivate the
automatic mode when the vehicle
is parked and when the exterior
temperature is below 0 ° C.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic wiping.

4
VISIBILITY

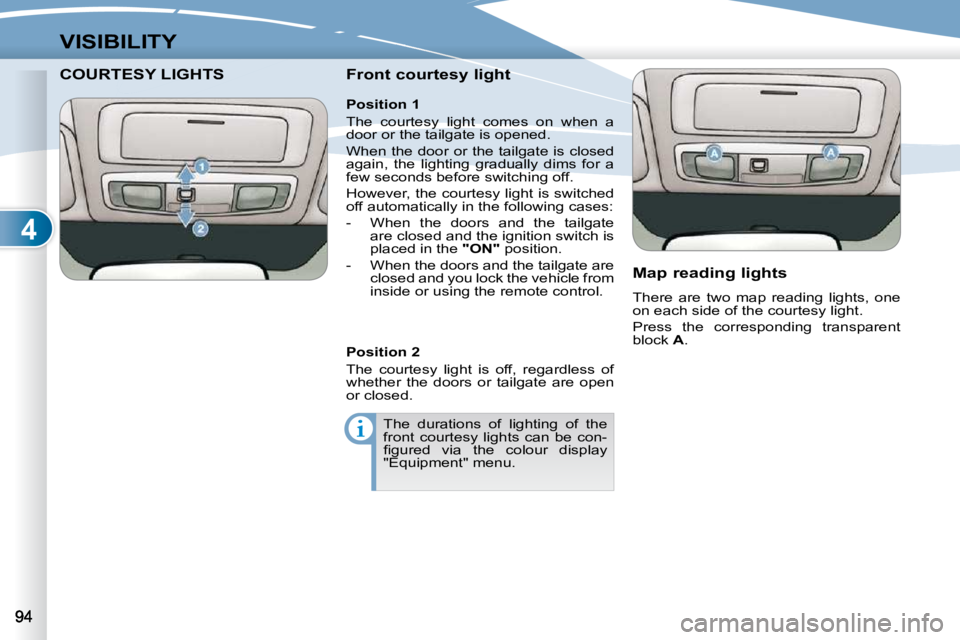

COURTESY LIGHTS COURTESY LIGHTS Front courtesy light Map reading lights
There are two map reading lights, one
on each side of the courtesy light.
Press the corresponding transparent
block A .
Position 2
The courtesy light is off, regardless of
whether the doors or tailgate are open
or closed.
The durations of lighting of the
front courtesy lights can be con-
fi gured via the colour display
"Equipment" menu.
Position 1
The courtesy light comes on when a
door or the tailgate is opened.
When the door or the tailgate is closed
again, the lighting gradually dims for a
few seconds before switching off.
However, the courtesy light is switched
off automatically in the following cases:
- When the doors and the tailgate
are closed and the ignition switch is
placed in the "ON" position.
- When the doors and the tailgate are closed and you lock the vehicle from
inside or using the remote control.

4
VISIBILITY

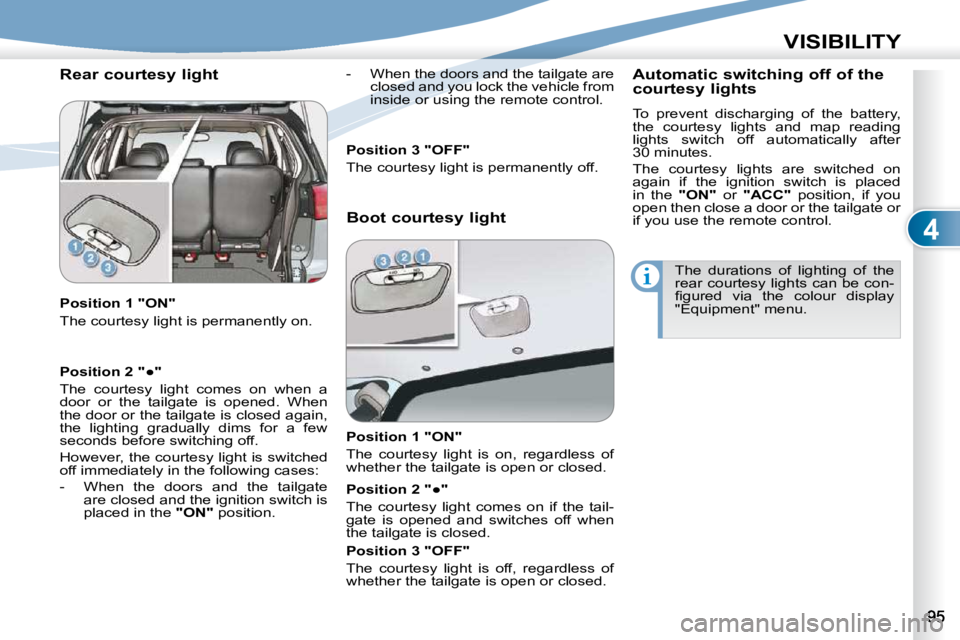

Rear courtesy light
Position 1 "ON"
The courtesy light is permanently on. - When the doors and the tailgate are
closed and you lock the vehicle from
inside or using the remote control.

Boot courtesy light
Position 1 "ON"
The courtesy light is on, regardless of
whether the tailgate is open or closed.
Position 2 "
