2009.5. PEUGEOT 4007 Owners Manual

10
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (IN KG) WEIGHTS
* The kerb weight is equal to the weight without load + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mp h (100 km/h) (comply with the legislation in force in your country).
*** The braked trailer value corresponds to the towing ca pacities of the vehicle on a 12 % gradient.
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; reduce
the towed weight by 450 kg when your altitude increases by 1 000 m.

Engines
2.4 litre 16V 2.2 litre HDI PEF 16V

Gearbox
Manual
(5-speed)
CVT
(6-speed)
Manual
(6-speed)
DCS
(6-speed)

Model codes VUSFZC VVSFZC VUSFZF VVSFZF U4HNH V4HNH

VU4HNH/
1P

VU4HNH/
2P
VV4HNH/
1P

VV4HNH/
2P

Version
5 seats 7 seats 5 seats 7 seats 5 seats 7 seats 5 seats 7 seats

10
TECHNICAL DATA

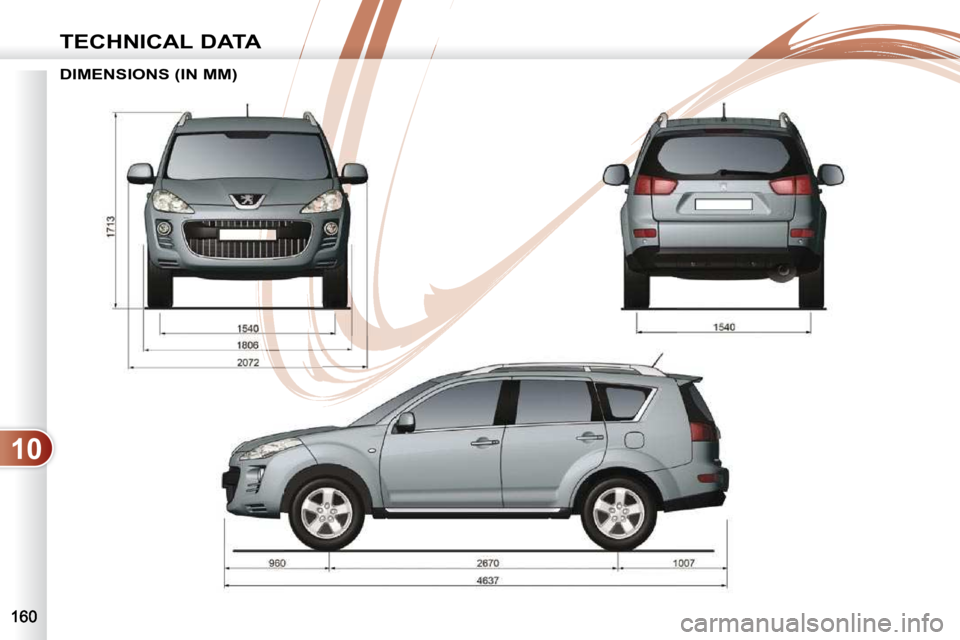

DIMENSIONS (IN MM)

10
TECHNICAL DATA

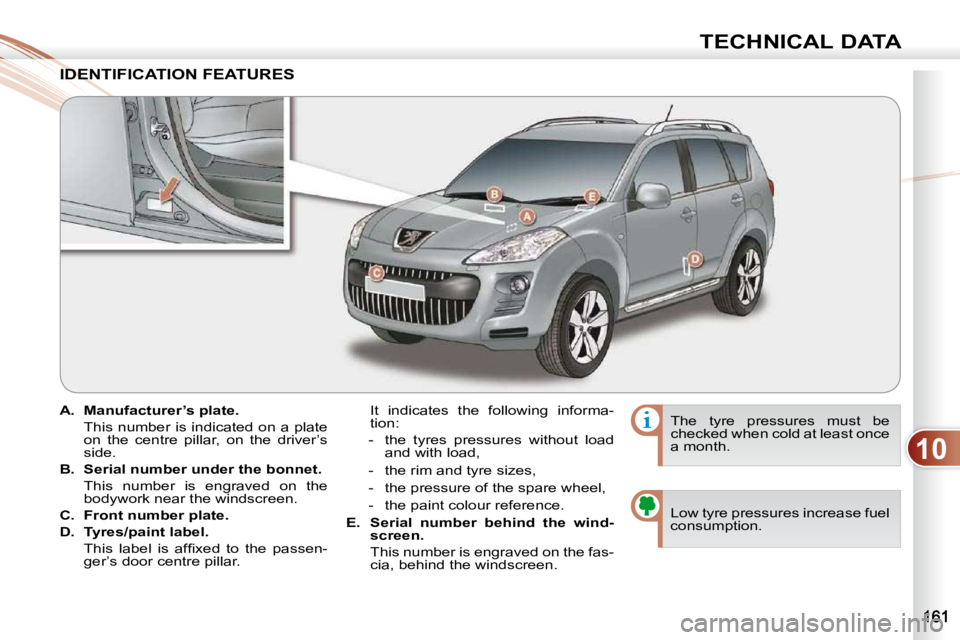

A. Manufacturer’s plate.
This number is indicated on a plate on the centre pillar, on the driver’s
side.

B. Serial number under the bonnet.
This number is engraved on the bodywork near the windscreen.

C. Front number plate.

D. Tyres/paint label.
This label is affi xed to the passen- ger’s door centre pillar. It indicates the following informa-
tion:
- the tyres pressures without load and with load,
- the rim and tyre sizes,
- the pressure of the spare wheel,
- the paint colour reference.

E. Serial number behind the wind-
screen.
This number is engraved on the fas- cia, behind the windscreen. The tyre pressures must be
checked when cold at least once
a month.
IDENTIFICATION FEATURES IDENTIFICA
Low tyre pressures increase fuel
consumption.

11
AUDIO EQUIPMENT and TELEMATICS

Audio equipment On/Off.
Decreasing/Increasing
of the volume.

Selection of the CD/
Changer mode.

Automatic search for a
lower radio frequency .
Search for the previous
track.
Selection and setting of
the audio modes
(BASS, TREBLE, ...).
Manual search
for a lower or higher radio frequency/PTY.
Functions setting mode
(AF, REG, TP, SCV, ...).
Search for the previous
or next MP3 folder.

Ejecting of one
or more CDs.

CD slot.

Loading of one
or more discs.

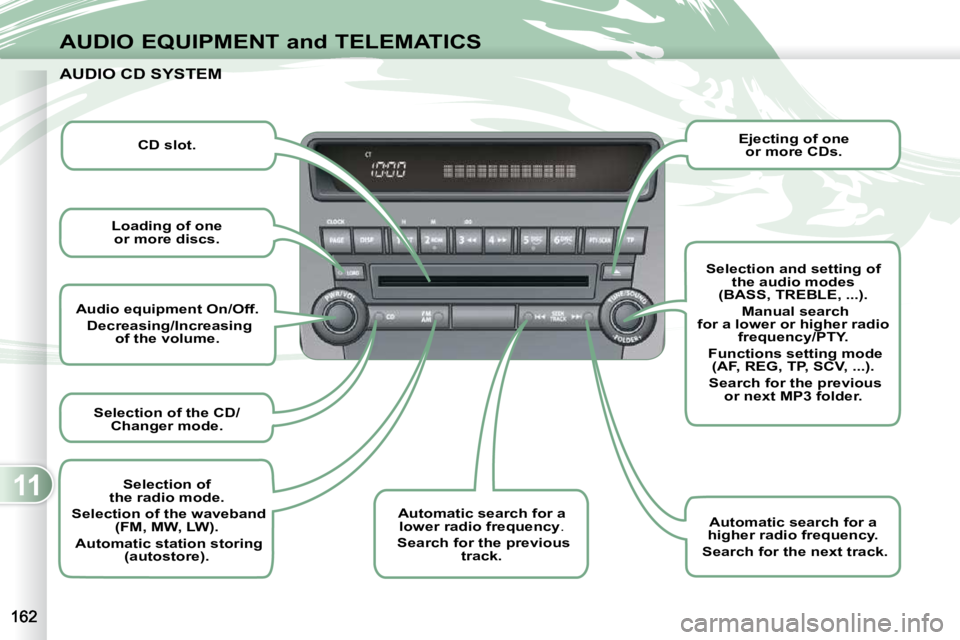

AUDIO CD SYSTEM AUDIO CD SYSTEM

Selection of
the radio mode.
Selection of the waveband
(FM, MW, LW).
Automatic station storing
(autostore).
Automatic search for a
higher radio frequency.
Search for the next track.

11
AUDIO EQUIPMENT and TELEMATICS

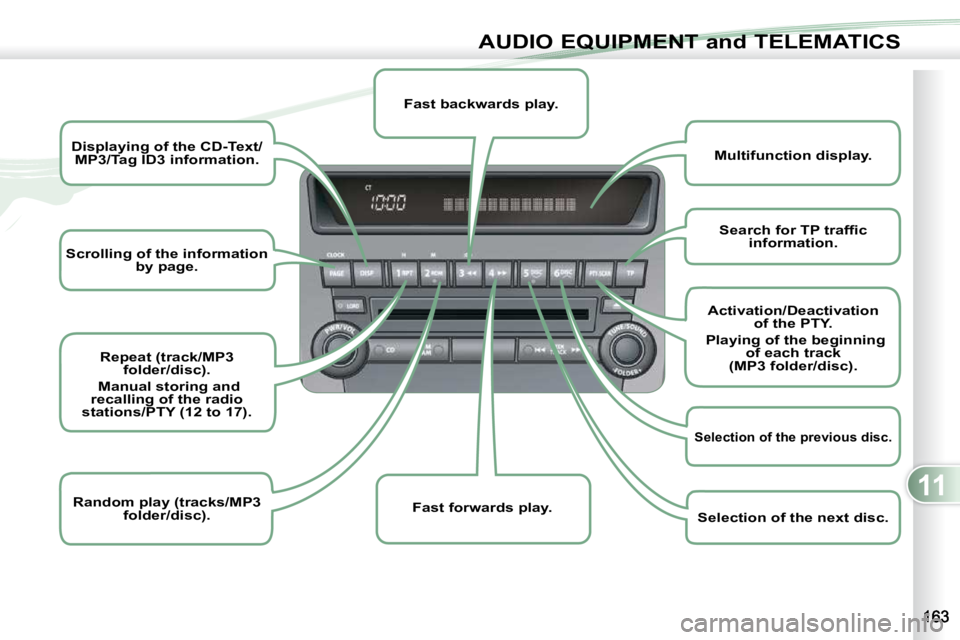

Scrolling of the information
by page.

Displaying of the CD-Text/
MP3/Tag ID3 information.

Repeat (track/MP3
folder/disc).
Manual storing and
recalling of the radio
stations/PTY (12 to 17).

Random play (tracks/MP3
folder/disc).
Multifunction display.

Fast backwards play.

Fast forwards play.
Search for TP traffi c
information.

Activation/Deactivation
of the PTY.
Playing of the beginning
of each track
(MP3 folder/disc).

Selection of the previous disc.

Selection of the next disc.

11
AUDIO EQUIPMENT and TELEMATICS

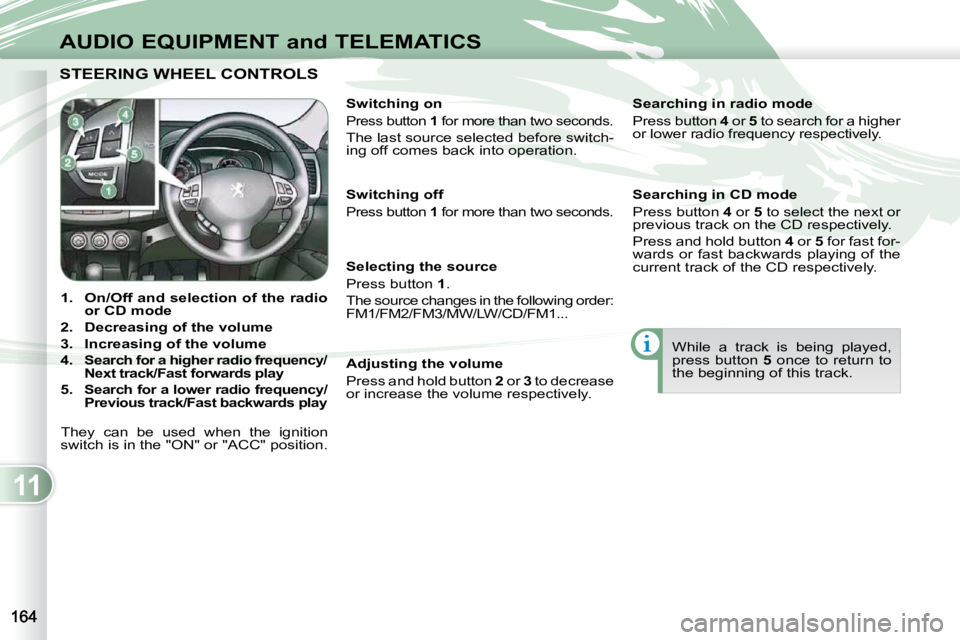

STEERING WHEEL CONTROLS STEERING WHEEL CONTROLS

1. On/Off and selection of the radio
or CD mode

2. Decreasing of the volume

3. Increasing of the volume

4.
Search for a higher radio frequency/
Next track/Fast forwards play

5. Search for a lower radio frequency/
Previous track/Fast backwards play
They can be used when the ignition
switch is in the "ON" or "ACC" position. Switching on
Press button
1 for more than two seconds.
The last source selected before switch-
ing off comes back into operation.
Selecting the source
Press button 1 .
The source changes in the following order:
FM1/FM2/FM3/MW/LW/CD/FM1... Searching in radio mode
Press button
4 or 5 to search for a higher
or lower radio frequency respectively.
While a track is being played,
press button 5 once to return to
the beginning of this track.
Adjusting the volume
Press and hold button
2 or 3 to decrease
or increase the volume respectively.
Switching off
Press button
1 for more than two seconds.
Searching in CD mode
Press button 4 or 5 to select the next or
previous track on the CD respectively.
Press and hold button 4 or 5 for fast for-
wards or fast backwards playing of the
current track of the CD respectively.

11
AUDIO EQUIPMENT and TELEMATICS

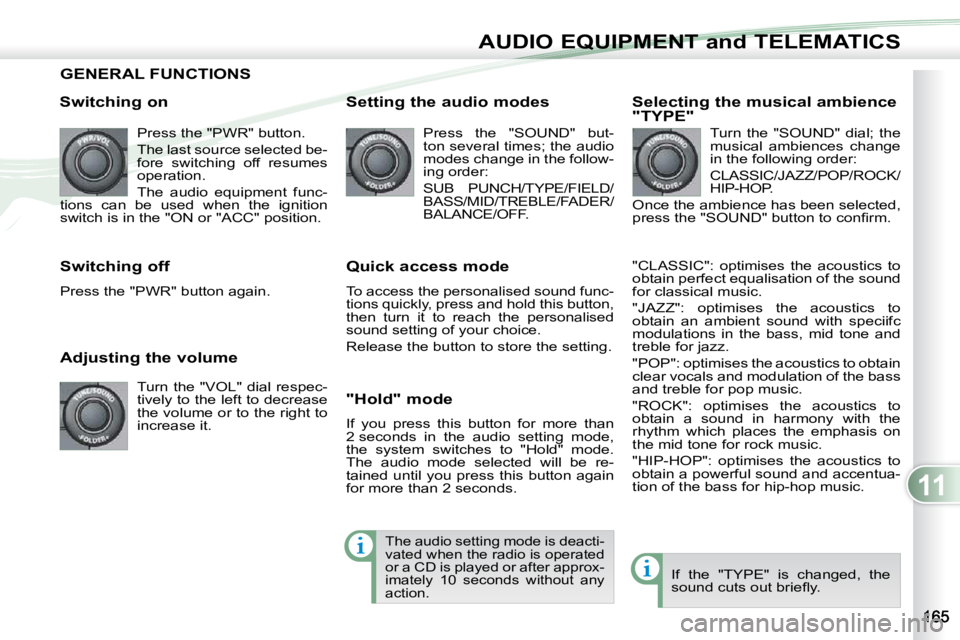

GENERAL FUNCTIONS
Switching on Press the "PWR" button.
The last source selected be-
fore switching off resumes
operation.
The audio equipment func-
tions can be used when the ignition
switch is in the "ON or "ACC" position.
Adjusting the volume
Turn the "VOL" dial respec-
tively to the left to decrease
the volume or to the right to
increase it.
Switching off
Press the "PWR" button again. Setting the audio modes
Press the "SOUND" but-
ton several times; the audio
modes change in the follow-
ing order:
SUB PUNCH/TYPE/FIELD/
BASS/MID/TREBLE/FADER/
BALANCE/OFF.
Quick access mode
To access the personalised sound func-
tions quickly, press and hold this button,
then turn it to reach the personalised
sound setting of your choice.
Release the button to store the setting.
"Hold" mode
If you press this button for more than
2 seconds in the audio setting mode,
the system switches to "Hold" mode.
The audio mode selected will be re-
tained until you press this button again
for more than 2 seconds. Selecting the musical ambience
"TYPE"
Turn the "SOUND" dial; the
musical ambiences change
in the following order:
CLASSIC/JAZZ/POP/ROCK/
HIP-HOP.
Once the ambience has been selected,
press the "SOUND" button to confi rm.
"CLASSIC": optimises the acoustics to
obtain perfect equalisation of the sound
for classical music.
"JAZZ": optimises the acoustics to
obtain an ambient sound with speciifc
modulations in the bass, mid tone and
treble for jazz.
"POP": optimises the acoustics to obtain
clear vocals and modulation of the bass
and treble for pop music.
"ROCK": optimises the acoustics to
obtain a sound in harmony with the
rhythm which places the emphasis on
the mid tone for rock music.
"HIP-HOP": optimises the acoustics to
obtain a powerful sound and accentua-
tion of the bass for hip-hop music.
If the "TYPE" is changed, the
sound cuts out briefl y.
The audio setting mode is deacti-
vated when the radio is operated
or a CD is played or after approx-
imately 10 seconds without any
action.

11
AUDIO EQUIPMENT and TELEMATICS

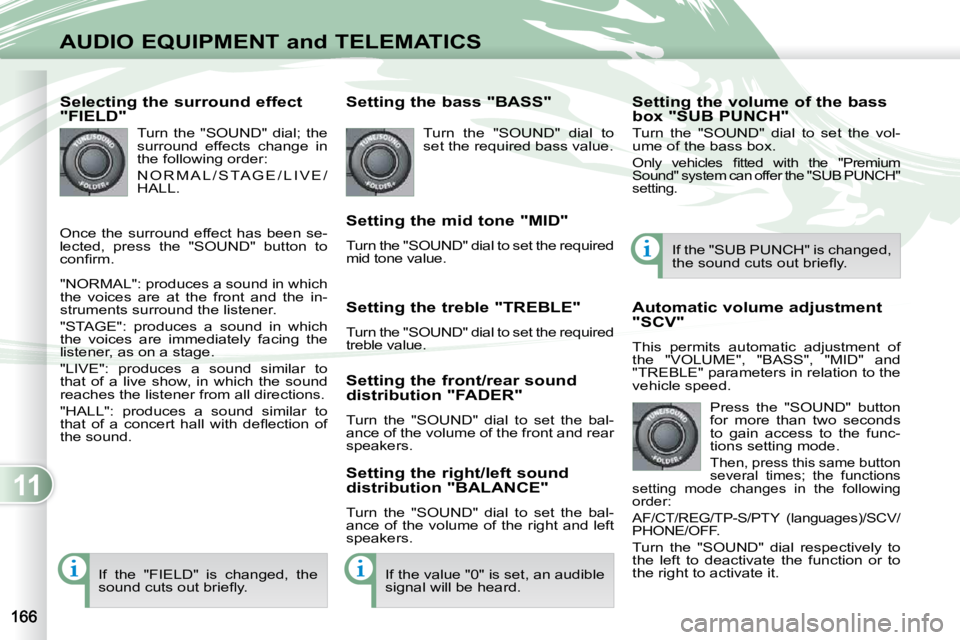

Selecting the surround effect
"FIELD" Turn the "SOUND" dial; the
surround effects change in
the following order:
N O R M A L / S TA G E / L I V E /
HALL.
"NORMAL": produces a sound in which
the voices are at the front and the in-
struments surround the listener.
"STAGE": produces a sound in which
the voices are immediately facing the
listener, as on a stage.
"LIVE": produces a sound similar to
that of a live show, in which the sound
reaches the listener from all directions.
"HALL": produces a sound similar to
that of a concert hall with defl ection of
the sound. Setting the bass "BASS"
Turn the "SOUND" dial to
set the required bass value.
Setting the mid tone "MID"
Turn the "SOUND" dial to set the required
mid tone value.
Setting the treble "TREBLE"
Turn the "SOUND" dial to set the required
treble value.
Setting the front/rear sound
distribution "FADER"
Turn the "SOUND" dial to set the bal-
ance of the volume of the front and rear
speakers.
Setting the right/left sound
distribution "BALANCE"
Turn the "SOUND" dial to set the bal-
ance of the volume of the right and left
speakers.
If the "FIELD" is changed, the
sound cuts out briefl y. If the value "0" is set, an audible
signal will be heard. Automatic volume adjustment
"SCV"
This permits automatic adjustment of
the "VOLUME", "BASS", "MID" and
"TREBLE" parameters in relation to the
vehicle speed.
Press the "SOUND" button
for more than two seconds
to gain access to the func-
tions setting mode.
Then, press this same button
several times; the functions
setting mode changes in the following
order:
AF/CT/REG/TP-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "SOUND" dial respectively to
the left to deactivate the function or to
the right to activate it. If the "SUB PUNCH" is changed,
the sound cuts out briefl y.
Setting the volume of the bass
box "SUB PUNCH"
Turn the "SOUND" dial to set the vol-
ume of the bass box.
Only vehicles fi tted with the "Premium
Sound" system can offer the "SUB PUNCH"
setting.
Once the surround effect has been se-
lected, press the "SOUND" button to
confi rm.
