2009.5. PEUGEOT 4007 Owners Manual

11
AUDIO EQUIPMENT and TELEMATICS
A - Choose to switch off the display.
To switch it back on, touch the screen or press any button.
B - Choose the settings of the sound in the vehicle, if an audio source
is selected (FM, CD, ...), for:
B1 -
the sound distribution or the volume
such as the front-rear balance, the
bass, the medium, the treble, the
volume adjustment in relation to
the vehicle speed,
B2 - the type of music (with surround option) such as classic, jazz, pop,
rock, hip hop, country, normal, ...
B3 - the sound fi eld (with surround option) such as stage, live, hall,
normal, ...
C - Choose the quality of the picture for:
C1 - the colour (when playing DVDs),
C2 - the intensity of the colours (when playing DVDs),
C3 - the brightness,
C4 - the contrast,
C5 - the level of black.

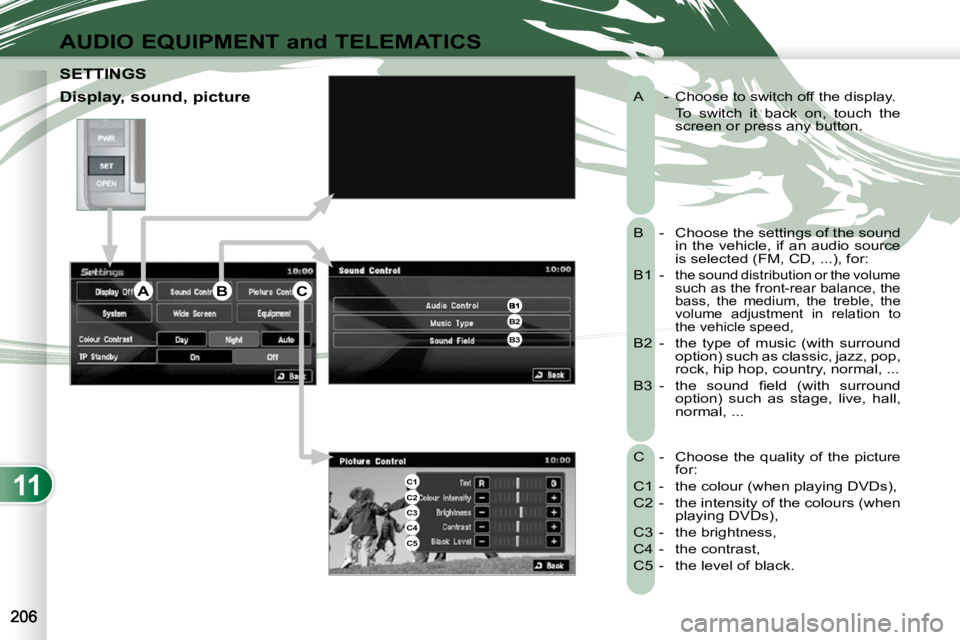

SETTINGS SETTINGS
Display, sound, picture
B2
B3
C1C2C3C4C5
ABC

11
AUDIO EQUIPMENT and TELEMATICS

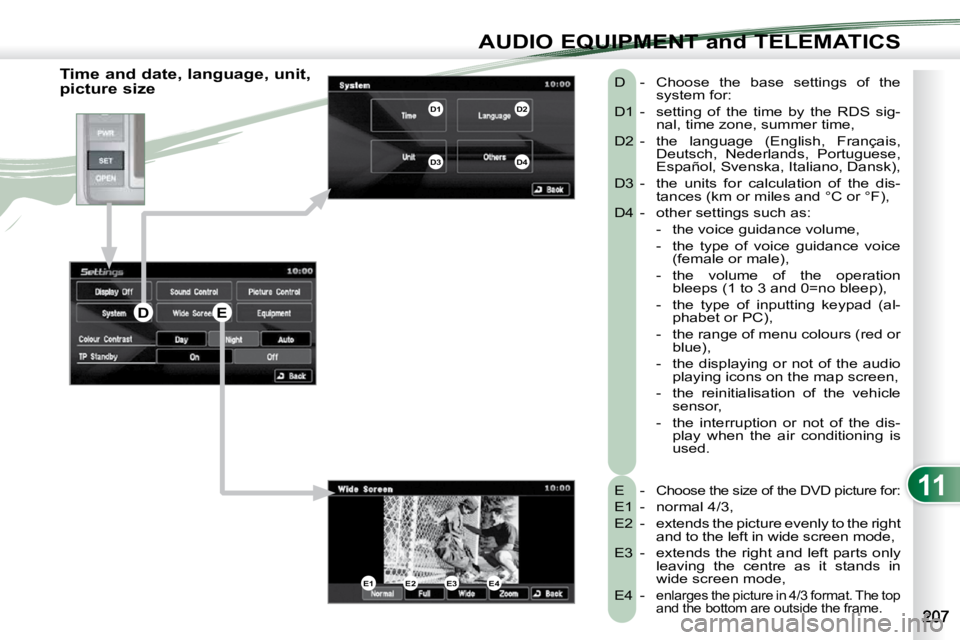

Time and date, language, unit,
picture size E -
Choose the size of the DVD picture for:
E1 - normal 4/3,
E2 - extends the picture evenly to the right and to the left in wide screen mode,
E3 - extends the right and left parts only leaving the centre as it stands in
wide screen mode,
E4 -
enlarges the picture in 4/3 format. The top
and the bottom are outside the frame.
D - Choose the base settings of the system for:
D1 - setting of the time by the RDS sig- nal, time zone, summer time,
D2 - the language (English, Français, Deutsch, Nederlands, Portuguese,
Español, Svenska, Italiano, Dansk),
D3 - the units for calculation of the dis- tances (km or miles and °C or °F),
D4 - other settings such as: - the voice guidance volume,
- the type of voice guidance voice (female or male),
- the volume of the operation bleeps (1 to 3 and 0=no bleep),
- the type of inputting keypad (al- phabet or PC),
- the range of menu colours (red or blue),
- the displaying or not of the audio playing icons on the map screen,
- the reinitialisation of the vehicle sensor,
- the interruption or not of the dis- play when the air conditioning is
used.
E1E2E3E4
D1D2
D3D4
DE

11
AUDIO EQUIPMENT and TELEMATICS

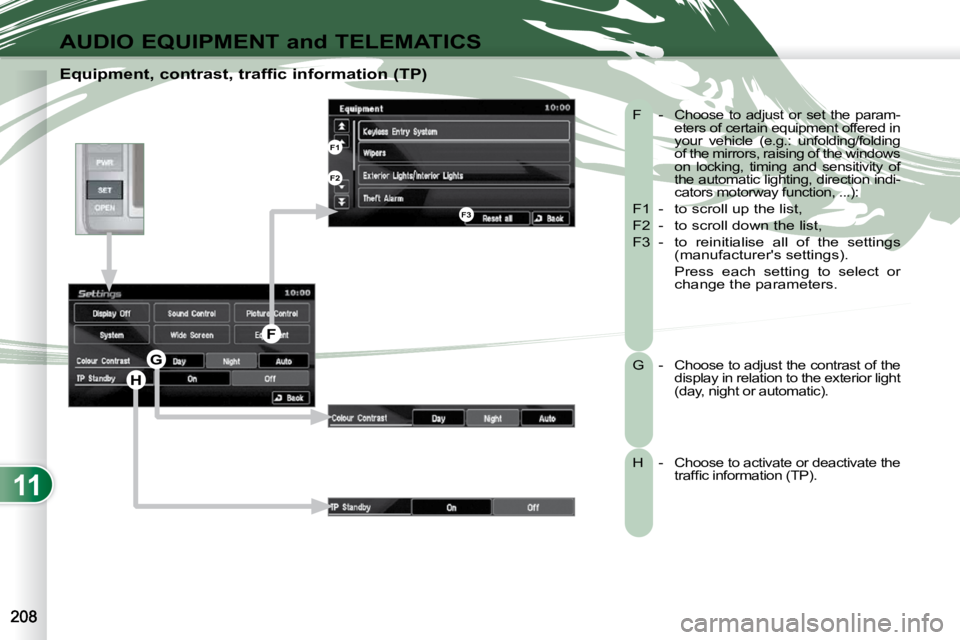

Equipment, contrast, traffic information (TP)
F - Choose to adjust or set the param-eters of certain equipment offered in
your vehicle (e.g.: unfolding/folding
of the mirrors, raising of the windows
on locking, timing and sensitivity of
the automatic lighting, direction indi-
cators motorway function, ...):

F1 - to scroll up the list,
F2 - to scroll down the list,
F3 - to reinitialise all of the settings (manufacturer's settings).
Press each setting to select or change the parameters.
G - Choose to adjust the contrast of the display in relation to the exterior light
(day, night or automatic).
H - Choose to activate or deactivate the traffi c information (TP). H
G
F
F1
F2
F3

11
AUDIO EQUIPMENT and TELEMATICS

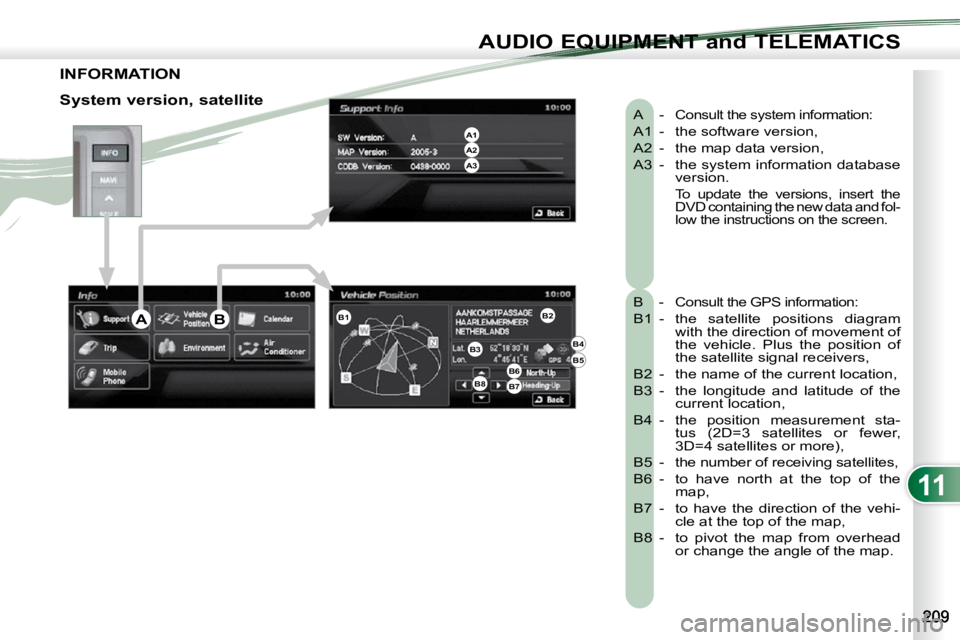

INFORMATION
A - Consult the system information:
A1 - the software version,
A2 - the map data version,
A3 - the system information database version.
To update the versions, insert the DVD containing the new data and fol-
low the instructions on the screen.
B - Consult the GPS information:
B1 - the satellite positions diagram with the direction of movement of
the vehicle. Plus the position of
the satellite signal receivers,
B2 - the name of the current location,
B3 - the longitude and latitude of the current location,
B4 - the position measurement sta- tus (2D=3 satellites or fewer,
3D=4 satellites or more),
B5 -
the number of receiving satellites,
B6 - to have north at the top of the map,
B7 - to have the direction of the vehi- cle at the top of the map,
B8 - to pivot the map from overhead or change the angle of the map.
System version, satellite
A2A1
A3
B1B2
B3B4
B5B6B7B8
AB

11
AUDIO EQUIPMENT and TELEMATICS

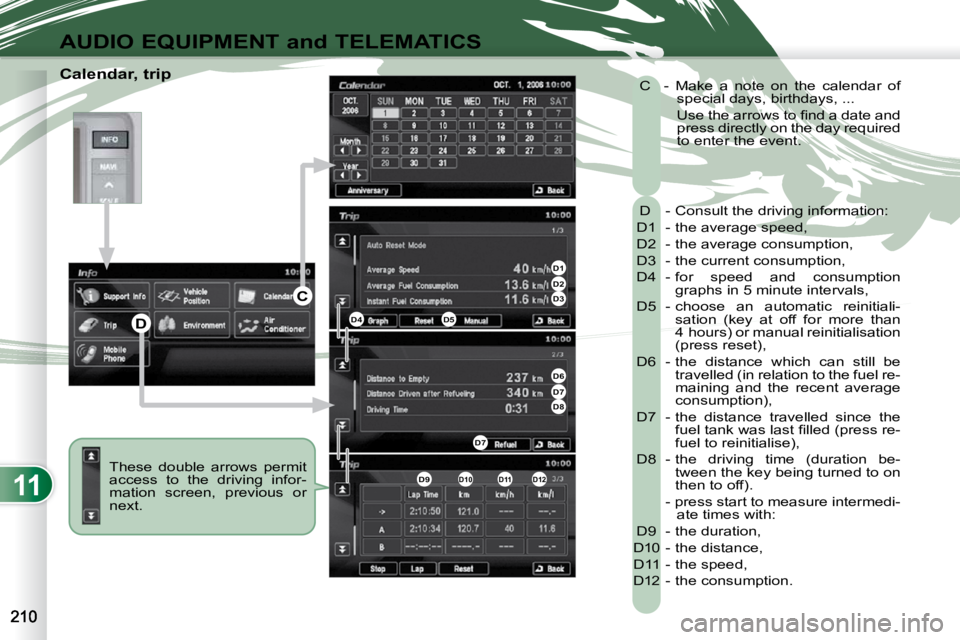

Calendar, trip These double arrows permit
access to the driving infor-
mation screen, previous or
next. D - Consult the driving information:
D1 - the average speed,
D2 - the average consumption,
D3 - the current consumption,
D4 - for speed and consumption graphs in 5 minute intervals,
D5 - choose an automatic reinitiali- sation (key at off for more than
4 hours) or manual reinitialisation
(press reset),
D6 - the distance which can still be travelled (in relation to the fuel re-
maining and the recent average
consumption),
D7 - the distance travelled since the fuel tank was last fi lled (press re-
fuel to reinitialise),
D8 - the driving time (duration be- tween the key being turned to on
then to off).
- press start to measure intermedi- ate times with:
D9 - the duration,

D10 - the distance,
D11 - the speed,

D12 - the consumption.
C - Make a note on the calendar of
special days, birthdays, ...
Use the arrows to fi nd a date and press directly on the day required
to enter the event.
D1D2D3
D4D5
D6D7D8
D7
D9D10D11D12
D
C

11
AUDIO EQUIPMENT and TELEMATICS
F - Consult the air conditioning conditions:
F1 - the fan speed indicator,
F2 - the air selection indicator,
F3 - the windscreen demisting indicator light,
F4 - the air conditioning indicator,
F5 - the rear screen demisting indicator light,
F6 - the AUTO mode indicator.
E - Consult the environment infor-
mation:
E1 - the altitude,
E2 - the atmospheric pressure,
E3 - the exterior temperature. The ice symbol fl ashes if there is a risk of
ice.
G - Make and receive telephone calls:
G1 - enter the telephone number,
G2 - delete a character,
G3 - make the call. Refer to the hands-free tele-
phone section to connect your
Bluetooth ®
mobile telephone.

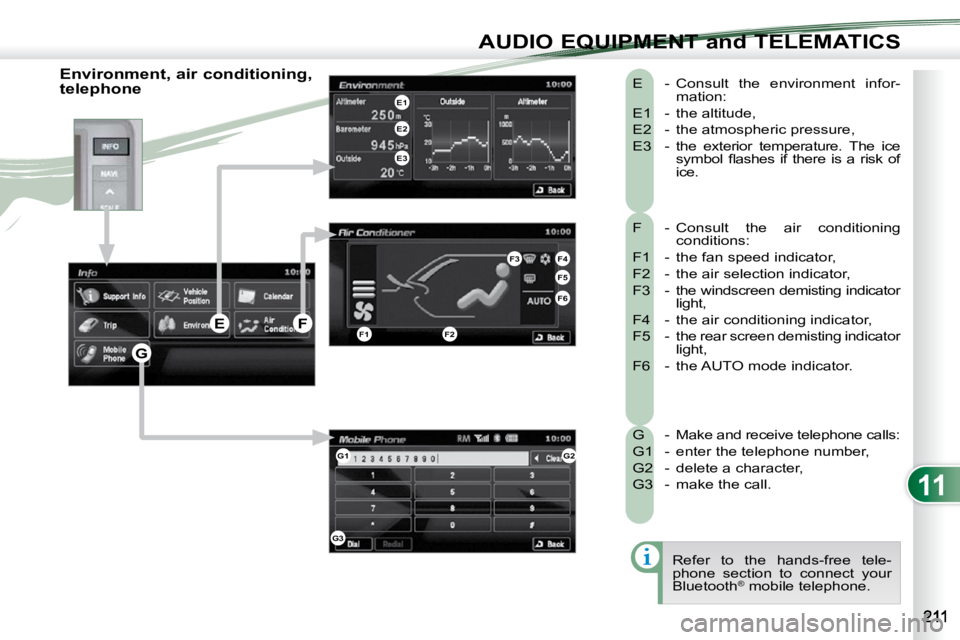

Environment, air conditioning,
telephone
F1F2
F3F4
F5
F6
E1
E2
E3
G1G2
G3
G
EF

11
AUDIO EQUIPMENT and TELEMATICS

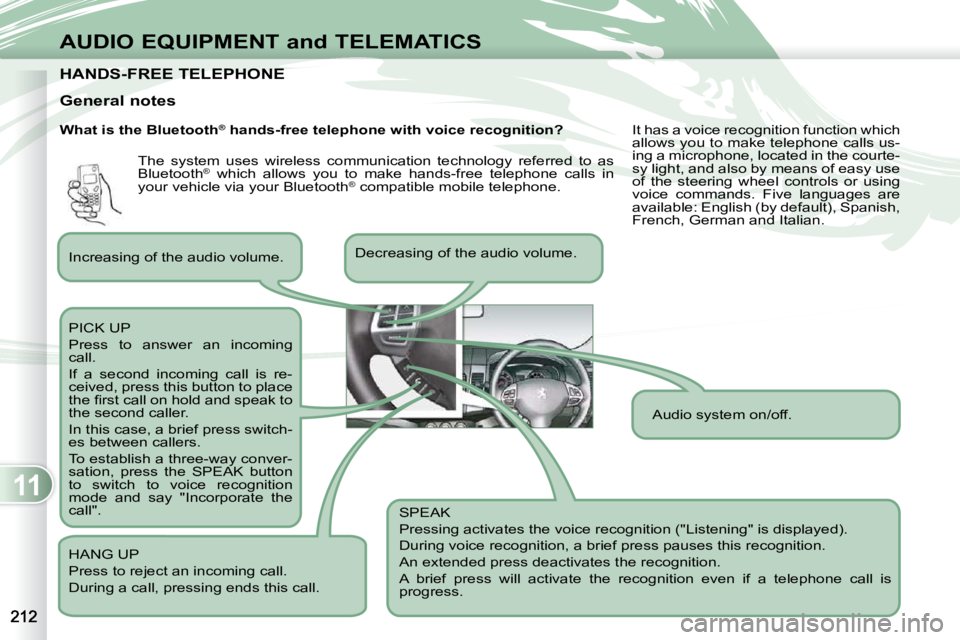

HANDS-FREE TELEPHONE HANDS-FREE TELEPHONE
What is the Bluetooth®
hands-free telephone with voice recognition?
Decreasing of the audio volume.
PICK UP
Press to answer an incoming
call.
If a second incoming call is re-
ceived, press this button to place
the fi rst call on hold and speak to
the second caller.
In this case, a brief press switch-
es between callers.
To establish a three-way conver-
sation, press the SPEAK button
to switch to voice recognition
mode and say "Incorporate the
call".
HANG UP
Press to reject an incoming call.
During a call, pressing ends this call. SPEAK
Pressing activates the voice recognition ("Listening" is displayed).

During voice recognition, a brief press pauses this recognition.
An extended press deactivates the recognition.
A brief press will activate the recognition even if a telep hone call is
progress.
General notes
Audio system on/off.
Increasing of the audio volume.
The system uses wireless communication technology referred to as
Bluetooth
®
which allows you to make hands-free telephone calls in
your vehicle via your Bluetooth ®
compatible mobile telephone. It has a voice recognition function which
allows you to make telephone calls us-
ing a microphone, located in the courte-
sy light, and also by means of easy use
of the steering wheel controls or using
voice commands. Five languages are
available: English (by default), Spanish,
French, German and Italian.

11
AUDIO EQUIPMENT and TELEMATICS

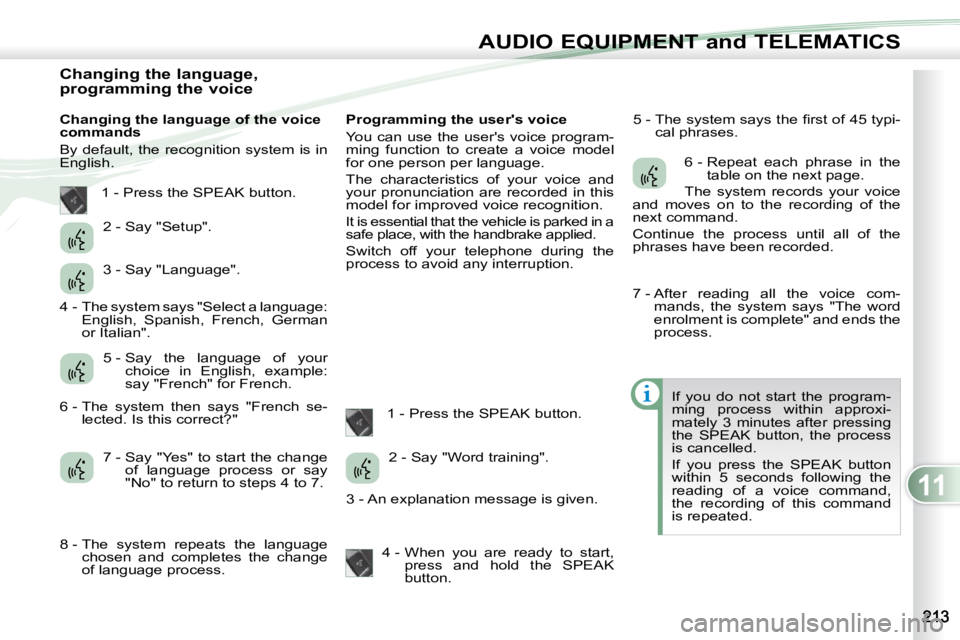

Changing the language,
programming the voice
Changing the language of the voice
commands
By default, the recognition system is in
English. Programming the user's voice
You can use the user's voice program-
ming function to create a voice model
for one person per language.
The characteristics of your voice and
your pronunciation are recorded in this
model for improved voice recognition.
It is essential that the vehicle is parked in a
safe place, with the handbrake applied.
Switch off your telephone during the
process to avoid any interruption.
1 - Press the SPEAK button. 5 - The system says the fi rst of 45 typi-
cal phrases.
If you do not start the program-
ming process within approxi-
mately 3 minutes after pressing
the SPEAK button, the process
is cancelled.
If you press the SPEAK button
within 5 seconds following the
reading of a voice command,
the recording of this command
is repeated.
1 - Press the SPEAK button.
2 - Say "Setup".
3 - Say "Language".
5 - Say the language of your choice in English, example:
say "French" for French.
7 - Say "Yes" to start the change of language process or say
"No" to return to steps 4 to 7. 2 - Say "Word training".
4 - When you are ready to start, press and hold the SPEAK
button. 6 - Repeat each phrase in the
table on the next page.
The system records your voice
and moves on to the recording of the
next command.
Continue the process until all of the
phrases have been recorded.
4 - The system says "Select a language: English, Spanish, French, German
or Italian".
6 - The system then says "French se- lected. Is this correct?"
8 - The system repeats the language chosen and completes the change
of language process. 3 - An explanation message is given. 7 - After reading all the voice com-
mands, the system says "The word
enrolment is complete" and ends the
process.
