2009.5. PEUGEOT 4007 Owners Manual

1
INSTRUMENTS and CONTROLS

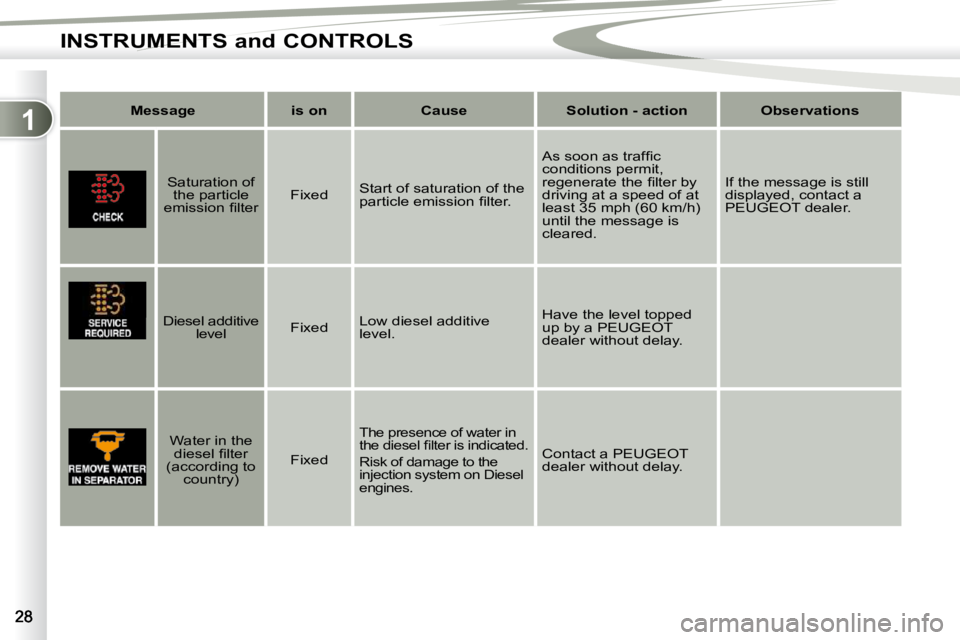

Message is on Cause Solution - action Observations
Saturation of
the particle
emission fi lter Fixed
Start of saturation of the
particle emission fi lter. As soon as traffi c
conditions permit,
regenerate the fi lter by
driving at a speed of at
least 35 mph (60 km/h)
until the message is
cleared. If the message is still
displayed, contact a
PEUGEOT dealer.
Diesel additive
level Fixed Low diesel additive
level. Have the level topped
up by a PEUGEOT
dealer without delay.

Water in the diesel fi lter
(according to country) Fixed The presence of water in
the diesel fi lter is indicated.
Risk of damage to the
injection system on Diesel
engines.
Contact a PEUGEOT
dealer without delay.

1
INSTRUMENTS and CONTROLS

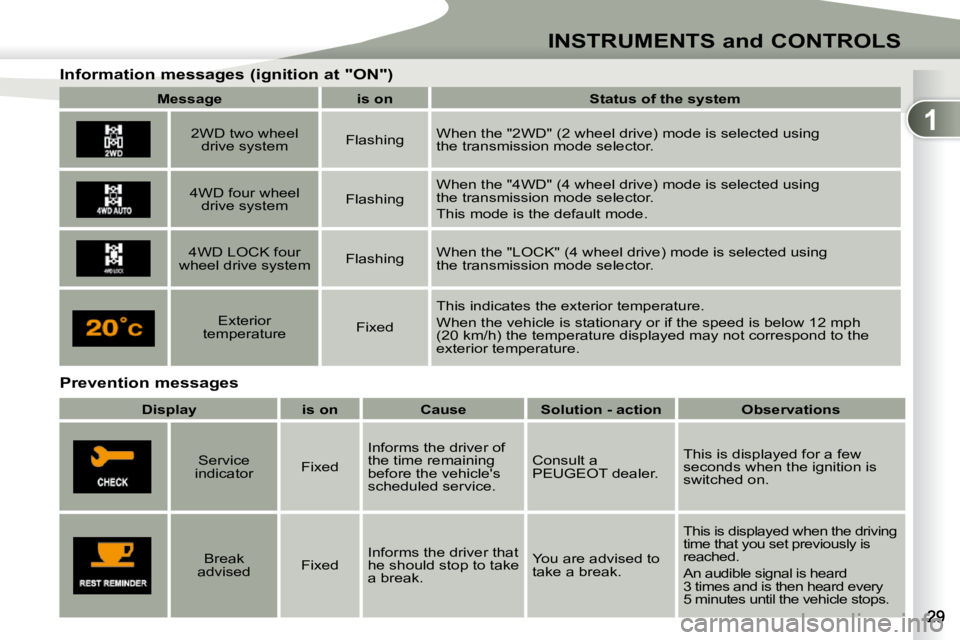

Prevention messages

Information messages (ignition at "ON")

Message is on Status of the system
2WD two wheel
drive system Flashing When the "2WD" (2 wheel drive) mode is selected using
the transmission mode selector.
4WD four wheel
drive system Flashing When the "4WD" (4 wheel drive) mode is selected using
the transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system Flashing When the "LOCK" (4 wheel drive) mode is selected using
the transmission mode selector.
Exterior
temperature Fixed This indicates the exterior temperature.
When the vehicle is stationary or if the speed is below 12 mp
h
(20 km/h) the temperature displayed may not correspond to the
exterior temperature.

Display is on Cause Solution - action Observations
Service
indicator Fixed Informs the driver of
the time remaining
before the vehicle's
scheduled service. Consult a
PEUGEOT dealer.
This is displayed for a few
seconds when the ignition is
switched on.
Break
advised Fixed Informs the driver that
he should stop to take
a break. You are advised to
take a break.
This is displayed when the driving
time that you set previously is
reached.
An audible signal is heard
3 times and is then heard every
5 minutes until the vehicle stops.

1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1
of the display and the
trip distance in zone 2
(refer to the "Distance
recorders" section).
Distance recorder (A and B)
INFORMATION ON THE
INSTRUMENT PANEL DISPLAY
Data displays
With the ignition on, press the INFO
button, located on the fascia to the
right of the instrument panel, to display
the various information displays in
succession:
- the distance recorder A,
- the distance recorder B,
- the service indicator,
- the coolant temperature,
- the range,
- the trip computer,
- the setting menu. This displays the distance
and the number of
months remaining before
the next service to be
carried out in accordance
with the manufacturer’s
servicing schedule (refer
to the "Service indicator"
section).
Service indicator
When the engine is
running, this indicates
the temperature of the
coolant (refer to the
"Coolant temperature
indicator" section).
Coolant temperature When the engine is
running, this indicates
the number of miles
(kilometres) which can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption over the
last few miles (kilometres) travelled
(refer to the "Range" section).
Range
This indicates the
average consumption,
the average speed and
the current consumption
(refer to the "Trip
computer" section).
Trip computer

When the vehicle is
stationary , this allows
the user to change the
following parameters
(refer to the "Function
parameters" section):
- the display language,
- the temperature display unit,
- the fuel consumption unit,
- the option to reinitialise the average consumption and the average speed,
- the break (rest) reminder display in- terval.
Setting menu

1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1 of
the display and the trip
distance in zone 2 .

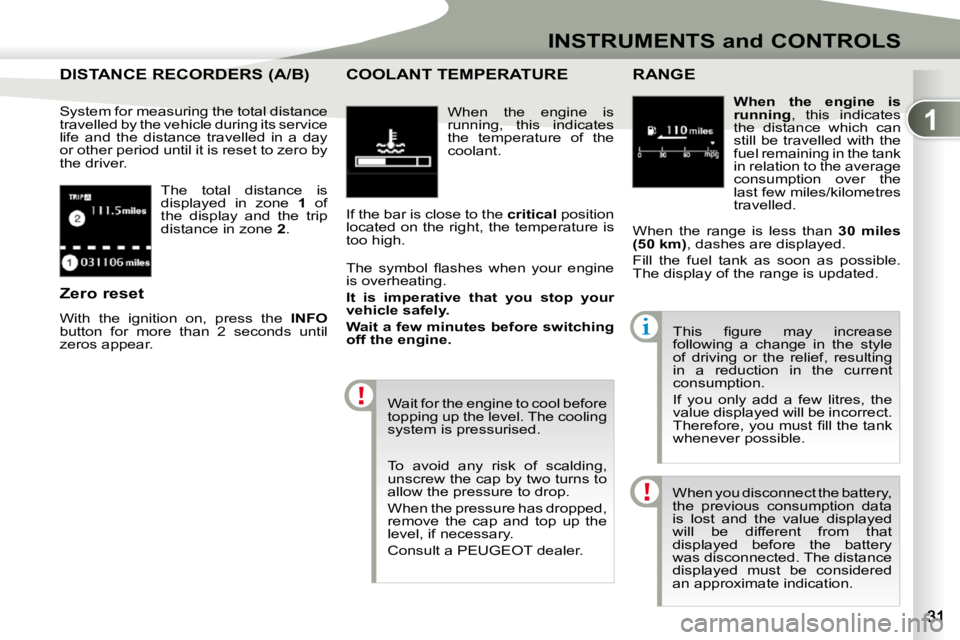

DISTANCE RECORDERS (A/B) DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its service
life and the distance travelled in a day
or other period until it is reset to zero by
the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is
running, this indicates
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
The symbol fl ashes when your engine
is overheating.

It is imperative that you stop your
vehicle safely.

Wait a few minutes before switching
off the engine.
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption over the
last few miles/kilometres
travelled.
RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
To avoid any risk of scalding,
unscrew the cap by two turns to
allow the pressure to drop.
When the pressure has dropped,
remove the cap and top up the
level, if necessary.
Consult a PEUGEOT dealer. This fi gure may increase
following a change in the style
of driving or the relief, resulting
in a reduction in the current
consumption.
If you only add a few litres, the
value displayed will be incorrect.
Therefore, you must fi ll the tank
whenever possible.
When you disconnect the battery,
the previous consumption data
is lost and the value displayed
will be different from that
displayed before the battery
was disconnected. The distance
displayed must be considered
an approximate indication.

1
INSTRUMENTS and CONTROLS

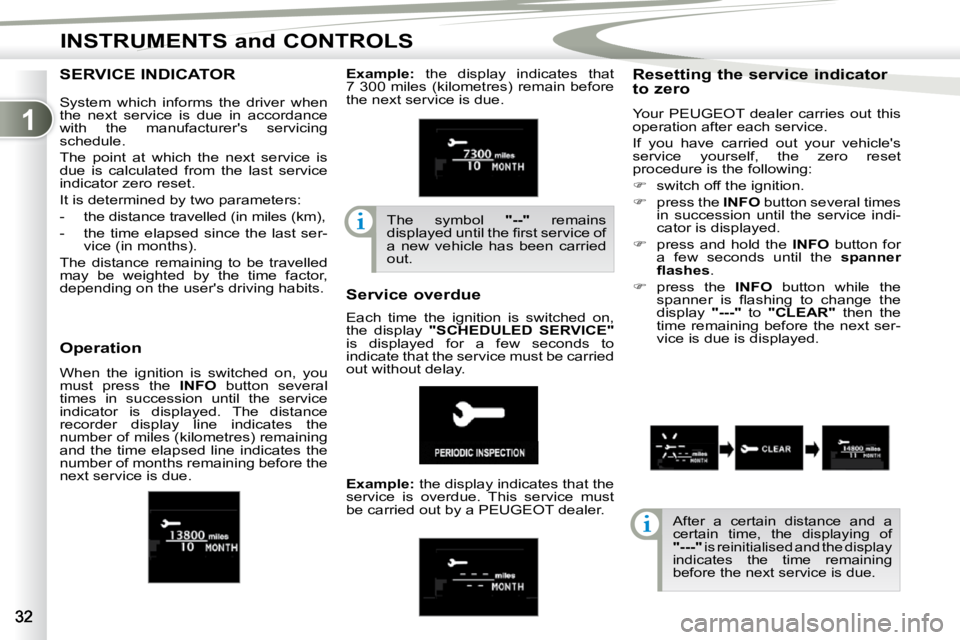

SERVICE INDICATOR Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle's
service yourself, the zero reset
procedure is the following:

 switch off the ignition.

 press the INFO button several times
in succession until the service indi-
cator is displayed.

 press and hold the INFO button for
a few seconds until the spanner
fl ashes .

 press the INFO button while the
spanner is fl ashing to change the
display "---" to "CLEAR" then the
time remaining before the next ser-
vice is due is displayed.
Service overdue
Operation
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a
certain time, the displaying of

"---" is reinitialised and the display
indicates the time remaining
before the next service is due.
System which informs the driver when
the next service is due in accordance
with the manufacturer's servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km),
- the time elapsed since the last ser- vice (in months).
The distance remaining to be travelled
may be weighted by the time factor,
depending on the user's driving habits.
Example: the display indicates that
7 300 miles (kilometres) remain before
the next service is due.
The symbol "--" remains
displayed until the fi rst service of
a new vehicle has been carried
out.

Example: the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
Each time the ignition is switched on,
the display
"SCHEDULED SERVICE"
is displayed for a few seconds to
indicate that the service must be carried
out without delay.

1
INSTRUMENTS and CONTROLS
The total distance is
displayed in zone 1 of
the display and the trip
distance in zone 2 .
DISTANCE RECORDERS (A/B) DISTANCE RECORDERS (A/B)
System for measuring the total distance
travelled by the vehicle during its service
life and the distance travelled in a day
or other period until it is reset to zero by
the driver.
Zero reset
With the ignition on, press the INFO
button for more than 2 seconds until
zeros appear. When the engine is
running, this indicates
the temperature of the
coolant.
COOLANT TEMPERATURE
If the bar is close to the
critical position
located on the right, the temperature is
too high.
The symbol fl ashes when your engine
is overheating.

It is imperative that you stop your
vehicle safely.

Wait a few minutes before switching
off the engine.
Wait for the engine to cool before
topping up the level. The cooling
system is pressurised.
When the engine is
running , this indicates
the distance which can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption over the
last few miles/kilometres
travelled.
RANGE
When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.
To avoid any risk of scalding,
unscrew the cap by two turns to
allow the pressure to drop.
When the pressure has dropped,
remove the cap and top up the
level, if necessary.
Consult a PEUGEOT dealer. This fi gure may increase
following a change in the style
of driving or the relief, resulting
in a reduction in the current
consumption.
If you only add a few litres, the
value displayed will be incorrect.
Therefore, you must fi ll the tank
whenever possible.
When you disconnect the battery,
the previous consumption data
is lost and the value displayed
will be different from that
displayed before the battery
was disconnected. The distance
displayed must be considered
an approximate indication.

1
INSTRUMENTS and CONTROLS
SERVICE INDICATOR Resetting the service indicator
to zero
Your PEUGEOT dealer carries out this
operation after each service.
If you have carried out your vehicle's
service yourself, the zero reset
procedure is the following:

 switch off the ignition.

 press the INFO button several times
in succession until the service indi-
cator is displayed.

 press and hold the INFO button for
a few seconds until the spanner
fl ashes .

 press the INFO button while the
spanner is fl ashing to change the
display "---" to "CLEAR" then the
time remaining before the next ser-
vice is due is displayed.
Service overdue
Operation
When the ignition is switched on, you
must press the INFO button several
times in succession until the service
indicator is displayed. The distance
recorder display line indicates the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the
next service is due.
After a certain distance and a
certain time, the displaying of

"---" is reinitialised and the display
indicates the time remaining
before the next service is due.
System which informs the driver when
the next service is due in accordance
with the manufacturer's servicing
schedule.
The point at which the next service is
due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
- the distance travelled (in miles (km),
- the time elapsed since the last ser- vice (in months).
The distance remaining to be travelled
may be weighted by the time factor,
depending on the user's driving habits.
Example: the display indicates that
7 300 miles (kilometres) remain before
the next service is due.
The symbol "--" remains
displayed until the fi rst service of
a new vehicle has been carried
out.

Example: the display indicates that the
service is overdue. This service must
be carried out by a PEUGEOT dealer.
Each time the ignition is switched on,
the display
"SCHEDULED SERVICE"
is displayed for a few seconds to
indicate that the service must be carried
out without delay.

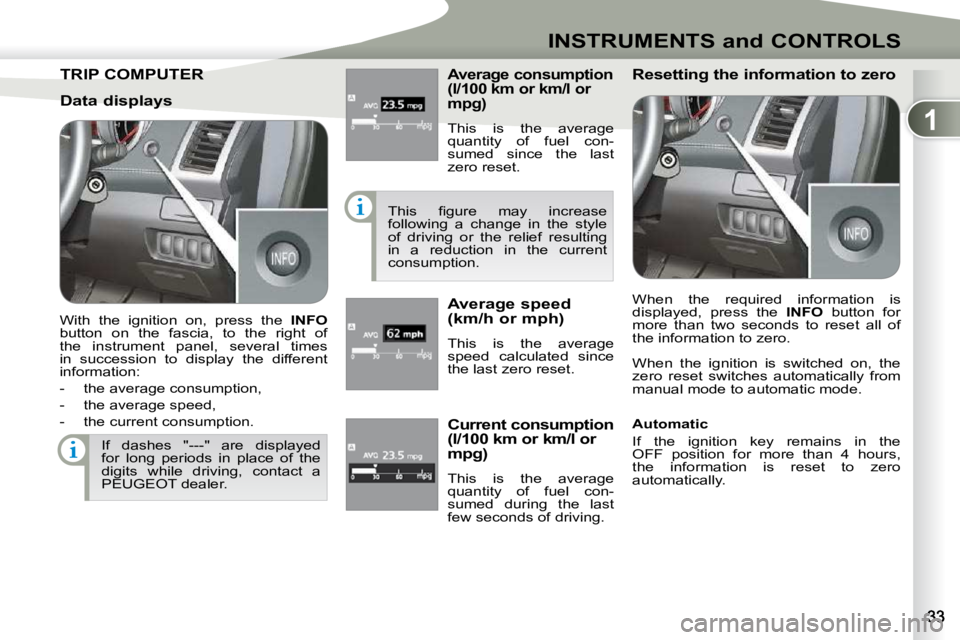

1
INSTRUMENTS and CONTROLS
TRIP COMPUTER TRIP COMPUTER Average consumption
(l/100 km or km/l or
mpg)
This is the average
quantity of fuel con-
sumed since the last
zero reset.
This fi gure may increase
following a change in the style
of driving or the relief resulting
in a reduction in the current
consumption. Average speed
(km/h or mph)
This is the average
speed calculated since
the last zero reset. Resetting the information to zero
When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.
If dashes "---" are displayed
for long periods in place of the
digits while driving, contact a
PEUGEOT dealer. Current consumption
(l/100 km or km/l or
mpg)
This is the average
quantity of fuel con-
sumed during the last
few seconds of driving.
Data displays
With the ignition on, press the INFO
button on the fascia, to the right of
the instrument panel, several times
in succession to display the different
information:
- the average consumption,
- the average speed,
- the current consumption. When the required information is
displayed, press the
INFO button for
more than two seconds to reset all of
the information to zero.
Automatic
If the ignition key remains in the
OFF position for more than 4 hours,
the information is reset to zero
automatically.
