2009.5. PEUGEOT 4007 Owners Manual

1
INSTRUMENTS and CONTROLS

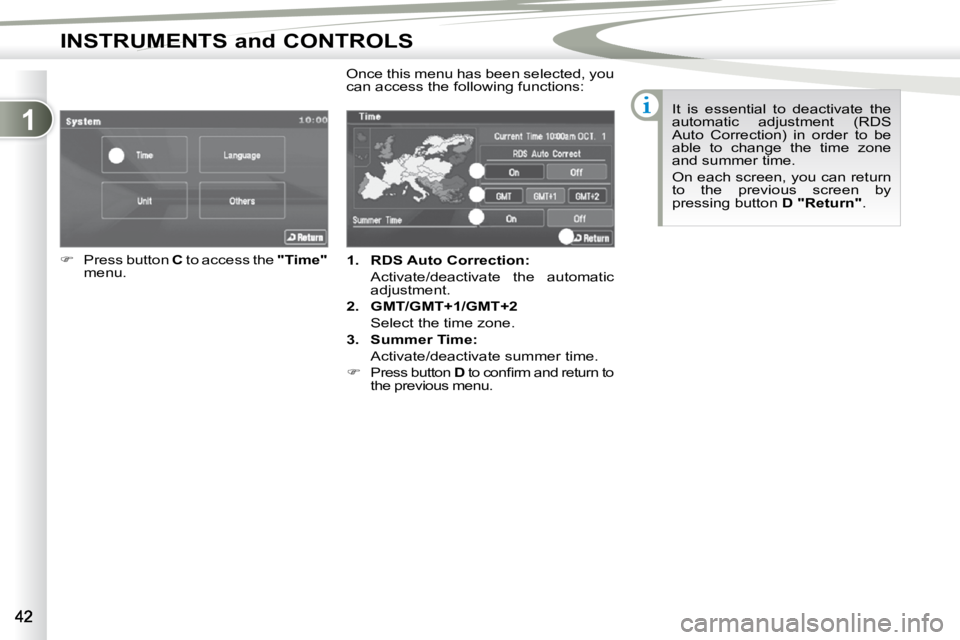

1. RDS Auto Correction:
Activate/deactivate the automatic adjustment.

2. GMT/GMT+1/GMT+2
Select the time zone.

3. Summer Time:
Activate/deactivate summer time.

 Press button D to confi rm and return to
the previous menu.

 Press button C to access the "Time"
menu . It is essential to deactivate the
automatic adjustment (RDS
Auto Correction) in order to be
able to change the time zone
and summer time.
On each screen, you can return
to the previous screen by
pressing button
D "Return" .
Once this menu has been selected, you
can access the following functions:

1
INSTRUMENTS and CONTROLS

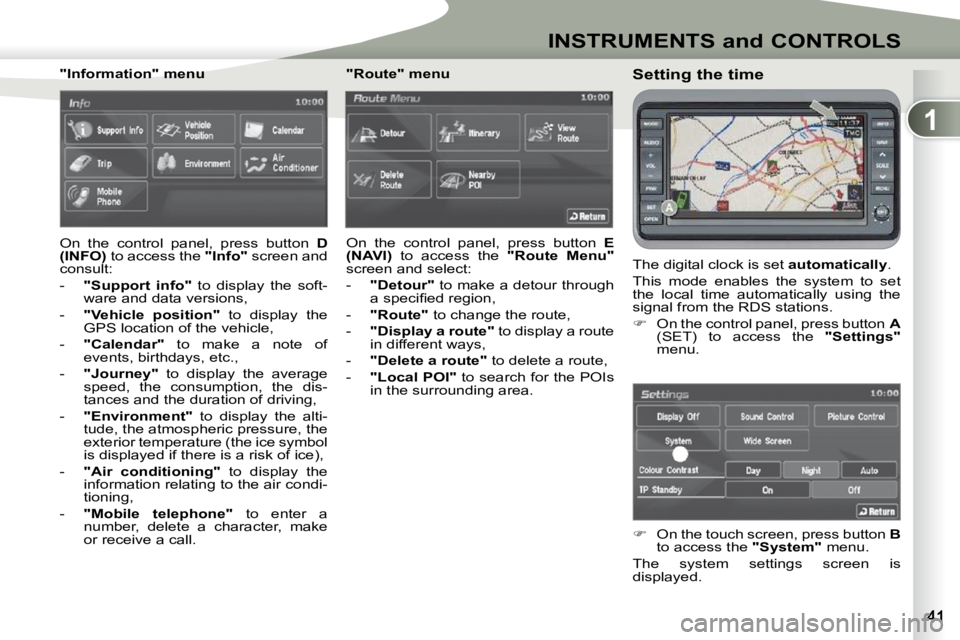

Setting the time
The digital clock is set automatically .
This mode enables the system to set
the local time automatically using the
signal from the RDS stations.

 On the control panel, press button A
(SET) to access the "Settings"
menu.

 On the touch screen, press button B
to access the "System" menu.
The system settings screen is
displayed.
"Information" menu
On the control panel, press button
D
(INFO) to access the "Info" screen and
consult:
- "Support info" to display the soft-
ware and data versions,
- "Vehicle position" to display the
GPS location of the vehicle,
- "Calendar" to make a note of
events, birthdays, etc.,
- "Journey" to display the average
speed, the consumption, the dis-
tances and the duration of driving,
- "Environment" to display the alti-
tude, the atmospheric pressure, the
exterior temperature (the ice symbol
is displayed if there is a risk of ice),
- "Air conditioning" to display the
information relating to the air condi-
tioning,
- "Mobile telephone" to enter a
number, delete a character, make
or receive a call. "Route" menu
On the control panel, press button
E
(NAVI) to access the "Route Menu"
screen and select:
- "Detour" to make a detour through
a specifi ed region,
- "Route" to change the route,
- "Display a route" to display a route
in different ways,
- "Delete a route" to delete a route,
- "Local POI" to search for the POIs
in the surrounding area.

1
INSTRUMENTS and CONTROLS

1. RDS Auto Correction:
Activate/deactivate the automatic adjustment.

2. GMT/GMT+1/GMT+2
Select the time zone.

3. Summer Time:
Activate/deactivate summer time.

 Press button D to confi rm and return to
the previous menu.

 Press button C to access the "Time"
menu . It is essential to deactivate the
automatic adjustment (RDS
Auto Correction) in order to be
able to change the time zone
and summer time.
On each screen, you can return
to the previous screen by
pressing button
D "Return" .
Once this menu has been selected, you
can access the following functions:

1
INSTRUMENTS and CONTROLS
LIGHTING RHEOSTAT LIGHTING RHEOSTAT
With the lights on or off, press the button
to change the intensity of the lighting of
the instruments and controls in "day" or
"night" mode.
When the lighting reaches the maximum
setting, press again to change to the
minimum setting.
When the lighting reaches the required
intensity, release the button.
The setting is saved when the ignition
switch is turned to OFF. An audible signal is heard and
the intensity of the lighting
increases each time the button
is pressed.
System for manual adjustment of the
brightness of the instruments and
controls in relation to the exterior
brightness.

2
COMFORT
For even air distribution, take care not
to obstruct the exterior air intake grille
located at the bottom of the windscreen,
the vents, the air outlets under the front
seats and the air extractor located be-
hind the fl aps in the boot. The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and have it checked by a

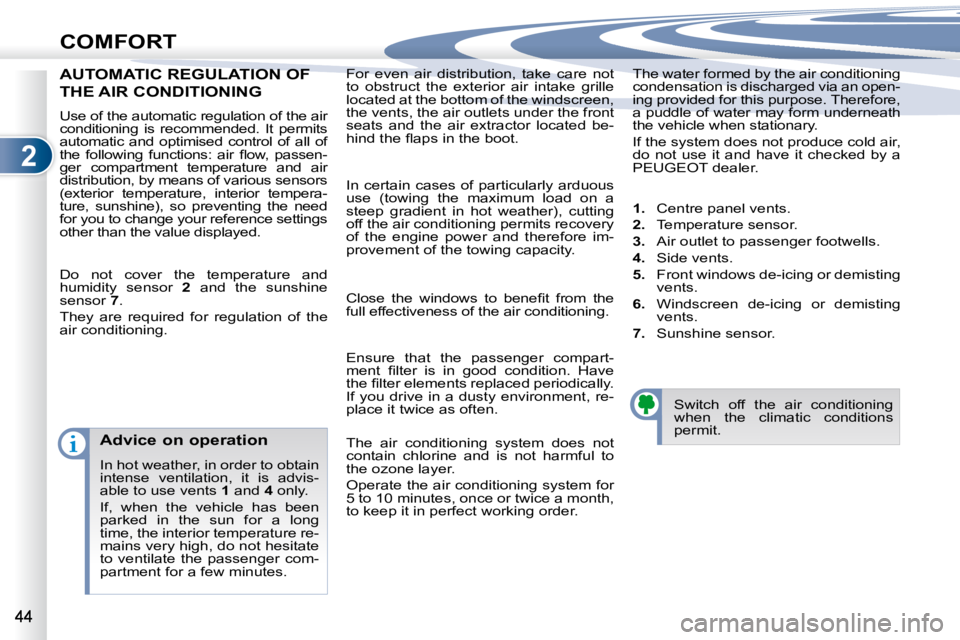

PEUGEOT dealer. AUTOMATIC REGULATION OF TIC REGULATION OF
THE AIR CONDITIONING
Do not cover the temperature and
humidity sensor
2 and the sunshine
sensor 7 .
They are required for regulation of the
air conditioning.
Advice on operation
In hot weather, in order to obtain
intense ventilation, it is advis-
able to use vents 1 and 4 only.
If, when the vehicle has been
parked in the sun for a long
time, the interior temperature re-
mains very high, do not hesitate
to ventilate the passenger com-
partment for a few minutes. Switch off the air conditioning
when the climatic conditions
permit.
Use of the automatic regulation of the air
conditioning is recommended. It permits
automatic and optimised control of all of
the following functions: air fl ow, passen-
ger compartment temperature and air
distribution, by means of various sensors
(exterior temperature, interior tempera-
ture, sunshine), so preventing the need
for you to change your reference settings
other than the value displayed.
In certain cases of particularly arduous
use (towing the maximum load on a
steep gradient in hot weather), cutting
off the air conditioning permits recovery
of the engine power and therefore im-
provement of the towing capacity.
Close the windows to benefi t from the
full effectiveness of the air conditioning.
Ensure that the passenger compart-
ment fi lter is in good condition. Have
the fi lter elements replaced periodically.
If you drive in a dusty environment, re-
place it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.

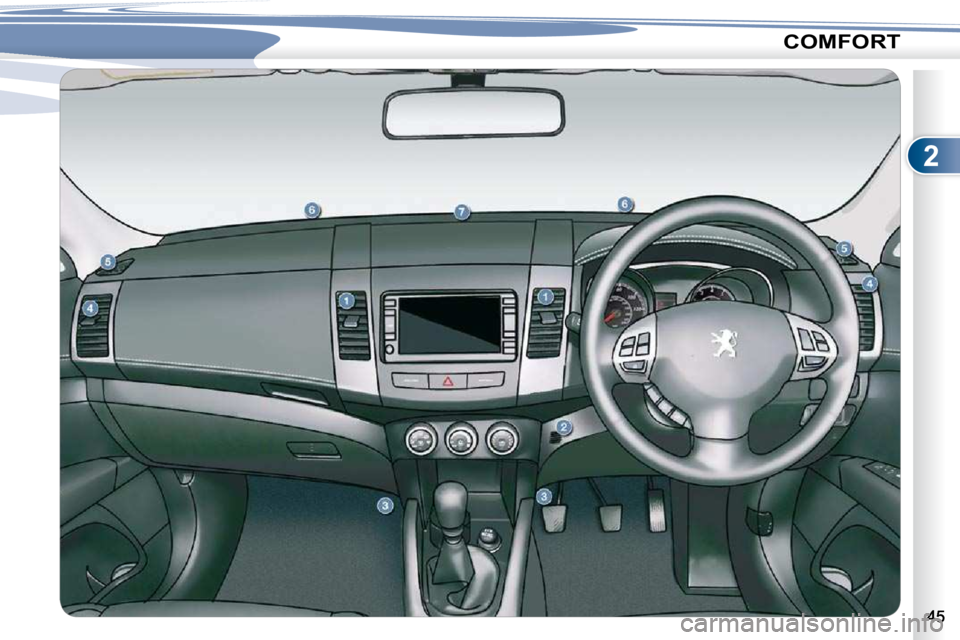

1. Centre panel vents.

2. Temperature sensor.

3. Air outlet to passenger footwells.

4. Side vents.

5. Front windows de-icing or demisting
vents.

6. Windscreen de-icing or demisting
vents.

7. Sunshine sensor.

2
COMFORT

2
COMFORT

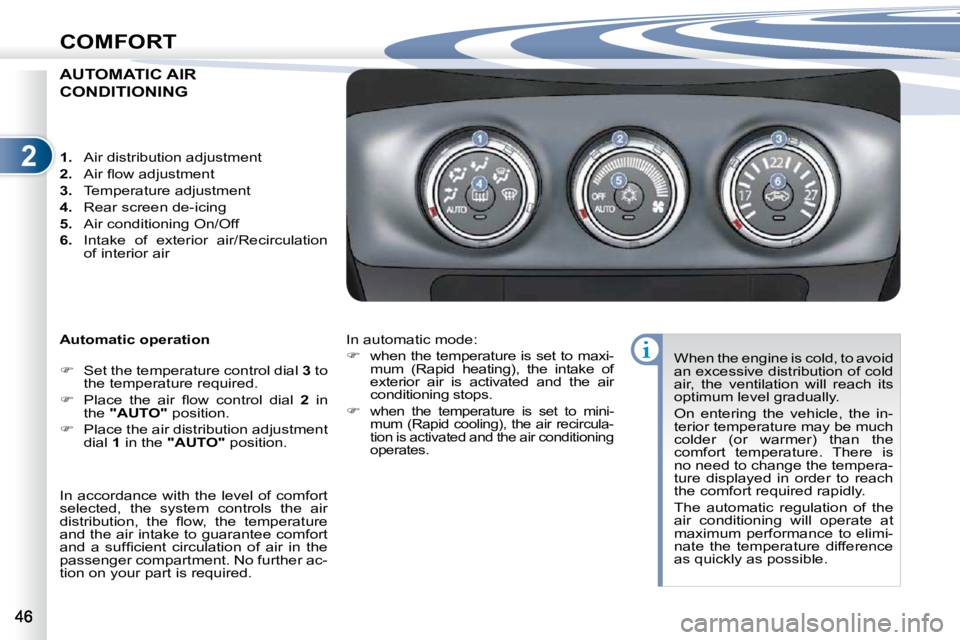

AUTOMATIC AIR
CONDITIONING
Automatic operation

 Set the temperature control dial 3 to
the temperature required.

 Place the air fl ow control dial 2 in
the "AUTO" position.

 Place the air distribution adjustment
dial 1 in the "AUTO" position.
When the engine is cold, to avoid
an excessive distribution of cold
air, the ventilation will reach its
optimum level gradually.
On entering the vehicle, the in-
terior temperature may be much
colder (or warmer) than the
comfort temperature. There is
no need to change the tempera-
ture displayed in order to reach
the comfort required rapidly.
The automatic regulation of the
air conditioning will operate at
maximum performance to elimi-
nate the temperature difference
as quickly as possible.

1. Air distribution adjustment

2. Air fl ow adjustment

3. Temperature adjustment

4. Rear screen de-icing

5. Air conditioning On/Off

6. Intake of exterior air/Recirculation
of interior air
In automatic mode:

 when the temperature is set to maxi-
mum (Rapid heating), the intake of
exterior air is activated and the air
conditioning stops.


when the temperature is set to mini-
mum (Rapid cooling), the air recircula-
tion is activated and the air conditioning
operates.
In accordance with the level of comfort
selected, the system controls the air
distribution, the fl ow, the temperature
and the air intake to guarantee comfort
and a suffi cient circulation of air in the
passenger compartment. No further ac-
tion on your part is required.

2
COMFORT

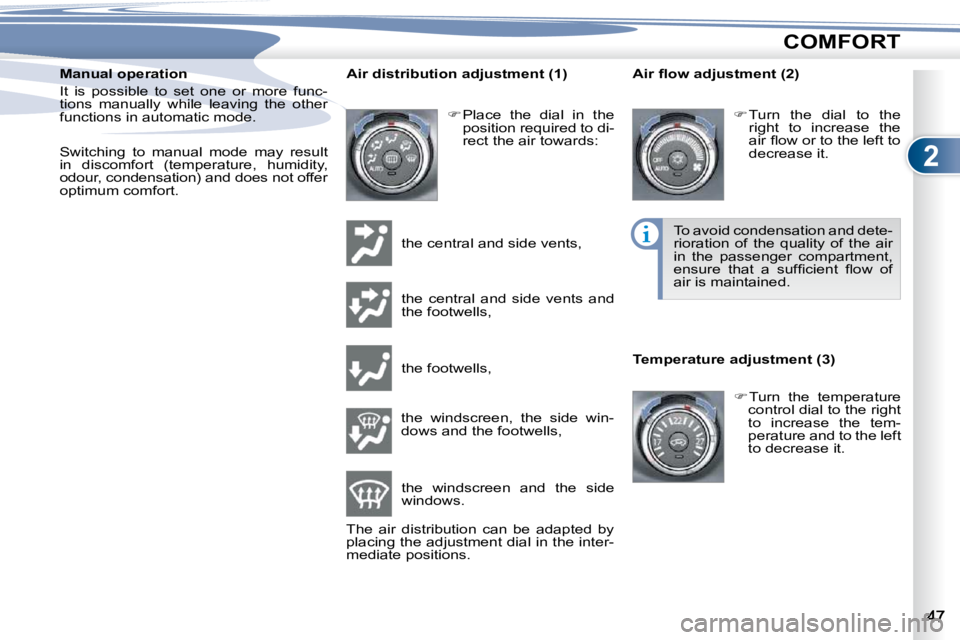

Manual operation
It is possible to set one or more func-
tions manually while leaving the other
functions in automatic mode.
Switching to manual mode may result
in discomfort (temperature, humidity,
odour, condensation) and does not offer
optimum comfort. Temperature adjustment (3)
Air fl ow adjustment (2)

 Turn the dial to the
right to increase the
air fl ow or to the left to
decrease it.

 Turn the temperature
control dial to the right
to increase the tem-
perature and to the left
to decrease it.

 Place the dial in the
position required to di-
rect the air towards:
To avoid condensation and dete-
rioration of the quality of the air
in the passenger compartment,
ensure that a suffi cient fl ow of
air is maintained.
the central and side vents,
the central and side vents and
the footwells,
the footwells,
the windscreen, the side win-
dows and the footwells,
the windscreen and the side
windows.
The air distribution can be adapted by
placing the adjustment dial in the inter-
mediate positions. Air distribution adjustment (1)
