2009.5. PEUGEOT 4007 Owners Manual

3
ACCESS

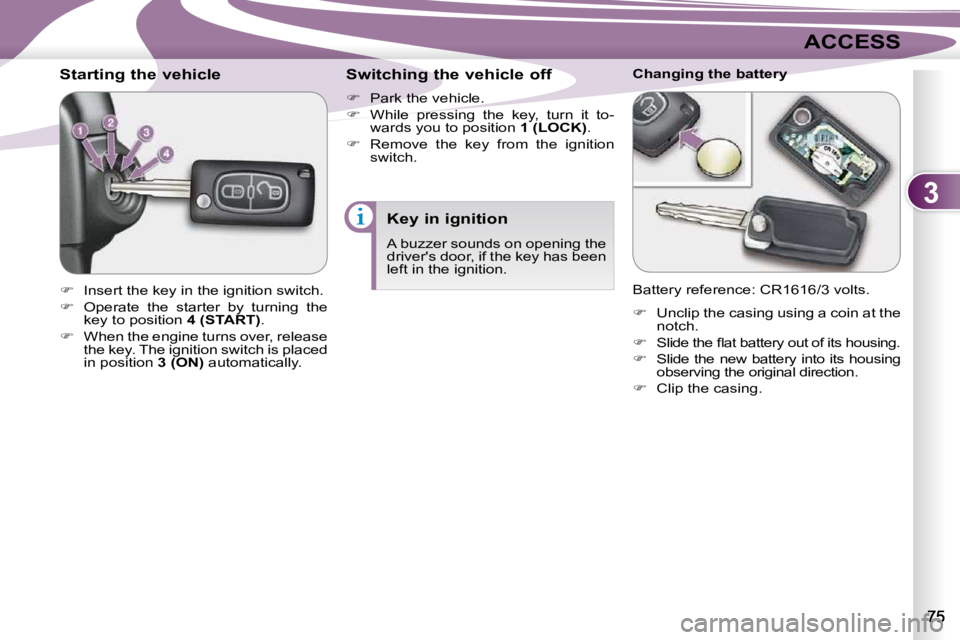

Starting the vehicle

 Insert the key in the ignition switch.

 Operate the starter by turning the
key to position 4 (START) .

 When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off

 Park the vehicle.

 While pressing the key, turn it to-
wards you to position 1 (LOCK) .

 Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616/3 volts.

 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its housing.

 Slide the new battery into its housing
observing the original direction.

 Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver's door, if the key has been
left in the ignition.

3
ACCESS
The electric window switches
can be confi gured via the colour
display "Equipment" menu.
The electric window switches
remain operational for approxi-
mately 30 seconds after the
ignition is switched off and the
switch on the driver's door re-
mains operational for a further
30 seconds when the door is
opened.
The windows can no longer be
opened or closed after the driver's
door is closed.
The rear windows do not lower
fully.

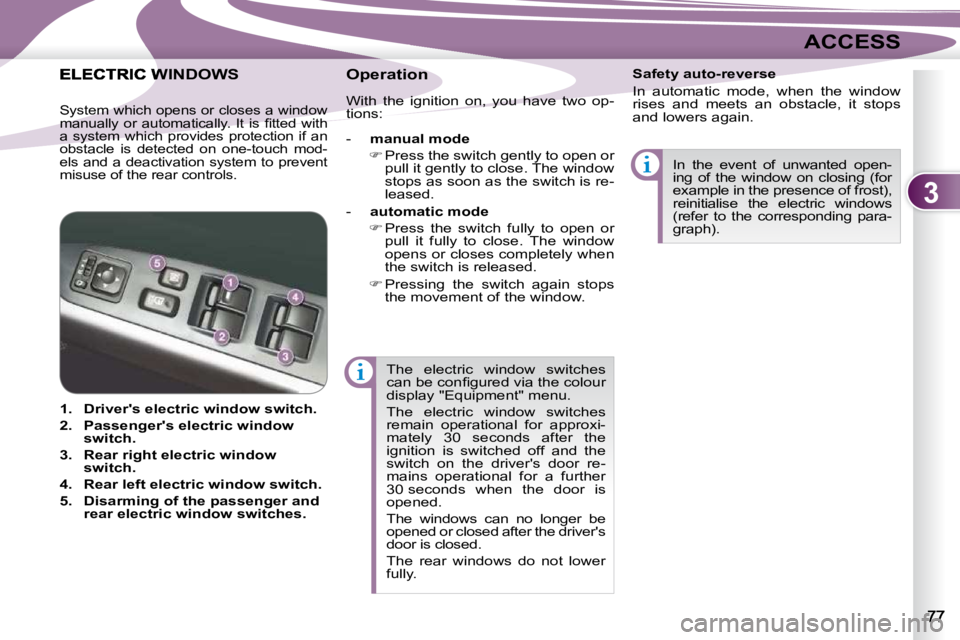

ELECTRIC WINDOWS

1. Driver's electric window switch.

2. Passenger's electric window
switch.

3. Rear right electric window
switch.

4. Rear left electric window switch.

5. Disarming of the passenger and
rear electric window switches. In the event of unwanted open-
ing of the window on closing (for
example in the presence of frost),
reinitialise the electric windows
(refer to the corresponding para-
graph).
Safety auto-reverse
In automatic mode, when the window
rises and meets an obstacle, it stops
and lowers again.
Operation
With the ignition on, you have two op-
tions:
-
manual mode

 Press the switch gently to open or
pull it gently to close. The window
stops as soon as the switch is re-
leased.
- automatic mode

 Press the switch fully to open or
pull it fully to close. The window
opens or closes completely when
the switch is released.

 Pressing the switch again stops
the movement of the window.
System which opens or closes a window
manually or automatically. It is fi tted with
a system which provides protection if an
obstacle is detected on one-touch mod-
els and a deactivation system to prevent
misuse of the rear controls.

3
ACCESS

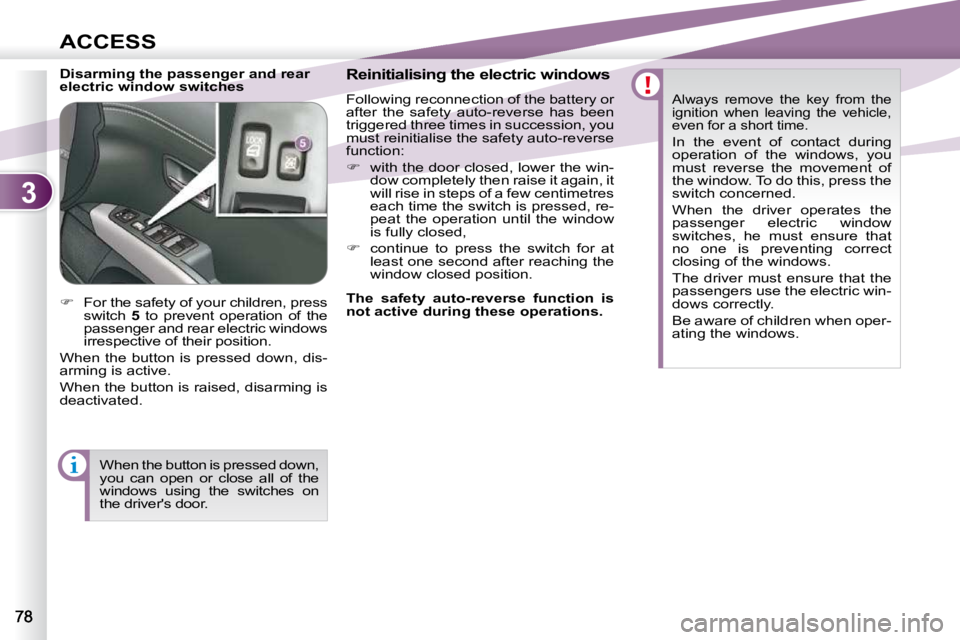

Disarming the passenger and rear
electric window switches Reinitialising the electric windows
Following reconnection of the battery or
after the safety auto-reverse has been
triggered three times in succession, you
must reinitialise the safety auto-reverse
function:

 with the door closed, lower the win-
dow completely then raise it again, it
will rise in steps of a few centimetres
each time the switch is pressed, re-
peat the operation until the window
is fully closed,

 continue to press the switch for at
least one second after reaching the
window closed position.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the
passenger electric window
switches, he must ensure that
no one is preventing correct
closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when oper-
ating the windows.

 For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, dis-
arming is active.
When the button is raised, disarming is
deactivated.
When the button is pressed down,
you can open or close all of the
windows using the switches on
the driver's door.
The safety auto-reverse function is
not active during these operations.

3
ACCESS

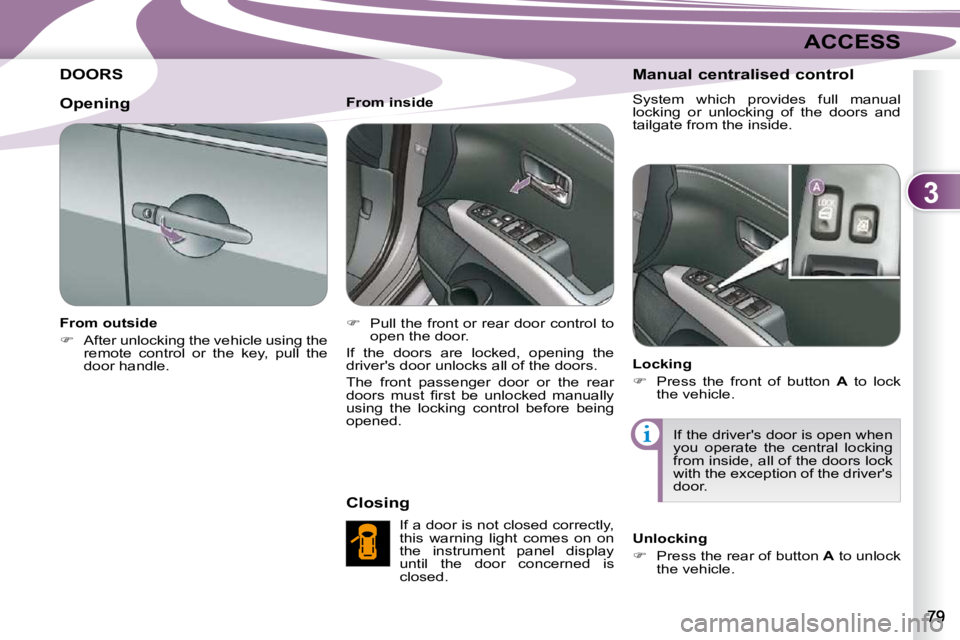

DOORS
From outside

 After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside

 Pull the front or rear door control to
open the door.
If the doors are locked, opening the
driver's door unlocks all of the doors.
The front passenger door or the rear
doors must fi rst be unlocked manually
using the locking control before being
opened.
Closing
If a door is not closed correctly,
this warning light comes on on
the instrument panel display
until the door concerned is
closed. Manual centralised control
System which provides full manual
locking or unlocking of the doors and
tailgate from the inside.
Locking

 Press the front of button A to lock
the vehicle.
If the driver's door is open when
you operate the central locking
from inside, all of the doors lock
with the exception of the driver's
door.
Unlocking

 Press the rear of button A to unlock
the vehicle.
Opening

3
ACCESS
Opening

 After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate.
TAILGATE
Closing

 Pull the handle B downwards to
guide the tailgate,

 release the handle and press the
exterior surface of the tailgate gently
to close it.

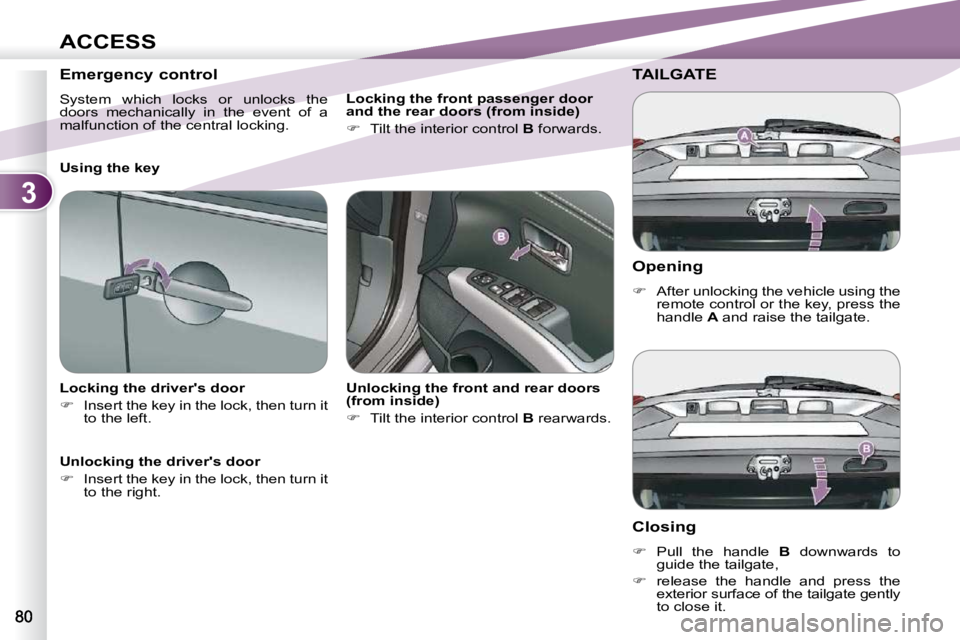

Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
Locking the driver's door

 Insert the key in the lock, then turn it
to the left.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the right. Unlocking the front and rear doors
(from inside)

 Tilt the interior control B rearwards.
Using the key
Locking the front passenger door
and the rear doors (from inside)

 Tilt the interior control B forwards.

3
ACCESS
Opening

 After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate.
TAILGATE
Closing

 Pull the handle B downwards to
guide the tailgate,

 release the handle and press the
exterior surface of the tailgate gently
to close it.
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
Locking the driver's door

 Insert the key in the lock, then turn it
to the left.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the right. Unlocking the front and rear doors
(from inside)

 Tilt the interior control B rearwards.
Using the key
Locking the front passenger door
and the rear doors (from inside)

 Tilt the interior control B forwards.

3
ACCESS
Before opening the tailgate, en-
sure that no one is within the ra-
dius of opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower
tailgate and do not subject it to
heavy knocks, it may be dam-
aged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
when a towbar is fi tted.

"Tailgate open" warning

This warning light comes on on the
instrument panel display when the
tailgate is not closed correctly.

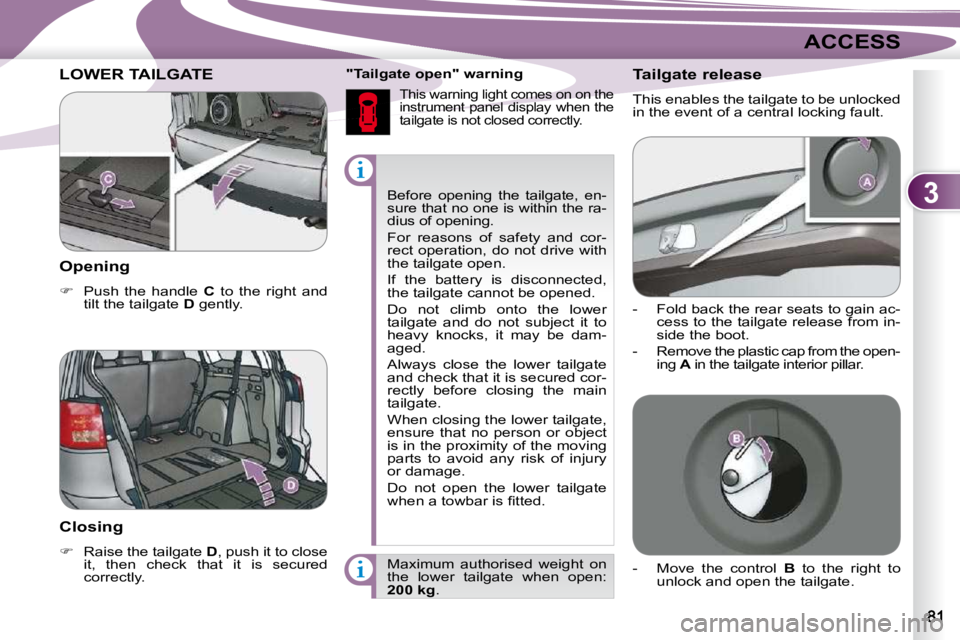

LOWER TAILGALOWER TAILGATE
Opening

 Push the handle C to the right and
tilt the tailgate D gently.
Closing

 Raise the tailgate D , push it to close
it, then check that it is secured
correctly. Maximum authorised weight on
the lower tailgate when open:

200 kg . Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain ac-
cess to the tailgate release from in-
side the boot.
- Remove the plastic cap from the open- ing A in the tailgate interior pillar.
- Move the control B to the right to
unlock and open the tailgate.

3
ACCESS
Before opening the tailgate, en-
sure that no one is within the ra-
dius of opening.
For reasons of safety and cor-
rect operation, do not drive with
the tailgate open.
If the battery is disconnected,
the tailgate cannot be opened.
Do not climb onto the lower
tailgate and do not subject it to
heavy knocks, it may be dam-
aged.
Always close the lower tailgate
and check that it is secured cor-
rectly before closing the main
tailgate.
When closing the lower tailgate,
ensure that no person or object
is in the proximity of the moving
parts to avoid any risk of injury
or damage.
Do not open the lower tailgate
when a towbar is fi tted.

"Tailgate open" warning

This warning light comes on on the
instrument panel display when the
tailgate is not closed correctly.
LOWER TAILGALOWER TAILGATE
Opening

 Push the handle C to the right and
tilt the tailgate D gently.
Closing

 Raise the tailgate D , push it to close
it, then check that it is secured
correctly. Maximum authorised weight on
the lower tailgate when open:

200 kg . Tailgate release
This enables the tailgate to be unlocked
in the event of a central locking fault.
- Fold back the rear seats to gain ac-
cess to the tailgate release from in-
side the boot.
- Remove the plastic cap from the open- ing A in the tailgate interior pillar.
- Move the control B to the right to
unlock and open the tailgate.
