2009.5. PEUGEOT 4007 Owners Manual

3
ACCESS

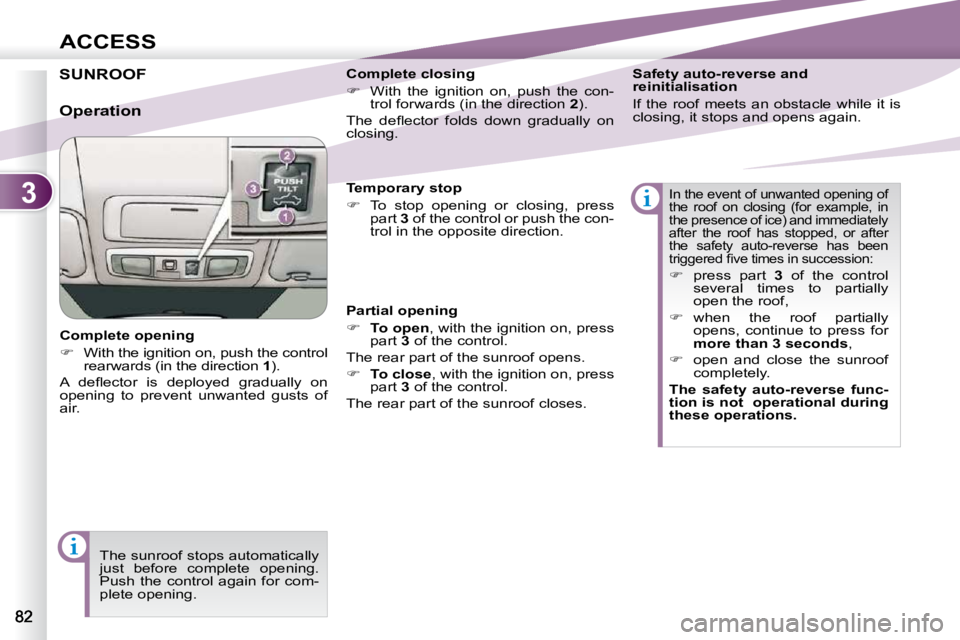

SUNROOF
Complete opening

 With the ignition on, push the control
rearwards (in the direction 1 ).
A defl ector is deployed gradually on
opening to prevent unwanted gusts of
air.
Operation
Complete closing

 With the ignition on, push the con-
trol forwards (in the direction 2 ).
The defl ector folds down gradually on
closing.
Partial opening

 To open , with the ignition on, press
part 3 of the control.
The rear part of the sunroof opens.

 To close , with the ignition on, press
part 3 of the control.
The rear part of the sunroof closes.
In the event of unwanted opening of
the roof on closing (for example, in
the presence of ice) and immediately
after the roof has stopped, or after
the safety auto-reverse has been
triggered fi ve times in succession:

 press part 3 of the control
several times to partially
open the roof,

 when the roof partially
opens, continue to press for

more than 3 seconds ,

 open and close the sunroof
completely.

The safety auto-reverse func-
tion is not operational during
these operations.
The sunroof stops automatically
just before complete opening.
Push the control again for com-
plete opening. Temporary stop

 To stop opening or closing, press
part 3 of the control or push the con-
trol in the opposite direction. Safety auto-reverse and
reinitialisation
If the roof meets an obstacle while it is
closing, it stops and opens again.

3
ACCESS

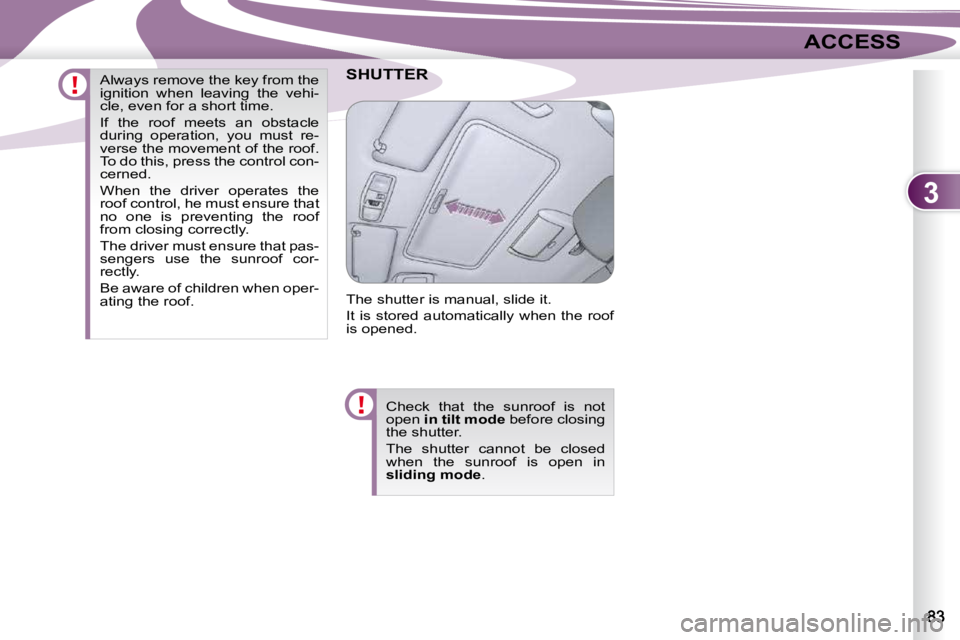

SHUTTER SHUTTER
The shutter is manual, slide it.
It is stored automatically when the roof
is opened. Check that the sunroof is not
open in tilt mode before closing
the shutter.
The shutter cannot be closed
when the sunroof is open in

sliding mode .
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must re-
verse the movement of the roof.
To do this, press the control con-
cerned.
When the driver operates the
roof control, he must ensure that
no one is preventing the roof
from closing correctly.
The driver must ensure that pas-
sengers use the sunroof cor-
rectly.
Be aware of children when oper-
ating the roof.

3
ACCESS
SHUTTER SHUTTER
The shutter is manual, slide it.
It is stored automatically when the roof
is opened. Check that the sunroof is not
open in tilt mode before closing
the shutter.
The shutter cannot be closed
when the sunroof is open in

sliding mode .
Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
If the roof meets an obstacle
during operation, you must re-
verse the movement of the roof.
To do this, press the control con-
cerned.
When the driver operates the
roof control, he must ensure that
no one is preventing the roof
from closing correctly.
The driver must ensure that pas-
sengers use the sunroof cor-
rectly.
Be aware of children when oper-
ating the roof.

3
ACCESS
FUEL TANK Opening the cap may trigger an air in-
take noise. This vacuum, which is com-
pletely normal, is caused by the sealing
of the fuel circuit.
To fi ll the tank safely:

 it is imperative that the engine is
switched off,

 pull the control A located at the bot-
tom right of the driver’s seat to re-
lease the fuel fi ller fl ap,

 open the fuel fi ller fl ap B ,

 turn the cap C to the left,
When you have fi lled the tank:

 refi t the cap, inserting the upper part
fi rst,

 screw in the cap to the right,

 close the fl ap.
Ensure that the fuel fi ller fl ap is closed
correctly.
 remove the cap C ,

 fi ll the tank, but do not continue af-
ter the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A label, affi xed on the inside of the fl ap,
reminds you of the type of fuel to be
used in relation to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge. When the tank minimum lev-
el is reached, this indication
appears on the instrument
panel display. When it fi rst
comes on, approximately
10 litres of fuel remain.
The symbol fl ashes slowly (approxi-
mately once per second).
When the symbol begins to

fl ash rapidly (approximately
twice per second), there is not
much fuel remaining in your tank
(approximately 5 litres).
It is essential to fi ll the tank to
avoid running out of fuel.
This symbol indicates that the
fuel tank cap is located on the
left-hand side of the vehicle.
Location of the cap

1. Opening.

2. Closing.

Capacity of the tank: approximately
60 litres.

3
ACCESS

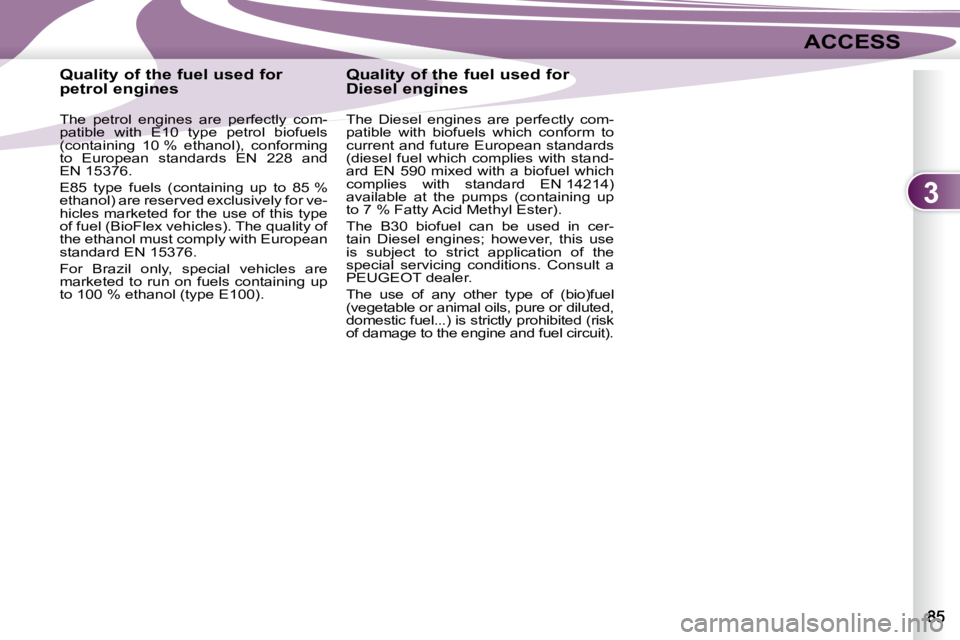

Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15376.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (type E100). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(diesel fuel which complies with stand-
ard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk
of damage to the engine and fuel circuit).

4
VISIBILITY

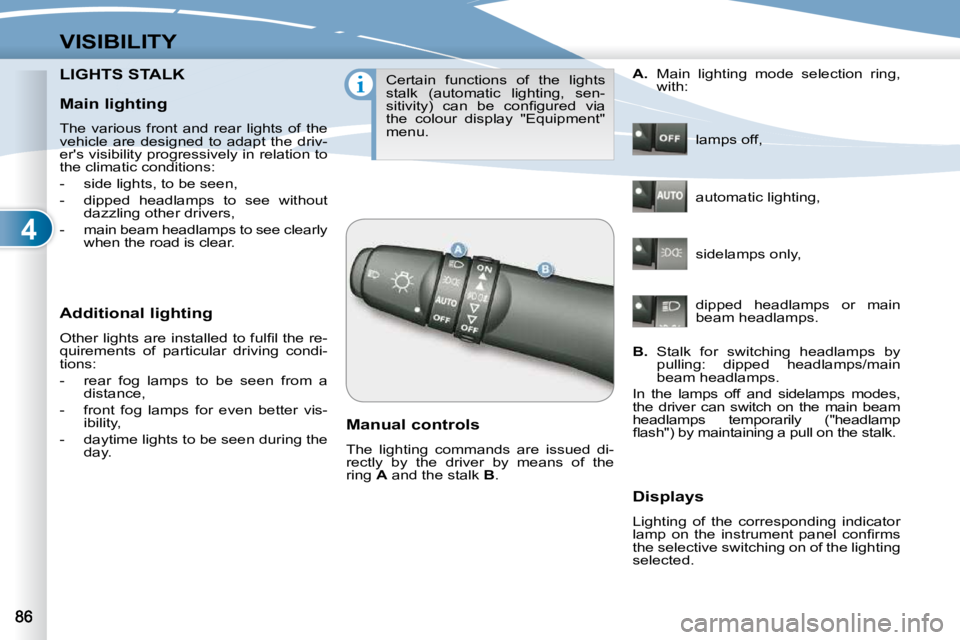

LIGHTS STALK LIGHTS STALK
Additional lighting
Other lights are installed to fulfi l the re-
quirements of particular driving condi-
tions:
- rear fog lamps to be seen from a distance,
- front fog lamps for even better vis- ibility,
- daytime lights to be seen during the day. Certain functions of the lights
stalk (automatic lighting, sen-
sitivity) can be confi gured via
the colour display "Equipment"
menu.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the
ring A and the stalk B . lamps off,
automatic lighting,
sidelamps only,

B. Stalk for switching headlamps by
pulling: dipped headlamps/main
beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the stalk.
Displays
Lighting of the corresponding indicator
lamp on the instrument panel confi rms
the selective switching on of the lighting
selected.

A. Main lighting mode selection ring,
with:
dipped headlamps or main
beam headlamps.
Main lighting
The various front and rear lights of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:
- side lights, to be seen,
- dipped headlamps to see without
dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.

4
VISIBILITY
Front and rear fog lamps

C. fog lamps selection ring.
The fog lamps operate with the dipped
and main beam headlamps. front and rear fog lamps

 To switch on the front fog lamps,
turn the push ring C forwards one
notch.

 To switch on the rear fog lamps, turn
the push ring C forwards two notches.

 To switch off the front fog lamps,
turn the push ring C rearwards one
notch.

 To switch off the rear fog lamps,
turn the push ring C rearwards two
notches.
The ring C returns to its initial position
automatically.
The front fog lamps are switched on
automatically when you switch on the
rear fog lamps.
The rear fog lamps are switched off
automatically when you switch off the
dipped/main beam headlamps or the
front fog lamps.
On vehicles fi tted with daytime lights,
the rear fog lamps can be switched on
even if the lights stalk is in the "OFF"
position.
In good or rainy weather, both
day and night, the front fog
lamps and the rear fog lamps
are prohibited. In these situa-
tions, the power of their beams
may dazzle other drivers.
Do not forget to switch off the
front fog lamps and the rear fog
lamps when they are no longer
necessary.
Lights on buzzer
The triggering of an audible signal
when the driver's door is opened
warns the driver that he has for-
gotten to switch off his vehicle's
lights, with the ignition off.
In this case, switching off the
lights stops the audible signal.
If condensation is present, it is
advisable to switch the head-
lamps on for a few minutes in order
to clear it.

4
VISIBILITY
In foggy weather or in snow, the
brightness sensor can detect
suffi cient light. The lights will not
come on automatically.
Do not cover the brightness sen-
sor, the associated functions will
no longer be controlled.

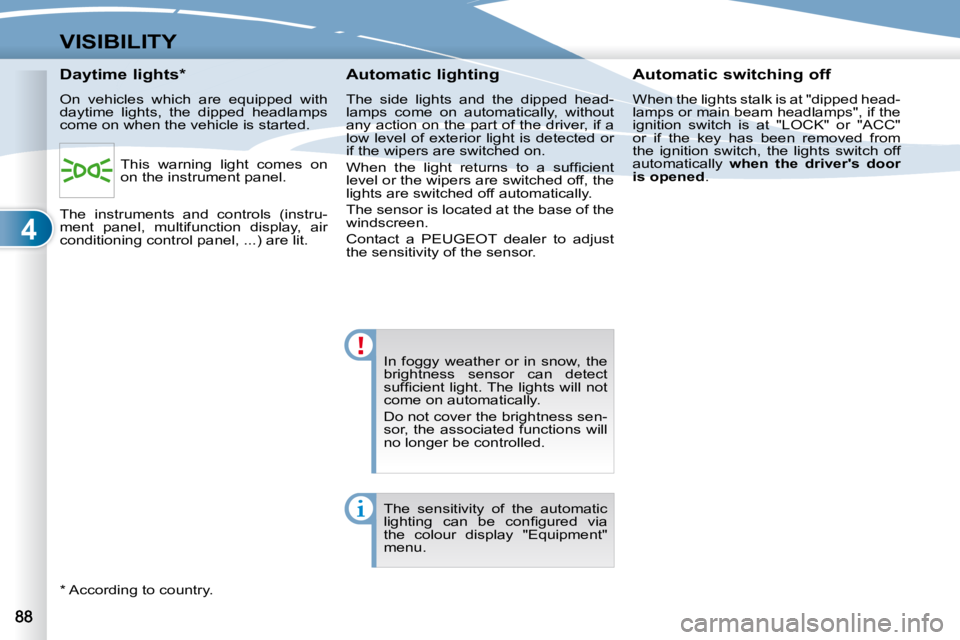

Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. Automatic switching off
When the lights stalk is at "dipped head-
lamps or main beam headlamps", if the
ignition switch is at "LOCK" or "ACC"
or if the key has been removed from
the ignition switch, the lights switch off
automatically
when the driver's door
is opened .
Automatic lighting
The side lights and the dipped head-
lamps come on automatically, without
any action on the part of the driver, if a
low level of exterior light is detected or
if the wipers are switched on.
When the light returns to a suffi cient
level or the wipers are switched off, the
lights are switched off automatically.
The sensor is located at the base of the
windscreen.
Contact a PEUGEOT dealer to adjust
the sensitivity of the sensor.
The sensitivity of the automatic
lighting can be confi gured via
the colour display "Equipment"
menu.
This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
conditioning control panel, ...) are lit.
