2009.5. PEUGEOT 4007 Owners Manual

1
INSTRUMENTS and CONTROLS

When the vehicle is
stationary , it allows
the user to change the
following parameters:
- the choice of the reini- tialisation of the aver-
age consumption and
average speed,
- the fuel consumption unit,
- the temperature display unit,
- the display language,
- activation/deactivation of the INFO
button sound,
- the break (rest) reminder display in- terval,
- restore the manufacturer’s param- eters.
FUNCTION PARAMETERS
System which provides access to
certain function parameters.
The various menus may differ for the
type 1 instrument panel and the type 2
instrument panel.

With the ignition on , press the INFO
button on the fascia, to the right of
the instrument panel, several times in
succession until the "SETTING MENU"
screen is displayed.
In order to change the settings,
it is essential that you stop
the vehicle and switch on the
ignition.
Apply the handbrake and place
the gear lever in neutral.
When the vehicle is moving ,
the functions setting display is
not displayed when you press
the INFO button.
Operation

 press and hold the INFO button for
a few seconds to display the menus
screen.
Press and hold the INFO button
for a few seconds to return to
the previous screen.
When the menus screen is
displayed, if no operation is
carried out within 15 seconds,
the function parameters screen
is displayed.

 on the menus screen, press the

INFO button to select a function
from the list:

MENU 2/3:
- a/b (choice of displaying a different
language on the instrument panel
display and the navigation display),
- activation/deactivation of the
INFO button sound ,
- ALERT (changing of the "BREAK
REMINDER" display interval),
- choice of the direction indicators sound,
- activation/deactivation of the cur-
rent fuel consumption,

MENU 1/3 :
- 1 - 2 (choice of the reinitialisation of
the average consumption and aver-
age speed),
- UNIT (choice of the fuel consumption
units),
- choice of the temperature display
unit ,
- LANGUAGE (choice of the display
language),
MENU 3/3:
- REINITIALISE (restore the manu-
facturer’s parameters).

1
INSTRUMENTS and CONTROLS

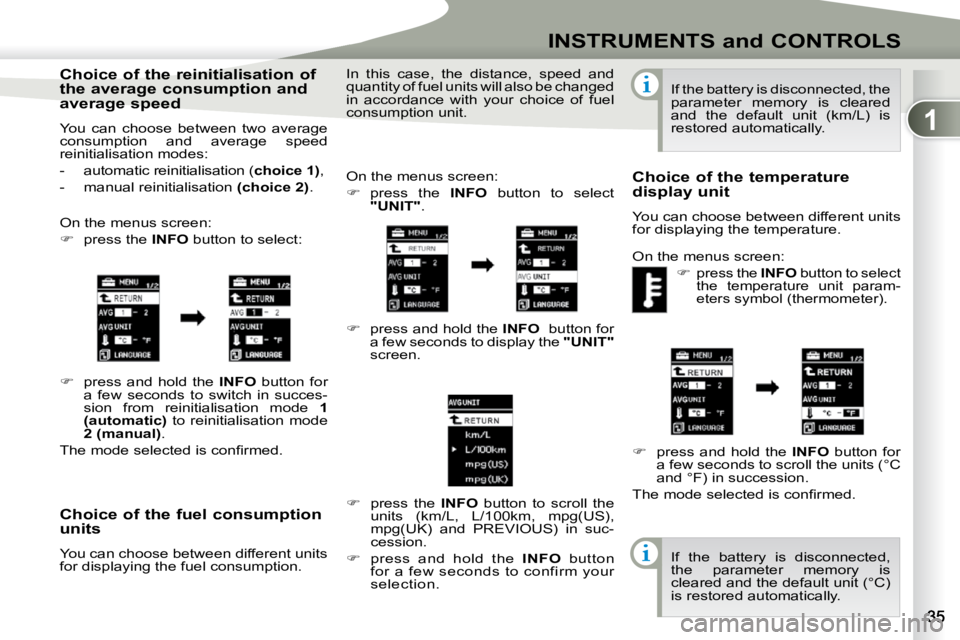

Choice of the fuel consumption
units
You can choose between different units
for displaying the fuel consumption. On the menus screen:

 press the INFO button to select

"UNIT" .

 press and hold the INFO button for
a few seconds to display the "UNIT"
screen.

 press the INFO button to scroll the
units (km/L, L/100km, mpg(US),
mpg(UK) and PREVIOUS) in suc-
cession.

 press and hold the INFO button
for a few seconds to confirm your
selection.
In this case, the distance, speed and
quantity of fuel units will also be changed
in accordance with your choice of fuel
consumption unit.
If the battery is disconnected, the
parameter memory is cleared
and the default unit (km/L) is
restored automatically.
Choice of the temperature
display unit
You can choose between different units
for displaying the temperature.
On the menus screen:

press the INFO button to select
the temperature unit param-
eters symbol (thermometer).

 press and hold the INFO button for
a few seconds to scroll the units (°C
and °F) in succession.
The mode selected is confi rmed.
If the battery is disconnected,
the parameter memory is
cleared and the default unit (°C)
is restored automatically.
Choice of the reinitialisation of
the average consumption and
average speed
You can choose between two average
consumption and average speed
reinitialisation modes:
- automatic reinitialisation ( choice 1) ,
- manual reinitialisation (choice 2) .
On the menus screen:

 press the INFO button to select:

 press and hold the INFO button for
a few seconds to switch in succes-
sion from reinitialisation mode 1
(automatic) to reinitialisation mode

2 (manual) .
The mode selected is confi rmed.

1
INSTRUMENTS and CONTROLS

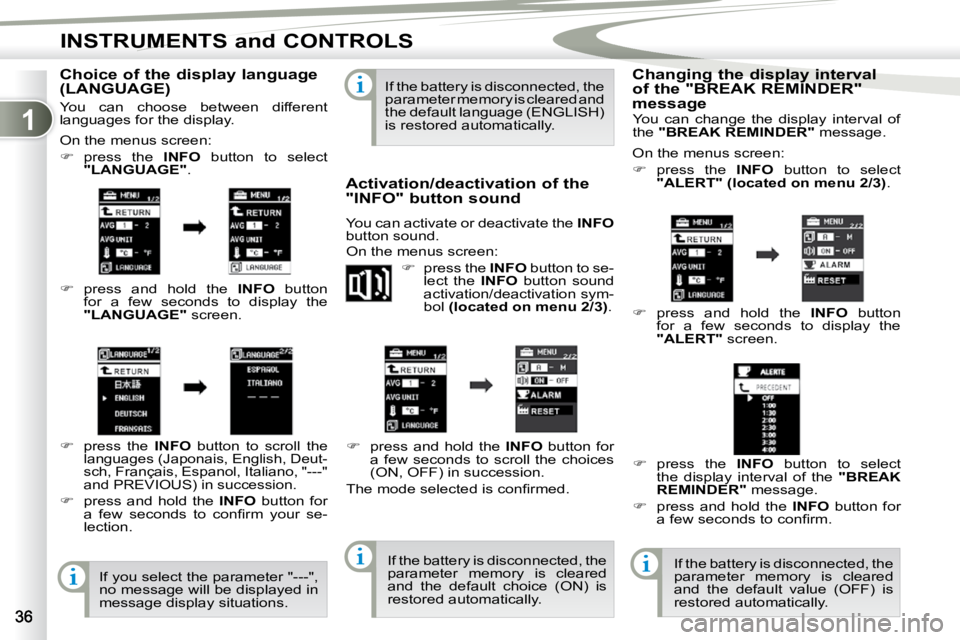

Choice of the display language
(LANGUAGE)
On the menus screen:

 press the INFO button to select

"LANGUAGE" .

 press and hold the INFO button
for a few seconds to display the

"LANGUAGE" screen.


press the INFO button to scroll the
languages (Japonais, English, Deut-
sch, Français, Espanol, Italiano, "---"
and PREVIOUS) in succession.

 press and hold the INFO button for
a few seconds to confi rm your se-
lection.
If you select the parameter "---",
no message will be displayed in
message display situations. If the battery is disconnected, the
parameter memory is cleared and
the default language (ENGLISH)
is restored automatically.
Activation/deactivation of the
"INFO" button sound
You can activate or deactivate the INFO
button sound.
On the menus screen:

 press the INFO button to se-
lect the INFO button sound
activation/deactivation sym-
bol (located on menu 2/3) .

 press and hold the INFO button for
a few seconds to scroll the choices
(ON, OFF) in succession.
The mode selected is confi rmed.
If the battery is disconnected, the
parameter memory is cleared
and the default choice (ON) is
restored automatically. Changing the display interval
of the "BREAK REMINDER"
message
On the menus screen:

 press the INFO button to select

"ALERT" (located on menu 2/3) .

 press and hold the INFO button
for a few seconds to display the

"ALERT" screen.

 press the INFO button to select
the display interval of the "BREAK
REMINDER" message.

 press and hold the INFO button for
a few seconds to confi rm.
If the battery is disconnected, the
parameter memory is cleared
and the default value (OFF) is
restored automatically.
You can choose between different
languages for the display. You can change the display interval of
the
"BREAK REMINDER" message.

1
INSTRUMENTS and CONTROLS

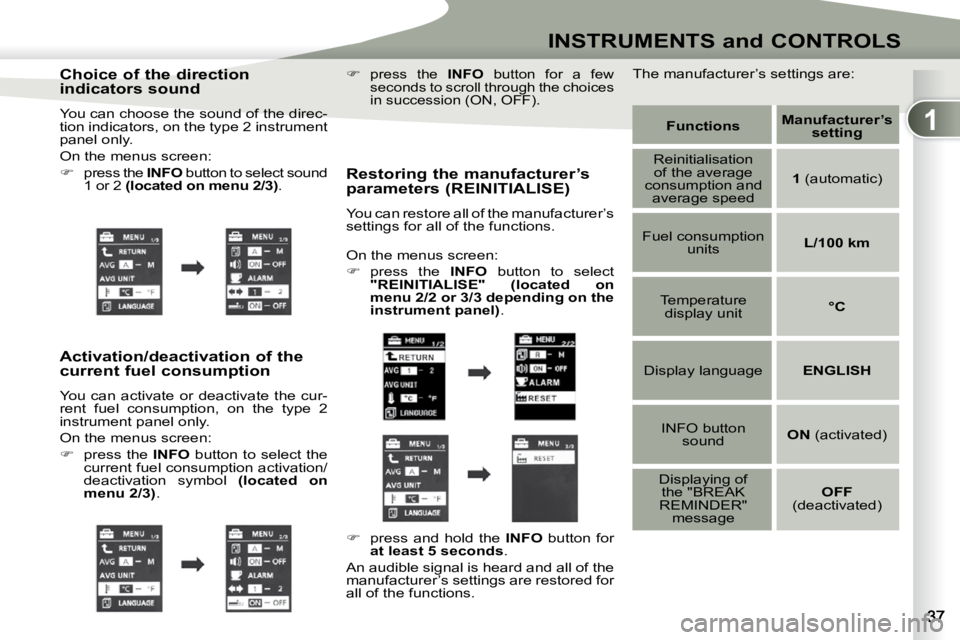

Choice of the direction
indicators sound
You can choose the sound of the direc-
tion indicators, on the type 2 instrument
panel only.
On the menus screen:

 press the INFO button to select sound
1 or 2 (located on menu 2/3) .
Activation/deactivation of the
current fuel consumption
You can activate or deactivate the cur-
rent fuel consumption, on the type 2
instrument panel only.
On the menus screen:

 press the INFO button to select the
current fuel consumption activation/
deactivation symbol (located on
menu 2/3) . Restoring the manufacturer’s
parameters (REINITIALISE)
You can restore all of the manufacturer’s
settings for all of the functions.

Functions
Manufacturer’s
setting
Reinitialisation of the average
consumption and average speed
1 (automatic)
Fuel consumption units
L/100 km
Temperature display unit
°C
Display language ENGLISH
INFO button sound
ON (activated)
Displaying of the "BREAK
REMINDER" message
OFF
(deactivated)
On the menus screen:

 press the INFO button to select

"REINITIALISE" (located on
menu 2/2 or 3/3 depending on the
instrument panel) .

 press and hold the INFO button for

at least 5 seconds .
An audible signal is heard and all of the
manufacturer’s settings are restored for
all of the functions.

 press the INFO button for a few
seconds to scroll through the choices
in succession (ON, OFF). The manufacturer’s settings are:

1
INSTRUMENTS and CONTROLS

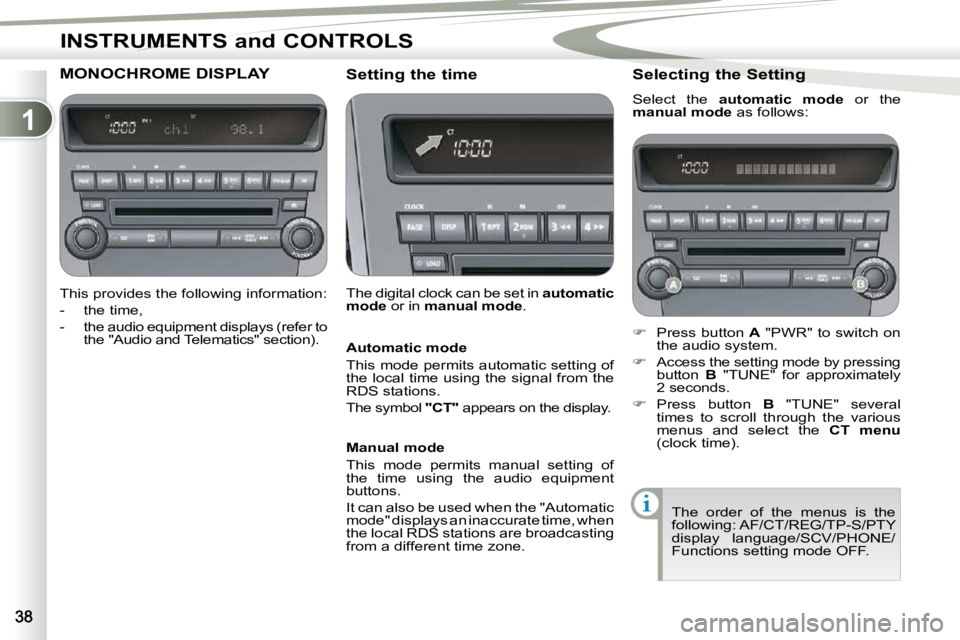

MONOCHROME DISPLAY
This provides the following information:
- the time,
- the audio equipment displays (refer to the "Audio and Telematics" section). Setting the time
The digital clock can be set in
automatic
mode or in manual mode . Selecting the Setting
Select the
automatic mode or the

manual mode as follows:

 Press button A "PWR" to switch on
the audio system.

 Access the setting mode by pressing
button B "TUNE" for approximately
2 seconds.

 Press button B "TUNE" several
times to scroll through the various
menus and select the CT menu
(clock time).
The order of the menus is the
following: AF/CT/REG/TP-S/PTY
display language/SCV/PHONE/
Functions setting mode OFF.
Automatic mode
This mode permits automatic setting of
the local time using the signal from the
RDS stations.
The symbol
"CT" appears on the display.
Manual mode
This mode permits manual setting of
the time using the audio equipment
buttons.
It can also be used when the "Automatic
mode" displays an inaccurate time, when
the local RDS stations are broadcasting
from a different time zone.

1
INSTRUMENTS and CONTROLS

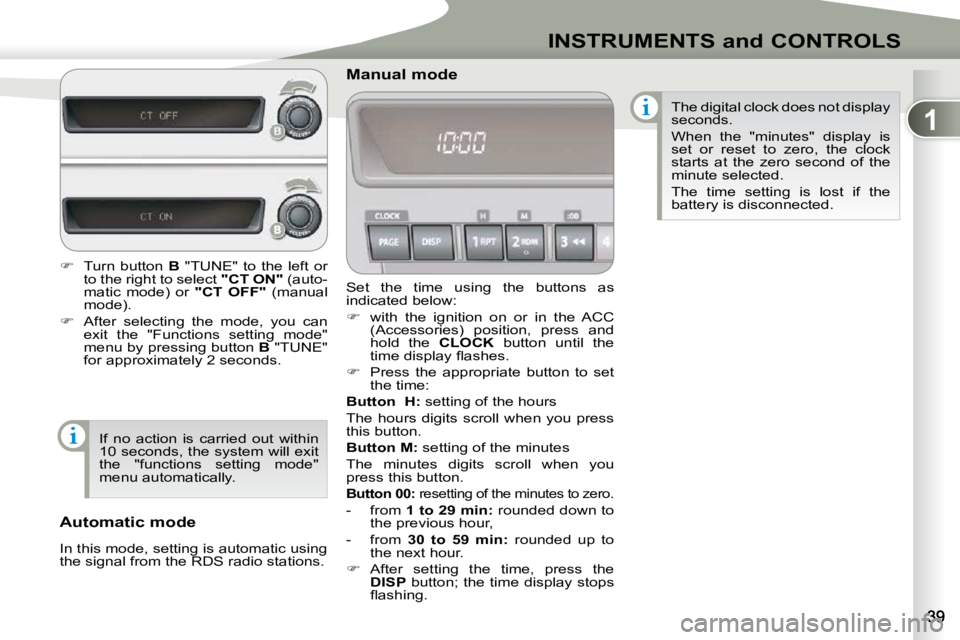

Set the time using the buttons as
indicated below:

 with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK button until the
time display fl ashes.

 Press the appropriate button to set
the time:

Button H: setting of the hours
The hours digits scroll when you press
this button.

Button M: setting of the minutes
The minutes digits scroll when you
press this button.

Button 00: resetting of the minutes to zero.
- from 1 to 29 min
: rounded down to
the previous hour,
- from 30 to 59 min: rounded up to
the next hour.

 After setting the time, press the

DISP button; the time display stops
fl ashing.
Manual mode
Automatic mode
In this mode, setting is automatic using
the signal from the RDS radio stations. The digital clock does not display
seconds.
When the "minutes" display is
set or reset to zero, the clock
starts at the zero second of the
minute selected.
The time setting is lost if the
battery is disconnected.

 Turn button B "TUNE" to the left or
to the right to select "CT ON" (auto-
matic mode) or "CT OFF" (manual
mode).

 After selecting the mode, you can
exit the "Functions setting mode"
menu by pressing button B "TUNE"
for approximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit
the "functions setting mode"
menu automatically.

1
INSTRUMENTS and CONTROLS

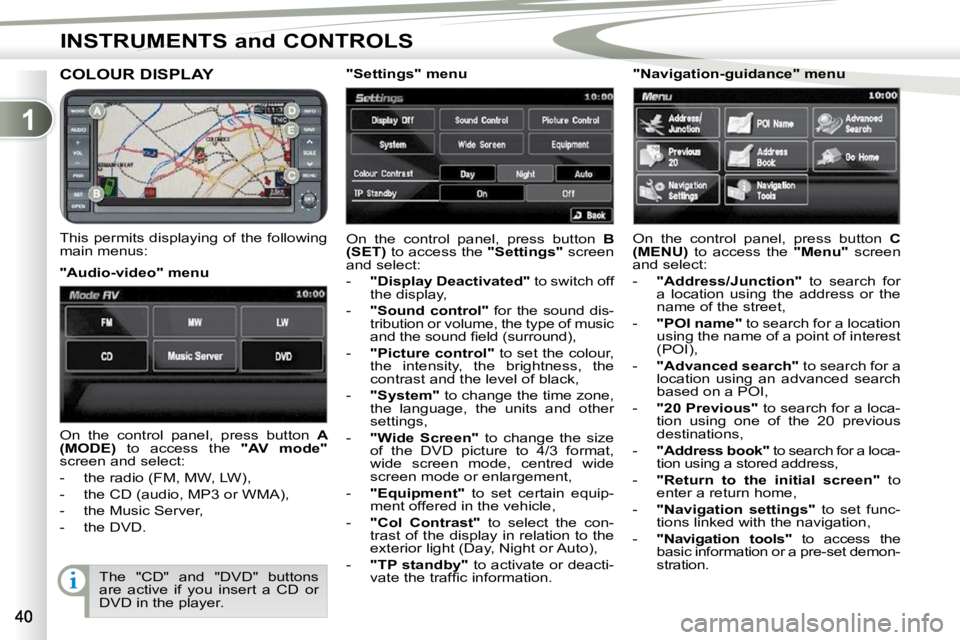

COLOUR DISPLAY
This permits displaying of the following
main menus: On the control panel, press button
B
(SET) to access the "Settings" screen
and select:
- "Display Deactivated" to switch off
the display,
- "Sound control" for the sound dis-
tribution or volume, the type of music
and the sound fi eld (surround),
- "Picture control" to set the colour,
the intensity, the brightness, the
contrast and the level of black,
- "System" to change the time zone,
the language, the units and other
settings,
- "Wide Screen" to change the size
of the DVD picture to 4/3 format,
wide screen mode, centred wide
screen mode or enlargement,
- "Equipment" to set certain equip-
ment offered in the vehicle,
- "Col Contrast" to select the con-
trast of the display in relation to the
exterior light (Day, Night or Auto),
- "TP standby" to activate or deacti-
vate the traffi c information.
"Audio-video" menu
"Navigation-guidance" menu
On the control panel, press button A
(MODE) to access the "AV mode"
screen and select:
- the radio (FM, MW, LW),
- the CD (audio, MP3 or WMA),
- the Music Server,
- the DVD. "Settings" menu
On the control panel, press button C
(MENU) to access the "Menu" screen
and select:
- "Address/Junction" to search for
a location using the address or the
name of the street,
- "POI name" to search for a location
using the name of a point of interest
(POI),
- "Advanced search" to search for a
location using an advanced search
based on a POI,
- "20 Previous" to search for a loca-
tion using one of the 20 previous
destinations,
- "Address book" to search for a loca-
tion using a stored address,
- "Return to the initial screen" to
enter a return home,
- "Navigation settings" to set func-
tions linked with the navigation,
- "Navigation tools" to access the
basic information or a pre-set demon-
stration.
The "CD" and "DVD" buttons
are active if you insert a CD or
DVD in the player.

1

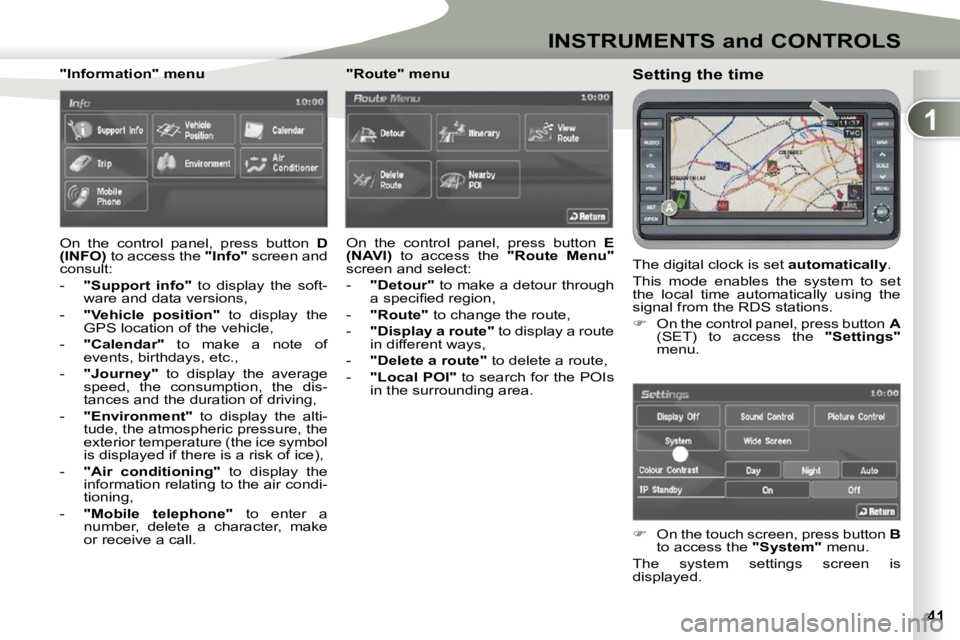

INSTRUMENTS and CONTROLS
Setting the time
The digital clock is set automatically .
This mode enables the system to set
the local time automatically using the
signal from the RDS stations.

 On the control panel, press button A
(SET) to access the "Settings"
menu.

 On the touch screen, press button B
to access the "System" menu.
The system settings screen is
displayed.
"Information" menu
On the control panel, press button
D
(INFO) to access the "Info" screen and
consult:
- "Support info" to display the soft-
ware and data versions,
- "Vehicle position" to display the
GPS location of the vehicle,
- "Calendar" to make a note of
events, birthdays, etc.,
- "Journey" to display the average
speed, the consumption, the dis-
tances and the duration of driving,
- "Environment" to display the alti-
tude, the atmospheric pressure, the
exterior temperature (the ice symbol
is displayed if there is a risk of ice),
- "Air conditioning" to display the
information relating to the air condi-
tioning,
- "Mobile telephone" to enter a
number, delete a character, make
or receive a call. "Route" menu
On the control panel, press button
E
(NAVI) to access the "Route Menu"
screen and select:
- "Detour" to make a detour through
a specifi ed region,
- "Route" to change the route,
- "Display a route" to display a route
in different ways,
- "Delete a route" to delete a route,
- "Local POI" to search for the POIs
in the surrounding area.
