2009.5. PEUGEOT 4007 Owners Manual

2
COMFORT

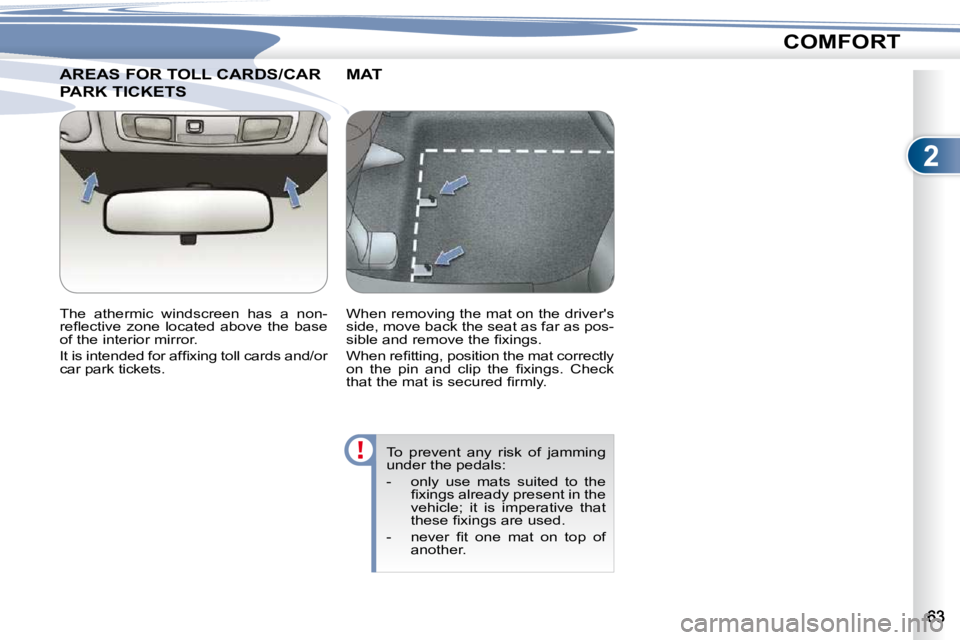

AREAS FOR TOLL CARDS/CAR AREAS FOR TOLL CARDS/CAR
PARK TICKETS PARK TICKETS
The athermic windscreen has a non-
refl ective zone located above the base
of the interior mirror.
It is intended for affi xing toll cards and/or
car park tickets.
MAT
When removing the mat on the driver's
side, move back the seat as far as pos-
sible and remove the fi xings.
When refi tting, position the mat correctly
on the pin and clip the fi xings. Check
that the mat is secured fi rmly. To prevent any risk of jamming
under the pedals:
- only use mats suited to the fi xings already present in the
vehicle; it is imperative that
these fi xings are used.
- never fi t one mat on top of another.

2
COMFORT

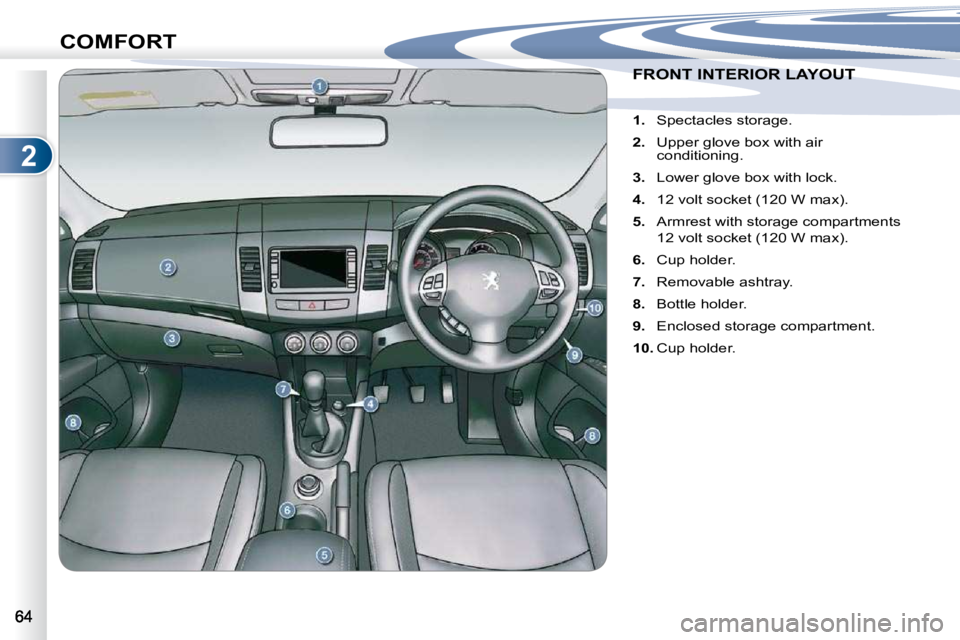

FRONT INTERIOR LAYOUT FRONT INTERIOR LAYOUT

1. Spectacles storage.

2. Upper glove box with air
conditioning.

3. Lower glove box with lock.

4. 12 volt socket (120 W max).

5. Armrest with storage compartments
12 volt socket (120 W max).

6. Cup holder.

7. Removable ashtray.

8. Bottle holder.

9. Enclosed storage compartment.

10. Cup holder.

2
COMFORT

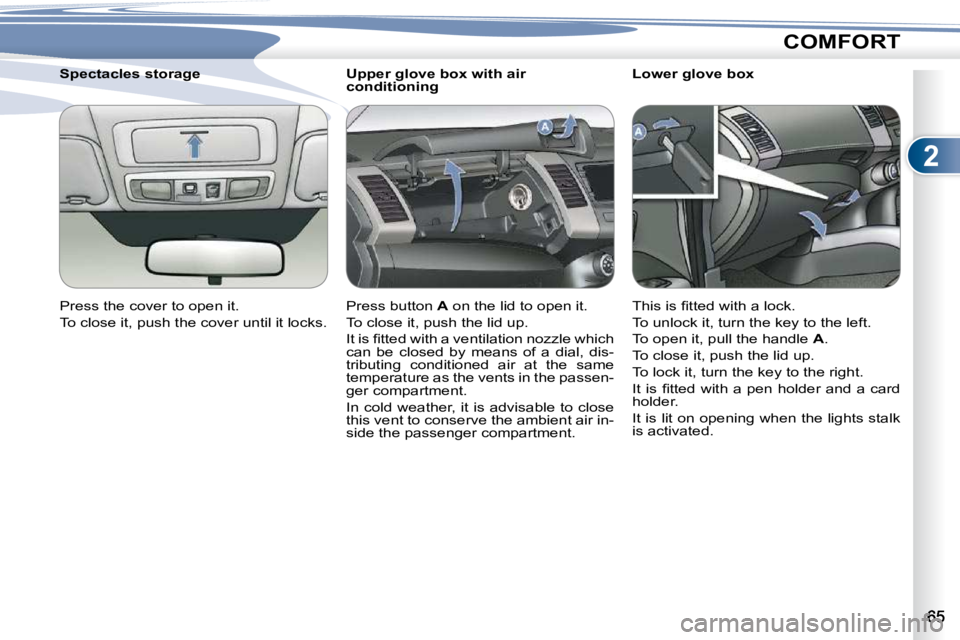

Upper glove box with air
conditioning
Press button A on the lid to open it.
To close it, push the lid up.
It is fi tted with a ventilation nozzle which
can be closed by means of a dial, dis-
tributing conditioned air at the same
temperature as the vents in the passen-
ger compartment.
In cold weather, it is advisable to close
this vent to conserve the ambient air in-
side the passenger compartment.
Spectacles storage
Press the cover to open it.
To close it, push the cover until it locks.
Lower glove box
This is fi tted with a lock.
To unlock it, turn the key to the left.
To open it, pull the handle
A .
To close it, push the lid up.
To lock it, turn the key to the right.
It is fi tted with a pen holder and a card
holder.
It is lit on opening when the lights stalk
is activated.

2
COMFORT

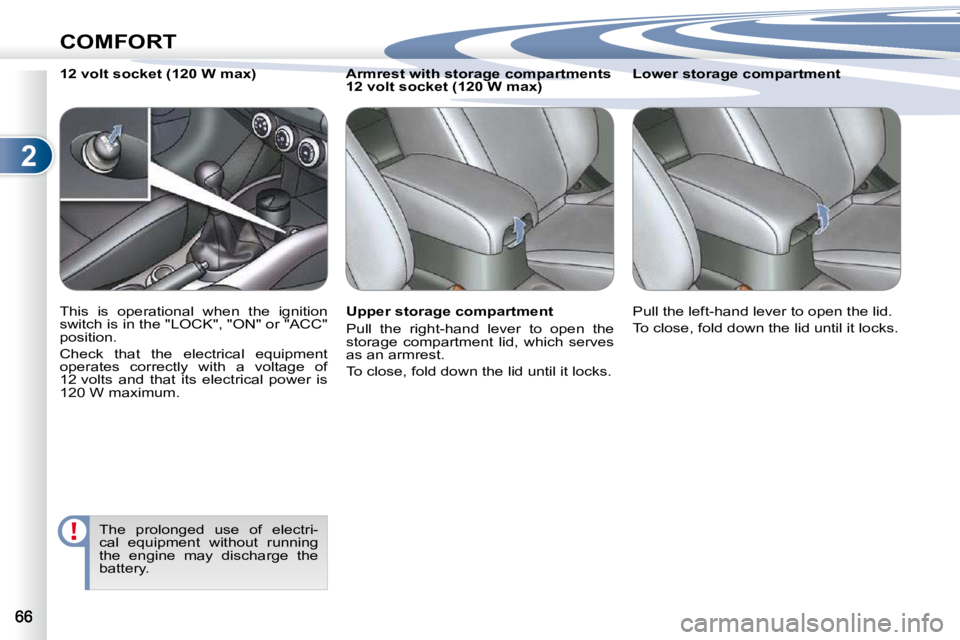

Armrest with storage compartments
12 volt socket (120 W max)
Upper storage compartment
Pull the right-hand lever to open the
storage compartment lid, which serves
as an armrest.
To close, fold down the lid until it locks.
12 volt socket (120 W max)
Lower storage compartment
Pull the left-hand lever to open the lid.
To close, fold down the lid until it locks.
This is operational when the ignition
switch is in the "LOCK", "ON" or "ACC"
position.
Check that the electrical equipment
operates correctly with a voltage of
12 volts and that its electrical power is
120 W maximum.
The prolonged use of electri-
cal equipment without running
the engine may discharge the
battery.

2
COMFORT

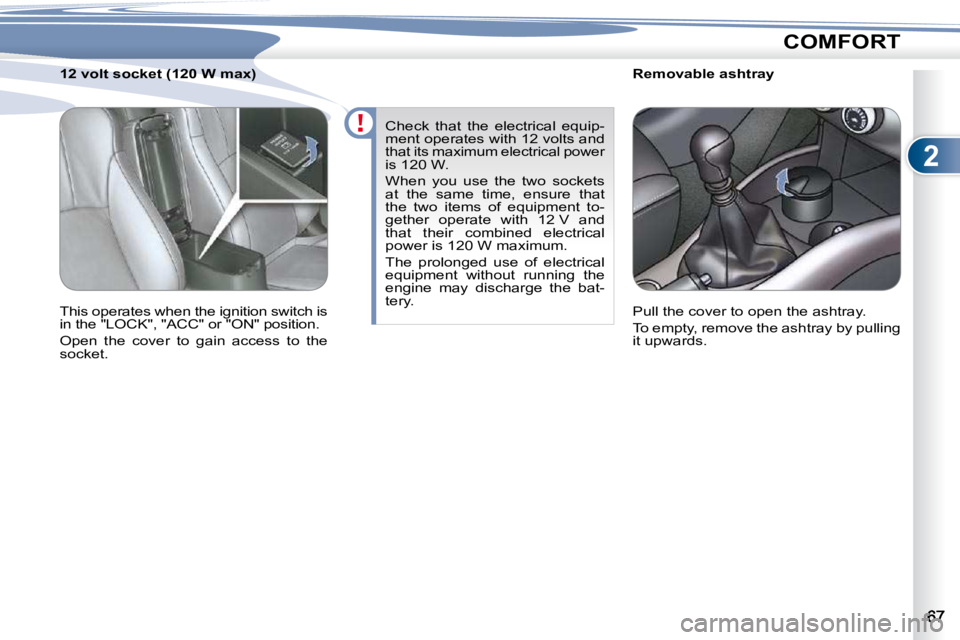

Removable ashtray
Pull the cover to open the ashtray.
To empty, remove the ashtray by pulling
it upwards.
12 volt socket (120 W max)
This operates when the ignition switch is
in the "LOCK", "ACC" or "ON" position.
Open the cover to gain access to the
socket.
Check that the electrical equip-
ment operates with 12 volts and
that its maximum electrical power
is 120 W.
When you use the two sockets
at the same time, ensure that
the two items of equipment to-
gether operate with 12 V and
that their combined electrical
power is 120 W maximum.
The prolonged use of electrical
equipment without running the
engine may discharge the bat-
tery.

2
COMFORT
Cup holder
There is a cup holder incorporated in
the fascia on the driver’s side.
Press on the centre of the cover to ex-
tract the plate.
Pull it fully to use it.
Push it fully to store it. Two further cup holders are available in
front of the front armrest.
Enclosed storage compartment
Pull the storage compartment lid to
open it.

2
COMFORT

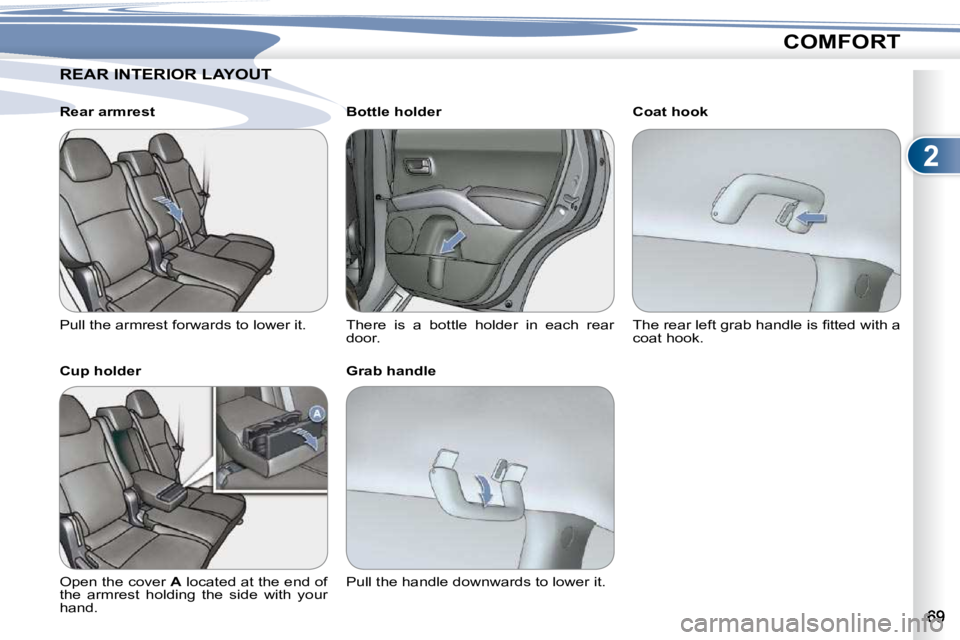

REAR INTERIOR LAYOUT REAR INTERIOR LAYOUT
Rear armrest
Pull the armrest forwards to lower it.
Cup holder
Open the cover A located at the end of
the armrest holding the side with your
hand. Bottle holder
There is a bottle holder in each rear
door.
Grab handle
Pull the handle downwards to lower it.
Coat hook
The rear left grab handle is fi tted with a
coat hook.

2
COMFORT

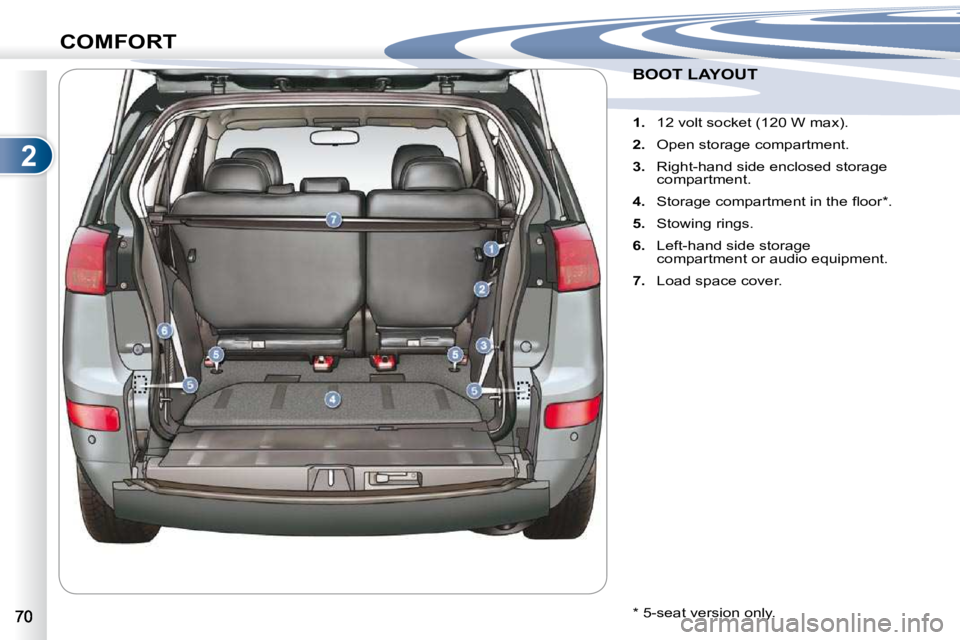

BOOT LABOOT LAYOUT

1. 12 volt socket (120 W max).

2. Open storage compartment.

3. Right-hand side enclosed storage
compartment.

4. Storage compartment in the fl oor * .

5. Stowing rings.

6. Left-hand side storage
compartment or audio equipment.

7. Load space cover.
* 5-seat version only.
