2009.5. PEUGEOT 4007 Owners Manual

7
DRIVING
FOUR WHEEL DRIVE SYSTEM
WITH ELECTRONIC CONTROL
4WD AUTO (position 1)
The vehicle operates with four wheel
drive and provides optimum traction re-
gardless of the level of grip.
This is the vehicle's normal and regular
operating mode, the distribution of the
torque between the front and rear axles
is controlled automatically.
The distribution favours the front wheels,
the transfer of torque to the rear wheels
is managed electronically by the control
unit in relation to the level of grip, so
guaranteeing optimum road holding.
Three transmission modes are avail-
able and can be selected manually by
the driver in accordance with his re-
quirements.
You can change transmission mode
when stationary or while driving at a
speed below 60 mph (100 km/h) .
The transmission mode can be selected
by turning the control A .
Display on the instrument panel
The transmission mode is displayed in
the form of an intermittent display on
the instrument panel display when the
transmission mode is selected.
Selecting the transmission
mode
The selection of this mode is
recommended when the level of
grip permits.
2WD (position 3)
The vehicle operates with front two
wheel drive.
This mode corresponds to use on a tar-
macked road on which the driver con-
siders that there is no risk of loss of grip
(dry road).
4WD LOCK (position 2)
The vehicle operates with four wheel
drive in this mode also.
It is recommended when grip is par-
ticularly poor or diffi cult (sand, mud,
slopes, ...).
System which permits the selection of
a transmission mode in relation to the
driving conditions.

7
DRIVING

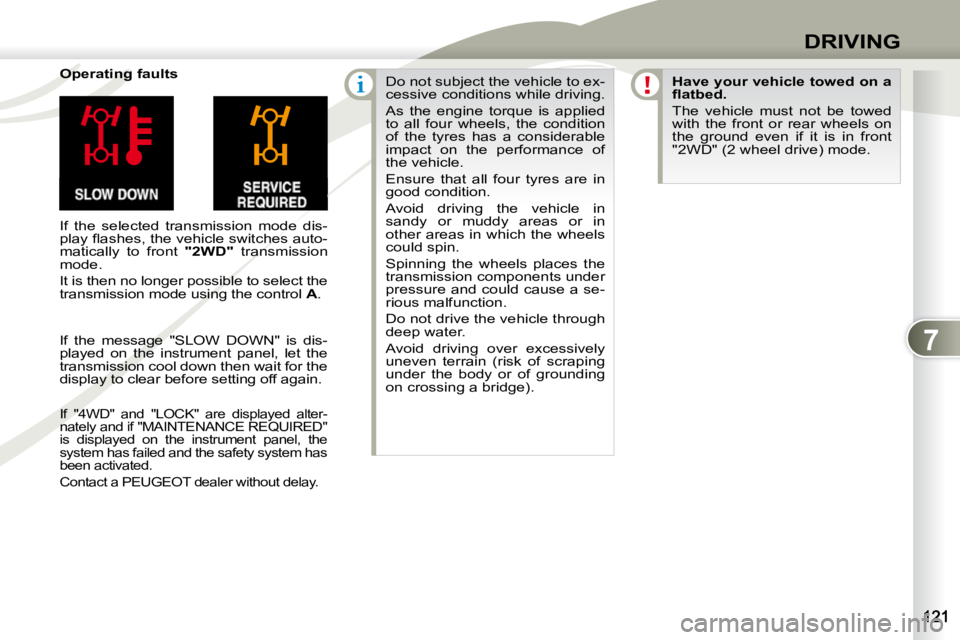

Operating faults
If the selected transmission mode dis-
play fl ashes, the vehicle switches auto-
matically to front "2WD" transmission
mode.
It is then no longer possible to select the
transmission mode using the control A . Do not subject the vehicle to ex-
cessive conditions while driving.
As the engine torque is applied
to all four wheels, the condition
of the tyres has a considerable
impact on the performance of
the vehicle.
Ensure that all four tyres are in
good condition.
Avoid driving the vehicle in
sandy or muddy areas or in
other areas in which the wheels
could spin.
Spinning the wheels places the
transmission components under
pressure and could cause a se-
rious malfunction.
Do not drive the vehicle through
deep water.
Avoid driving over excessively
uneven terrain (risk of scraping
under the body or of grounding
on crossing a bridge).
Have your vehicle towed on a
fl atbed.
The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
"2WD" (2 wheel drive) mode.
If the message "SLOW DOWN" is dis-
played on the instrument panel, let the
transmission cool down then wait for the
display to clear before setting off again.
If "4WD" and "LOCK" are displayed alter-
nately and if "MAINTENANCE REQUIRED"
is displayed on the instrument panel, the
system has failed and the safety system has
been activated.
Contact a PEUGEOT dealer without delay.

7
DRIVING
Programming

 Press button 1 .

 Set the programmed speed by ac-
celerating to the required speed,
then press button 2 "COAST SET" .

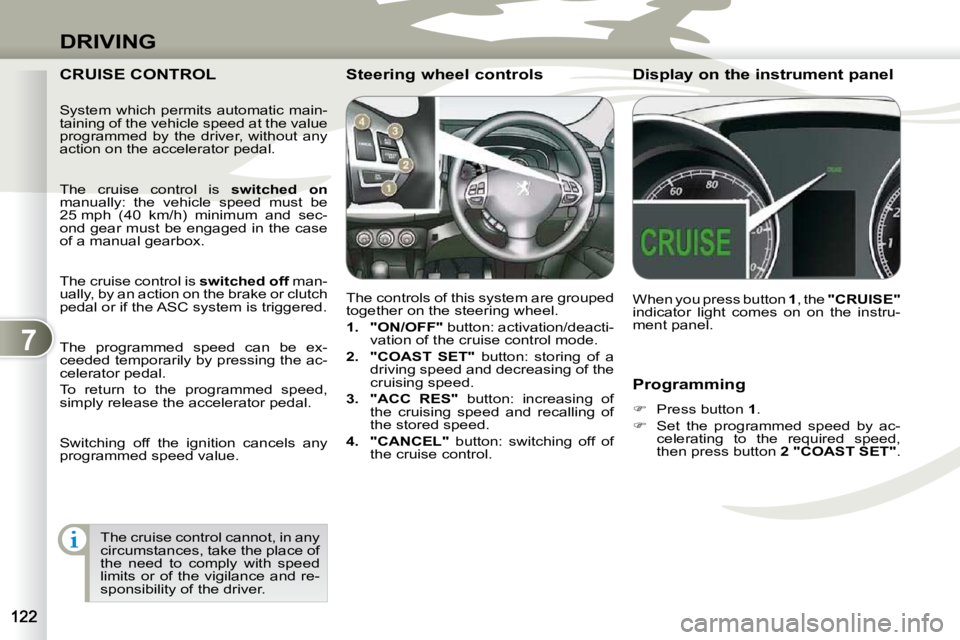

CRUISE CONTROL
The controls of this system are grouped
together on the steering wheel.

1. "ON/OFF" button: activation/deacti-
vation of the cruise control mode.

2. "COAST SET" button: storing of a
driving speed and decreasing of the
cruising speed.

3. "ACC RES" button: increasing of
the cruising speed and recalling of
the stored speed.

4. "CANCEL" button: switching off of
the cruise control. When you press button
1 , the "CRUISE"
indicator light comes on on the instru-
ment panel.
Steering wheel controls Display on the instrument
panel
The cruise control cannot, in any
circumstances, take the place of
the need to comply with speed
limits or of the vigilance and re-
sponsibility of the driver.
System which permits automatic main-
taining of the vehicle speed at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is
switched on
manually: the vehicle speed must be
25 mph (40 km/h) minimum and sec-
ond gear must be engaged in the case
of a manual gearbox.
The cruise control is switched off man-
ually, by an action on the brake or clutch
pedal or if the ASC system is triggered.
The programmed speed can be ex-
ceeded temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.

7
DRIVING
When the cruise control is in
operation, pay attention if you
press and hold one of the pro-
grammed speed adjustment
buttons: this can result in a very
rapid change in the speed of
your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffi c.
On a steep descent, the cruise
control will not be able to pre-
vent the vehicle from exceeding
the programmed speed.
To prevent the mat from becom-
ing caught under the pedals:
- ensure that the mat is posi-tioned correctly,
- never fi t one mat on top of another.

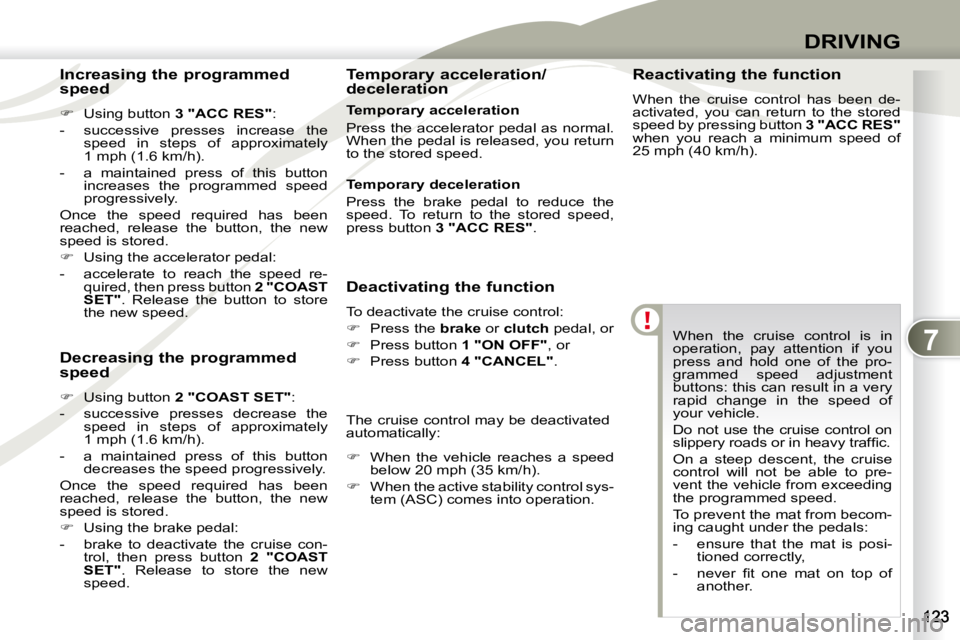

Deactivating the function
To deactivate the cruise control:

 Press the brake or clutch pedal, or

 Press button 1 "ON OFF" , or

 Press button 4 "CANCEL" .
The cruise control may be deactivated
automatically:

 When the vehicle reaches a speed
below 20 mph (35 km/h).

 When the active stability control sys-
tem (ASC) comes into operation. Reactivating the function
When the cruise control has been de-
activated, you can return to the stored
speed by pressing button
3 "ACC RES"
when you reach a minimum speed of
25 mph (40 km/h).
Decreasing the programmed
speed

 Using button 2 "COAST SET" :
- successive presses decrease the speed in steps of approximately
1 mph (1.6 km/h).
- a maintained press of this button decreases the speed progressively.
Once the speed required has been
reached, release the button, the new
speed is stored.

 Using the brake pedal:
- brake to deactivate the cruise con- trol, then press button 2 "COAST
SET" . Release to store the new
speed. Temporary acceleration/
deceleration
Increasing the programmed
speed

 Using button 3 "ACC RES" :
- successive presses increase the speed in steps of approximately
1 mph (1.6 km/h).
- a maintained press of this button increases the programmed speed
progressively.
Once the speed required has been
reached, release the button, the new
speed is stored.

 Using the accelerator pedal:
- accelerate to reach the speed re- quired, then press button 2 "COAST
SET" . Release the button to store
the new speed. Temporary acceleration
Press the accelerator pedal as normal.
When the pedal is released, you return
to the stored speed.
Temporary deceleration
Press the brake pedal to reduce the
speed. To return to the stored speed,
press button
3 "ACC RES" .

7
DRIVING

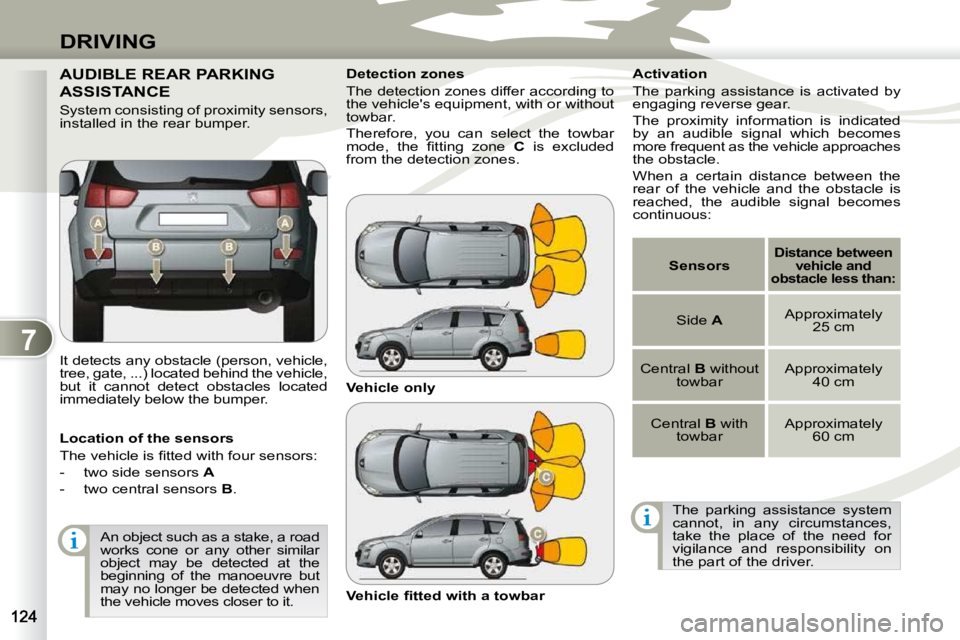

AUDIBLE REAR PARKING
ASSISTANCE
It detects any obstacle (person, vehicle,
tree, gate, ...) located behind the vehicle,
but it cannot detect obstacles located
immediately below the bumper. Activation
The parking assistance is activated by
engaging reverse gear.
The proximity information is indicated
by an audible signal which becomes
more frequent as the vehicle approaches
the obstacle.
When a certain distance between the
rear of the vehicle and the obstacle is
reached, the audible signal becomes
continuous:
An object such as a stake, a road
works cone or any other similar
object may be detected at the
beginning of the manoeuvre but
may no longer be detected when
the vehicle moves closer to it.
Location of the sensors
The vehicle is fi tted with four sensors:
- two side sensors
A
- two central sensors B . Vehicle only
Vehicle fi tted with a towbar
Detection zones
The detection zones differ according to
the vehicle's equipment, with or without
towbar.
Therefore, you can select the towbar
mode, the fi tting zone
C is excluded
from the detection zones.
The parking assistance system
cannot, in any circumstances,
take the place of the need for
vigilance and responsibility on
the part of the driver.

Sensors
Distance between
vehicle and
obstacle less than:

Side A Approximately
25 cm
Central B without
towbar Approximately
40 cm
Central B with
towbar Approximately
60 cm
System consisting of proximity sensors,
installed in the rear bumper.

7
DRIVING

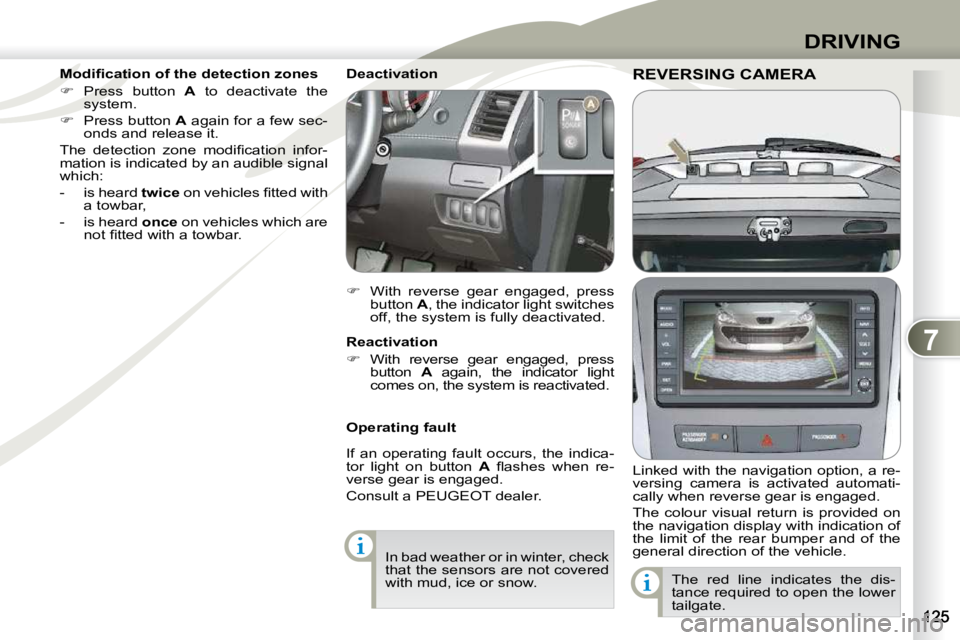

REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor light on button
A fl ashes when re-
verse gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation

 With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation

 With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
Modifi cation of the detection zones

 Press button A to deactivate the
system.

 Press button A again for a few sec-
onds and release it.
The detection zone modifi cation infor-
mation is indicated by an audible signal
which:
- is heard twice on vehicles fi tted with
a towbar,
- is heard once on vehicles which are
not fi tted with a towbar.
The red line indicates the dis-
tance required to open the lower
tailgate.

7
DRIVING
REVERSING CAMERAREVERSING CAMERA
Linked with the navigation option, a re-
versing camera is activated automati-
cally when reverse gear is engaged.
The colour visual return is provided on
the navigation display with indication of
the limit of the rear bumper and of the
general direction of the vehicle.
Operating fault
If an operating fault occurs, the indica-
tor light on button
A fl ashes when re-
verse gear is engaged.
Consult a PEUGEOT dealer.
In bad weather or in winter, check
that the sensors are not covered
with mud, ice or snow.
Deactivation

 With reverse gear engaged, press
button A , the indicator light switches
off, the system is fully deactivated.
Reactivation

 With reverse gear engaged, press
button A again, the indicator light
comes on, the system is reactivated.
Modifi cation of the detection zones

 Press button A to deactivate the
system.

 Press button A again for a few sec-
onds and release it.
The detection zone modifi cation infor-
mation is indicated by an audible signal
which:
- is heard twice on vehicles fi tted with
a towbar,
- is heard once on vehicles which are
not fi tted with a towbar.
The red line indicates the dis-
tance required to open the lower
tailgate.

8
CHECKS
Bonnet strut
OPENING THE BONNET
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.

From outside: move the catch to the
left then raise the bonnet. Secure the strut in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
strut in its clip.
This operation must only be carried out
when the vehicle is stationary.
When the engine is hot, handle the ex-
terior control and the bonnet strut with
care (risk of burns).

From inside: pull the handle A , on the
right-hand side below the door, towards
you. If you run out of fuel, fi ll the tank and op-
erate the starter until the engine starts.
Several attempts must be made before
the engine re-starts.
