2009.5 Peugeot 308 CC Dag Owner's Manual

4
!
69
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .

4
i
68
ACCESS
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the dash-
board to position 3 (Starting) .

 When the engine starts, release the
key.
Switching the vehicle off

 Immobilise the vehicle.

 Turn the key fully towards you to po-
sition 1 (Stop) .

 Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to
unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation

 Switch off the ignition.

 Turn the key to position 2 (Ignition) .

 Press the closed padlock immedi-
ately for a few seconds.

 Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its location.

 Slide the new battery into its loca-
tion observing the original direction.

 Clip the casing.

 Reinitialise the remote control.
This replacement battery is available
from PEUGEOT dealers.
If the battery is fl at, you are
informed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.
Key left in the "Ignition"
position
If the key has been left in the ig-
nition switch, the ignition will be
switched off automatically after
one hour.
To switch the ignition back on, turn
the key to position
1 (Stop) , then
back to position 2 (Ignition) .

4
!
i
70
ACCESS
ALARM
System which protects and dissuades
against the theft of your vehicle. It pro-
vides two types of protection, exterior
and interior, as well as an anti-tamper
function. Locking the vehicle with full
alarm
Do not make any modifi cations to
the alarm system, this could cause
malfunctions. Activation

 Switch off the ignition and get out of
the vehicle.

 Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
on button A fl ashes once per second.
The exterior protection is activated
5 seconds after the locking button on
the remote control is pressed.
The interior protection is activated
45 seconds after the locking button on
the remote control is pressed.
Exterior perimeter protection
The system detects opening of the vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation

 Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
lamp on button A switches off.
If an opening - door or boot - is
not closed correctly, the vehicle is
not locked, however the exterior
protection will be activated after
45 seconds at the same time as
the interior protection.

4
!
i
71
ACCESS

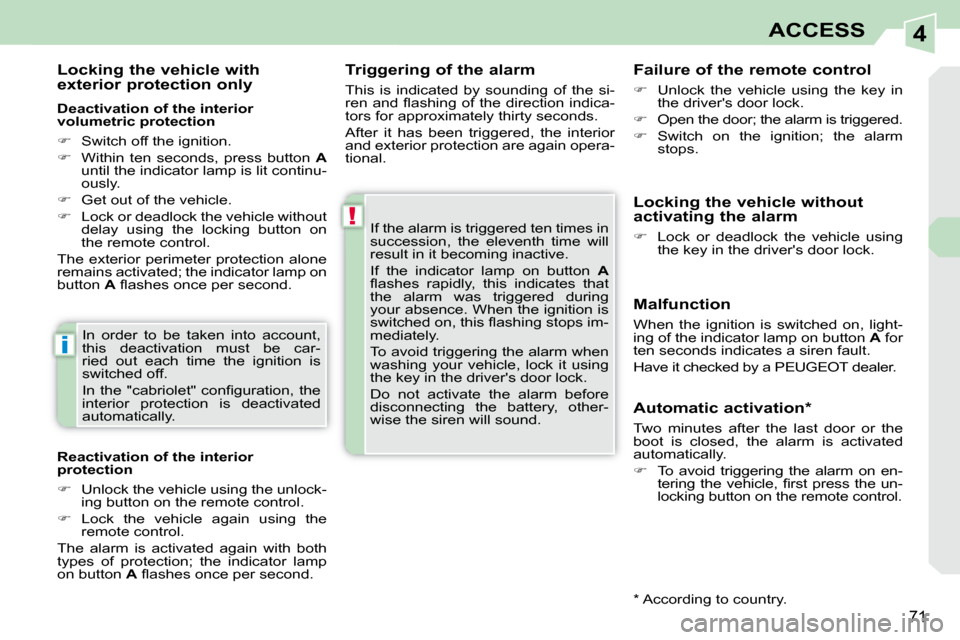

Triggering of the alarm
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for approximately thirty seconds.
After it has been triggered, the interior
and exterior protection are again opera-
tional. If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator lamp on button A
fl ashes rapidly, this indicates that
the alarm was triggered during
your absence. When the ignition is
switched on, this fl ashing stops im-
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
Do not activate the alarm before
disconnecting the battery, other-
wise the siren will sound. Failure of the remote control

 Unlock the vehicle using the key in
the driver's door lock.

 Open the door; the alarm is triggered.

 Switch on the ignition; the alarm
stops.
* According to country.
Malfunction
When the ignition is switched on, light-
ing of the indicator lamp on button
A for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
Locking the vehicle without
activating the alarm

 Lock or deadlock the vehicle using
the key in the driver's door lock.
Automatic activation *
Two minutes after the last door or the
boot is closed, the alarm is activated
automatically.

 To avoid triggering the alarm on en-
tering the vehicle, fi rst press the un-
locking button on the remote control.
In order to be taken into account,
this deactivation must be car-
ried out each time the ignition is
switched off.
In the "cabriolet" confi guration, the
interior protection is deactivated
automatically.
Reactivation of the interior
protection

 Unlock the vehicle using the unlock-
ing button on the remote control.

 Lock the vehicle again using the
remote control.
The alarm is activated again with both
types of protection; the indicator lamp
on button A fl ashes once per second.
Locking the vehicle with
exterior protection only
Deactivation of the interior
volumetric protection

 Switch off the ignition.

 Within ten seconds, press button A
until the indicator lamp is lit continu-
ously.

 Get out of the vehicle.

 Lock or deadlock the vehicle without
delay using the locking button on
the remote control.
The exterior perimeter protection alone
remains activated; the indicator lamp on
button A fl ashes once per second.

4
i
i
72
ACCESS
The rear windows do not have an
automatic mode or safety anti-
pinch function for closing.
Approximately 45 seconds after
removing the ignition key or open-
ing a door none of the windows can
be opened or closed. The ignition
must be switched back on in order
to open or close the windows.
ELECTRIC WINDOW CONTROLS
Fitted with an anti-pinch system on the
front windows and a system which con-
trols all four windows on all models.

1. Driver's electric window switch.

2. Passenger's electric window
switch.

3. Rear right electric window
switch.

4. Rear left electric window switch.

5. Deactivation of the rear electric
window switches. If the window opens unintentionally
when closing is requested (for ex-
ample, in the presence of ice):

 press the switch until the win-
dow opens completely,

 then pull the switch immediately
until the window closes,

 continue to pull the switch for
approximately three seconds
after the window has closed.

The safety
anti
-
pinch
function is
not active during these opera-
tions.
Front windows safety anti-pinch
In automatic mode, when the front win-
dow rises and meets and obstacle it
stops and partially lowers again.
- automatic mode

 Press or pull switch 1 fully. The win-
dow opens or closes completely
when the switch is released.

 Pressing the switch again stops the
movement of the window.
One-touch electric windows
You have two options:
-
manual mode

 Press or pull switch 1 gently. The
window stops as soon as the switch
is released.
Deactivation of the rear electric
window controls

 For the safety of your children, press
switch 5 to deactivate the rear elec-
tric window switches regardless of
their position.
When the indicator lamp is on, the rear
switches are deactivated.
When the indicator lamp is off, the rear
switches are activated.

4
!
i
i
73
ACCESS

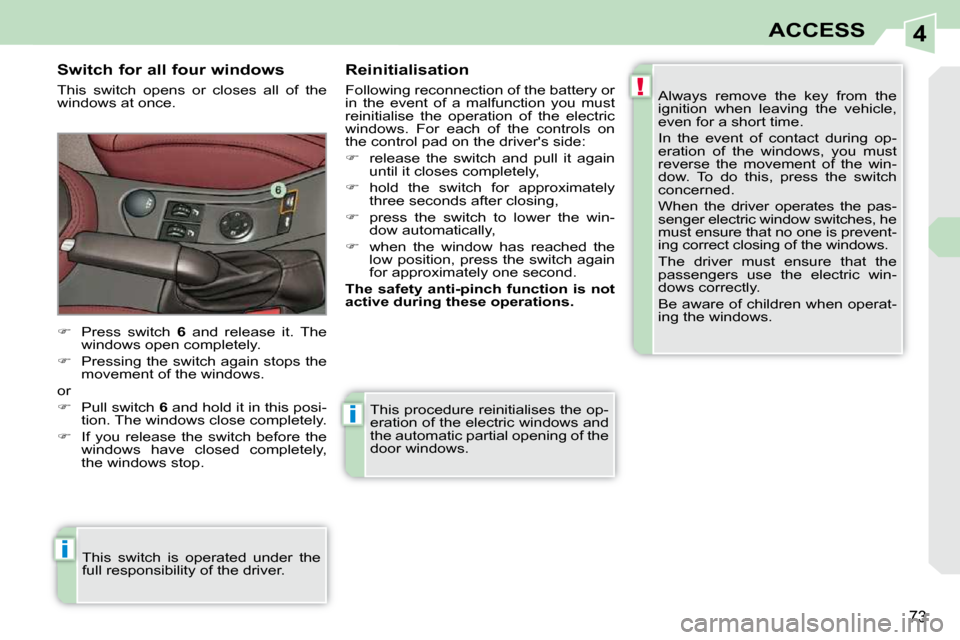

This procedure reinitialises the op-
eration of the electric windows and
the automatic partial opening of the
door windows.
Switch for all four windows
This switch opens or closes all of the
windows at once.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows. For each of the controls on
the control pad on the driver's side:

 release the switch and pull it again
until it closes completely,

 hold the switch for approximately
three seconds after closing,

 press the switch to lower the win-
dow automatically,

 when the window has reached the
low position, press the switch again
for approximately one second.

The safety anti-pinch function is not
active during these operations.

 Press switch 6 and release it. The
windows open completely.

 Pressing the switch again stops the
movement of the windows.
or

 Pull switch 6 and hold it in this posi-
tion. The windows close completely.

 If you release the switch before the
windows have closed completely,
the windows stop.
This switch is operated under the
full responsibility of the driver.

4
!
i
i
i
i

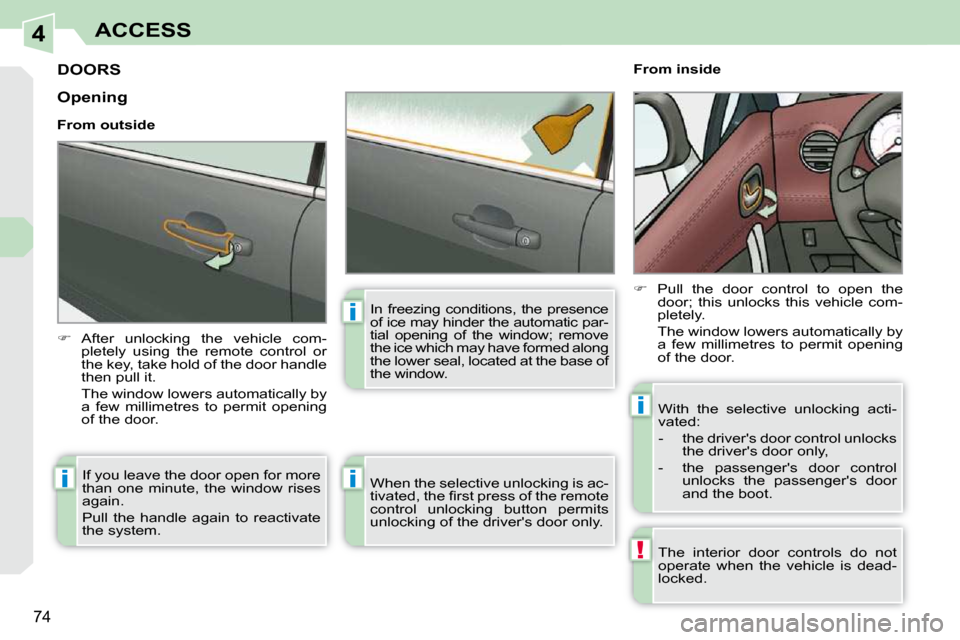

74
ACCESS
DOORS

 After unlocking the vehicle com-
pletely using the remote control or
the key, take hold of the door handle
then pull it.
The window lowers automatically by a few millimetres to permit opening
of the door. From inside

 Pull the door control to open the
door; this unlocks this vehicle com-
pletely.
The window lowers automatically by a few millimetres to permit opening
of the door.
The interior door controls do not
operate when the vehicle is dead-
locked.
If you leave the door open for more
than one minute, the window rises
again.
Pull the handle again to reactivate
the system.
Opening
From outside
When the selective unlocking is ac-
tivated, the fi rst press of the remote
control unlocking button permits
unlocking of the driver's door only. With the selective unlocking acti-
vated:
- the driver's door control unlocks
the driver's door only,
- the passenger's door control unlocks the passenger's door
and the boot.
In freezing conditions, the presence
of ice may hinder the automatic par-
tial opening of the window; remove
the ice which may have formed along
the lower seal, located at the base of
the window.

4
i
i
!
!
75
ACCESS
If the vehicle is locked or dead-
locked from the outside, the red in-
dicator lamp fl ashes and button A
is inactive.

 In this case, use the remote
control or the key to unlock the
vehicle.
Manual centralised control
System which provides full manual lock-
ing or unlocking of the doors and boot
from the inside.
Locking

 Press button A to lock the vehicle.
The red indicator lamp on the button
comes on.
If one of the doors or the boot is
open, the central locking from the
inside does not take place. Unlocking

 Press button A again to unlock the
vehicle.

The red indicator lamp on the button switches off.
The glove box and the front arm-
rest compartment are not locked so
that they remain accessible.
Closing
The window rises automatically after a
few seconds and adjusts to provide per-
fect sealing when closed.
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-

when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
When washing your vehicle:
- fi rst lock the vehicle using the remote control or the key,
- avoid spraying the upper part of the windows,
- keep the end of the high pres- sure nozzle at least 1 metre
from the windows and door
seals.
When a door is not closed correctly:
