2009.5 Peugeot 308 CC Dag Owner's Manual

193
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
2
3
4
5
6
7
8
9
MEDIA
Select "Jukebox management" then "Add fi les" and press OK at each step to confi rm.
Press the MEDIA button. Press the MEDIA button again or select "Media" Menu and press OK to confi rm.
Insert an audio/MP3 CD, a USB stick or an SD card.

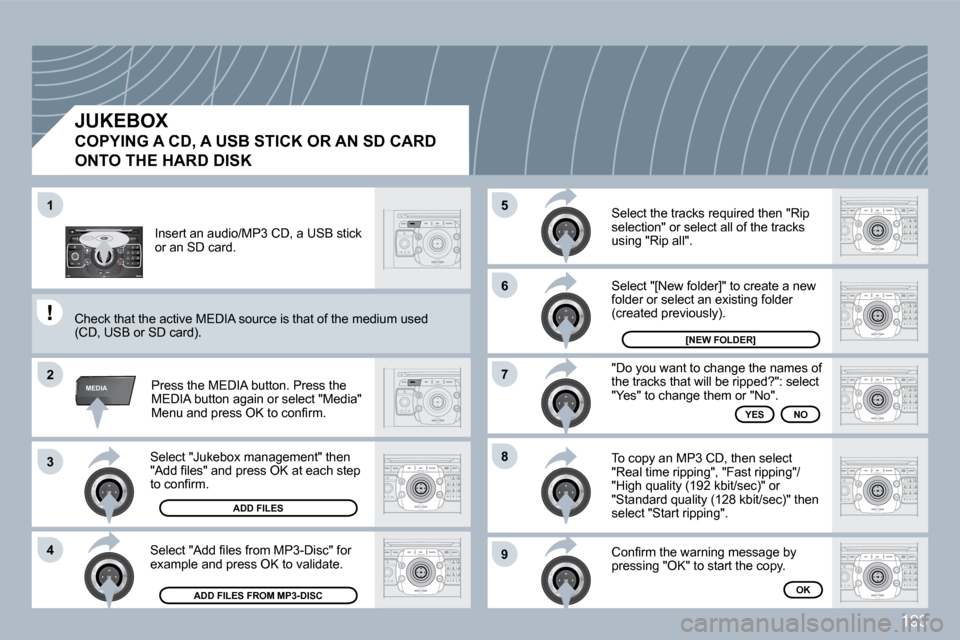

JUKEBOX
COPYING A CD, A USB STICK OR AN SD CARD
ONTO THE HARD DISK
ADD FILES
Check that the active MEDIA source is that of the
mediu medium used (CD, USB or SD card).
Select "Add fi les from MP3-Disc" for example and press OK to validate.
Select the tracks required then "Rip selection" or select all of the tracks using "Rip all".
Select "[New folder]" to create a new folder or select an existing folder (created previously).
ADD FILES FROM MP3-DISC
[NEW FOLDER]
"Do you want to change the names of the tracks that will be ripped?": select "Yes" to change them or "No".
To copy an MP3 CD, then select "Real time ripping", "Fast ripping"/"High quality (192 kbit/sec)" or "Standard quality (128 kbit/sec)" then select "Start ripping".
Confi rm the warning message by pressing "OK" to start the copy.
OK
YESNO

194
33
22
MEDIA
33
44
55
22
MEDIA111 Press the MEDIA button. Press the MEDIA button again or select "Media" Menu and press OK to confi rm.
Select "Jukebox management" and press OK to confi rm.
Select "Play options" and press OK to confi rm. Select "Folders & Files" or "Playlists" then press OK to confi rm.
Press the ESC button to return to the fi rst fi le level. Playlists can be created in the Jukebox. "Media" Menu> Jukebox management> Create new playl ist. Add the tracks required one by one then save the change. The "Playlists" play mode must then be selected.

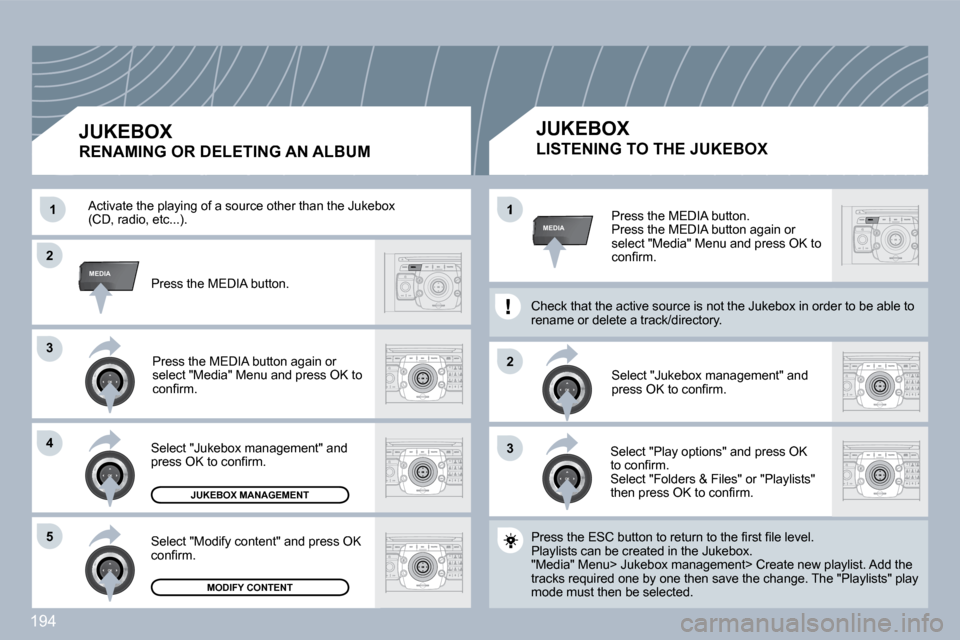

JUKEBOX
LISTENING TO THE JUKEBOX
JUKEBOX MANAGEMENT
MODIFY CONTENT
Press the MEDIA button.
Press the MEDIA button again or select "Media" Menu and press OK to confi rm.
Select "Jukebox management" and press OK to confi rm.
Select "Modify content" and press OK confi rm.
JUKEBOX
RENAMING OR DELETING AN ALBUM
Activate the playing of a source other than the Jukebox(CD, radio, etc...).
Check that the active source is not the Jukebox in order to be able to Check that the active source is not the Jukebox in order to be able to rename or delete a track/directory.

195
07
1
2
CHOOSING BETWEEN THE BLUETOOTH
TELEPHONE/INTERNAL TELEPHONE
To activate the Bluetooth telephone or the internal telephone, press PICK UP TEL.
MAKING A TELEPHONE CALL
Select "Phone" menu, then "Select phone" then choose between "Telephone off", "Use Bluetooth phone" or "Use internal phone". Press OK at each step to confi rm.
The system can only be connected to one Bluetooth teleth telephone and one SIM card (Internal telephone) at the same time. In this case, the phone book is synchronised with the Blthe Bluetooth telephone.

196
07
1
3
5
4
2
1
The services available via the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telephone's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.

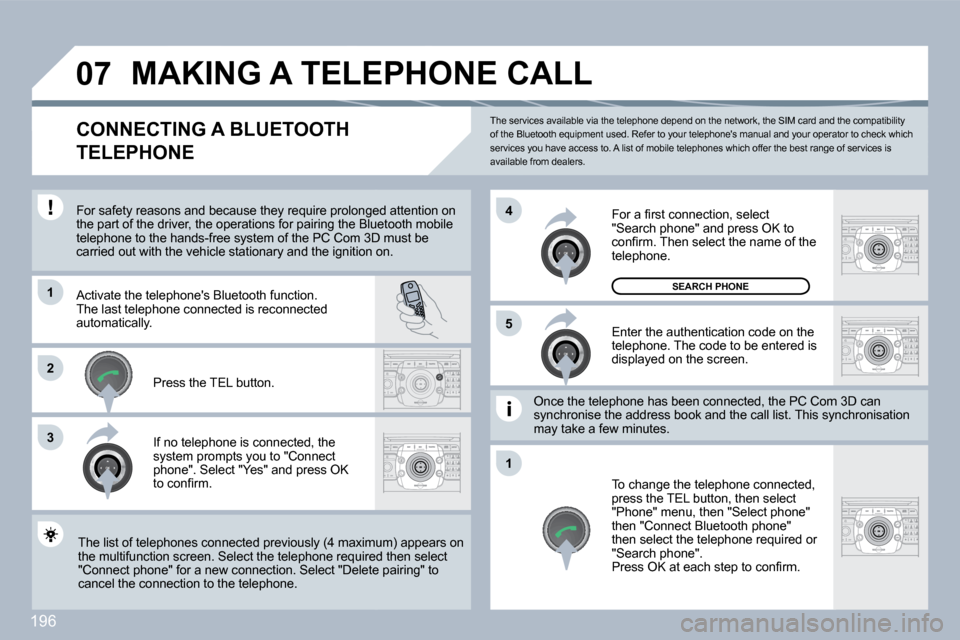

MAKING A TELEPHONE CALL
CONNECTING A BLUETOOTH
TELEPHONE
For safety reasons and because they require prolon gedonged attention on the part of the driver, the operations for pairing the Blue Bluetooth mobile telephone to the hands-free system of the PC Com 3D m 3D must be carried out with the vehicle stationary and the ignition onition on.
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
If no telephone is connected, the system prompts you to "Connect phone". Select "Yes" and press OK to confi rm.
Enter the authentication code on the telephone. The code to be entered is displayed on the screen.
To change the telephone connected, press the TEL button, then select "Phone" menu, then "Select phone" then "Connect Bluetooth phone" then select the telephone required or "Search phone". Press OK at each step to confi rm.
Once the telephone has been connected, the PC Com 3Com 3D can synchronise the address book and the call list. This syncis synchronisation may take a few minutes.
The list of telephones connected previously (4 max imum) appears on The list of telephones connected previously (4 maximum) appears on the multifunction screen. Select the telephone required uired then select "Connect phone" for a new connection. Select "Delet e pelete pairing" to cancel the connection to the telephone.
Press the TEL button.
For a fi rst connection, select "Search phone" and press OK to confi rm. Then select the name of the telephone.
SEARCH PHONE

197
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
07
1
22
33
11
22
Extract the holder by pressing the eject button.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
For safety reasons and because they require prolon
ged attention on the part of the driver, the SIM card installation operations must be carried out when stationary.
Enter the PIN code on the keypad then select OK and confi rm.
The system asks "Do you want to switch to the internal phone?", select "Yes" if you wish to use your SIM card for your personal calls. Otherwise, only the emergency call and the services will use the SIM card.
REMEMBER PIN
When entering your PIN code, tick the "Remember PI N" tab to allow use of the telephone without having to enter this code when it is used subsequently.

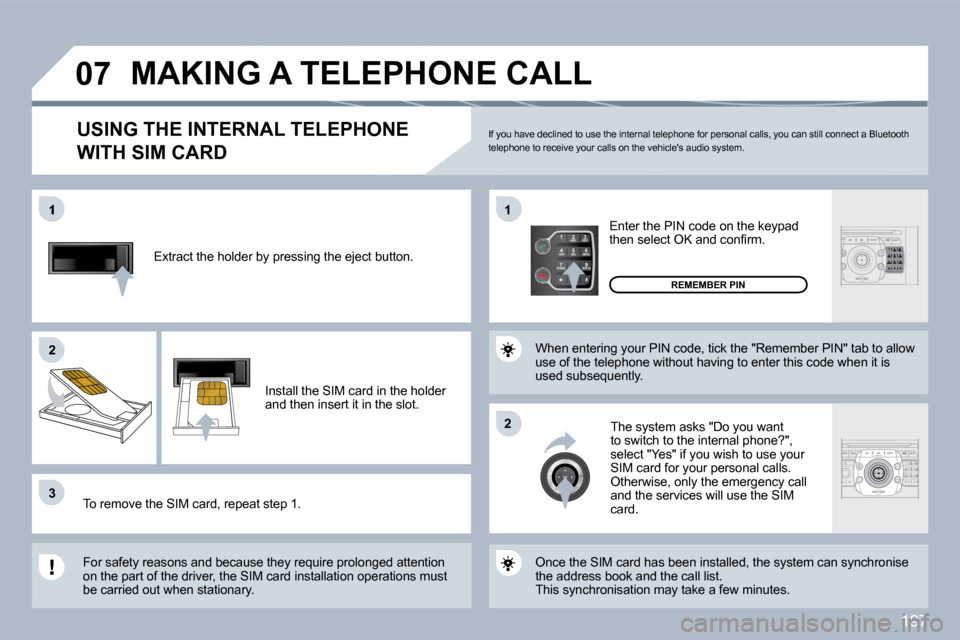

USING THE INTERNAL TELEPHONE
WITH SIM CARD
MAKING A TELEPHONE CALL
Once the SIM card has been installed, the system c an synchronise the address book and the call list. This synchronisation may take a few minutes.
If you have declined to use the internal telephone for personal calls, you can still connect a Bluet ooth telephone to receive your calls on the vehicle's au dio system.

198
3
11
2
3
2
Press the end of the steering wheel control to accept the call or end the call in progress.
Select the "Yes" tab to accept or "No" to refuse and confi rm by pressing OK.

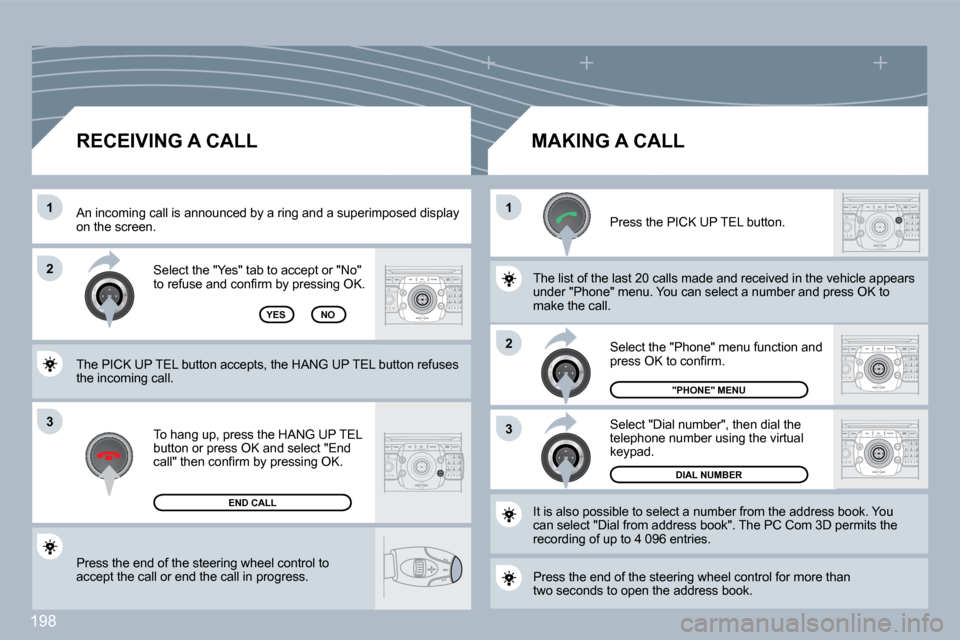

RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a superimpperimposed display on the screen.
YES
To hang up, press the HANG UP TEL button or press OK and select "End call" then confi rm by pressing OK.
END CALL
Press the PICK UP TEL button.
Press the end of the steering wheel control for more thare than two seconds to open the address book.
It is also possible to select a number from the address bress book. You can select "Dial from address book". The PC Com 3D p 3D permits the recording of up to 4 096 entries.
Select "Dial number", then dial the telephone number using the virtual keypad.
Select the "Phone" menu function and press OK to confi rm.
DIAL NUMBER
"PHONE" MENU
The list of the last 20 calls made and received in the vehhe vehicle appears under "Phone" menu. You can select a number and pre sd press OK to make the call. NO
The PICK UP TEL button accepts, the HANG UP TEL bu tton refuses the incoming call.

199
5
6
SETUP1
2
3
4
08CONFIGURATION
SETTING THE DATE AND TIME
Set the parameters using the ring and move on to the next by moving the 4-direction navigator. Press OK to confi rm.
Select the "Date format" function and press OK to confi rm. Select the format required using the ring and press OK to confi rm.
Select the "Set date & time" function and press OK to confi rm.
Pressing the SETUP button for more than 2 seconds peds permitsaccess to:
This setting operation must be carried out if the battery httery has been disconnected.
Press the SETUP button.
Select the "Time format" function and press OK to confi rm.
Select the format required using the ring and press OK to confi rm.
SET DATE & TIME
Select the "Date & Time" function and press OK to confi rm.
DESCRIPTION OF THE UNIT
GPS COVERAGE
DEMO MODE
DATE & TIME
Principle of the GPS synchro (GMT): 1. Confi rm the "Synchronise with GPS" selection, the time is then set to GMT universal time, the date is also updated. 2. Using the 4-direction navigator, move to the time fi elds and press OK. 3. You can then use the ring to set the time to the time zone of your choice. Take care when changing between summer/winter time, the time zone must be changed again manually.
This function provides access to the options in the SETUP menu.

200
09
Audio CD: selection of the previous track. If "MEDIA" is displayed on the screen: MP3 CD/SD CARD/JUKEBOX: selection of the previous directory. Selection of the previous entry in the address book.
RADIO: selection of the next stored station. Audio CD: selection of the next track. If "MEDIA" is displayed on the screen: MP3 CD/CARD/JUKEBOX: selection of the next directory. Selection of the next entry in the address book.
RADIO: automatic search for a higher frequency. CD/SD CARD/JUKEBOX: selection of the next track. CD/SD CARD/JUKEBOX: continuous press: fast forward play.
RADIO: automatic search for a lower frequency. CD/SD CARD/JUKEBOX: selection of the previous track. CD/SD CARD/JUKEBOX: continuous press: fast backwar d play.
- Change the sound source. - Make a call from the address book. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the address book.
Volume increase.
Volume decrease.
STEERING WHEEL CONTROLS
Mute: by pressing the volume increase and decrease buttons simultaneously.
Restore the sound: by pressing one of the two volume buttons.
VOICE COMMANDS AND STEERING WHEEL CONTROLS
Wipers stalk: displaying of "RADIO" and "MEDIA". Lighting stalk: activation of the voice command by means of a short press; indication of the current navigation instruction by means of a long press.
