2009.5 Peugeot 308 CC Dag Owner's Manual

3
i
51
COMFORT
The control button is located
on the heating or air condition-
ing system control panel.
REAR SCREEN DEMIST/DEFROST

 Switch off the demist/defrost
of the rear screen and exterior
mirrors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the demist/defrost is switched off
automatically, demist/defrost will
resume next time the engine is
switched on.
The demist/defrost is deactivated
when the retractable roof is stored
in the boot.
Switching on
The rear screen demist/defrost can only
operate when the engine is running.
Switching off
The demist/defrost switches off auto-
matically to prevent an excessive con-
sumption of current.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de- misting in winter, above 3 °C.
Switching off

 Press the "A/C" button again, the
associated green indicator lamp
switches off.
 Press this button to demist/defrost
the rear screen and the exterior mir-
rors. The indicator lamp associated
with the button comes on.

 It is possible to stop the demist/de-
frost operation before it is switched
off automatically by pressing the
button again. The indicator lamp as-
sociated with the button switches
off.
Switching on

 Press the "A/C" button, the asso-
ciated green indicator lamp comes
on.

The air conditioning does not op-
erate when the air fl ow adjustment
control 2 is in position "0".
FRONT DEMIST - DEFROST
These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.
With the manual air
conditioning system

 Put the temperature and air fl ow
controls to the dedicated marked
position.

 Put the air intake control to the
"Exterior air intake" position
(indicator lamp on the control off).

 Put the air distribution control to the
"Windscreen" position.

 Switch on the air conditioning by
pressing the "A/C" button; the as-
sociated green warning lamp comes
on.

3
i
51
COMFORT
The control button is located
on the heating or air condition-
ing system control panel.
REAR SCREEN DEMIST/DEFROST

 Switch off the demist/defrost
of the rear screen and exterior
mirrors as soon as you consider
this necessary as lower current
consumption results in reduced
fuel consumption.
If the engine is switched off before
the demist/defrost is switched off
automatically, demist/defrost will
resume next time the engine is
switched on.
The demist/defrost is deactivated
when the retractable roof is stored
in the boot.
Switching on
The rear screen demist/defrost can only
operate when the engine is running.
Switching off
The demist/defrost switches off auto-
matically to prevent an excessive con-
sumption of current.
5. Air conditioning On/Off
The air conditioning is de-
signed to operate effectively in
all seasons, with the windows
closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the de- misting in winter, above 3 °C.
Switching off

 Press the "A/C" button again, the
associated green indicator lamp
switches off.
 Press this button to demist/defrost
the rear screen and the exterior mir-
rors. The indicator lamp associated
with the button comes on.

 It is possible to stop the demist/de-
frost operation before it is switched
off automatically by pressing the
button again. The indicator lamp as-
sociated with the button switches
off.
Switching on

 Press the "A/C" button, the asso-
ciated green indicator lamp comes
on.

The air conditioning does not op-
erate when the air fl ow adjustment
control 2 is in position "0".
FRONT DEMIST - DEFROST
These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.
With the manual air
conditioning system

 Put the temperature and air fl ow
controls to the dedicated marked
position.

 Put the air intake control to the
"Exterior air intake" position
(indicator lamp on the control off).

 Put the air distribution control to the
"Windscreen" position.

 Switch on the air conditioning by
pressing the "A/C" button; the as-
sociated green warning lamp comes
on.

3
ii
52
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the val-
ue displayed in order to obtain the
comfort required. The system cor-
rects the difference in temperature
automatically and as quickly as
possible.
The air conditioning only operates when
the engine is running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.

 Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3. 4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice, etc.).

 In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation

 Press the "AUTO" button.
The indicator lamp on the
button comes on. 2. Driver's side adjustment
DUAL-ZONE AUTOMATIC AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with automatic
adaptation in the "cabriolet" confi gura-
tion. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.

 To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator lamp on the
button switches off and the indicator
lamp on the "AUTO" button comes
on.
1. Automatic comfort programme
3. Passenger side adjustment

3
!
i
53
COMFORT
Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.

 Pressing the "AUTO" button returns
the system to completely automatic
operation.

 Press this button to switch
off the air conditioning. 6. Air distribution adjustment

 Press one or more but-
tons to direct the air fl ow
towards:
7. Air fl ow adjustment
 Turn this control to the left
to decrease the air fl ow or
to the right to increase the
air fl ow.
8. Air intake/Air recirculation Switching the system off

 Turn the air fl ow control to the left
until all of the indicator lamps switch
off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no long-
er guaranteed but a slight fl ow of air,
due to the movement of the vehicle, can
still be felt.

 Turn the air fl ow dial to the right or
press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.

 Press this button for recir-
culation of the interior air.
The indicator lamp on the
button comes on.
5. Air conditioning On/Off
Avoid prolonged operation in inte-
rior air recirculation mode or driving
for long periods with the system off
(risk of condensation and of dete-
rioration of the air quality).
- the windscreen and side windows
(demisting or defrosting),
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
The air fl ow indicator lamps, between
the two fans, come on progressively in
relation to the value requested.
 As soon as possible, press this but-
ton again to permit the intake of out-
side air and prevent the formation
of condensation. The indicator lamp
on the button switches off.
For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.

 Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed. 9. Mono-zone/Dual-zone

 Press this button to equal-
ise the comfort value on the
passenger side with that
on the driver's side (mono-
zone). The indicator lamp
on the button comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).

 Press this button again to return to
automatic operation of the air con-
ditioning. The indicator lamp on the

"A/C" button comes on.

3
54
COMFORT

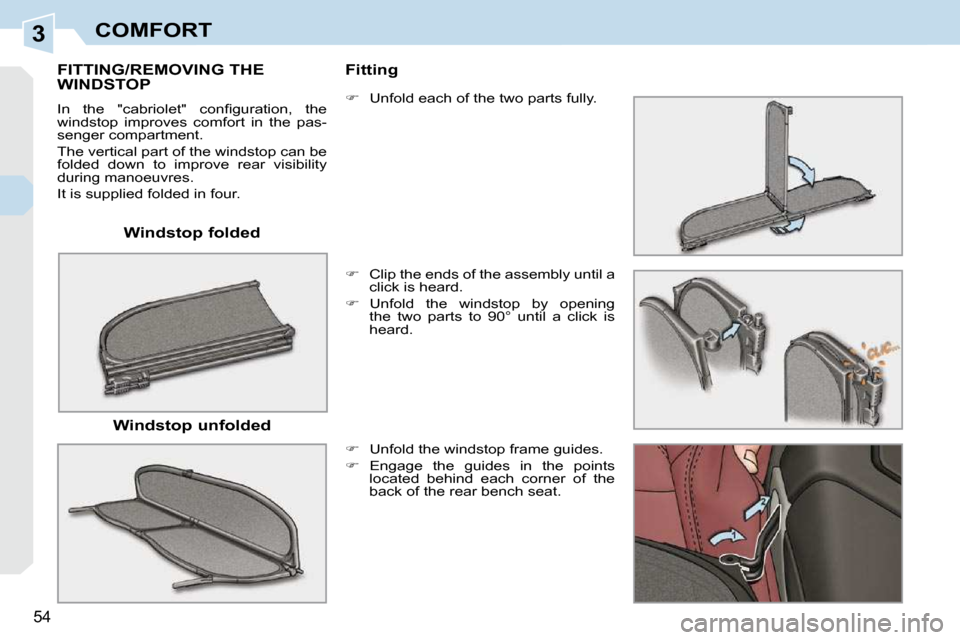

Windstop folded
FITTING/REMOVING THE WINDSTOP
In the "cabriolet" confi guration, the
windstop improves comfort in the pas-
senger compartment.
The vertical part of the windstop can be
folded down to improve rear visibility
during manoeuvres.
It is supplied folded in four. Windstop unfolded Fitting

 Clip the ends of the assembly until a
click is heard.

 Unfold the windstop by opening
the two parts to 90° until a click is
heard.

 Unfold the windstop frame guides.

 Engage the guides in the points
located behind each corner of the
back of the rear bench seat.

 Unfold each of the two parts fully.

3
i
55
COMFORT

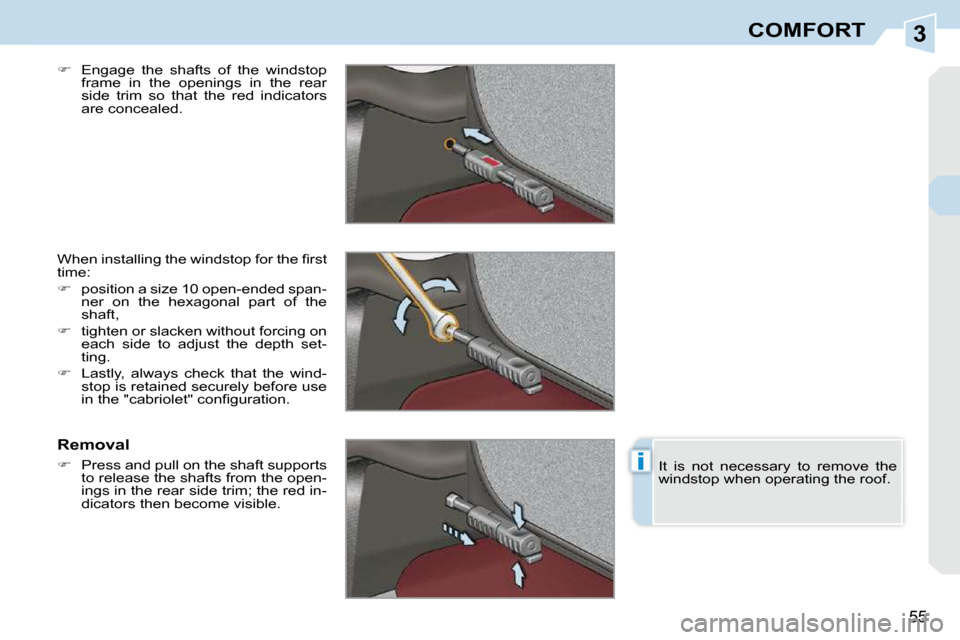

 Engage the shafts of the windstop
frame in the openings in the rear
side trim so that the red indicators
are concealed.
When installing the windstop for the fi rst
time:

 position a size 10 open-ended span-
ner on the hexagonal part of the
shaft,

 tighten or slacken without forcing on
each side to adjust the depth set-
ting.

 Lastly, always check that the wind-
stop is retained securely before use
in the "cabriolet" confi guration.
Removal

 Press and pull on the shaft supports
to release the shafts from the open-
ings in the rear side trim; the red in-
dicators then become visible. It is not necessary to remove the
windstop when operating the roof.

3COMFORT

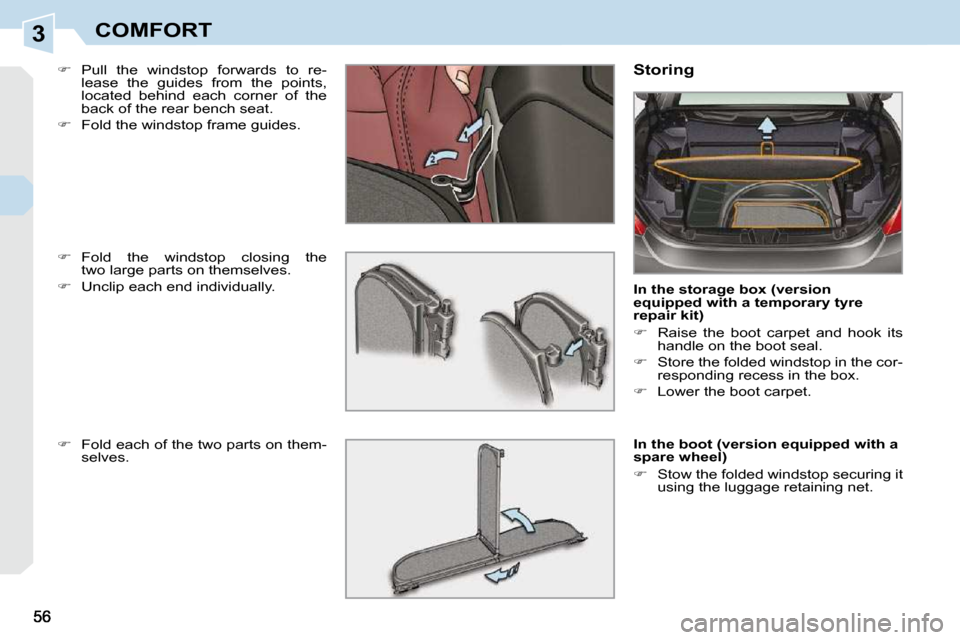

 Pull the windstop forwards to re-
lease the guides from the points,
located behind each corner of the
back of the rear bench seat.

 Fold the windstop frame guides. Storing
In the storage box (version
equipped with a temporary tyre
repair kit)

 Raise the boot carpet and hook its
handle on the boot seal.

 Store the folded windstop in the cor-
responding recess in the box.

 Lower the boot carpet.
In the boot (version equipped with a
spare wheel)

 Stow the folded windstop securing it
using the luggage retaining net.

 Fold the windstop closing the
two large parts on themselves.

 Unclip each end individually.

 Fold each of the two parts on them-
selves.

3
57
COMFORT

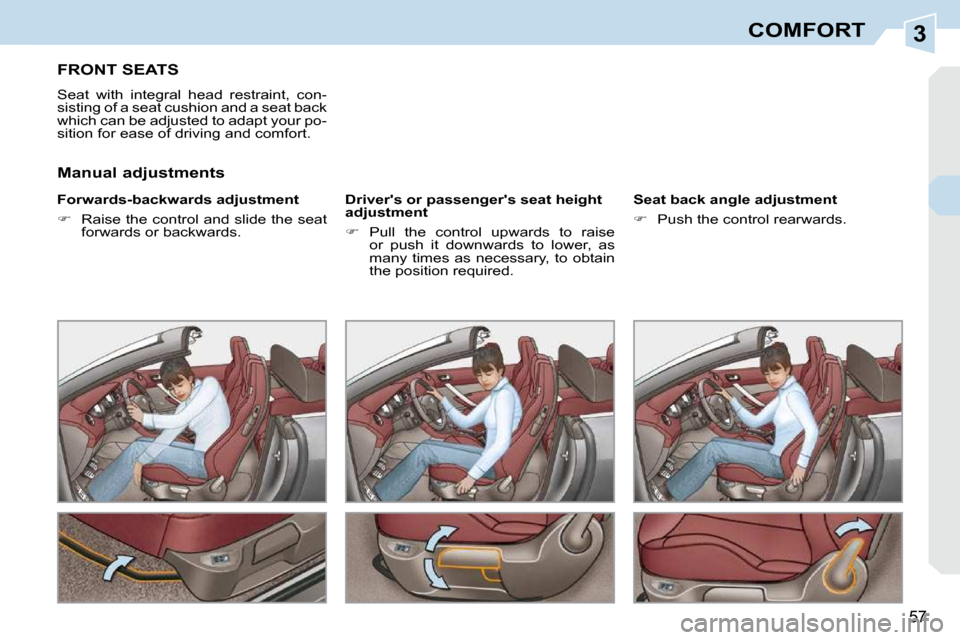

FRONT SEATS
Seat with integral head restraint, con-
sisting of a seat cushion and a seat back
which can be adjusted to adapt your po-
sition for ease of driving and comfort.
Forwards-backwards adjustment

 Raise the control and slide the seat
forwards or backwards. Driver's or passenger's seat height
adjustment

 Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required. Seat back angle adjustment

 Push the control rearwards.
Manual adjustments
