2009.5 Peugeot 308 CC Dag Owner's Manual

6

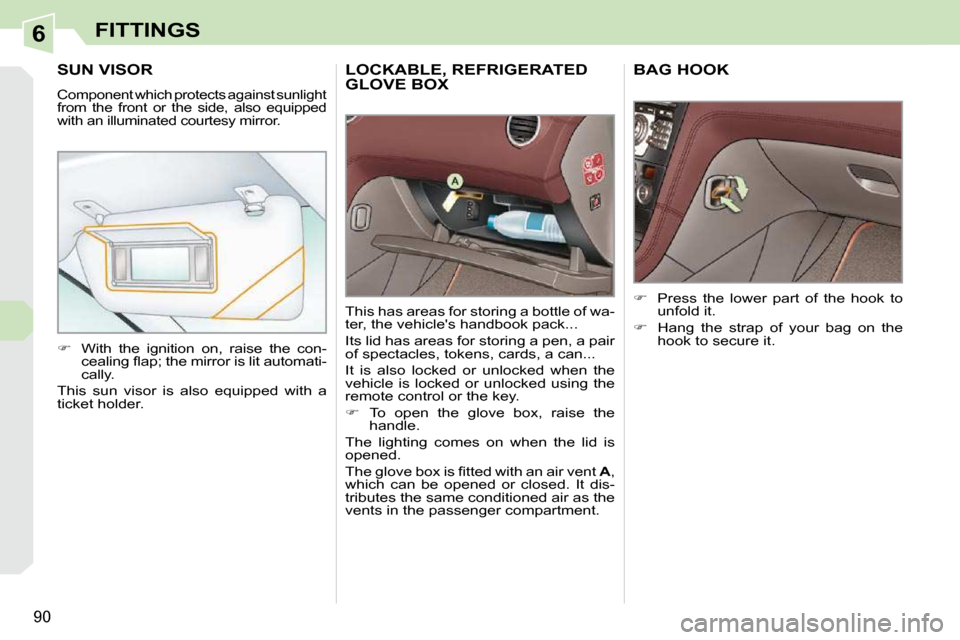

90
FITTINGS
LOCKABLE, REFRIGERATED GLOVE BOX
This has areas for storing a bottle of wa-
ter, the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.

 To open the glove box, raise the
handle.
The lighting comes on when the lid is
opened.
The glove box is fi tted with an air vent A ,
which can be opened or closed. It dis-
tributes the same conditioned air as the
vents in the passenger compartment.
SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.


 With the ignition on, raise the con-
cealing fl ap; the mirror is lit automati-
cally.
This sun visor is also equipped with a
ticket holder.
BAG HOOK

 Press the lower part of the hook to
unfold it.

 Hang the strap of your bag on the
hook to secure it.

6
91
FITTINGS
LOCKABLE FRONT ARMREST
Comfort and storage device for the dri-
ver and front passenger.
The height and longitudinal position
of the armrest lid can be adjusted for
greater comfort.
Its compartment is also locked or un-
locked when the vehicle is locked or un-
locked using the remote control or the
key. Storage
It can hold up to 6 CDs.

 Raise the lever 1 .

 Raise the lid fully.

 Slide the lid fully forwards or rear-
wards.

 Raise the lid to the required position
(low, intermediate or high).

 If you raise the lid slightly beyond
the high position, guide it when low-
ering it to the low position. Longitudinal adjustment
Height adjustment
USB PLUG - READER
This connection box, consisting of a
USB port, is located in the front arm-
rest.
It permits the connection of portable
equipment, such as an iPod ®
digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For more information on the use of
this equipment, refer to the part of the
"Audio and Telematics" section which
corresponds to your audio equipment.

6
!

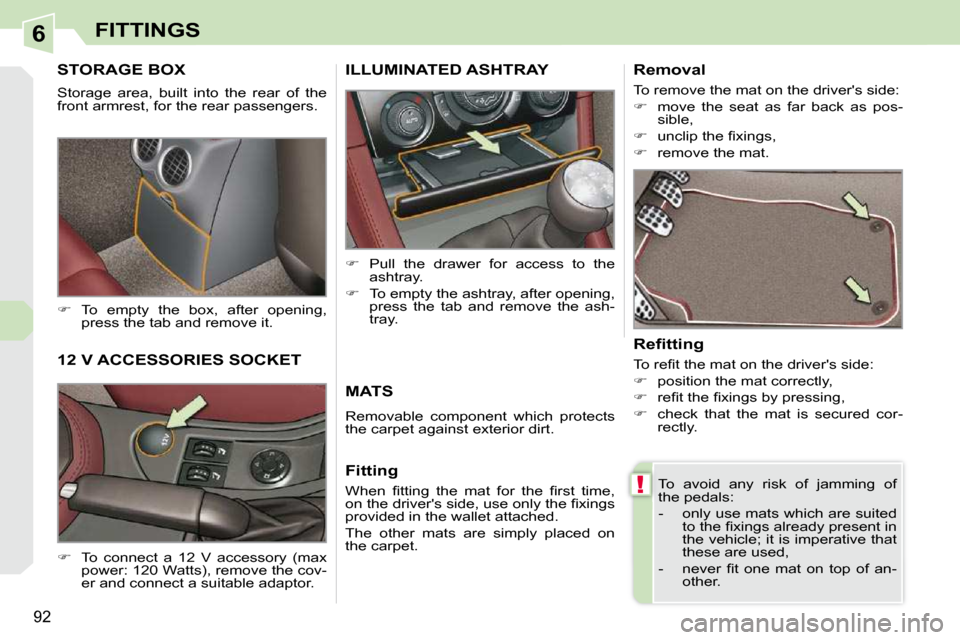

92
FITTINGS
STORAGE BOX
Storage area, built into the rear of the
front armrest, for the rear passengers.

 To empty the box, after opening,
press the tab and remove it.
To avoid any risk of jamming of
the pedals:
- only use mats which are suited to the fi xings already present in
the vehicle; it is imperative that
these are used,
- never fi t one mat on top of an- other.
MATS
Removable component which protects
the carpet against exterior dirt. Refitting
To refi t the mat on the driver's side:

 position the mat correctly,

 refi t the fi xings by pressing,

 check that the mat is secured cor-
rectly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side, use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet. Removal
To remove the mat on the driver's side:

 move the seat as far back as pos-
sible,

 unclip the fi xings,

 remove the mat.
12 V ACCESSORIES SOCKET

 To connect a 12 V accessory (max
power: 120 Watts), remove the cov-
er and connect a suitable adaptor.
ILLUMINATED ASHTRAY

 Pull the drawer for access to the
ashtray.

 To empty the ashtray, after opening,
press the tab and remove the ash-
tray.

6

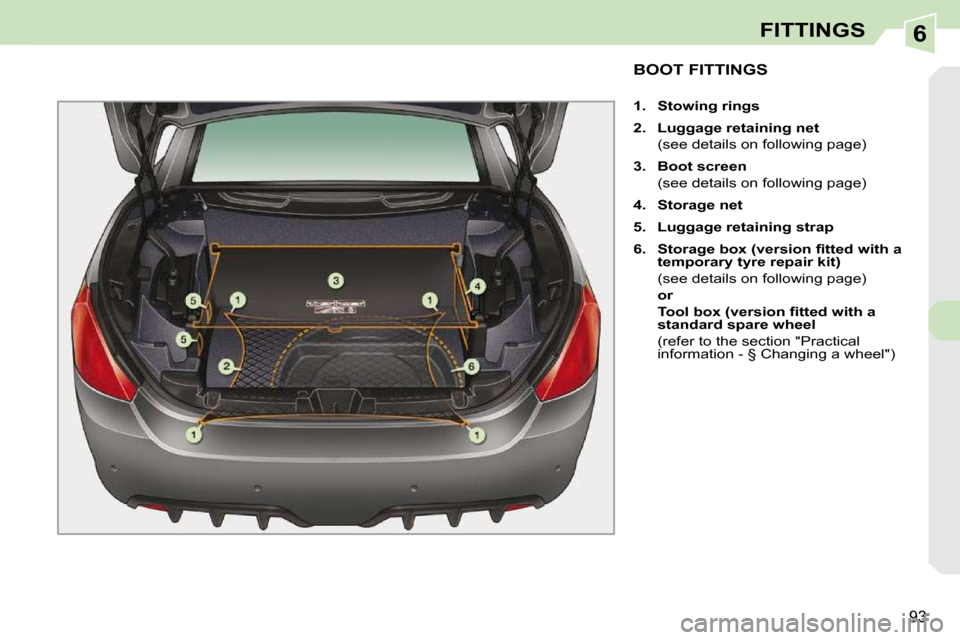

93
FITTINGS
BOOT FITTINGS

1. Stowing rings

2. Luggage retaining net
(see details on following page)

3. Boot screen
(see details on following page)

4. Storage net

5. Luggage retaining strap

6. Storage box (version fi tted with a
temporary tyre repair kit)
(see details on following page)
or
Tool box (version fi tted with a

standard
spare wheel
(refer to the section "Practical information - § Changing a wheel")

6
i

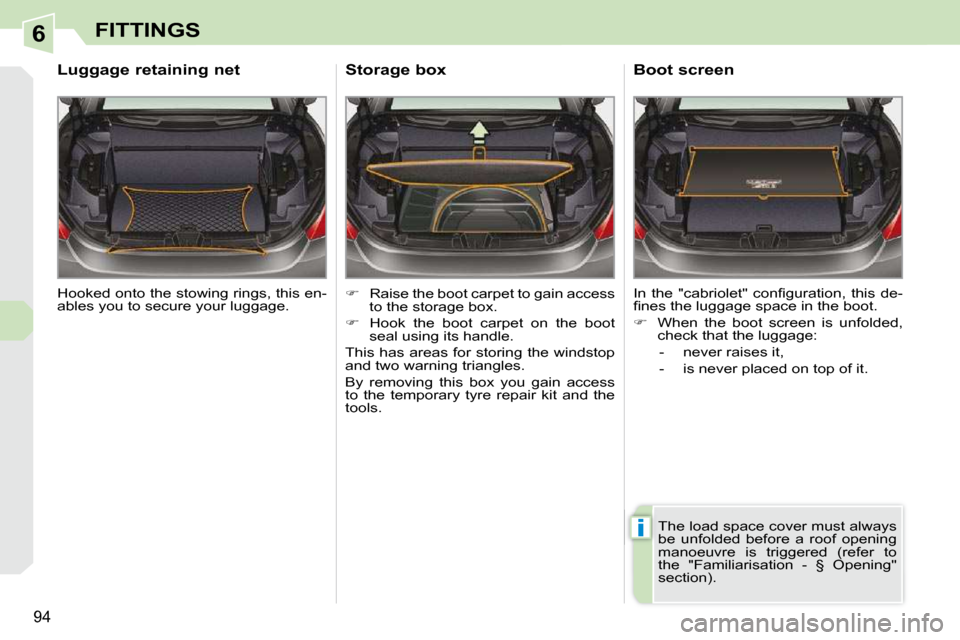

94
FITTINGS
Hooked onto the stowing rings, this en-
ables you to secure your luggage.
Luggage retaining net

 Raise the boot carpet to gain access
to the storage box.

 Hook the boot carpet on the boot
seal using its handle.
This has areas for storing the windstop
and two warning triangles.
By removing this box you gain access
to the temporary tyre repair kit and the
tools.
Storage box Boot screen
In the "cabriolet" confi guration, this de-
fi nes the luggage space in the boot.

 When the boot screen is unfolded,
check that the luggage:
- never raises it,
- is never placed on top of it.
The load space cover must always
be unfolded before a roof opening
manoeuvre is triggered (refer to
the "Familiarisation - § Opening"
section).

7
i

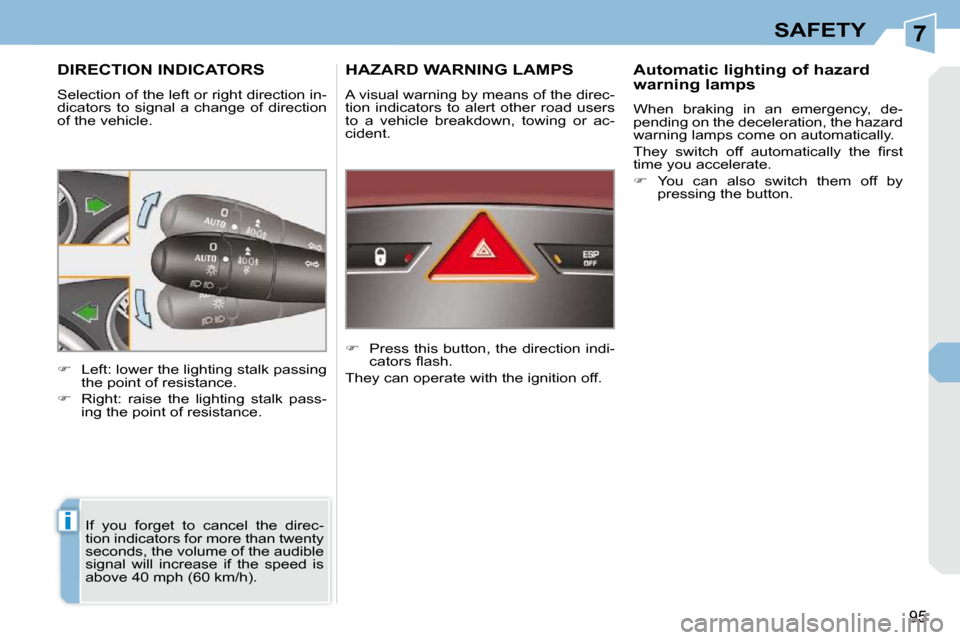

95
SAFETY
DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle. If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).

 Left: lower the lighting stalk passing
the point of resistance.

 Right: raise the lighting stalk pass-
ing the point of resistance.
HAZARD WARNING LAMPS
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.

 Press this button, the direction indi-
cators fl ash.
They can operate with the ignition off. Automatic lighting of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.

 You can also switch them off by
pressing the button.

7
i

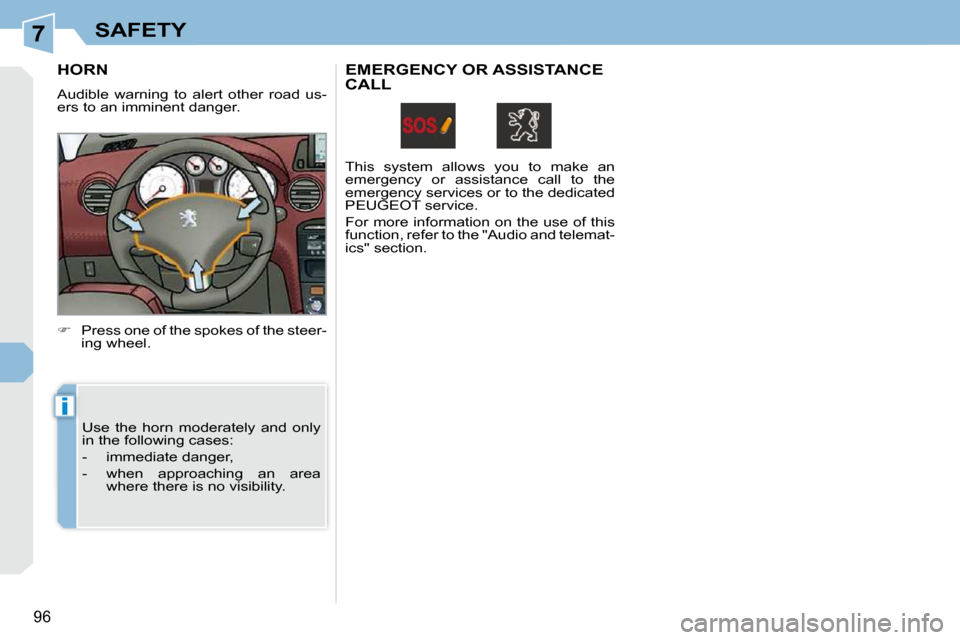

96
SAFETY
HORN

 Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- when approaching an area where there is no visibility.
Audible warning to alert other road us-
ers to an imminent danger.
EMERGENCY OR ASSISTANCE CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT service.
For more information on the use of this
function, refer to the "Audio and telemat-
ics" section.

7
!
i
i
i
97
SAFETY
TYRE UNDER-INFLATION DETECTION
System which automatically checks the
pressure of the tyres while driving. All repairs and changing of tyres on
a wheel fi tted with this system must
be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
by your vehicle (example: fi tting
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not eliminate the
need to have the tyre pressures
checked regularly (refer to the
"Identifi cation markings" section) to
ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electro-magnet-
ic emissions on a frequency close
to that used by the system.
Sensors fi tted in each valve trigger a
warning in the event of malfunction
(speed above 12 mph (20 km/h)).
This warning lamp is displayed on the
instrument panel and/or a message
appears on the multifunction screen,
accompanied by an audible signal,
to locate the wheel concerned.

 Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Flat tyre The
STOP warning lamp comes
on and/or this warning lamp is
displayed on the instrument
panel, accompanied by an au-
dible signal and a message on
the multifunction screen locat-
ing the wheel concerned.

 Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.

 Change the damaged wheel (punc-
tured or very defl ated tyre), and
have the tyre pressure checked as
soon as possible.
Puncture
The tyre under-infl ation detection
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or faulty
This warning lamp is displayed
on the instrument panel and/or
a message appears on the mul-
tifunction screen, accompanied
by an audible signal, to locate the wheel
or wheels which are not detected or to
indicate a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are fi tted.
The spare wheel is not fi tted with
a sensor.
