2009.5 Peugeot 308 CC Dag Owner's Manual

1
35
INSTRUMENTS and CONTROLS
Manual Check
System which informs the driver of the
warnings present and of the activated
or deactivated status of the functions.


With the engine running, to start a
manual check, press the "CHECK/000"
button on the instrument panel.
If no "major" faults have been detected,

"CHECK OK" appears on the large in-
strument panel screen. If a "minor" fault has been detected, the
warning lamp concerned then
"CHECK
OK" appear on the large instrument
panel screen. Consult a PEUGEOT
dealer.
If a "major" fault has been detected, only
the warning lamps concerned appear on
the large instrument panel screen. Have
it checked by a PEUGEOT dealer.
Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life. The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled since it was reset to zero by
the driver.

 With the ignition on, press the button
until zeros appear.

1
36
INSTRUMENTS and CONTROLS

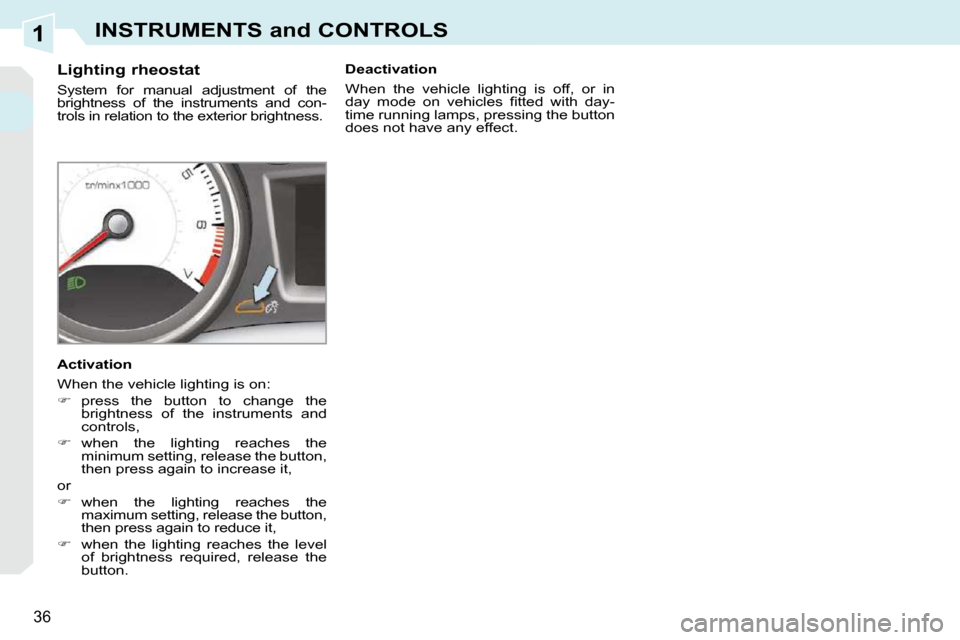

Lighting rheostat
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.
Activation
When the vehicle lighting is on:

 press the button to change the
brightness of the instruments and
controls,

 when the lighting reaches the
minimum setting, release the button,
then press again to increase it,
or

 when the lighting reaches the
maximum setting, release the button,
then press again to reduce it,

 when the lighting reaches the level
of brightness required, release the
button. Deactivation
When the vehicle lighting is off, or in
day mode on vehicles fi tted with day-
time running lamps, pressing the button
does not have any effect.

2
37
MULTIFUNCTION SCREENS
General menu "Audio functions" menu

 Press the "MENU" button for ac-
cess to the general menu :
- audio functions,
- diagnosis vehicle,
- personalisation-confi guration,
- telephone (hands-free kit).

 Press the "  " or "  " buttons to se-
lect the menu required, then confi rm
by pressing the "OK" button.
With the PC Sound switched on, once
this menu has been selected you can
activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText) or the CD (introscan, shuf-
fl e, CD repeat).
For more information on the "Audio func-
tions" application, refer to the PC Sound
part of the "Audio and Telematics" sec-
tion.
MONOCHROME SCREEN C (WITH PC SOUND)
Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature (this fl ashes if there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the "ESC" button. Controls
From the control panel of your PC
Sound, you can:

 press the "MENU" button to gain
access to the general menu ,

 press the "  " or "  " buttons to scroll
through the items on the screen,

 press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),

 press the "  " or "  " buttons to
change a setting value,

 press the "OK" button to confi rm,
or

 press the "ESC" button to abandon
the operation in progress.

2MULTIFUNCTION SCREENS

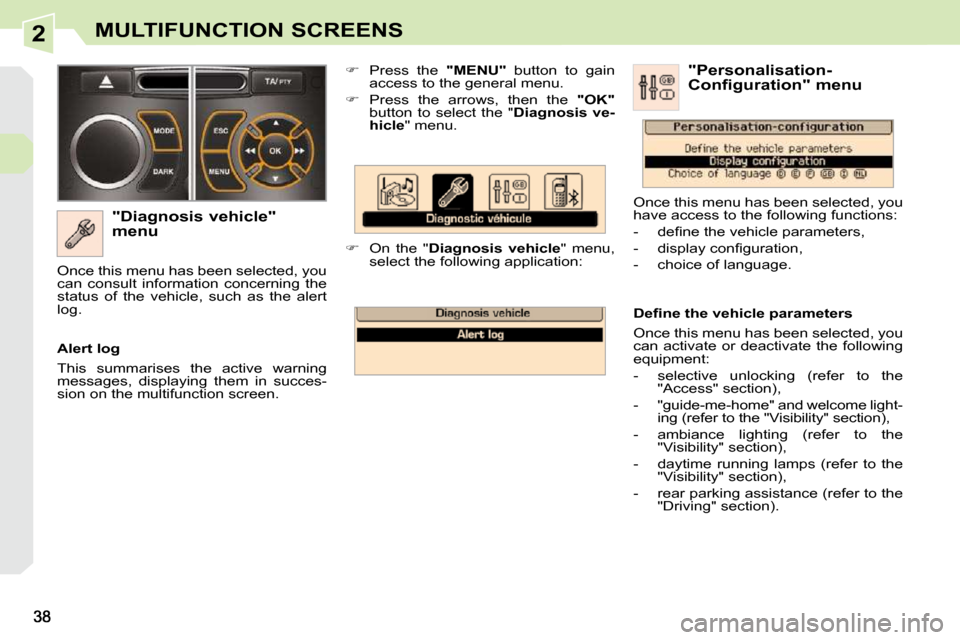

"Diagnosis vehicle"
menu
 Press the "MENU" button to gain
access to the general menu.

 Press the arrows, then the "OK"
button to select the " Diagnosis ve-
hicle " menu.

 On the " Diagnosis vehicle " menu,
select the following application:
Alert log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction screen.
Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the alert
log.
Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- selective unlocking (refer to the
"Access" section),
- "guide-me-home" and welcome light- ing (refer to the "Visibility" section),
- ambiance lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- rear parking assistance (refer to the "Driving" section). "Personalisation-
Configuration" menu
Once this menu has been selected, you
have access to the following functions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.

2
!
39
MULTIFUNCTION SCREENS
For safety reasons, confi guration
of the multifunction screen by the
driver must be done only when sta-
tionary. "Telephone" menu
Display confi guration
Once this menu has been selected, you
have access to the following settings:
- brightness-video setting,
- date and time setting,
- choice of units.
Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe * ).
Example: setting of the duration of the
"guide-me-home" lighting

 Press the "  " or "  " buttons, then
the "OK" button to select the menu
required.

 Press the "  " or "  " buttons,
then the "OK" button to select the
"Guide-me-home headlamps" line.

 Press the "  " or "  " buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK" button
to confi rm.
 Press the "  " or "  " buttons, then
the "OK" button to select the "OK"
box and confi rm or press the "ESC"
button to cancel. With the PC Sound switched on, once
this menu has been selected you can
confi gure your Bluetooth hands-free kit
(pairing), consult the various telephone
directories (calls log, services...) and
manage your communications (pick up,
hang up, call waiting, secret mode...).
For more information on the "Telephone"
application, refer to the PC Sound part
of the "Audio and Telematics" section.
* According to country.

2
i
40
MULTIFUNCTION SCREENS
Displays on the screen
Once unfolded, it displays the following
information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-played fl ashes if there is a risk of
ice),
- openings check,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information,
- satellite navigation system informa- tion.
SCREEN (WITH PC NAV) Controls
From the PC Nav control panel, to se-
lect one of the applications:

 press the dedicated "RADIO" ,

"MUSIC" , "NAV" , "TRAFFIC" ,

"SETUP" or "PHONE" button to
gain access to the corresponding
menu,

 turn the navigator to move the se-
lection,

 press the navigator to confi rm the
selection,
or

 press the "ESC" button to abandon
the current operation and return to
the previous display. For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen".
For more information on these applica-
tions, refer to the PC Nav part of the
"Audio and Telematics" section.

2
!
41
MULTIFUNCTION SCREENS

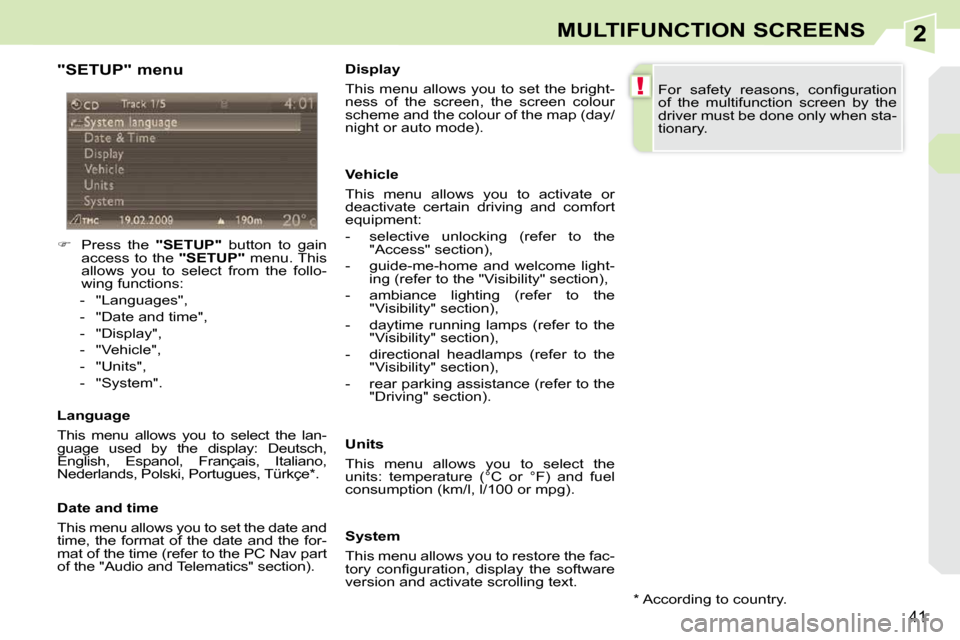

"SETUP" menu

 Press the "SETUP" button to gain
access to the "SETUP" menu. This
allows you to select from the follo-
wing functions:
- "Languages",
- "Date and time",
- "Display",
- "Vehicle",
- "Units",
- "System".
Language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date and
time, the format of the date and the for-
mat of the time (refer to the PC Nav part
of the "Audio and Telematics" section). Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- selective unlocking (refer to the
"Access" section),
- guide-me-home and welcome light- ing (refer to the "Visibility" section),
- ambiance lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- rear parking assistance (refer to the "Driving" section).
Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).
System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text. For safety reasons, confi guration
of the multifunction screen by the
driver must be done only when sta-
tionary.
* According to country.

2
i
42
MULTIFUNCTION SCREENS
16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN (WITH PC COM 3D)
Displays on the screen
Once unfolded, it displays the following
information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-played fl ashes if there is a risk of
ice),
- openings check,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- telephone and address book infor- mation,
- satellite navigation system informa- tion. Controls
From the PC Com 3D control panel, to
select one of the applications:

 press the dedicated "RADIO" ,

"MEDIA" , "NAV" , "TRAFFIC" ,

"ADDR BOOK" or "SETUP" but-
ton for access to the corresponding
menu,

 turn the navigator to move the se-
lection,

 press the navigator to confi rm the
selection,
or

 press the "ESC" button to abandon
the current operation and return to
the previous display. For operation of the retractable
screen(opening, closing, adjust-
ment of the position, etc.), refer to
the paragraph "Access to the re-
tractable screen".
For more information on these applica-
tions, refer to the PC Com 3D part of the
"Audio and Telematics" section.
