2009.5 Peugeot 308 CC Dag Owner's Manual

3
!
i
64
COMFORT
STEERING WHEEL ADJUSTMENT

 When stationary , pull the control
lever to release the steering wheel.

 Adjust the height and reach to suit
your driving position.

 Push the control lever to lock the
steering wheel.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.

Automatic day/night model
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility.
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.

3
!
i
64
COMFORT
STEERING WHEEL ADJUSTMENT

 When stationary , pull the control
lever to release the steering wheel.

 Adjust the height and reach to suit
your driving position.

 Push the control lever to lock the
steering wheel.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.

Automatic day/night model
System which automatically and pro-
gressively changes between the day
and night uses.
In order to prevent dazzle, the interior
mirror glass darkens automatically in
relation to the intensity of the light from
the rear.
It lightens when the light (light beam of
following vehicles, sun...) decreases, so
guaranteeing optimum visibility.
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.

4
65
ACCESS
Unlocking and partial opening of the
boot
 Press this button for more
than two seconds to un-
lock the boot. The boot
opens slightly.
This action unlocks the vehicle fi rst.

 Press the open padlock
once to unlock the driver's
door only.
Selective unlocking using the
remote control Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the exterior mir-
rors unfold at the same time as the fi rst
unlocking action.
Selective unlocking using the key

 Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.

 Turn the key to the left in the driver's
door lock again to unlock the pas-
senger's door and the boot. The complete or selective
unlocking parameter is set
via the multifunction screen
confi guration menu.
System which permits central unlock-
ing and locking of the vehicle using the
lock or from a distance, as well as of the
interior storage compartments (glove
box and front armrest). It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key

 First press button A to unfold the
key.
Unlocking the vehicle Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
The central unlocking also unlocks the
glove box and the front armrest com-
partment.
According to version, the exterior mir-
rors unfold at the same time.

 Press the open padlock to
unlock the vehicle. Complete unlocking using the key

 Turn the key to the left in the driver's
door lock to unlock the vehicle.
Complete unlocking using the
remote control
 Press the open padlock again to un-
lock the passenger's door and the
boot. Complete unlocking is activated by de-
fault.

4
!
i
i
66
ACCESS
Deadlocking renders the exterior
and interior door controls inopera-
tive.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone in-
side the vehicle when it is dead-
locked.
If one of the doors or the boot is still
open, the central locking does not
take place.
After unlocking the vehicle, if none
of the accesses - door or boot - are
opened within thirty seconds, the
vehicle will re-lock automatically.
Deadlocking using the remote
control Deadlocking using the key
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.
 Press the closed padlock to
lock the vehicle completely.

 Press the closed padlock
again within fi ve seconds
to deadlock the vehicle.
Locking the vehicle

 Press the closed padlock
to lock the vehicle com-
pletely.
Normal locking using the key

 Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
Normal locking using the remote
control
Deadlocking is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior mir-
rors fold at the same time.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximate-
ly two seconds.
The central locking also locks the glove
box and the front armrest compartment.
According to version, the exterior mir-
rors fold at the same time.
 Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.


Turn the key to the right again within
fi ve seconds to deadlock the vehicle.

4

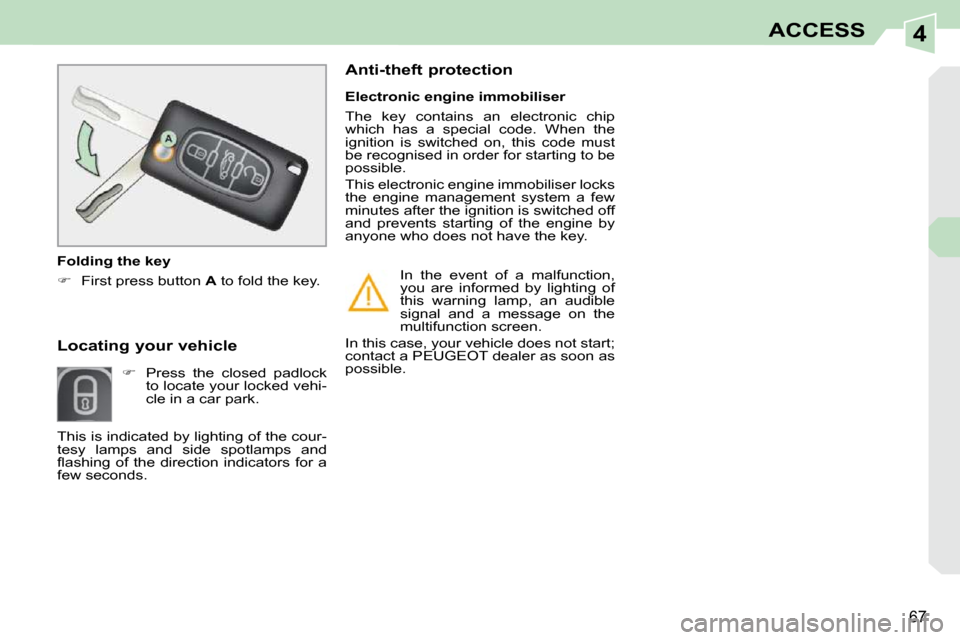

67
ACCESS
Locating your vehicle
 Press the closed padlock
to locate your locked vehi-
cle in a car park. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Folding the key

 First press button A to fold the key.
This is indicated by lighting of the cour-
tesy lamps and side spotlamps and
fl ashing of the direction indicators for a
few seconds.

4
i
68
ACCESS
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the dash-
board to position 3 (Starting) .

 When the engine starts, release the
key.
Switching the vehicle off

 Immobilise the vehicle.

 Turn the key fully towards you to po-
sition 1 (Stop) .

 Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to
unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation

 Switch off the ignition.

 Turn the key to position 2 (Ignition) .

 Press the closed padlock immedi-
ately for a few seconds.

 Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its location.

 Slide the new battery into its loca-
tion observing the original direction.

 Clip the casing.

 Reinitialise the remote control.
This replacement battery is available
from PEUGEOT dealers.
If the battery is fl at, you are
informed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen.
Key left in the "Ignition"
position
If the key has been left in the ig-
nition switch, the ignition will be
switched off automatically after
one hour.
To switch the ignition back on, turn
the key to position
1 (Stop) , then
back to position 2 (Ignition) .

4
!
69
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .

4
67
ACCESS
Locating your vehicle
 Press the closed padlock
to locate your locked vehi-
cle in a car park. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Folding the key

 First press button A to fold the key.
This is indicated by lighting of the cour-
tesy lamps and side spotlamps and
fl ashing of the direction indicators for a
few seconds.
