RADIO: selection of the next stored station. USB: selection of the next genre/artist/directory from the classifi cation list. Selection of the next item on a menu.
RADIO: selection of the previous stored station. USB: selection of the previous genre/artist/directory from the classifi cation list. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/CD CHANGER/MP3/USB: selection of the next track. CD/CD CHANGER/USB: continuous press: fast forwards play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/MP3/USB: selection of the previous track. CD/USB: continuous press: fast reverse. Selection of the next item.
Volume increase.
Volume decrease.

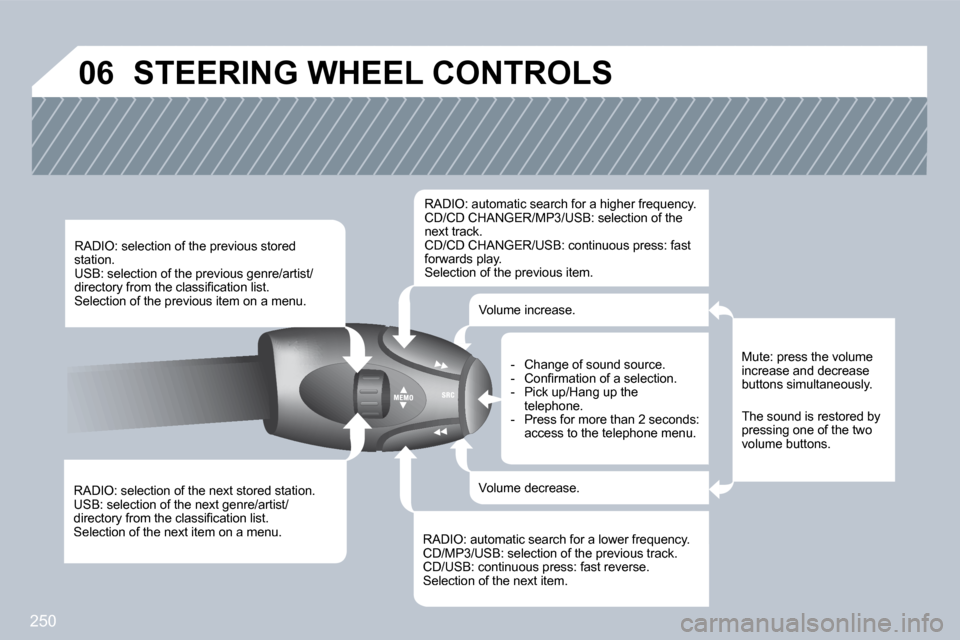

STEERING WHEEL CONTROLS
Mute: press the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
- Change of sound source. - Confi rmation of a selection. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.

251
11
22
33
44
55
66
77
88
07CONFIGURATION

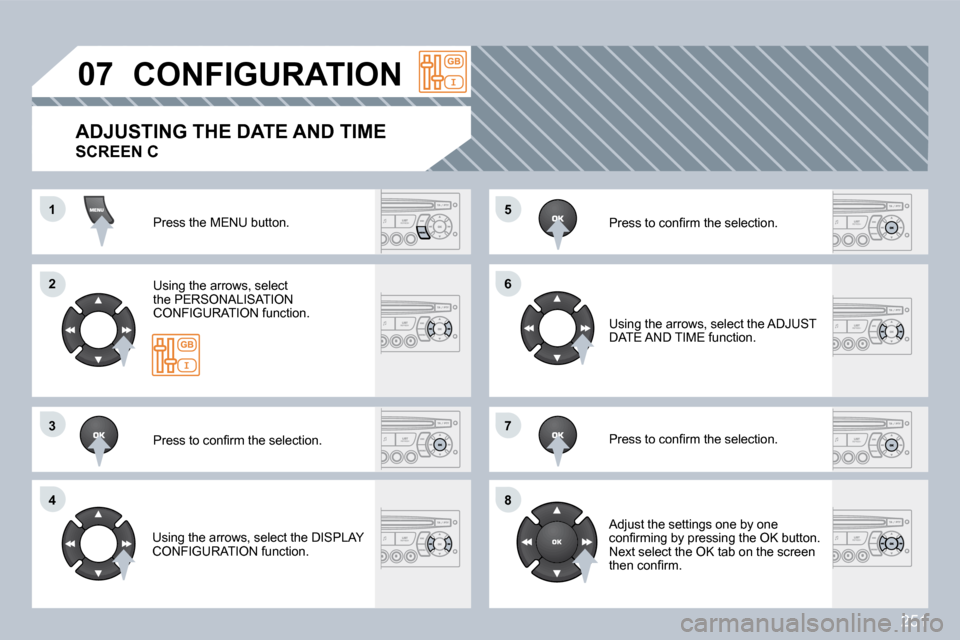

Press the MENU button.
Using the arrows, select the PERSONALISATION CONFIGURATION function.
Press to confi rm the selection.
Using the arrows, select the DISPLAY CONFIGURATION function.
Press to confi rm the selection.
Press to confi rm the selection.
Using the arrows, select the ADJUST DATE AND TIME function.
Adjust the settings one by one confi rming by pressing the OK button. Next select the OK tab on the screen then confi rm.
ADJUSTING THE DATE AND TIME
SCREEN C

252
11
2
3
4
3
4
3
2
3
4
3
4
2
3
4
2
4
4
3
3
4
4
1
2
2
2
2
4
3
4
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
08
AUDIO FUNCTIONS
* The parameters vary according to vehicle.
PLAY MODES
album repeat (RPT)
activate/deactivate
track random play (RDM)
activate/deactivate
TRIP COMPUTER
PERSONALISATION-CONFIGURATION
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
ENTER DISTANCE TO DESTINATION
WARNING LOG
STATUS OF FUNCTIONS
DEFINE THE VEHICLE PARAMETERS *
DISPLAY CONFIGURATION
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit
CHOICE OF LANGUAGE
SCREEN MENU MAP monochrome C
Press the OK dial for access to short-cut menus according to the display on the screen:
RADIO
activate/deactivate RDS
activate/deactivate REG mode
activate/deactivate radiotext
CD/MP3 CD
activate/deactivate Intro
activate/deactivate track repeat
Audio CD/Changer: the entire CD
MP3 CD/MP3 Changer: the entire current folder
activate/deactivate random play
Audio CD/Changer: the entire CD
MP3 CD: the entire current folder
MP3 Changer: all of the folders
USB
activate/deactivate track repeat
current folders/artist/genre/playlist
activate/deactivate random play
current folders/artist/genre/playlist

253
1
2
3
3
3
4
4
4
2
3
4
2
3
3

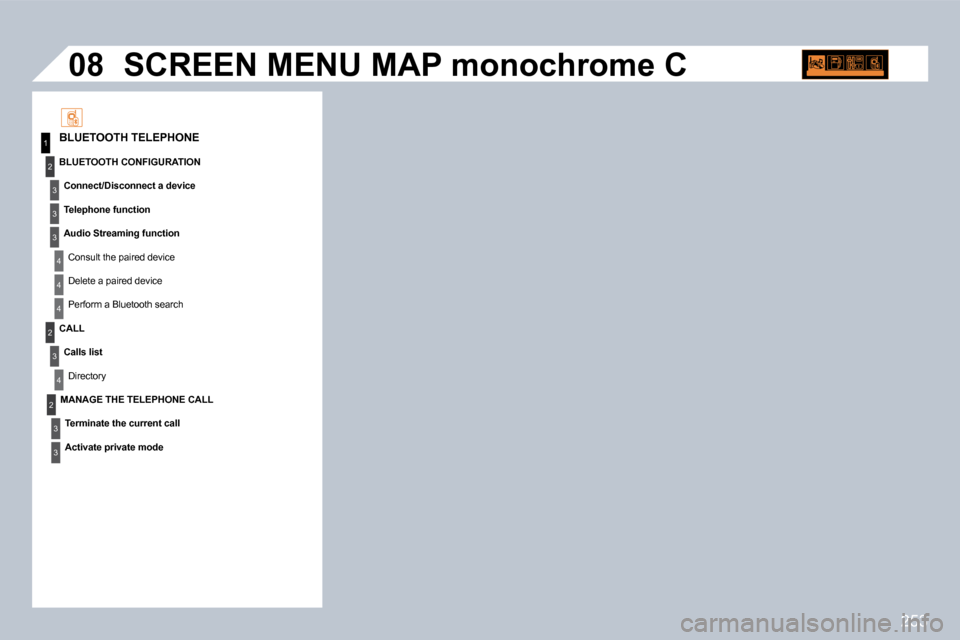

08 SCREEN MENU MAP monochrome C
BLUETOOTH TELEPHONE
MANAGE THE TELEPHONE CALL
Terminate the current call
Activate private mode
BLUETOOTH CONFIGURATION
Connect/Disconnect a device
Telephone function
Audio Streaming function
Consult the paired device
Delete a paired device
Perform a Bluetooth search
CALL
Calls list
Directory

254
There is a difference in sound quality between the different audio sources (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source(radio, CD...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the player the right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the "Audio" section. - The audio equipment's CD player does not play DVDs. - Due to their quality level, certain writeable CDs will not be played by the audio system. will not be played by the audio system.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
The message "USB peripheral error" is displayed on the screen.
Recharge tha battery of the peripheral device. The Bluetooth conecion is cut. The battery of the peripheral may not be suffi ciently charged.
The USB memory stick is not recognised. The memory stick may be corrupt. Reformat the memory stick.
QUESTION SOLUTION ANSWER

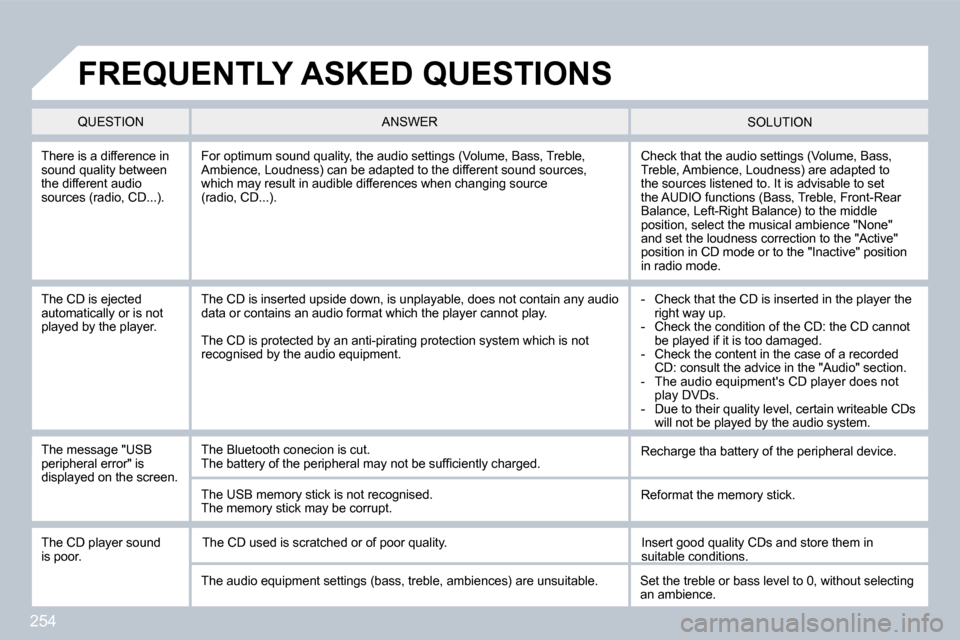

FREQUENTLY ASKED QUESTIONS
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.

255

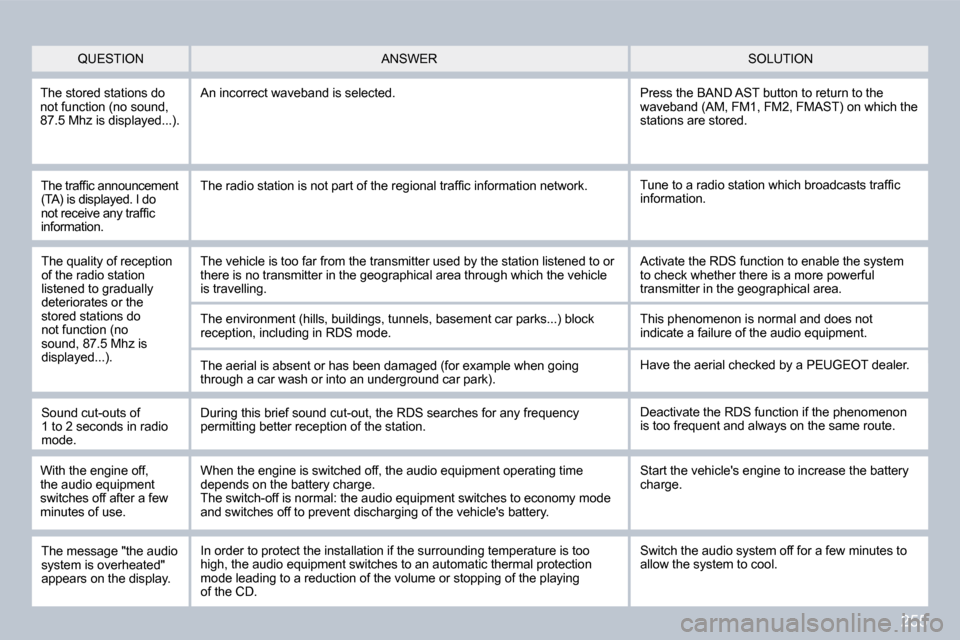

The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
Tune to a radio station which broadcasts traffi c information. The radio station is not part of the regional traffi c information network.
QUESTION SOLUTION ANSWER
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The stored stations do not function (no sound, 87.5 Mhz is displayed...) .
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playingof the CD.

11TECHNICAL DATA

ENGINE AND GEARBOX

MODEL:
Model code: 4B...
5FU-8

PETROL ENGINE
1.6 litre THP 16V
200 bhp
Cubic capacity (cm 3
) 1 598
Bore x stroke (mm) 77 x 85.8
Max power: EU standard (kW) 147
Max power engine speed (rpm) 5 500
Max torque: EU standard (Nm) 275
Max torque engine speed (rpm) 1 700
Fuel Unleaded
Catalytic converter Yes

GEARBOX Manual
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 4.25
Gearbox - Final drive 1.9
* The weight of the braked trailer can be increased, within the
GTW limit, if the GTW of the towing vehicle is reduced by an
equal amount ; warning, towing using a lightly loaded t owing
vehicle may have an adverse effect on its road holding.

Replacement of the spark plugs EVERY

NORMAL OPERATING CONDITIONS 30 000 km

ARDUOUS OPERATING CONDITIONS 20 000 km
WEIGHTS AND TOWED LOADS (in kg)

Petrol engine
1.6 litre THP 16V
200 bhp

Gearbox Manual

Model code: 4B... 5FU-8
- Unladen weight 1 535
- Kerb weight 1 610
- Payload 449
- Gross vehicle weight (GVW) 1 984
- Gross train weight (GTW)
on a 12 % gradient 2 784
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 800
- Braked trailer * (with load transfer within GTW limit) 800
- Unbraked trailer 750
- Recommended nose weight 64
AN. 10308.A641

!
Handbook Supplement 1.6 l THP 16V 200 hp version
WELCOME
This document describes the special
features of your 308 CC 1.6 L THP 16V
200 hp.
Refer to the handbook for all other
descriptions and specifi cations, and
also to the Maintenance and Warranty
Guide for servicing information for your
vehicle.
TRAJECTORY CONTROL SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme
(ESP) Deactivation


Press the "ESP OFF" button, located
in the centre of the dashboard.
Reactivation
These systems are reactivated auto-
matically each time the ignition is
switched off.

 You can also press the "ESP OFF"
button again to reactivate them
manually.


 99
This also deactivates the emer-
gency braking assistance and
the automatic lighting of the hazard
warning lamps.
If this warning lamp comes on
in the instrument panel and the
indicator lamp on the button
comes on, this indicates that
the ASR, ESP and AFU systems are
deactivated.
