2009.5 Peugeot 308 CC Dag Owner's Manual

10
!
i
!
137
PRACTICAL INFORMATION

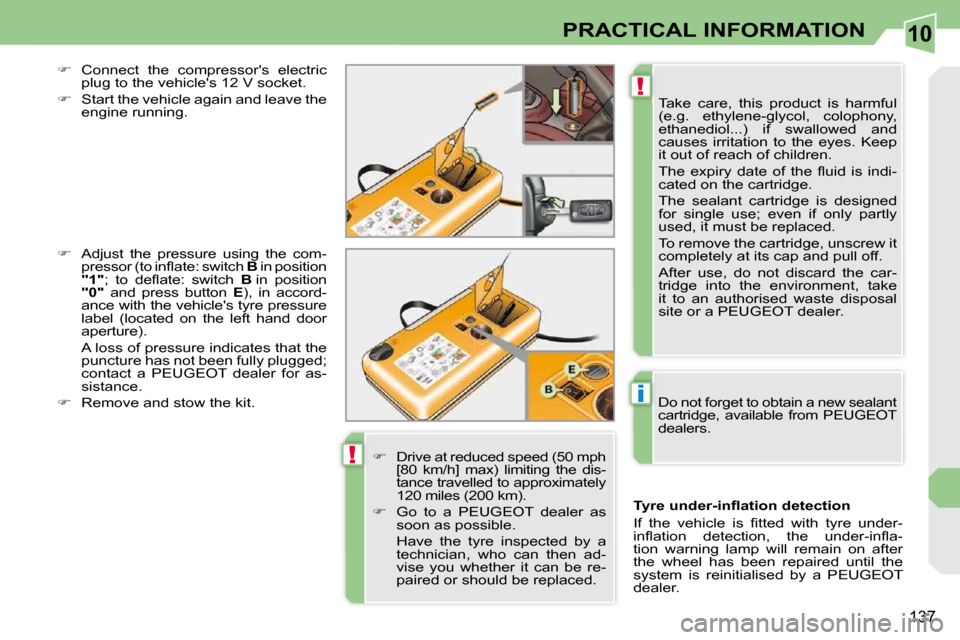

Take care, this product is harmful
(e.g. ethylene-glycol, colophony,
ethanediol...) if swallowed and
causes irritation to the eyes. Keep
it out of reach of children.
The expiry date of the fl uid is indi-
cated on the cartridge.
The sealant cartridge is designed
for single use; even if only partly
used, it must be replaced.
To remove the cartridge, unscrew it
completely at its cap and pull off.
After use, do not discard the car-
tridge into the environment, take
it to an authorised waste disposal
site or a PEUGEOT dealer.

 Connect the compressor's electric
plug to the vehicle's 12 V socket.

 Start the vehicle again and leave the
engine running.

 Adjust the pressure using the com-
pressor (to infl ate: switch B in position

"1" ; to defl ate: switch B in position

"0" and press button E ), in accord-
ance with the vehicle's tyre pressure
label (located on the left hand door
aperture).
A loss of pressure indicates that the puncture has not been fully plugged;
contact a PEUGEOT dealer for as-
sistance.

 Remove and stow the kit. Do not forget to obtain a new sealant
cartridge, available from PEUGEOT
dealers.
Tyre under-infl ation detection
If the vehicle is fi tted with tyre under-
infl ation detection, the under-infl a-
tion warning lamp will remain on after
the wheel has been repaired until the
system is reinitialised by a PEUGEOT
dealer.


 Drive at reduced speed (50 mph
[80 km/h] max) limiting the dis-
tance travelled to approximately
120 miles (200 km).

 Go to a PEUGEOT dealer as
soon as possible.
Have the tyre inspected by a technician, who can then ad-
vise you whether it can be re-
paired or should be replaced.

10
i
138
PRACTICAL INFORMATION

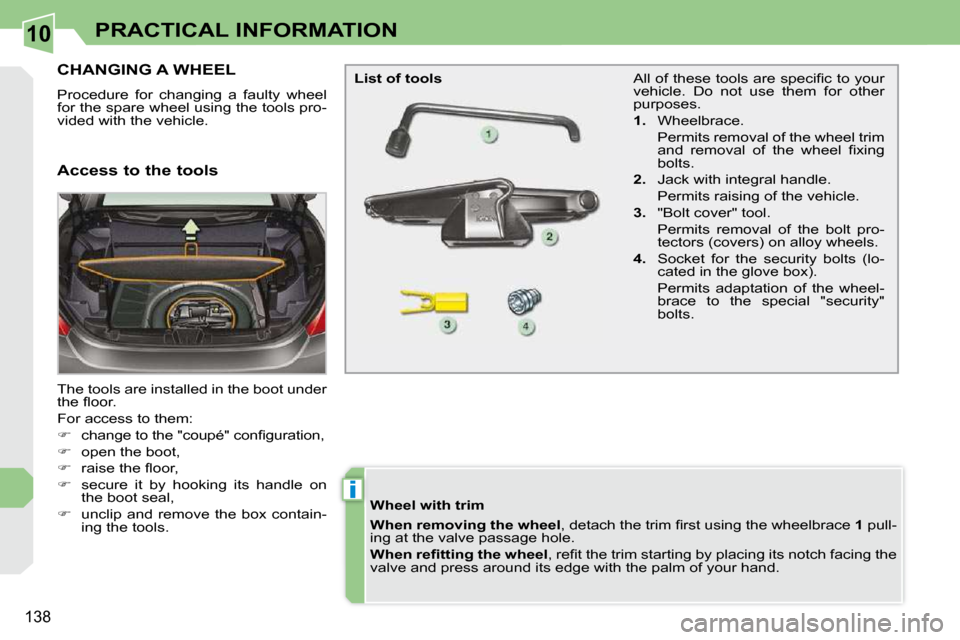

CHANGING A WHEEL
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
The tools are installed in the boot under
the fl oor.
For access to them:

 change to the "coupé" confi guration,

 open the boot,

 raise the fl oor,

 secure it by hooking its handle on
the boot seal,

 unclip and remove the box contain-
ing the tools. All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.

1. Wheelbrace.
Permits removal of the wheel trim and removal of the wheel fi xing
bolts.

2. Jack with integral handle.
Permits raising of the vehicle.

3. "Bolt cover" tool.
Permits removal of the bolt pro- tectors (covers) on alloy wheels.

4. Socket for the security bolts (lo-
cated in the glove box).
Permits adaptation of the wheel- brace to the special "security"
bolts.
List of tools
Access to the tools
Wheel with trim

When removing the wheel , detach the trim fi rst using the wheelbrace 1 pull-
ing at the valve passage hole.

When refi tting the wheel , refi t the trim starting by placing its notch facing the
valve and press around its edge with the palm of your hand.

10
i
i
139
PRACTICAL INFORMATION

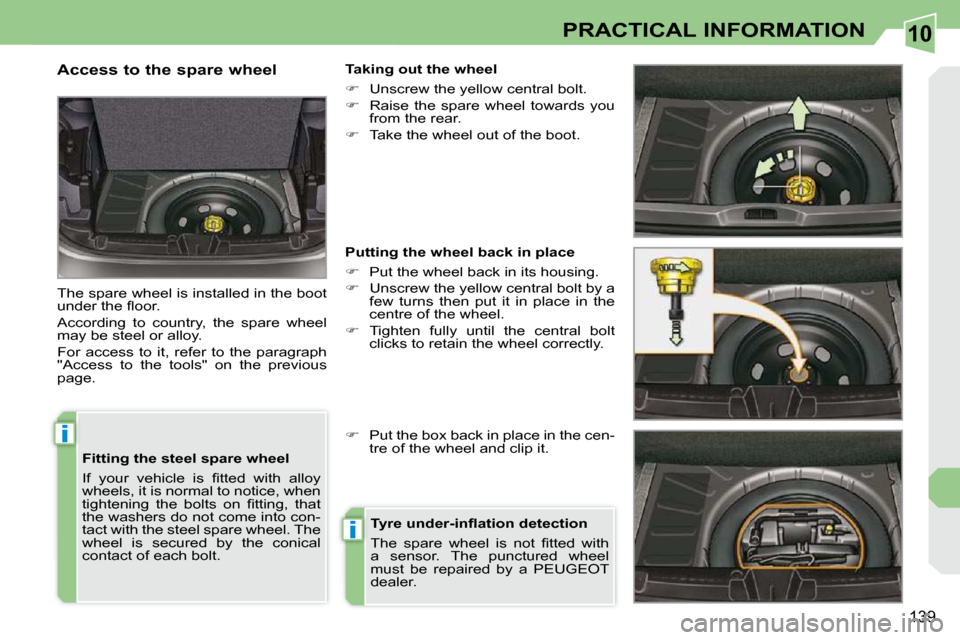

Fitting the steel spare wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice, when
tightening the bolts on fi tting, that
the washers do not come into con-
tact with the steel spare wheel. The
wheel is secured by the conical
contact of each bolt.
Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
According to country, the spare wheel
may be steel or alloy.
For access to it, refer to the paragraph
"Access to the tools" on the previous
page.

Taking out the wheel

 Unscrew the yellow central bolt.

 Raise the spare wheel towards you
from the rear.

 Take the wheel out of the boot.
Putting the wheel back in place

 Put the wheel back in its housing.

 Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.

 Tighten fully until the central bolt
clicks to retain the wheel correctly.

 Put the box back in place in the cen-
tre of the wheel and clip it.
Tyre under-infl ation detection
The spare wheel is not fi tted with
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.

10
i
140
PRACTICAL INFORMATION
Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: the ground
must be level, stable and non-slip-
pery ground.
Apply the parking brake, switch off
the ignition and engage fi rst gear *
to lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
It is imperative that you ensure that
the occupants get out of the vehicle
and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.
Removing the wheel
List of operations

 Remove the chromed bolt cover from
each of the bolts using the tool 3 .

 Fit the security socket 4 on the
wheelbrace 1 to slacken the security
bolt.

 Slaken the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.
* position P for the automatic gearbox.

10
i
141
PRACTICAL INFORMATION

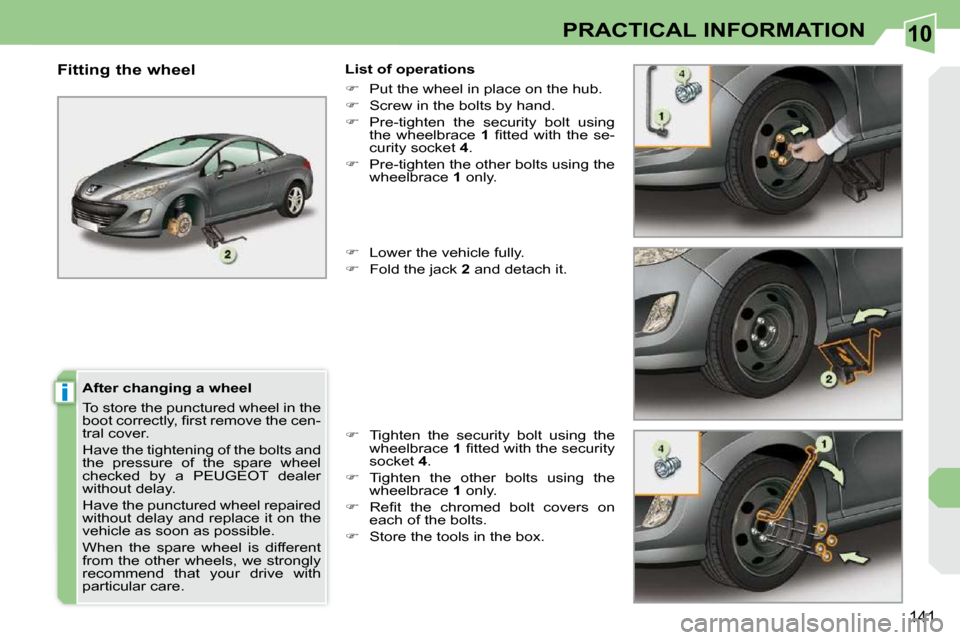

After changing a wheel
To store the punctured wheel in the
boot correctly, fi rst remove the cen-
tral cover.
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
without delay and replace it on the
vehicle as soon as possible.
When the spare wheel is different
from the other wheels, we strongly
recommend that your drive with
particular care.
Fitting the wheel
List of operations

 Put the wheel in place on the hub.

 Screw in the bolts by hand.

 Pre-tighten the security bolt using
the wheelbrace 1 fi tted with the se-
curity socket 4 .

 Pre-tighten the other bolts using the
wheelbrace 1 only.

 Lower the vehicle fully.

 Fold the jack 2 and detach it.

 Tighten the security bolt using the
wheelbrace 1 fi tted with the security
socket 4 .

 Tighten the other bolts using the
wheelbrace 1 only.

 Refi t the chromed bolt covers on
each of the bolts.

 Store the tools in the box.

10
!
!
!
142
PRACTICAL INFORMATION

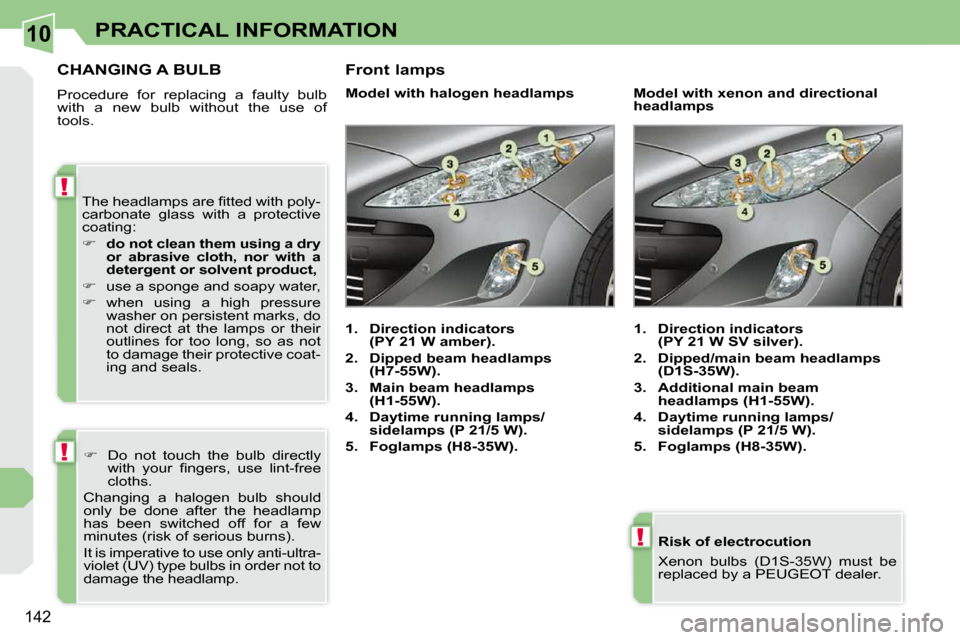

Risk of electrocution
Xenon bulbs (D1S-35W) must be
replaced by a PEUGEOT dealer.
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb without the use of
tools. Model with halogen headlamps

1. Direction indicators
(PY
21 W
amber).

2. Dipped
beam
headlamps
(H7-55W).

3. Main beam headlamps
(H1-55W).

4. Daytime
running lamps/

sidelamps
(P 21/
5 W
).

5. Foglamps
(H8-35W).
1. Direction indicators
(PY
21 W
SV silver).

2. Dipped/main beam headlamps
(D1S-35W).

3. Additional main beam
headlamps (H1-55W).

4. Daytime
running lamps/

sidelamps
(P 21/
5 W
).

5. Foglamps
(H8-35W).
Model with xenon and directional
headlamps
The headlamps are fi tted with poly-
carbonate glass with a protective
coating:

 do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,

 use a sponge and soapy water,

 when using a high pressure
washer on persistent marks, do
not direct at the lamps or their
outlines for too long, so as not
to damage their protective coat-
ing and seals.

 Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a halogen bulb should
only be done after the headlamp
has been switched off for a few
minutes (risk of serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp. Front lamps

10
i
!
143
PRACTICAL INFORMATION

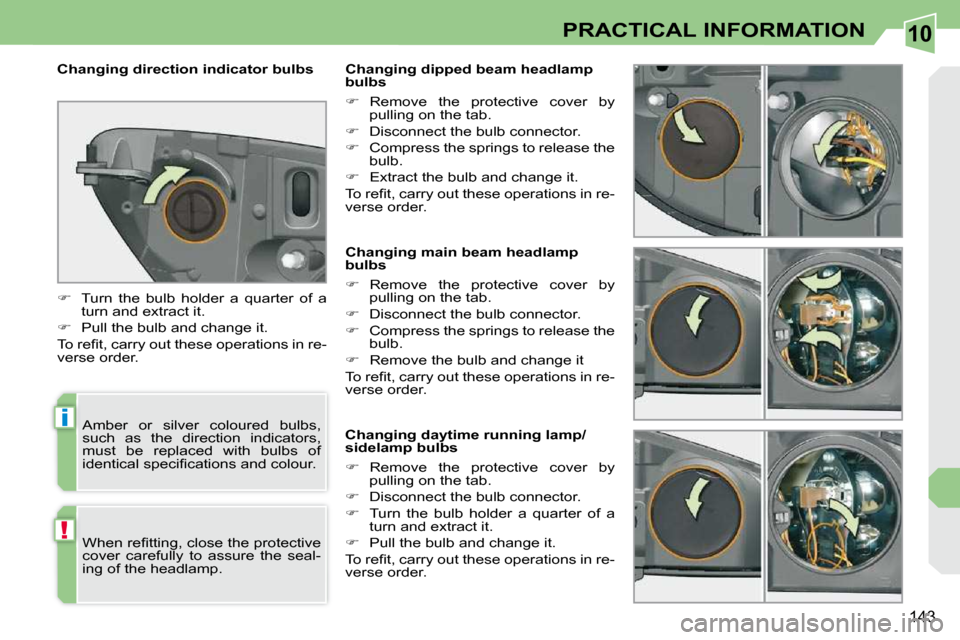

Changing main beam headlamp
bulbs

 Remove the protective cover by
pulling on the tab.

 Disconnect the bulb connector.

 Compress the springs to release the
bulb.

 Remove the bulb and change it
To refi t, carry out these operations in re-
verse order.
Changing daytime running lamp/
sidelamp bulbs

 Remove the protective cover by
pulling on the tab.

 Disconnect the bulb connector.

 Turn the bulb holder a quarter of a
turn and extract it.

 Pull the bulb and change it.
To refi t, carry out these operations in re-
verse order.
Changing dipped beam headlamp
bulbs

 Remove the protective cover by
pulling on the tab.

 Disconnect the bulb connector.

 Compress the springs to release the
bulb.

 Extract the bulb and change it.
To refi t, carry out these operations in re-
verse order.
Changing direction indicator bulbs
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
identical specifi cations and colour.
When refi tting, close the protective
cover carefully to assure the seal-
ing of the headlamp.

 Turn the bulb holder a quarter of a
turn and extract it.

 Pull the bulb and change it.
To refi t, carry out these operations in re-
verse order.

10
144
PRACTICAL INFORMATION

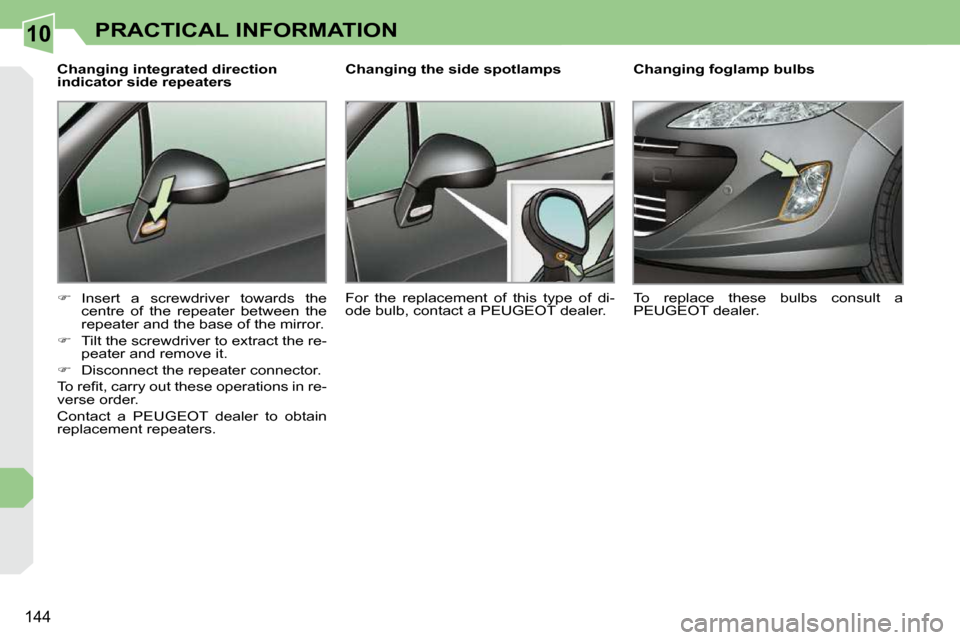

Changing integrated direction
indicator side repeaters

 Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

 Tilt the screwdriver to extract the re-
peater and remove it.

 Disconnect the repeater connector.
To refi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters. Changing foglamp bulbs
To replace these bulbs consult a
PEUGEOT dealer.
Changing the side spotlamps
For the replacement of this type of di-
ode bulb, contact a PEUGEOT dealer.
