CHECKS
PETROL ENGINES
The various caps and covers allow access
for checking the levels of the various fl uids
and for replacing certain components.

1. Power steering reservoir.

2. Screenwash and headlamp wash
reservoir.

3. Coolant reservoir.

4. Brake fl uid reservoir.

5. Battery/Fuses.

6. Fuse box.

7. Air fi lter * .

8. Engine oil dipstick.

9. Engine oil fi ller cap.
* According to engine.

9
131
CHECKS
DIESEL ENGINES
The various caps and covers allow ac-
cess for checking the levels of the various
fl uids, for replacing certain components
and for repriming the fuel.


1. Power steering reservoir.

2. Screenwash and headlamp wash
reservoir.

3. Coolant reservoir.

4. Brake fl uid reservoir.

5. Battery/Fuses.

6. Fuse box.

7. Air fi lter * .

8. Engine oil dipstick.

9. Engine oil fi ller cap.

10. Repriming pump * .

11. Degas screw * .
* According to engine.

9
!
132
CHECKS
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer. Brake fluid level
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when the
ignition is switched on using the oil level
indicator on the instrument panel, or us-
ing the dipstick. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.
Changing the fl uid
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
Power steering fluid level The power steering fl uid level
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level. Screenwash and headlamp
wash fluid
In the case of vehicles fi tted
with headlamp washers, the
minimum level of this fl uid is
indicated by an audible signal
and a message on the multifunction
screen.
Top up the level when you stop the ve-
hicle.
Engine oil change
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
Oil specifi cation
The oil must correspond to your engine
and conform to the manufacturer's rec-
ommendations. Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
fulfi l the DOT4 standards.
Changing the coolant
The coolant does not have to be
changed.
Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up with or replaced with water.
Coolant level
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tempera-
ture of the coolant is regulated by the fan.
This can operate with the ignition off.

On vehicles which are fi tted with a
particle emission fi lter, the fan may
operate after the vehicle has been
switched off, even if the engine is
cold. Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.
When working under the bonnet,
take care, as certain areas of the
engine may be extremely hot (risk
of burns).

9
!
i
133
CHECKS
Avoid prolonged contact of used oil
or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a PEUGEOT dealer
(France) or an authorised waste dis-
posal site.

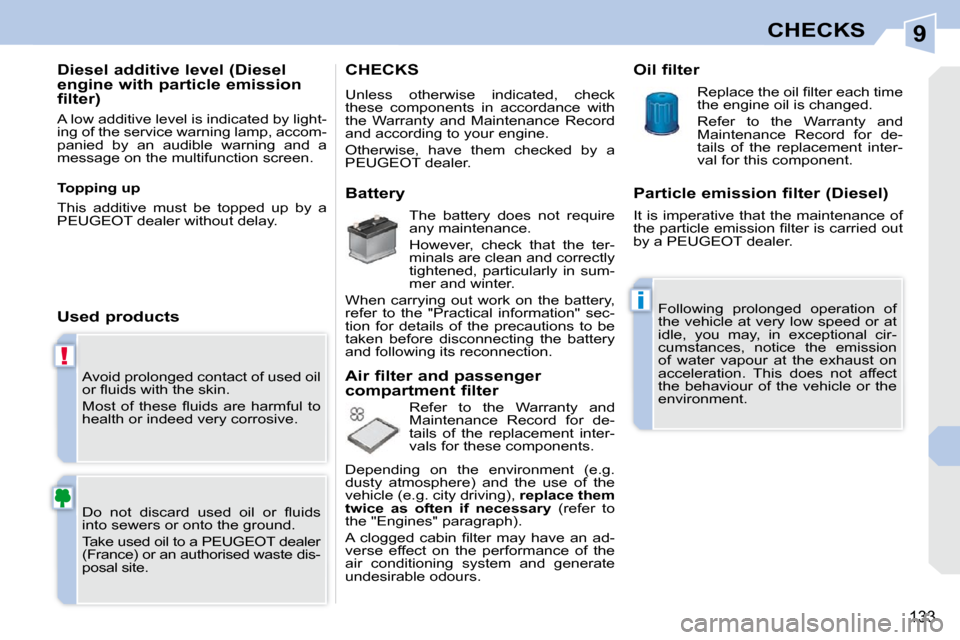

Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery
The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment (e.g.
dusty atmosphere) and the use of the
vehicle (e.g. city driving), replace them
twice as often if necessary (refer to
the "Engines" paragraph).
A clogged cabin fi lter may have an ad-
verse effect on the performance of the
air conditioning system and generate
undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a PEUGEOT dealer.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.

9
!
i
133
CHECKS
Avoid prolonged contact of used oil
or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a PEUGEOT dealer
(France) or an authorised waste dis-
posal site.
Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery
The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment (e.g.
dusty atmosphere) and the use of the
vehicle (e.g. city driving), replace them
twice as often if necessary (refer to
the "Engines" paragraph).
A clogged cabin fi lter may have an ad-
verse effect on the performance of the
air conditioning system and generate
undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a PEUGEOT dealer.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.

9
!
134
CHECKS
Only use products recommended
by PEUGEOT or products of equiv-
alent quality and specifi cations.
In order to optimise the operation
of units as important as the brak-
ing system, PEUGEOT selects and
offers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Brake disc wear
Brake pads Parking brake
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn. For information relating to
checking the brake disc wear,
contact a PEUGEOT dealer.
If a loss of effectiveness of this
system is noticed, the parking
brake must be checked, even
between two services.
This system must be checked by a
PEUGEOT dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for the
details of the level checking
interval for this component.
Automatic gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for de-
tails of the level checking in-
terval for this component.

10
i
135
PRACTICAL INFORMATION

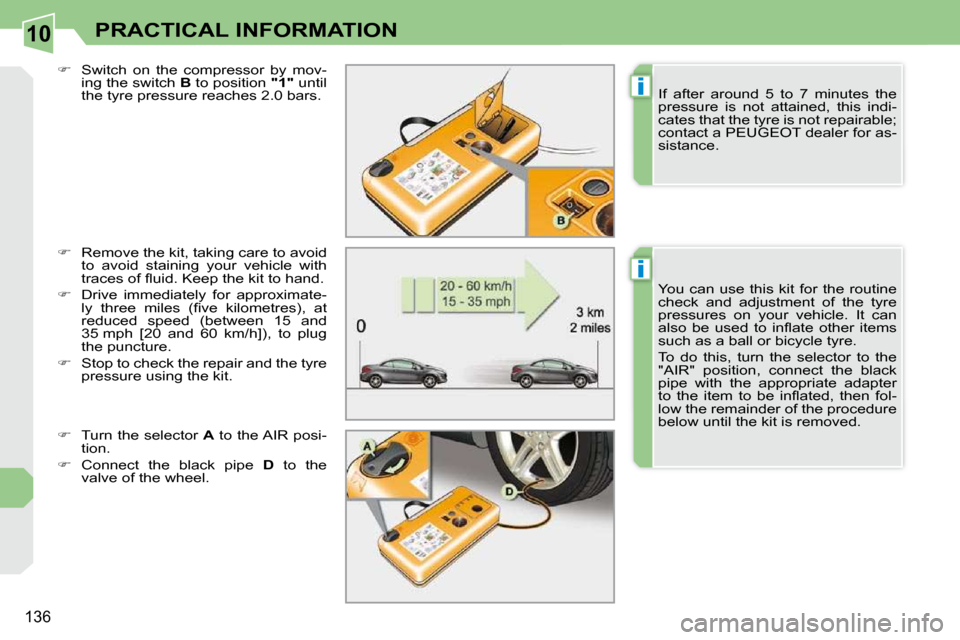

TEMPORARY PUNCTURE REPAIR KIT Using the kit
Access to the kit
The kit is stowed in the boot below the
fl oor. It is fi tted in the tool box, located
below the storage compartment. This procedure, comprising several
steps, must be carried out in full.

 Switch off the ignition.

 Turn the selector A to the "SEALANT"
position.

 Check that the switch B is in posi-
tion "0" .

 Connect the white pipe C to the
valve of the tyre to be repaired.

 Connect the compressor's electric
plug to the vehicle's 12 V socket.

 Affi x the speed limitation sticker to
the vehicle's steering wheel to re-
mind you that a wheel is in tempo-
rary use.

 Start the vehicle and leave the en-
gine running.
Complete system consisting of a com-
pressor and an incorporated sealant
cartridge which permits
temporary re-
pair of the tyre so that you can drive to
the nearest garage.
This repair kit is available from
PEUGEOT dealers.
It is designed to repair most punc-
tures which could affect the tyre, lo-
cated on the tyre tread or shoulder.
Avoid removing any foreign bodies
which have penetrated the tyre.

10
i
i
136
PRACTICAL INFORMATION

 Remove the kit, taking care to avoid
to avoid staining your vehicle with
traces of fl uid. Keep the kit to hand.

 Drive immediately for approximate-
ly three miles (fi ve kilometres), at
reduced speed (between 15 and
35 mph [20 and 60 km/h]), to plug
the puncture.

 Stop to check the repair and the tyre
pressure using the kit.

 Turn the selector A to the AIR posi-
tion.

 Connect the black pipe D to the
valve of the wheel.

 Switch on the compressor by mov-
ing the switch B to position "1" until
the tyre pressure reaches 2.0 bars. If after around 5 to 7 minutes the
pressure is not attained, this indi-
cates that the tyre is not repairable;
contact a PEUGEOT dealer for as-
sistance.
You can use this kit for the routine
check and adjustment of the tyre
pressures on your vehicle. It can
also be used to infl ate other items
such as a ball or bicycle tyre.
To do this, turn the selector to the
"AIR" position, connect the black
pipe with the appropriate adapter
to the item to be infl ated, then fol-
low the remainder of the procedure
below until the kit is removed.
