INSTRUMENTS and CONTROLS
Engine autodiagnostics
system.
If this comes on, it indicates the
occurrence of a fault in the en-
gine management system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e o f
a fault in the emission control system.
Low fuel level.
W h e n t h i s fi r s t c o m e s o n , y o u
have approximately 6 litres of
fuel left in the tank.
It is imperative that you refuel to avoid
running out of fuel.
This warning lamp comes on again
each time the ignition is switched on,
u n t i l s u f fi c i e n t f u e l h a s b e e n a d d e d .
Capacity of the tank: approximately
60 litres . Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high. Stop the vehicle im-
mediately and as safely as possible.
Airbags.
If this comes on, it indicates the
occurrence of a fault in one of
the airbag, roll-over hoop or
seat belt pretensioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened their seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Water in diesel ** .
If this comes on, it indicates the
presence of water in the diesel
fi l t e r .
There is a risk of damage to the injec-
tion system on Diesel engines. Door open.
A door, the boot or the bonnet *
is open:
Battery charge.
If this comes on, it indicates the
occurrence of a fault in the bat-
tery charging circuit (dirty or loose
terminals, slack or cut alternator
belt...).
Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication system. Stop
the vehicle immediately and as safely
as possible.
S p e c i fi c w a r n i n g l a m p s
* Only with alarm.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated, if this
warning lamp and the indicator lamp on the
button come on continuously, this indicates the
occurrence of a fault in the ESP/ASR system.
** According to country.
-
if the speed is below 6 mph (10 km/h), this
warning lamp comes on continuously.
- if the speed is higher than 6 mph
(10 km/h), this warning lamp comes
on continuously, accompanied by
an audible signal.
Never continue to drive until you
run out of fuel, this could damage
the emission control and injection
systems.
Page 10 of 256
1
i
!
28
INSTRUMENTS and CONTROLS
The display of certain warning
lamps may be accompanied by an
audible signal and a message on
the multifunction screen.
S p e c i fi c w a r n i n g l a m p s
The other warning lamps appear on the
large screen, located in the centre of
the instrument panel.
Depending on the seriousness of the
fault, they may be displayed in orange
or red. Certain warning lamps may be
linked with those of the instrument
panel.
If they are linked with the
STOP
warning lamp, stop the vehicle im-
mediately and as safely as possi-
ble.
Directional headlamps.
I f t h i s fl a s h e s , i t i n d i c a t e s t h e
occurrence of a fault in the di-
rectional headlamps system. Engine oil pressure.
If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication system. Stop
the vehicle immediately and as safely
as possible.
Service.
If this is displayed, it indicates the occur-
rence of a fault in one of the following:
Engine autodiagnostics
system.
If this is displayed, it indicates
the occurrence of a fault in the
engine management system. Engine oil level.
If this is displayed, it indicates an
i n s u f fi c i e n t l e v e l o f o i l i n t h e e n -
gine. Stop the vehicle immedi-
ately and as safely as possible.
Coolant temperature.
If this is displayed, it indicates
that the temperature in the
cooling system is too high. Stop
the vehicle immediately and as safely
as possible. Battery charge.
If this is displayed, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut al-
ternator belt...).
- the engine management system,
- the emission control system.
Page 44 of 256
3
i
!
!
61
COMFORT
STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat and
two further driving positions using the
two remote control keys. R e c a l l i n g a s t o r e d p o s i t i o n
S t o r i n g a p o s i t i o n Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is locked, the remote
control key stores the position of the
driver's seat and exterior mirrors.
Each remote control key can store one
s p e c i fi c s e t t i n g .
U s i n g b u t t o n s M / 1 / 2
Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is unlocked, the driv-
er's seat and the exterior mirrors return
to the position stored by the remote
control key.
U s i n g b u t t o n s M / 1 / 2
Switch on the ignition.
Adjust your seat and your exterior
mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into
account.
REAR SEATS
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the
rear head restraints. Use a spe-
cial cover recommended by the
PEUGEOT network.
T h e r e a r h e a d r e s t r a i n t s a r e fi x e d . T h e y
incorporate the roll-over hoops (re-
f e r t o t h e s e c t i o n " S a f e t y - § R o l l - o v e r
h o o p s " ) .
T h e r e a r b e n c h s e a t m a y b e fi t t e d w i t h a
folding comfort armrest in the centre of
the seat back.
Page 45 of 256
3
i
!
!
61
COMFORT
STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat and
two further driving positions using the
two remote control keys. R e c a l l i n g a s t o r e d p o s i t i o n
S t o r i n g a p o s i t i o n Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is locked, the remote
control key stores the position of the
driver's seat and exterior mirrors.
Each remote control key can store one
s p e c i fi c s e t t i n g .
U s i n g b u t t o n s M / 1 / 2
Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
U s i n g t h e r e m o t e c o n t r o l k e y s
When the vehicle is unlocked, the driv-
er's seat and the exterior mirrors return
to the position stored by the remote
control key.
U s i n g b u t t o n s M / 1 / 2
Switch on the ignition.
Adjust your seat and your exterior
mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into
account.
REAR SEATS
F i x e d t w o - s e a t b e n c h fi t t e d w i t h r o l l -
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the
rear head restraints. Use a spe-
cial cover recommended by the
PEUGEOT network.
T h e r e a r h e a d r e s t r a i n t s a r e fi x e d . T h e y
incorporate the roll-over hoops (re-
f e r t o t h e s e c t i o n " S a f e t y - § R o l l - o v e r
h o o p s " ) .
T h e r e a r b e n c h s e a t m a y b e fi t t e d w i t h a
folding comfort armrest in the centre of
the seat back.
Page 106 of 256
7
!
107
SAFETY
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
dealer network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millisec-
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
time discharging the hot gas via open-
ings provided for this purpose. Front airbags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cau se burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Side airbags
F i t o n l y a p p r o v e d c o v e r s o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e s i d e
airbags. Consult a PEUGEOT dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e
chest or arms if the side airbag is triggered.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e f r o n t h e a d r e s t r a i n t s . T h i s c o u l d c a u s e i n j u r y
to the head if the side airbag is triggered.
Do not sit with the upper part of the body any nearer to the door than neces-
sary.
Page 155 of 256
10
!
i
155
PRACTICAL INFORMATION
D o n o t d i s c o n n e c t t h e t e r m i n a l s
w h i l e t h e e n g i n e i s r u n n i n g .
D o n o t c h a r g e t h e b a t t e r i e s w i t h o u t
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
T h e b a t t e r i e s c o n t a i n h a r m f u l s u b -
s t a n c e s s u c h a s s u l p h u r i c a c i d a n d
l e a d . T h e y m u s t b e d i s p o s e d o f i n
a c c o r d a n c e w i t h r e g u l a t i o n s a n d
m u s t n o t , i n a n y c i r c u m s t a n c e s , b e
d i s c a r d e d w i t h h o u s e h o l d w a s t e .
T a k e u s e d r e m o t e c o n t r o l b a t t e r i e s
a n d v e h i c l e b a t t e r i e s t o a s p e c i a l
c o l l e c t i o n p o i n t .
Charging the battery using a
battery charger
D i s c o n n e c t t h e b a t t e r y f r o m t h e v e -
h i c l e .
F o l l o w t h e i n s t r u c t i o n s f o r u s e p r o -
v i d e d b y t h e m a n u f a c t u r e r o f t h e
c h a r g e r .
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
t i v e t e r m i n a l ( - ) .
C h e c k t h a t t h e t e r m i n a l s a n d c o n -
n e c t o r s a r e c l e a n . I f t h e y a r e c o v e r e d
w i t h s u l p h a t e ( w h i t i s h o r g r e e n i s h d e -
p o s i t ) , r e m o v e t h e m a n d c l e a n t h e m .
LOAD REDUCTION MODE
S y s t e m w h i c h m a n a g e s t h e u s e o f c e r -
t a i n f u n c t i o n s i n r e l a t i o n t o t h e l e v e l o f
c h a r g e r e m a i n i n g i n t h e b a t t e r y .
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
l o a d r e d u c t i o n f u n c t i o n t e m p o r a r i l y d e -
a c t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e
a i r c o n d i t i o n i n g , t h e " A I R W A V E " s y s -
t e m s , t h e h e a t e d r e a r s c r e e n . . .
C e r t a i n d e a c t i v a t e d f u n c t i o n s a r e r e a c -
t i v a t e d a u t o m a t i c a l l y a s s o o n a s c o n d i -
t i o n s p e r m i t .
T o a v o i d d i s c h a r g i n g t h e b a t t e r y ,
d o n o t l e a v e t h e l i g h t s o n r e p e a t -
e d l y w i t h t h e i g n i t i o n o f f ( r e f e r t o
t h e " E n e r g y e c o n o m y m o d e " p a r a -
g r a p h ) .
I t i s a d v i s a b l e t o d i s c o n n e c t t h e
b a t t e r y i f t h e v e h i c l e i s t o b e l e f t u n -
u s e d f o r m o r e t h a n o n e m o n t h . Before disconnecting the
battery
W a i t 2 m i n u t e s a f t e r s w i t c h i n g o f f
t h e i g n i t i o n b e f o r e d i s c o n n e c t i n g
t h e b a t t e r y .
C l o s e t h e r o o f , t h e w i n d o w s a n d
t h e d o o r s b e f o r e d i s c o n n e c t i n g t h e
b a t t e r y .
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t -
t e r y , s w i t c h o n t h e i g n i t i o n a n d w a i t 1
m i n u t e b e f o r e s t a r t i n g t o p e r m i t i n i -
t i a l i s a t i o n o f t h e e l e c t r o n i c s y s t e m s .
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
c o u n t e r e d f o l l o w i n g t h i s o p e r a t i o n ,
c o n t a c t a P E U G E O T d e a l e r .
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c -
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e e l e c t r i c w i n d o w s a n d t h e a u t o m a t i c p a r t i a l o p e n i n g o f t h e
d o o r w i n d o w s ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
Page 156 of 256
10
!
i
155

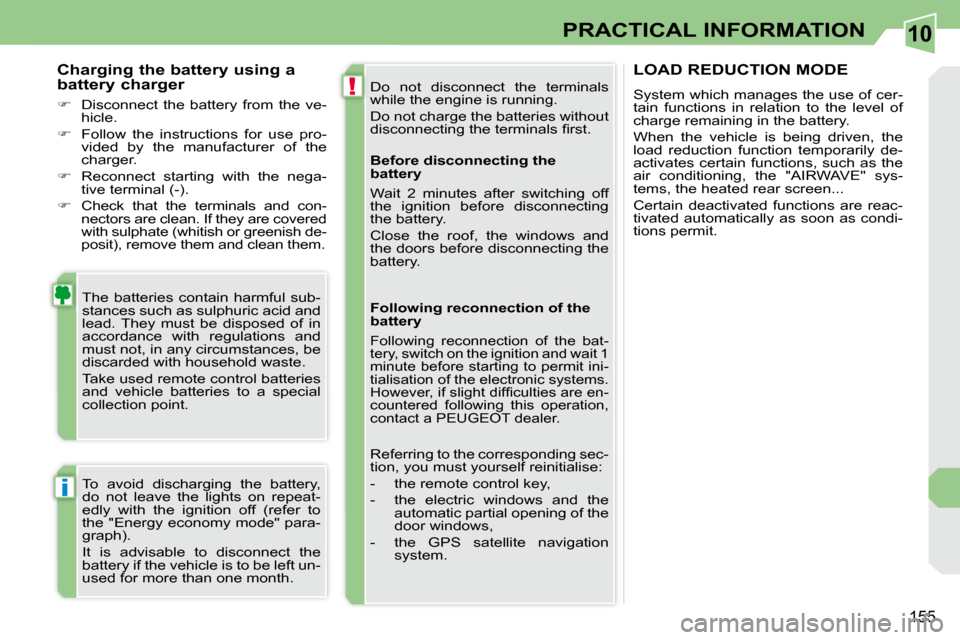

PRACTICAL INFORMATION
D o n o t d i s c o n n e c t t h e t e r m i n a l s
w h i l e t h e e n g i n e i s r u n n i n g .
D o n o t c h a r g e t h e b a t t e r i e s w i t h o u t
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
T h e b a t t e r i e s c o n t a i n h a r m f u l s u b -
s t a n c e s s u c h a s s u l p h u r i c a c i d a n d
l e a d . T h e y m u s t b e d i s p o s e d o f i n
a c c o r d a n c e w i t h r e g u l a t i o n s a n d
m u s t n o t , i n a n y c i r c u m s t a n c e s , b e
d i s c a r d e d w i t h h o u s e h o l d w a s t e .
T a k e u s e d r e m o t e c o n t r o l b a t t e r i e s
a n d v e h i c l e b a t t e r i e s t o a s p e c i a l
c o l l e c t i o n p o i n t .
Charging the battery using a
battery charger
D i s c o n n e c t t h e b a t t e r y f r o m t h e v e -
h i c l e .
F o l l o w t h e i n s t r u c t i o n s f o r u s e p r o -
v i d e d b y t h e m a n u f a c t u r e r o f t h e
c h a r g e r .
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
t i v e t e r m i n a l ( - ) .
C h e c k t h a t t h e t e r m i n a l s a n d c o n -
n e c t o r s a r e c l e a n . I f t h e y a r e c o v e r e d
w i t h s u l p h a t e ( w h i t i s h o r g r e e n i s h d e -
p o s i t ) , r e m o v e t h e m a n d c l e a n t h e m .
LOAD REDUCTION MODE
S y s t e m w h i c h m a n a g e s t h e u s e o f c e r -
t a i n f u n c t i o n s i n r e l a t i o n t o t h e l e v e l o f
c h a r g e r e m a i n i n g i n t h e b a t t e r y .
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
l o a d r e d u c t i o n f u n c t i o n t e m p o r a r i l y d e -
a c t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e
a i r c o n d i t i o n i n g , t h e " A I R W A V E " s y s -
t e m s , t h e h e a t e d r e a r s c r e e n . . .
C e r t a i n d e a c t i v a t e d f u n c t i o n s a r e r e a c -
t i v a t e d a u t o m a t i c a l l y a s s o o n a s c o n d i -
t i o n s p e r m i t .
T o a v o i d d i s c h a r g i n g t h e b a t t e r y ,
d o n o t l e a v e t h e l i g h t s o n r e p e a t -
e d l y w i t h t h e i g n i t i o n o f f ( r e f e r t o
t h e " E n e r g y e c o n o m y m o d e " p a r a -
g r a p h ) .
I t i s a d v i s a b l e t o d i s c o n n e c t t h e
b a t t e r y i f t h e v e h i c l e i s t o b e l e f t u n -
u s e d f o r m o r e t h a n o n e m o n t h . Before disconnecting the
battery
W a i t 2 m i n u t e s a f t e r s w i t c h i n g o f f
t h e i g n i t i o n b e f o r e d i s c o n n e c t i n g
t h e b a t t e r y .
C l o s e t h e r o o f , t h e w i n d o w s a n d
t h e d o o r s b e f o r e d i s c o n n e c t i n g t h e
b a t t e r y .
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t -
t e r y , s w i t c h o n t h e i g n i t i o n a n d w a i t 1
m i n u t e b e f o r e s t a r t i n g t o p e r m i t i n i -
t i a l i s a t i o n o f t h e e l e c t r o n i c s y s t e m s .
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
c o u n t e r e d f o l l o w i n g t h i s o p e r a t i o n ,
c o n t a c t a P E U G E O T d e a l e r .
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c -
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e e l e c t r i c w i n d o w s a n d t h e a u t o m a t i c p a r t i a l o p e n i n g o f t h e
d o o r w i n d o w s ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
Page 208 of 256
208

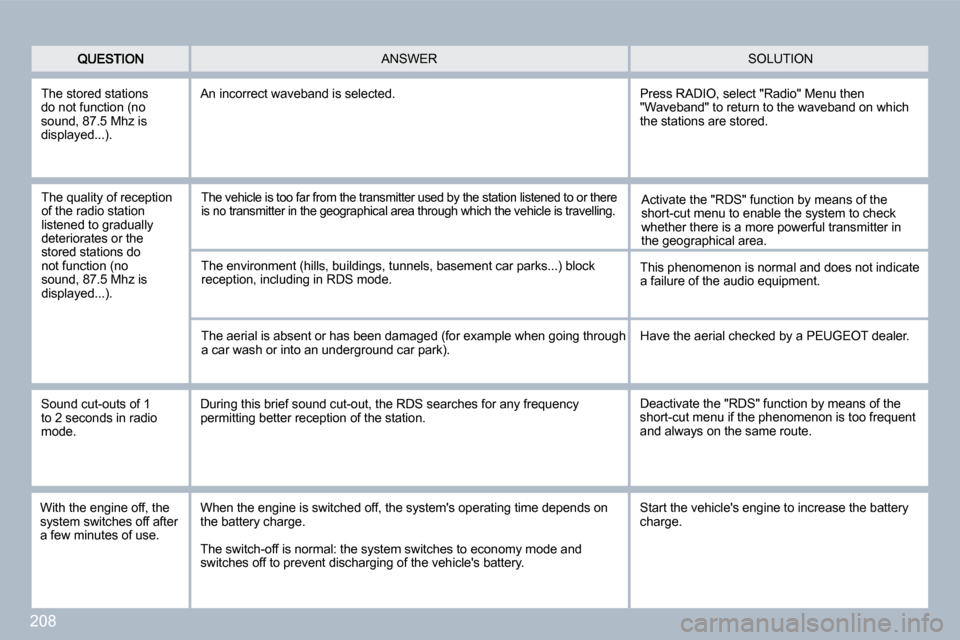

SOLUTION ANSWER
The stored stations do not function (no s o u n d , 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
An incorrect waveband is selected.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no s o u n d , 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
Activate the "RDS" function by means of the short-cut menu to enable the system to check whether there is a more powerful transmitter in the geographical area.
Press RADIO, select "Radio" Menu then "Waveband" to return to the waveband on which the stations are stored.
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through which the vehicle is travelling.
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k reception, including in RDS mode.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the "RDS" function by means of the short-cut menu if the phenomenon is too frequent and always on the same route.
With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's oper ating time depends on the battery charge.
T h e s w i t c h - o f f i s n o r m a l : t h e s y s t e m s w i t c h e s t o e c o n o m y m o d e a n d switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer. The aerial is absent or has been damaged (for exam ple when going through a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .
