2009.5 Peugeot 308 CC Dag Owner's Manual

185
03 NAVIGATION - GUIDANCE

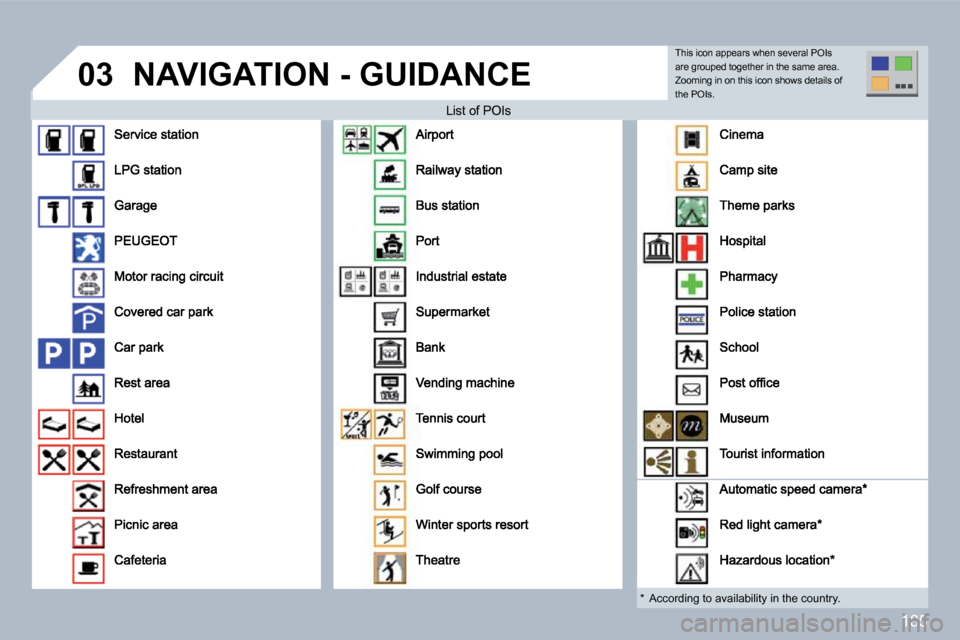

List of POIs List of POIs
* According to availability in the country.
This icon appears when several POIs are grouped together in the same area. Zooming in on this icon shows details of the POIs.

186
03
5
3
4
2
NAV
1
Download the "Risk areas POIs" update fi le onto an SD card or USB stick from the Internet. This service is available on www.peugeot.fr or www.peugeot.co.uk.
The fi les must be copied to the root on the chosen medium. The fi les must be copied to the root on the chosen medium.
Insert the medium (SD card or USB stick) containin g the POI database into the system's SD card reader o r USB reader. Successful downloading is confi rmed by a message.
UPDATING THE RISK AREAS POIs
Update personal POI Select the medium ("USB" or "SD-Card") used and press OK.
Press NAV, select "Navigation" Menu, then "Settings", then "Update personal POI".
SETTINGS
"NAVIGATION" MENU
NAVIGATION - GUIDANCE

187
03
5
3
4
NAV1
2
1

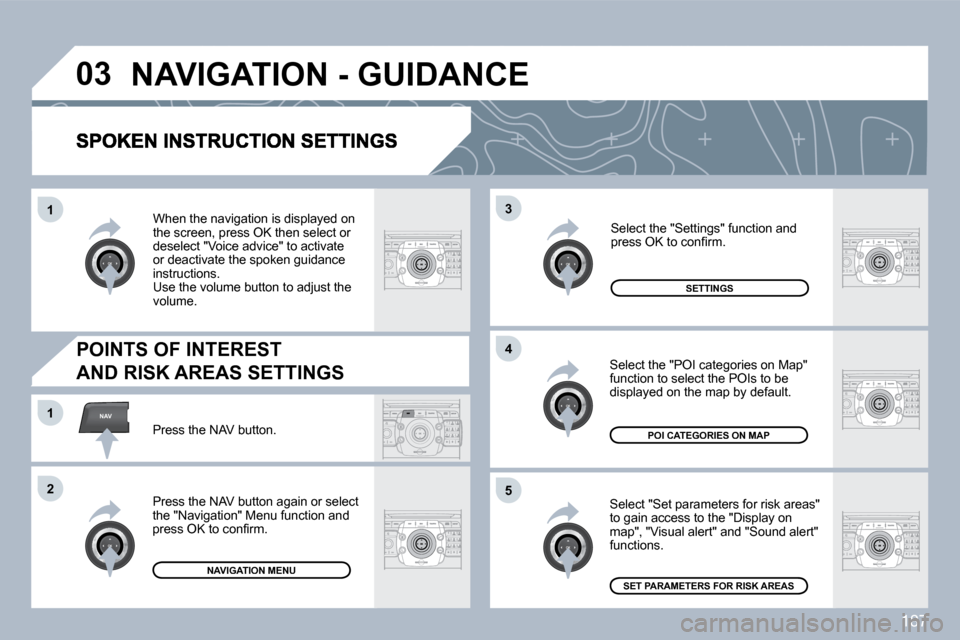

Select "Set parameters for risk areas" to gain access to the "Display on map", "Visual alert" and "Sound alert" functions.
Select the "POI categories on Map" function to select the POIs to be displayed on the map by default.
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press OK to confi rm.
Select the "Settings" function and press OK to confi rm.
NAVIGATION MENU
SETTINGS
POI CATEGORIES ON MAP
SET PARAMETERS FOR RISK AREAS
NAVIGATION - GUIDANCE
When the navigation is displayed on the screen, press OK then select or deselect "Voice advice" to activate or deactivate the spoken guidance instructions. Use the volume button to adjust the volume.
POINTS OF INTEREST
AND RISK AREAS SETTINGS

188
TRAFFIC
04
1
2
4
5
3

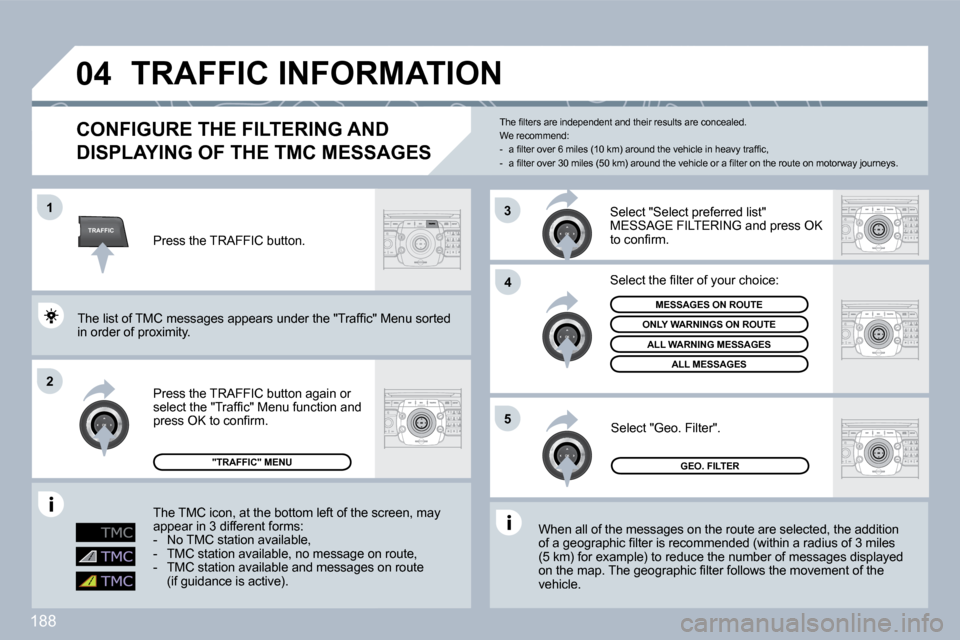

TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAYING OF THE TMC MESSAGES
When all of the messages on the route are selected, the additionof a geographic fi lter is recommended (within a radius of 3 miles(5 km) for example) to reduce the number of message s displayed on the map. The geographic fi lter follows the movement of the vehicle.
Press the TRAFFIC button again or select the "Traffi c" Menu function and press OK to confi rm. Select "Geo. Filter".
The list of TMC messages appears under the "Traffi c" Menu sorted The list of TMC messages appears under the "Traffi c" Menu sorted in order of proximity.
Select the fi lter of your choice:
MESSAGES ON ROUTE
ONLY WARNINGS ON ROUTE
ALL WARNING MESSAGES
ALL MESSAGES
"TRAFFIC" MENU
The TMC icon, at the bottom left of the scthe screen, may appear in 3 different forms: - No TMC station available, - TMC station available, no message on ge on route, - TMC station available and messages oges on route(if guidance is active).
Select "Select preferred list" MESSAGE FILTERING and press OK to confi rm.
The fi lters are independent and their results are concealed. We recommend: - a fi lter over 6 miles (10 km) around the vehicle in heavy traffi c, - a fi lter over 30 miles (50 km) around the vehi cle or a fi lter on the route on motorway journeys.
Press the TRAFFIC button.
GEO. FILTER

189
RADIO
11
2
3
05

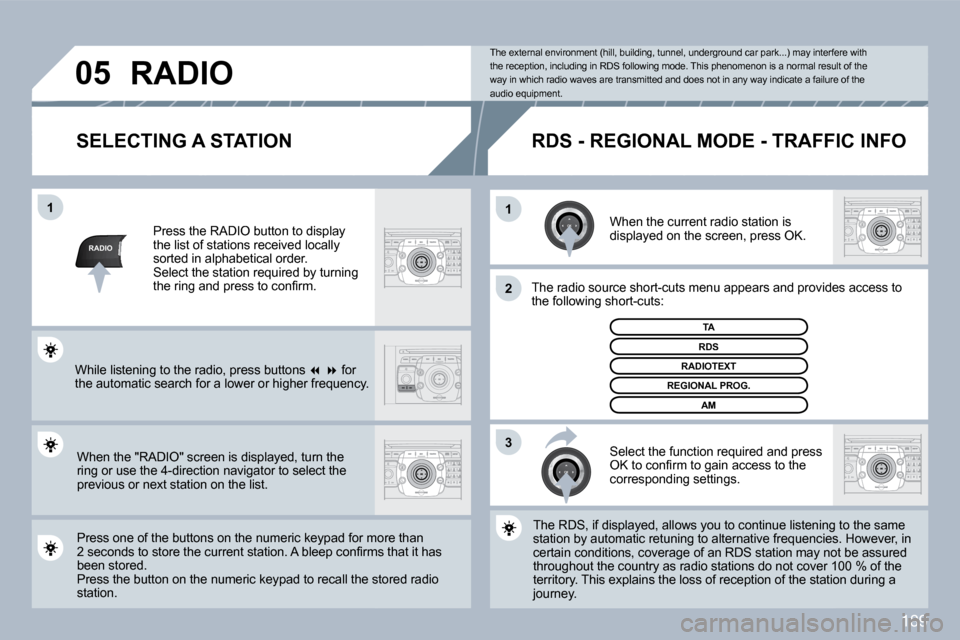

SELECTING A STATION
When the current radio station is displayed on the screen, press OK.
The radio source short-cuts menu appears and providesovides access to the following short-cuts:
Select the function required and press OK to confi rm to gain access to the corresponding settings.
TA
The RDS, if displayed, allows you to continue listening tning to the same station by automatic retuning to alternative freque ncies.ncies. However, in certain conditions, coverage of an RDS station may not y not be assured throughout the country as radio stations do not cover 10ver 100 % of the territory. This explains the loss of reception of the stationstation during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. Thi s phenomenon is a normal result of the way in which radio waves are transmitted and does n ot in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the ring and press to confi rm.
Press one of the buttons on the numeric keypad for moor more than2 seconds to store the current station. A bleep confi rms that it has 2 seconds to store the current station. A bleep confi rms that it has been stored. Press the button on the numeric keypad to recall the stothe stored radio station.
RDS
RADIOTEXT
REGIONAL PROG.
AM
RADIO
When the "RADIO" screen is displayed, turn the ring or use the 4-direction navigator to select the previous or next station on the list.
While listening to the radio, press buttons   for the automatic search for a lower or higher frequenc y.

190
06MUSIC MEDIA PLAYERS
CD, MP3/WMA CD,
MP3/WMA SD CARD/USB READER
INFORMATION AND ADVICE
In order to be able to play a recorded CDR or CDRW, wRW, when recording it is preferable to select the ISO 9660 level 1, 2 or Joliet recording it is preferable to select the ISO 9660 level 1, 2 or Joliet standard. If the disc is recorded in another format it may not be plat be played correctly. It is recommended that the same recording standard is ard is always used for an individual disc, with as low a speed as possible (4x maximum) for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio equipment will only play audio fi les wit h the extension The audio equipment will only play audio fi les with the extension ".mp3" with a speed of between 8 Kbps and 320 Kbps abps and the extension ".wma" with a speed of between 5 Kbps and 3s and 384 Kbps. It also supports the VBR (Variable Bit Rate) mode. No other type of fi le (.mp4, .m3u...) can be played.
The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 A 2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Medi Media Audio and the property of Microsoft, are audio compression standastandards which permit the recording of several tens of music fi les on a single disc. permit the recording of several tens of music fi les on a single disc.
It is advisable to restrict fi le names to 20 characters, without using of It is advisable to restrict fi le names to 20 characters, without using of special characters (e.g.: " " ? ; ù) to avoid any p laying and displaying special characters (e.g.: " " ? ; ù) to avoid any playing and displaying problems.
During play, exit the "SD-Card" or "USB" source be fore efore removing the SD card or the USB stick from its reader.
To avoid any risk of theft, remove the SD card or the USthe USB stick when you leave your vehicle with the roof open.

191
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
4
5
6
2
7
3
1
MEDIA
SELECTING/PLAYING
CD, MP3/WMA CD,
MP3/WMA SD CARD/USB READER
The playing and displaying of an MP3/WMA compilati
onilation may depend on the recording programme and/or the paramearameters used. We recommend the ISO 9660 recording standard. Press the MEDIA button.
Select the "Select media" function and press OK to confi rm.
Press this button.
Select the music source required. Press OK to confi rm. Play begins.
SELECT MEDIA
Press the MEDIA button again or select the "Media" Menu function and press OK to confi rm.
When the "MEDIA" screen is displayed, turn the ring up or down to select the previous or next compatible source.
"MEDIA" MENU
The list of tracks or MP3/WMA fi les appears under "Media" Menu. The list of tracks or MP3/WMA fi les appears under "Media" Menu.
Insert the audio or MP3 CD in the player, the SD card in the card reader or the USB peripheral in the USB reader.Play begins automatically.
MP3 CDs, SD cards or USB peripherals are the compatible sources.

192
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK1
3
4
06
22
3
MEDIA
1
MEDIA
Connect the portable equipment (MP3 player, camcor
der, camera…) Connect the portable equipment (MP3 player, camcorder, camera…) to the RCA socket (white and red for audio; red and yellow for video) to the RCA socket (white and red for audio; red and yellow for video) in the glove box using a JACK/RCA audio cable.
Press the MEDIA button then press it again or select the "Media" Menu function and press OK to confi rm.
Select the AUX music source and press OK to confi rm. Play begins automatically.
Select "Select media" then "External device (AV)" and press OK to activate it.
EXTERNAL DEVICE
The display and management of the controls is via the pa the portable equipment.
USING AN EXTERNAL DEVICE (AUX)
AUDIO/VIDEO/RCA CABLE NOT SUPPLIED
MUSIC MEDIA PLAYERS
If the external device is not activated, select "Ext. Device (Aux) If the external device is not activated, select "Ext. Device (Aux) management" to activate it.
VIEWING A VIDEO DVD
Select the video source required ("DVD-Video", "Ex ternxternal device (AV)"). Press OK to confi rm. Play begins.
Press the MEDIA button to gain access to the "DVD" menu at any time, or to the functions of the "Media" Menu which adjust the video (brightness/contrast, image format...).
If the DVD does not appear on the screen, press the MODE button to gain access to the "MEDIA" screen which displays the DVD screen.
Insert the DVD in the player. Play begins automatically.
The 4-direction navigator and the chromed ring allow you to move the DVD selection cursor. Change chapter by pressin g the  or  button.
