2009.5 Peugeot 308 CC Dag Owner's Manual

5
82

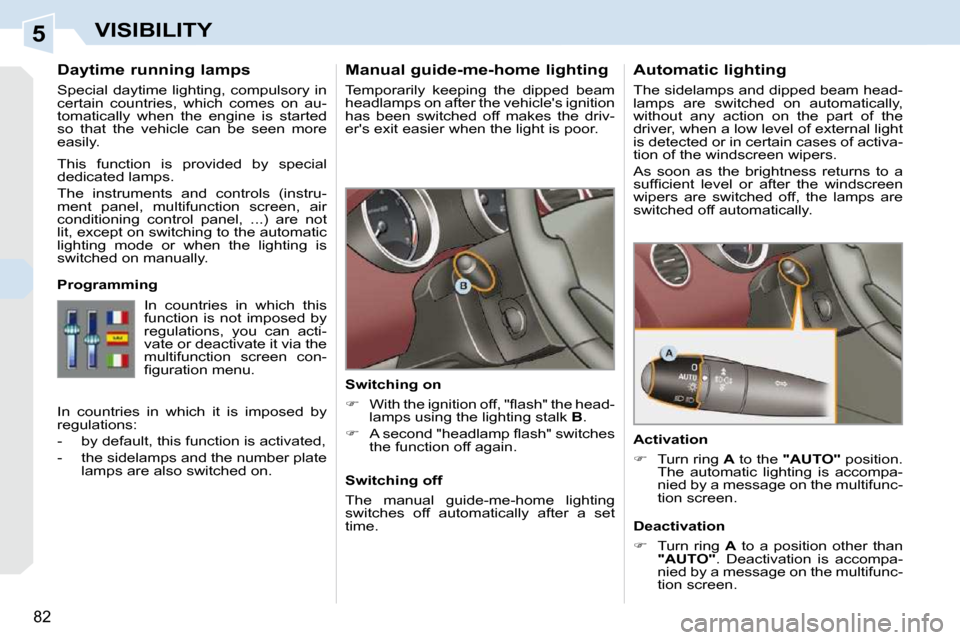

VISIBILITY
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition
has been switched off makes the driv-
er's exit easier when the light is poor.
Switching on

 With the ignition off, "fl ash" the head-
lamps using the lighting stalk B .

 A second "headlamp fl ash" switches
the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic lighting
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.
Activation

 Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion screen.
Deactivation

 Turn ring A to a position other than

"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion screen.
Daytime running lamps
Special daytime lighting, compulsory in
certain countries, which comes on au-
tomatically when the engine is started
so that the vehicle can be seen more
easily.
This function is provided by special
dedicated lamps.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, ...) are not
lit, except on switching to the automatic
lighting mode or when the lighting is
switched on manually.
Programming
In countries in which this
function is not imposed by
regulations, you can acti-
vate or deactivate it via the
multifunction screen con-
fi guration menu.
In countries in which it is imposed by
regulations:
- by default, this function is activated,
- the sidelamps and the number plate lamps are also switched on.

5
!
AUTO
ii
83
VISIBILITY
In fog or snow, the brightness
sensor may detect suffi cient light.
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehi-
cle parameters on the multifunction
screen confi guration menu,
- automatic activation of "guide-me- home" lighting when automatic light-
ing is in operation.
Operating fault In the event of a malfunction
of the brightness sensor, the
lighting comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing and sidespotlamps makes your
approach to the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on

 Press the open padlock on the re-
mote control.
The dipped beam headlamps and the sidelamps come on, as well as
the sidespotlamps, located in the
exterior mirrors; your vehicle is also
unlocked.
Programming The lighting duration is
selected via the multifunc-
tion screen confi guration
menu.
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
MANUAL ADJUSTMENT OF THE HALOGEN HEADLAMPS
Initial setting is position "0".
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 4 people.

-. Intermediate setting.

2. 4 people + maximum authorised
loads.

-. Intermediate setting.

3. Driver + maximum authorised
loads.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.

5
!
AUTO
ii
83
VISIBILITY
In fog or snow, the brightness
sensor may detect suffi cient light.
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehi-
cle parameters on the multifunction
screen confi guration menu,
- automatic activation of "guide-me- home" lighting when automatic light-
ing is in operation.
Operating fault In the event of a malfunction
of the brightness sensor, the
lighting comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing and sidespotlamps makes your
approach to the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on

 Press the open padlock on the re-
mote control.
The dipped beam headlamps and the sidelamps come on, as well as
the sidespotlamps, located in the
exterior mirrors; your vehicle is also
unlocked.
Programming The lighting duration is
selected via the multifunc-
tion screen confi guration
menu.
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
MANUAL ADJUSTMENT OF THE HALOGEN HEADLAMPS
Initial setting is position "0".
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 4 people.

-. Intermediate setting.

2. 4 people + maximum authorised
loads.

-. Intermediate setting.

3. Driver + maximum authorised
loads.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.

5
!
AUTO
ii
83
VISIBILITY
In fog or snow, the brightness
sensor may detect suffi cient light.
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehi-
cle parameters on the multifunction
screen confi guration menu,
- automatic activation of "guide-me- home" lighting when automatic light-
ing is in operation.
Operating fault In the event of a malfunction
of the brightness sensor, the
lighting comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing and sidespotlamps makes your
approach to the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on

 Press the open padlock on the re-
mote control.
The dipped beam headlamps and the sidelamps come on, as well as
the sidespotlamps, located in the
exterior mirrors; your vehicle is also
unlocked.
Programming The lighting duration is
selected via the multifunc-
tion screen confi guration
menu.
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
MANUAL ADJUSTMENT OF THE HALOGEN HEADLAMPS
Initial setting is position "0".
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 4 people.

-. Intermediate setting.

2. 4 people + maximum authorised
loads.

-. Intermediate setting.

3. Driver + maximum authorised
loads.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.

5
!
i
84
VISIBILITY
AUTOMATIC ADJUSTMENT OF THE XENON HEADLAMPS
Do not touch the xenon headlamp
bulbs. Consult a PEUGEOT dealer.
In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamp beams
automatically and when stationary, in re-
lation to the load in the vehicle.
If a malfunction occurs, this
warning lamp and/or the serv-
ice warning lampis displayed
on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
The system then places your head-
lamps in the lowest position.
DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beams to follow the direction of the
road.
The use of this function, coupled with
the xenon headlamps only, considera-
bly improves the quality of your lighting
when cornering.

with directional lighting

without directional lighting Programming
Operating fault
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
If a malfunction occurs, this
warning lamp fl ashes on the in-
strument panel, accompanied
by a message on the multifunc-
tion screen.
Consult a PEUGEOT dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.

5
!
i
84
VISIBILITY
AUTOMATIC ADJUSTMENT OF THE XENON HEADLAMPS
Do not touch the xenon headlamp
bulbs. Consult a PEUGEOT dealer.
In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamp beams
automatically and when stationary, in re-
lation to the load in the vehicle.
If a malfunction occurs, this
warning lamp and/or the serv-
ice warning lampis displayed
on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
The system then places your head-
lamps in the lowest position.
DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beams to follow the direction of the
road.
The use of this function, coupled with
the xenon headlamps only, considera-
bly improves the quality of your lighting
when cornering.

with directional lighting

without directional lighting Programming
Operating fault
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
If a malfunction occurs, this
warning lamp fl ashes on the in-
strument panel, accompanied
by a message on the multifunc-
tion screen.
Consult a PEUGEOT dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.

5
85
VISIBILITY

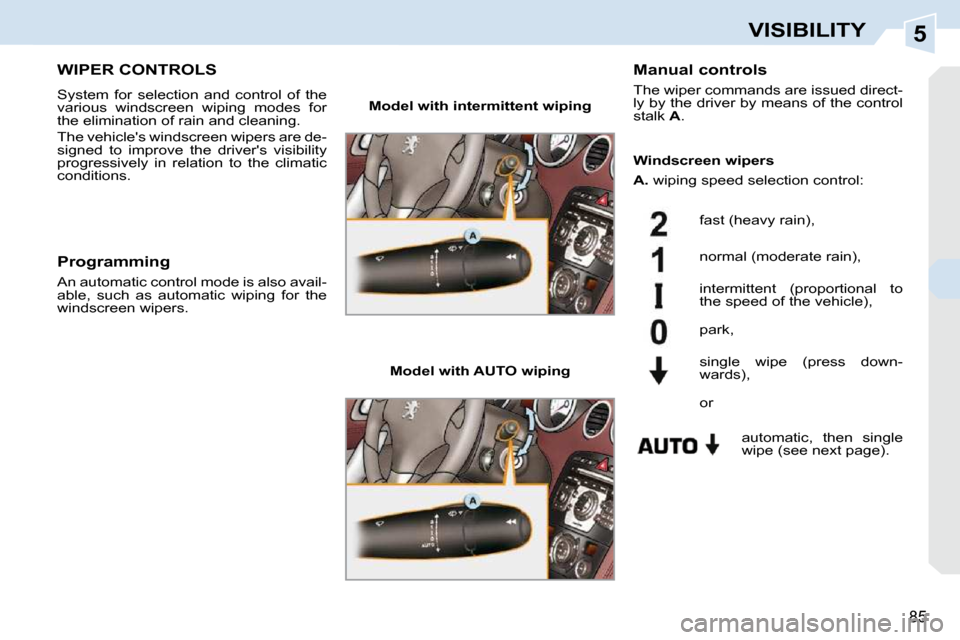

WIPER CONTROLS
System for selection and control of the
various windscreen wiping modes for
the elimination of rain and cleaning.
The vehicle's windscreen wipers are de-
signed to improve the driver's visibility
progressively in relation to the climatic
conditions. Manual controls
The wiper commands are issued direct-
ly by the driver by means of the control
stalk
A .
Model with intermittent wiping
Model with AUTO wiping fast (heavy rain),
normal (moderate rain),
intermittent (proportional to
the speed of the vehicle),
automatic, then single
wipe (see next page).
park,
single wipe (press down-
wards),
Programming
An automatic control mode is also avail-
able, such as automatic wiping for the
windscreen wipers. Windscreen wipers

A. wiping speed selection control:
or

5
!
i
86
VISIBILITY
Windscreen and headlamp
wash

 Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.

If the dipped headlamps are on , the
headlamp washers operate at the same
time.
Screenwash/headlamp wash low
In the case of vehicles fi tted with
headlamp washers, when the
minimum level of the reservoir is
reached, this warning lamp and/
or the service warning lamp is displayed
on the instrument panel, accompanied by
an audible signal and a message on the
multifunction screen.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning lamp is displayed when the ig-
nition is switched on, or every time the stalk
is operated, until the reservoir is fi lled.
Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
behind the interior mirror), adapting their
speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing stalk A to the "AUTO" posi-
tion.
It is accompanied by a message on the
multifunction screen.
Do not cover the rain sensor, linked
with the brightness sensor and lo-
cated in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing stalk
A downwards.
Switching off
This is controlled manually by the driver
by moving stalk A upwards and return-
ing it to position "0" .
It is accompanied by a message on the
multifunction screen. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
