2009.5 Peugeot 308 CC Dag Owner's Manual

11
167
TECHNICAL DATA
DIMENSIONS (IN MM)

11
!
i
168
TECHNICAL DATA

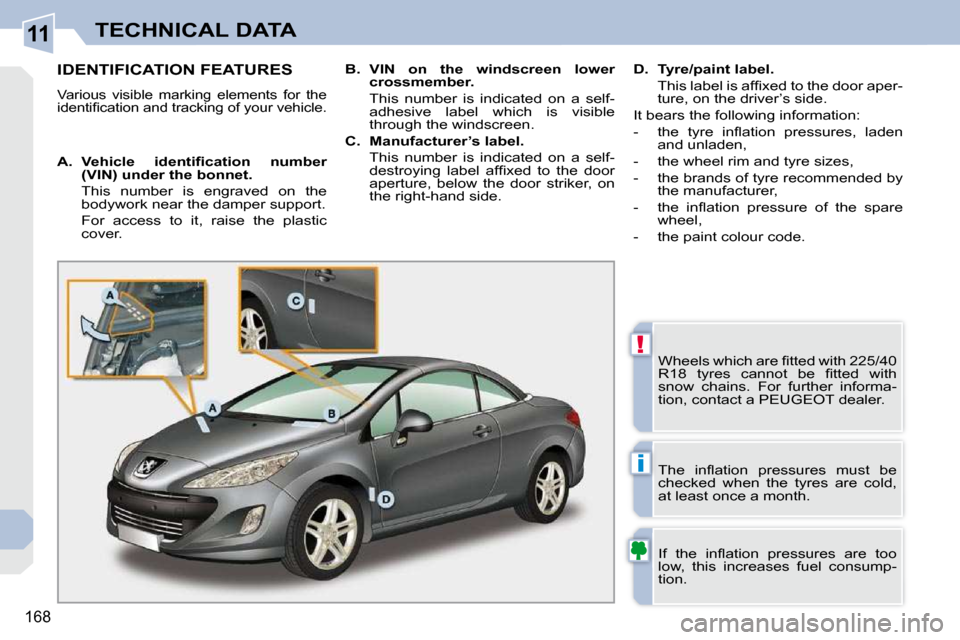

IDENTIFICATION FEATURES
Various visible marking elements for the
identifi cation and tracking of your vehicle. Wheels which are fi tted with 225/40
R18 tyres cannot be fi tted with
snow chains. For further informa-
tion, contact a PEUGEOT dealer.
If the infl ation pressures are too
low, this increases fuel consump-
tion.
The infl ation pressures must be
checked when the tyres are cold,
at least once a month.

A. Vehicle identifi cation
number

(VIN)
under the bonnet.
This number is engraved on the bodywork near the damper support.
For access to it, raise the plastic cover.
B. VIN
on the windscreen lower
crossmember.
This number is indicated on a self- adhesive label which is visible
through the windscreen.

C. Manufacturer’s label.
This number is indicated on a self- destroying label affi xed to the door
aperture, below the door striker, on
the right-hand side.
D. Tyre/paint label.
This label is affi xed to the door aper- ture, on the driver’s side.
It bears the following information:
- the tyre infl ation pressures, laden and unladen,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- the infl ation pressure of the spare wheel,
- the paint colour code.

170
EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL ASSISTANCE CALL
OPERATION OF THE SYSTEM
In an emergency, press this button for more than 2 seconds. Flashing of the green diode and a voice message confi rm that the call has been made to the PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green diode switches off.
The green diode remains on (without fl ashing) whe n communication is established. It switches off at the end of communication.
This call is dealt with by the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in whi ch the team is not operational, or when the locating service has been expressly refused, the call is dealt with directly by the emergency services (112) without the vehicle location.
If an impact is detected by the airbag ECU, and independently of any triggering of the airbags, an emergency call is mad e automatically.
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
Press this button for more than 2 seconds to requ est assistance if the vehicle breaks down. A voice message confi rms that the call has been mad e * .
Pressing this button again immediately cancels the request. The cancellation is confi rmed by a voice message.
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
If the orange indicator lamp fl ashes: there is a system malfunction. If the orange indicator lamp is lit continuously: the backup battery must be replaced. In both cases, consult a PEUGEOT dealer.

171
In an emergency, press the SOS button until a CONFIRMATION/CANCELLATION screen is displayed. A call is made * directly to PEUGEOT Emergency which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries where the call centre is not operational, or where the vehicle location service has been expressly refused, the call is directed to the national emergency services (112).
PEUGEOT ASSISTANCE
CUSTOMER CALL
If the SIM card used was not supplied by PEUGEOT, we suggest that you check its compatibility by making a call to the PEUGEOT Emergency team.
Press this button for access to PEUGEOT services * .
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
* These services and options are subject to conditions and availability.
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
If necessary, the internal telephone is activated automattomatically to make an emergency call.
In order for an emergency call to be made, a valid SIM cSIM card must be inserted.
EMERGENCY CALL

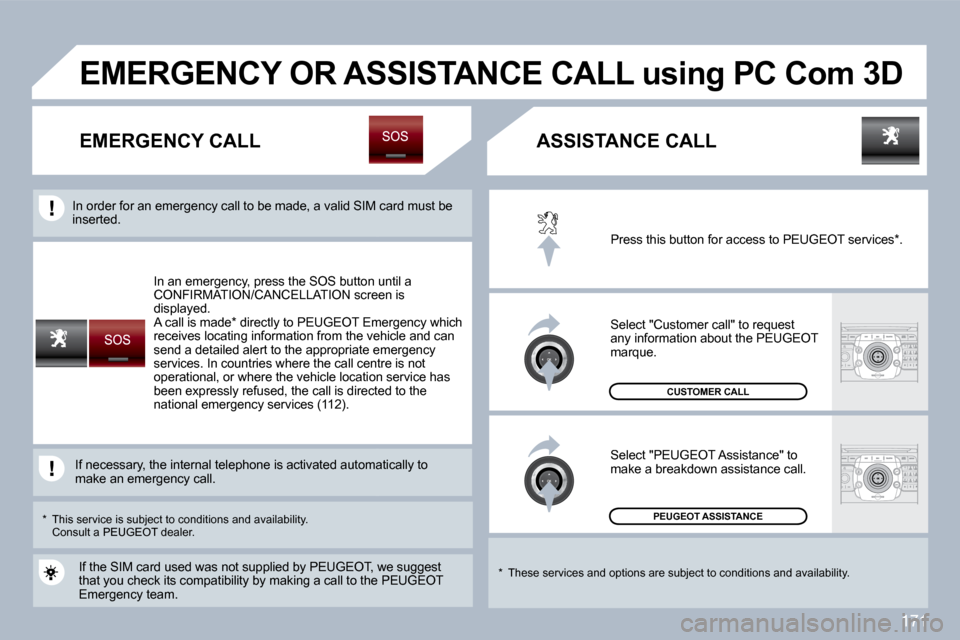

EMERGENCY OR ASSISTANCE CALL using PC Com 3D
ASSISTANCE CALL

173
The PC Com 3D is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dealer for confi guration of the system.
Certain functions described in this handbook will become available during the course of the year.
PC Com 3D
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
GPS EUROPE

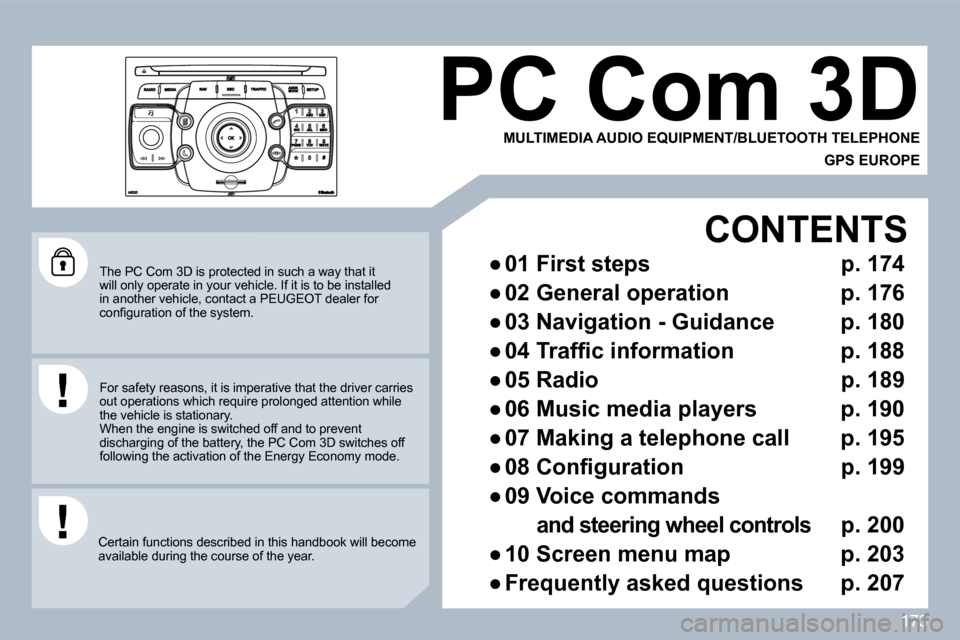

CONTENTS

174
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
10
2
3
4
612
9
7
8
115
TU
PQRS
0
*

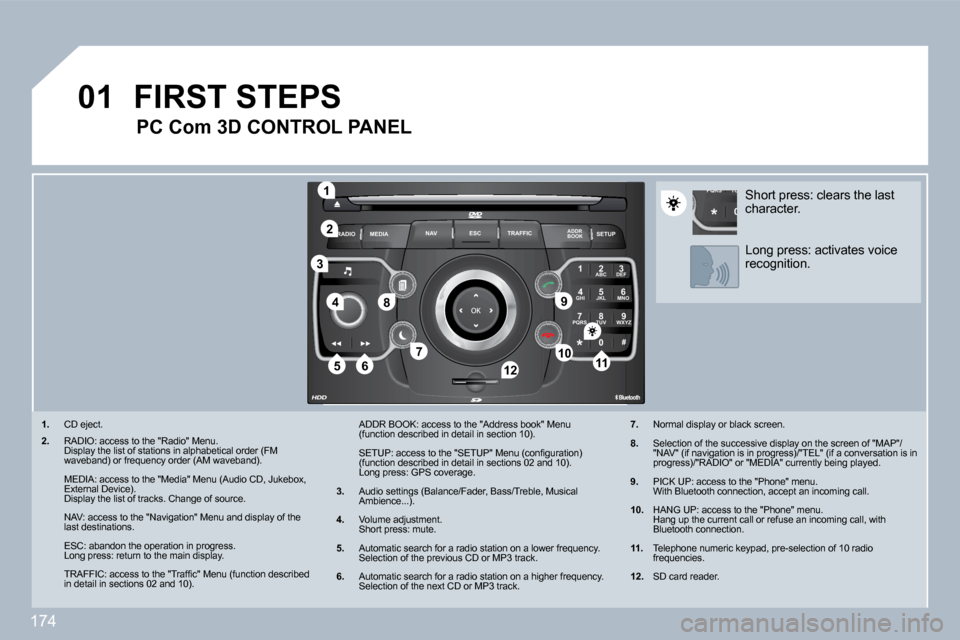

1. CD eject.
2. RADIO: access to the "Radio" Menu. Display the list of stations in alphabetical order (FM waveband) or frequency order (AM waveband).
MEDIA: access to the "Media" Menu (Audio CD, Jukeb ox, External Device). Display the list of tracks. Change of source.
NAV: access to the "Navigation" Menu and display of the last destinations.
ESC: abandon the operation in progress. Long press: return to the main display.
TRAFFIC: access to the "Traffi c" Menu (function described in detail in sections 02 and 10).
ADDR BOOK: access to the "Address book" Menu (function described in detail in section 10).
SETUP: access to the "SETUP" Menu (confi guration) (function described in detail in sections 02 and 10). Long press: GPS coverage.
3. Audio settings (Balance/Fader, Bass/Treble, Music al Ambience...).
4. Volume adjustment. Short press: mute.
5. Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
6. Automatic search for a radio station on a higher frequency. Selection of the next CD or MP3 track.
FIRST STEPS
PC Com 3D CONTROL PANEL
7. Normal display or black screen.
8. Selection of the successive display on the screen of "MAP"/"NAV" (if navigation is in progress)/"TEL" (if a conversation is in progress)/"RADIO" or "MEDIA" currently being played .
9. PICK UP: access to the "Phone" menu. With Bluetooth connection, accept an incoming call .
10. HANG UP: access to the "Phone" menu. Hang up the current call or refuse an incoming call, with Bluetooth connection.
11. Telephone numeric keypad, pre-selection of 10 radio frequencies.
12. SD card reader.
Short press: clears the last character.
Long press: activates voice recognition.

175
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
13
14

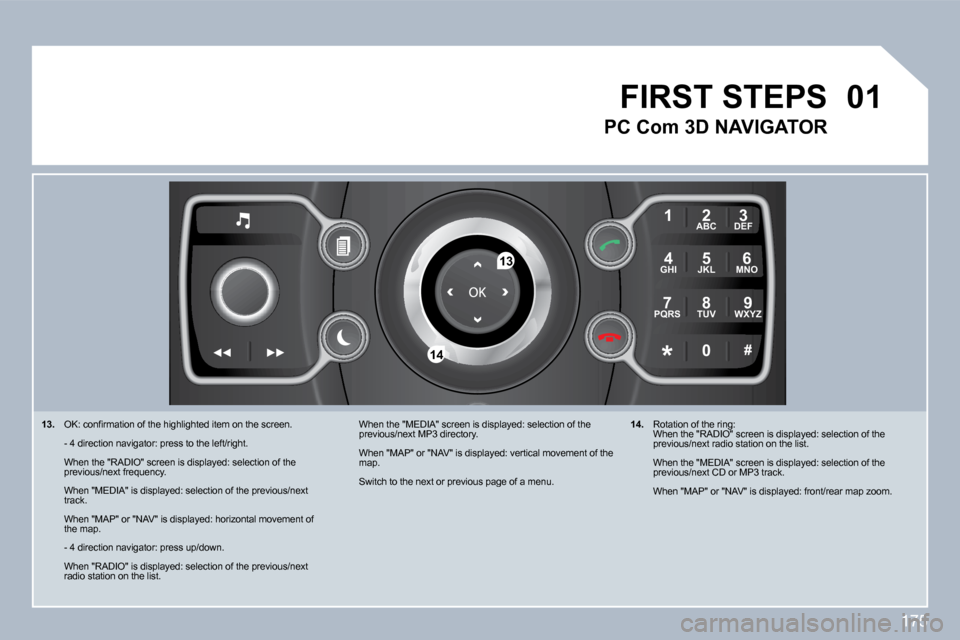

13. OK: confi rmation of the highlighted item on the sc
reen.
- 4 direction navigator: press to the left/right.
When the "RADIO" screen is displayed: selection of the previous/next frequency.
When "MEDIA" is displayed: selection of the previous/next track.
When "MAP" or "NAV" is displayed: horizontal movem ent of the map.
- 4 direction navigator: press up/down.
When "RADIO" is displayed: selection of the previous/next radio station on the list.
When the "MEDIA" screen is displayed: selection of the previous/next MP3 directory.
When "MAP" or "NAV" is displayed: vertical movemen t of the map.
Switch to the next or previous page of a menu.
FIRST STEPS
PC Com 3D NAVIGATOR
14. Rotation of the ring: When the "RADIO" screen is displayed: selection of the previous/next radio station on the list.
When the "MEDIA" screen is displayed: selection of the previous/next CD or MP3 track.
When "MAP" or "NAV" is displayed: front/rear map z oom.

176
02
SETUP
MEDIA
TRAFFIC

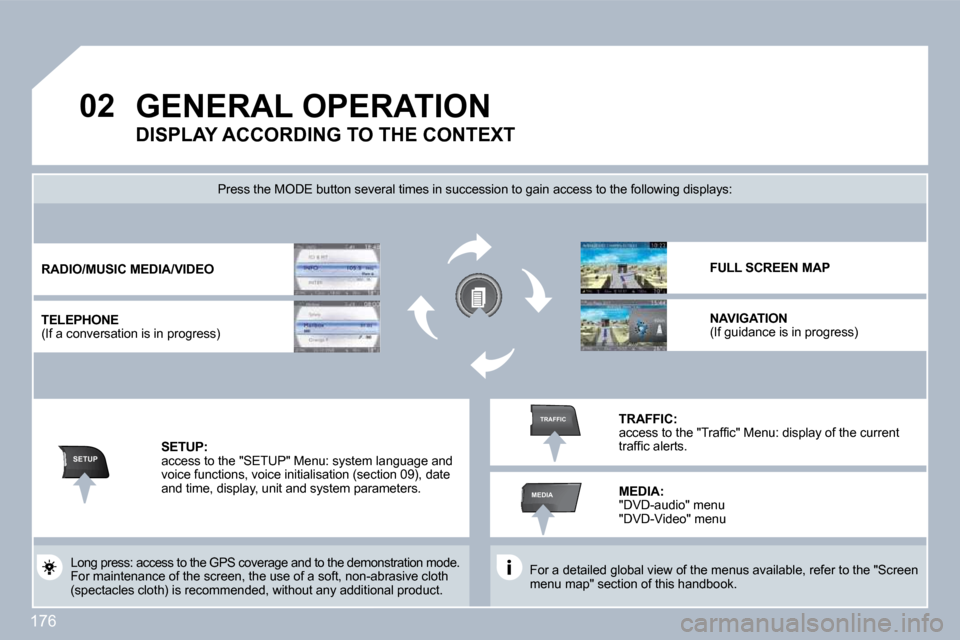

GENERAL OPERATION
For a detailed global view of the menus available, refer to the "Screen menu map" section of this handbook.
Press the MODE button several times in succession to gain access to the following displays:
Long press: access to the GPS coverage and to the demonstration mode. For maintenance of the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any addi tional product.
RADIO / MUSIC MEDIA/VIDEO
TELEPHONE (If a conversation is in progress)
FULL SCREEN MAP
NAVIGATION (If guidance is in progress)
SETUP: access to the "SETUP" Menu: system language and voice functions, voice initialisation (section 09), date and time, display, unit and system parameters.
TRAFFIC: access to the "Traffi c" Menu: display of the curren t traffi c alerts.
DISPLAY ACCORDING TO THE CONTEXT
MEDIA: "DVD-audio" menu "DVD-Video" menu
