MULTIFUNCTION SCREENS
"SETUP" menu

 Press the "SETUP" button to gain
access to the "SETUP" menu. This
allows you to select from the follo-
wing functions:
- "Language and speech",
- "Date and time",
- "Display",
- "Units",
- "System".
Language and speech
This menu allows you to:
- select the language used by the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Türkçe * ),
- select the voice recognition parame- ters (activation/deactivation, advice
on use, personal voice program-
ming, etc.),
- set the volume of the voice synthe- siser. Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the PC Com
3D part of the "Audio and Telematics"
section.
Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (km or miles).
System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text. For safety reasons, confi guration
of the multifunction screen by the
driver must be done only when sta-
tionary.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
* According to country.

2
i
i
44
MULTIFUNCTION SCREENS

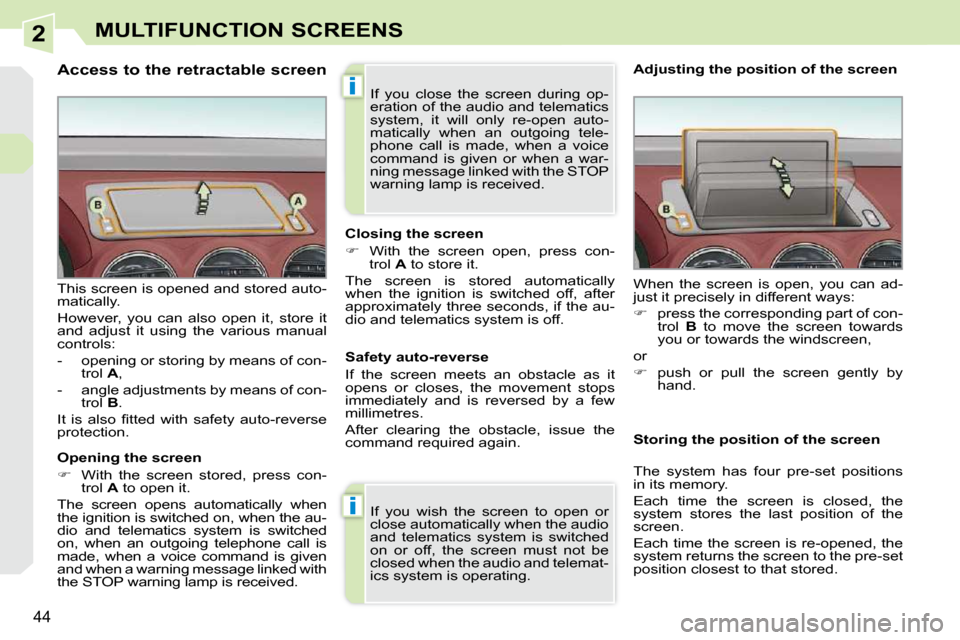

Access to the retractable screen
Opening the screen

 With the screen stored, press con-
trol A to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call is
made, when a voice command is given
and when a warning message linked with
the STOP warning lamp is received.
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of con-
trol A ,
- angle adjustments by means of con- trol B .
It is also fi tted with safety auto-reverse
protection. Closing the screen

 With the screen open, press con-
trol A to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio and telematics system is off.
If you wish the screen to open or
close automatically when the audio
and telematics system is switched
on or off, the screen must not be
closed when the audio and telemat-
ics system is operating. When the screen is open, you can ad-
just it precisely in different ways:

 press the corresponding part of con-
trol B to move the screen towards
you or towards the windscreen,
or

 push or pull the screen gently by
hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again. Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during op-
eration of the audio and telematics
system, it will only re-open auto-
matically when an outgoing tele-
phone call is made, when a voice
command is given or when a war-
ning message linked with the STOP
warning lamp is received.

2
i
45
MULTIFUNCTION SCREENS
Monochrome screen C
With the monochrome screen C or
the instrument panel large
screen
Data displays

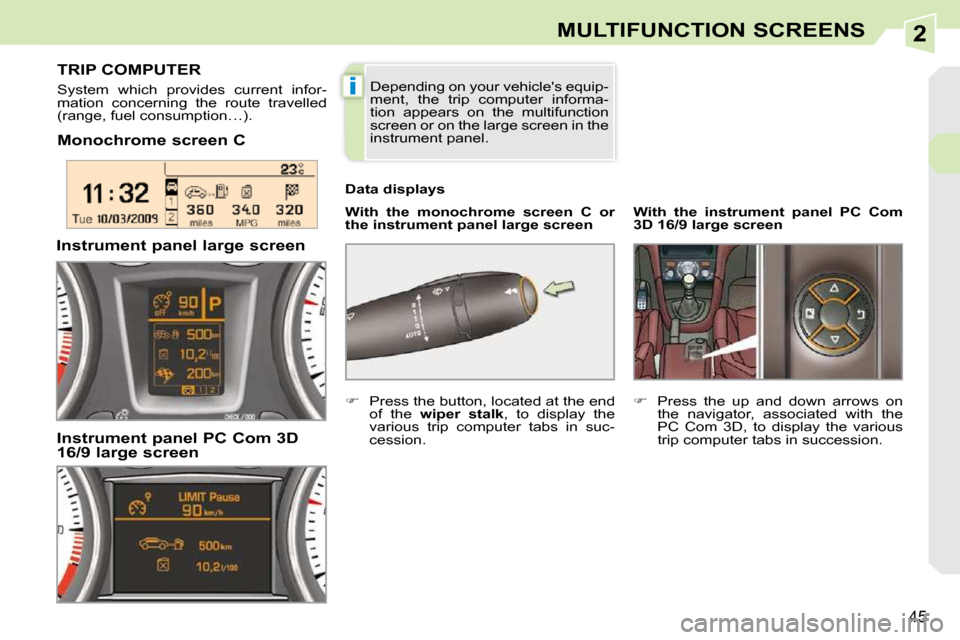

TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, fuel consumption…).
Instrument panel large screen
Instrument panel PC Com 3D
16/9 large screen Depending on your vehicle's equip-
ment, the trip computer informa-
tion appears on the multifunction
screen or on the large screen in the
instrument panel.

With the instrument panel

PC Com
3D

16/9 large
screen

 Press the up and down arrows on
the navigator, associated with the
PC Com 3D, to display the various
trip computer tabs in succession.

 Press the button, located at the end
of the wiper
stalk , to display the
various trip computer tabs in suc-
cession.

2
46
MULTIFUNCTION SCREENS

 When the trip required is displayed,
press the control for more than two
seconds.

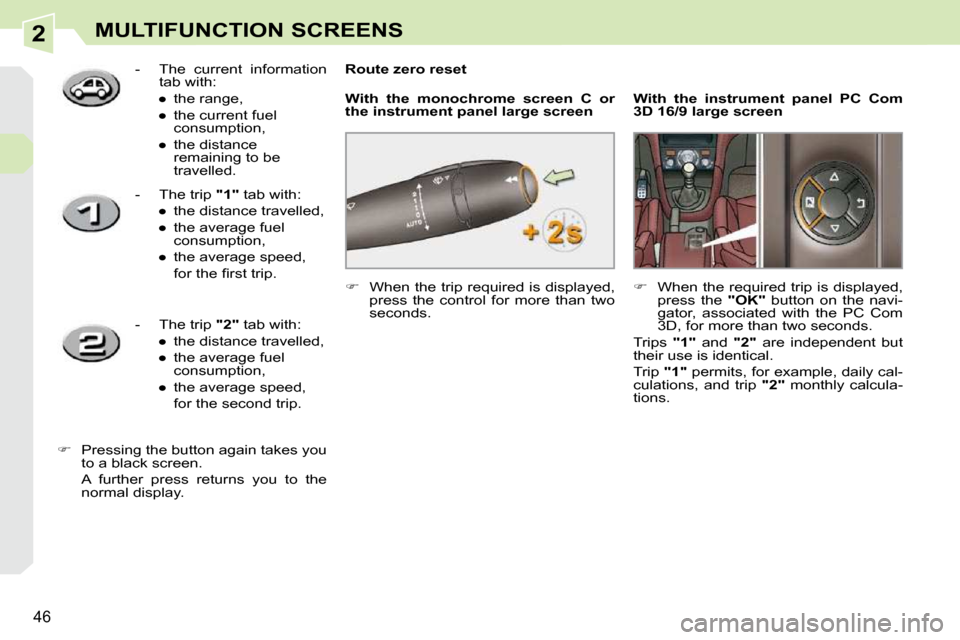

Route zero reset

With the instrument panel

PC Com
3D

16/9 large
screen

 When the required trip is displayed,
press the "OK" button on the navi-
gator, associated with the PC Com
3D, for more than two seconds.
Trips "1" and "2" are independent but
their use is identical.
Trip "1" permits, for example, daily cal-
culations, and trip "2" monthly calcula-
tions.

With the monochrome screen C or
the instrument panel large
screen
- The current information
tab with:

2
!
i
i
47
MULTIFUNCTION SCREENS

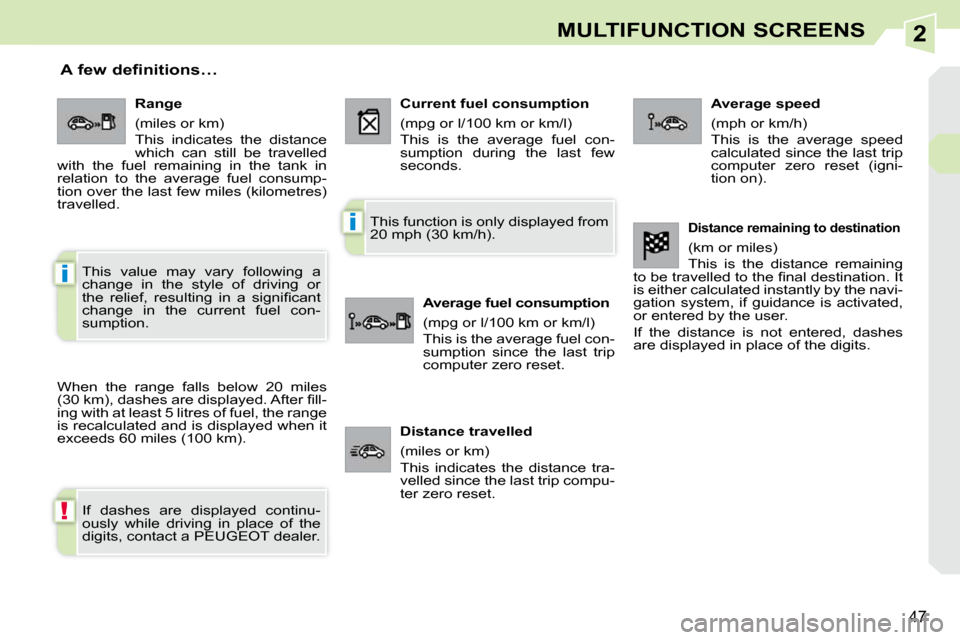

A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer. This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption. Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset. Average speed
(mph or km/h)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on).
Distance travelled
(miles or km)
This indicates the distance tra-
velled since the last trip compu-
ter zero reset.
Distance remaining to destination
(km or miles)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

3
48
COMFORT
VENTILATION Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits. The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
The air fl ow control enables you to
increase or reduce the speed of the
ventilation blower.
Air intake
The air circulating in the passenger com-
partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the cen-
tre console. Depending on the model,
the functions offered are:
- level of comfort required,
- air fl ow,
- air distribution,
- demisting and defrosting,
- manual or automatic air conditioning controls.
Air diffusion

1. Windscreen demisting vents.

2. Front side window demisting/de-
frosting vents.

3. Side adjustable air vents.

4. Central adjustable air vents.

5. Air outlets to the front footwells.

6. Adjustable air vents for the rear pas-
sengers.

7. Air outlets to the rear footwells.

3
i
i
49
COMFORT
The condensation created by the
air conditioning results in a dis-
charge of water under the vehicle
which is perfectly normal.
RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the guidelines on opera-
tion and maintenance below:

 To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

 Do not cover the sunshine sensor, located on the dashboard ; this is used
for regulation of the air conditioning system.

 Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.

 Ensure that the passenger compartment fi lter is in good condit ion and
have the fi lter elements replaced regularly (refer to the "Checks" section).

 We recommend the use of a combined passenger compartment fi lter .
Thanks to its second special active fi lter, it contributes to t he purifi cation
of the air breathed by the occupants and the cleanness of th e passenger
compartment (reduction of allergic symptoms, bad odours and greasy de-
posits).

 To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.

 If the system does not produce cold air, do not use it and contact a
PEUGEOT dealer.
In the "cabriolet" confi guration, installing the windstop and using the "AIRWAVE"
systems improves comfort.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity. If the interior temperature remains
very high after the vehicle has been
parked in the sun for a considerable
time, fi rst ventilate the passenger
compartment for a few minutes.
Place the air fl ow control at a suf-
fi cient level to provide an adequate
renewal of air in the passenger
compartment.
The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer.

3
i
50
COMFORT
2. Air fl ow adjustment
 Turn the dial from posi-
tion 1 to position 5 to obtain
a comfortable air fl ow.
Windscreen, side windows
and footwells.
Footwells.
(vents closed) Central and side vents.

 Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to your re-
quirements. Windscreen and side windows.
1. Temperature adjustment The air distribution can be
adapted by placing the dial in
an intermediate position.
The air conditioning can only operate
with the engine running. 4. Air intake/Air recirculation
The intake of exterior air prevents the
formation of condensation on the wind-
screen and side windows.
The recirculation of interior air insulates
the passenger compartment from exte-
rior odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
air quality and the formation of conden-
sation.

 If you place the air fl ow control
in position 0 (deactivation of the
system), the temperature is no
longer maintained at a comfort-
able level. However, a slight
fl ow of air, due to the movement
of the vehicle, can still be felt.
3. Air distribution adjustment

 Press the button to recir-
culate the interior air. The
indicator lamp comes on to
confi rm this.

 Press the button again to permit the
intake of exterior air. The indicator
lamp switches off to confi rm this. MANUAL AIR CONDITIONING
