2007 FORD SUPER DUTY Owners Manual

Page 145 of 312

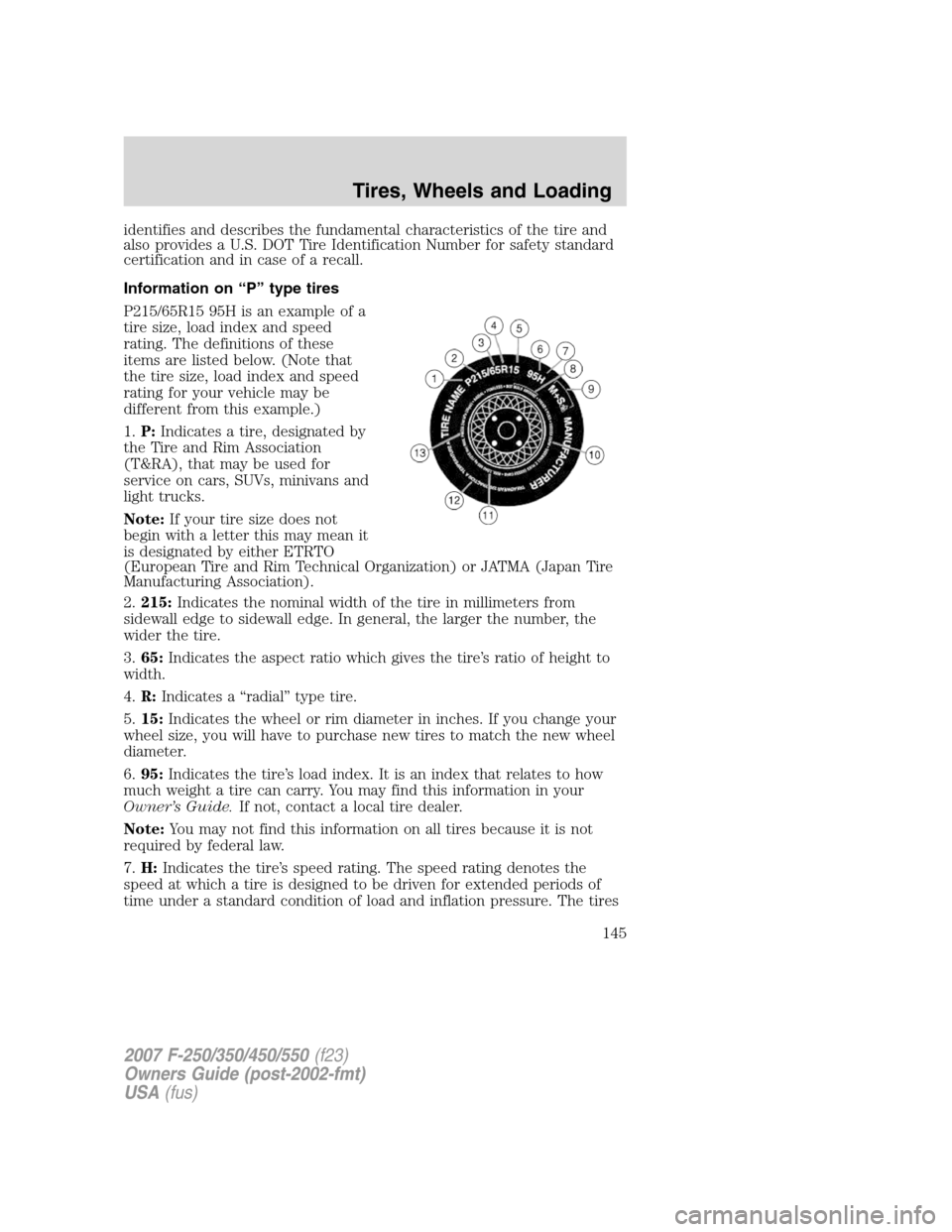

FORD SUPER DUTY 2007 1.G Owners Manual identifies and describes the fundamental characteristics of the tire and
also provides a U.S. DOT Tire Identification Number for safety standard
certification and in case of a recall.
Information on

Page 146 of 312

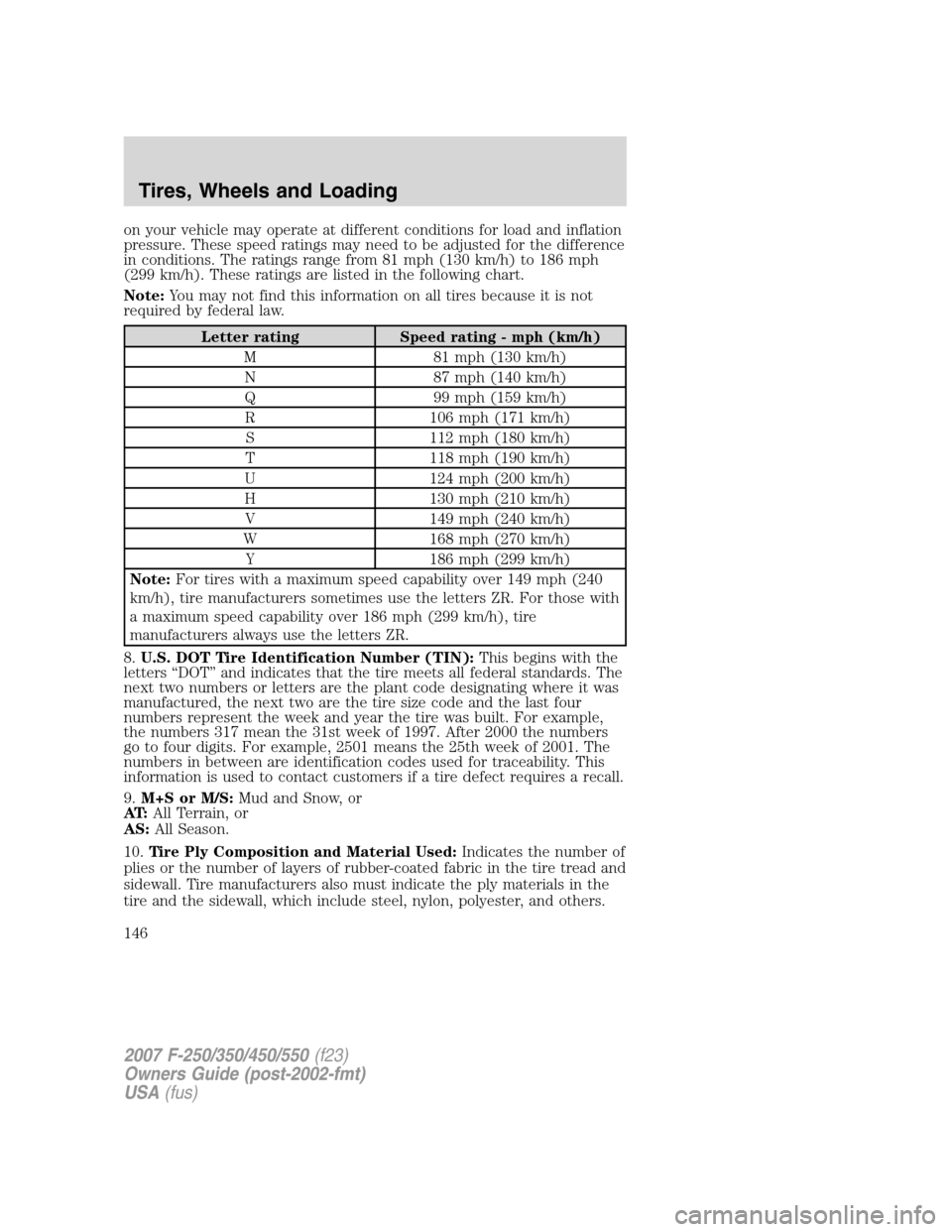

FORD SUPER DUTY 2007 1.G Owners Manual on your vehicle may operate at different conditions for load and inflation
pressure. These speed ratings may need to be adjusted for the difference
in conditions. The ratings range from 81 mph (130 km

Page 147 of 312

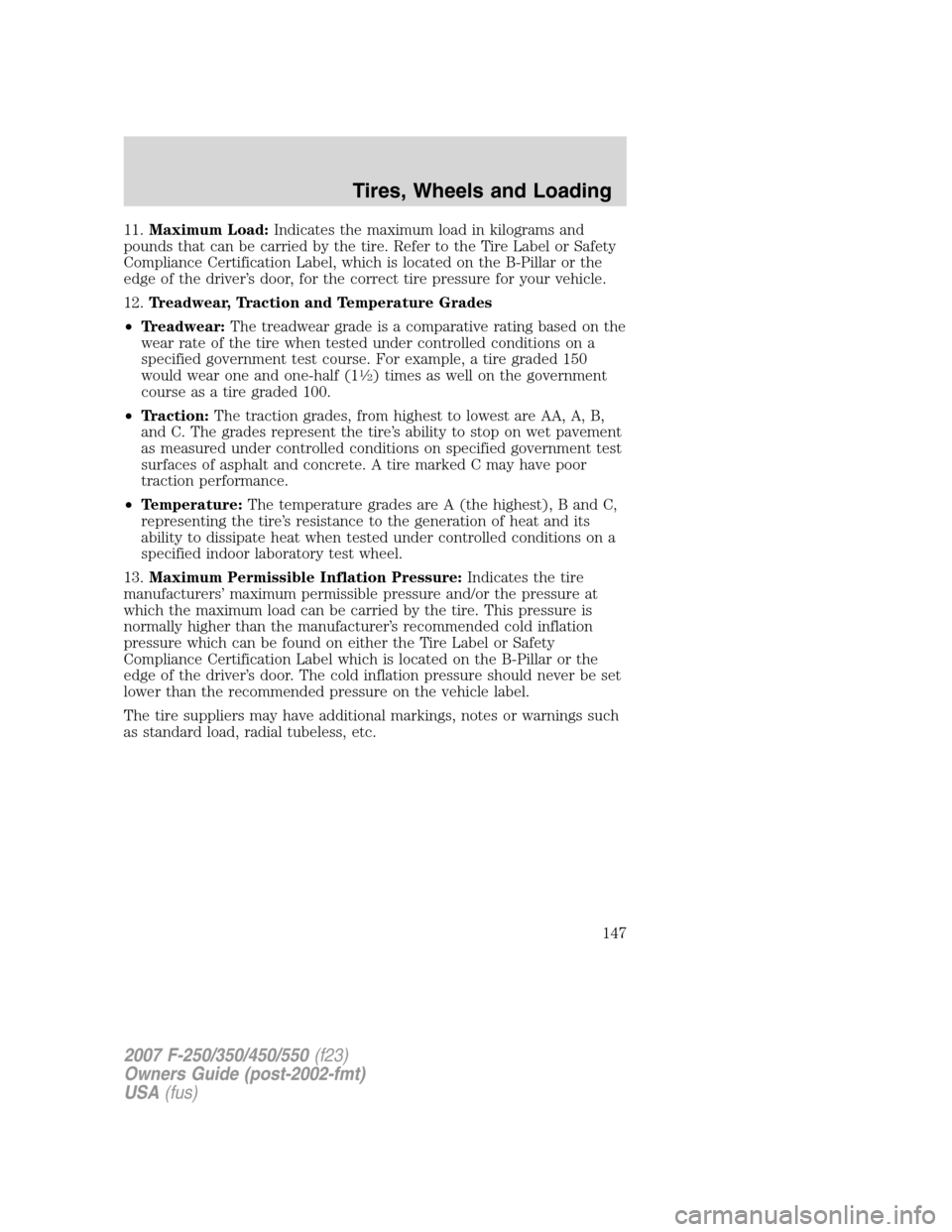

FORD SUPER DUTY 2007 1.G Owners Manual 11.Maximum Load:Indicates the maximum load in kilograms and
pounds that can be carried by the tire. Refer to the Tire Label or Safety
Compliance Certification Label, which is located on the B-Pillar o

Page 148 of 312

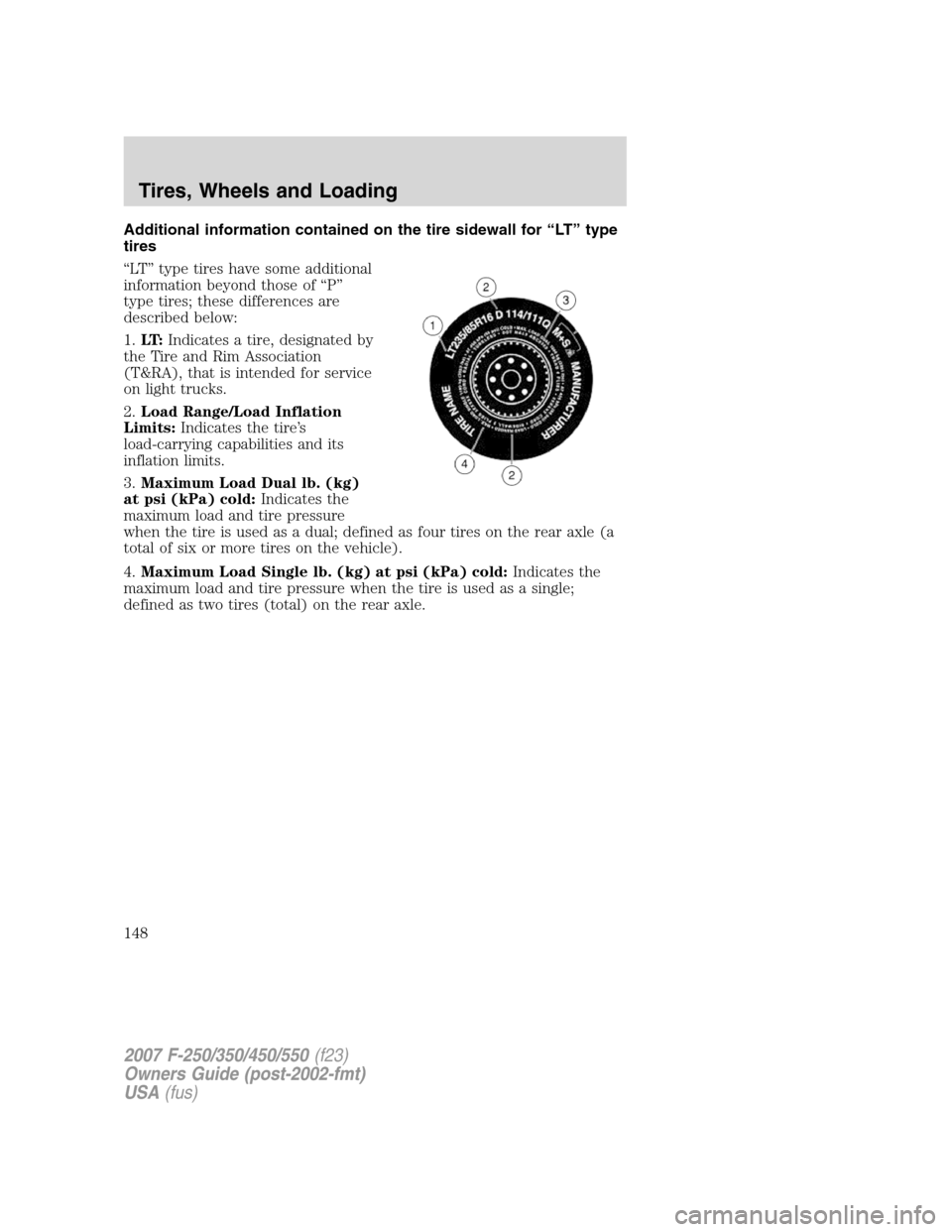

FORD SUPER DUTY 2007 1.G Owners Manual Additional information contained on the tire sidewall for “LT” type
tires
“LT” type tires have some additional
information beyond those of “P”
type tires; these differences are
described b

Page 149 of 312

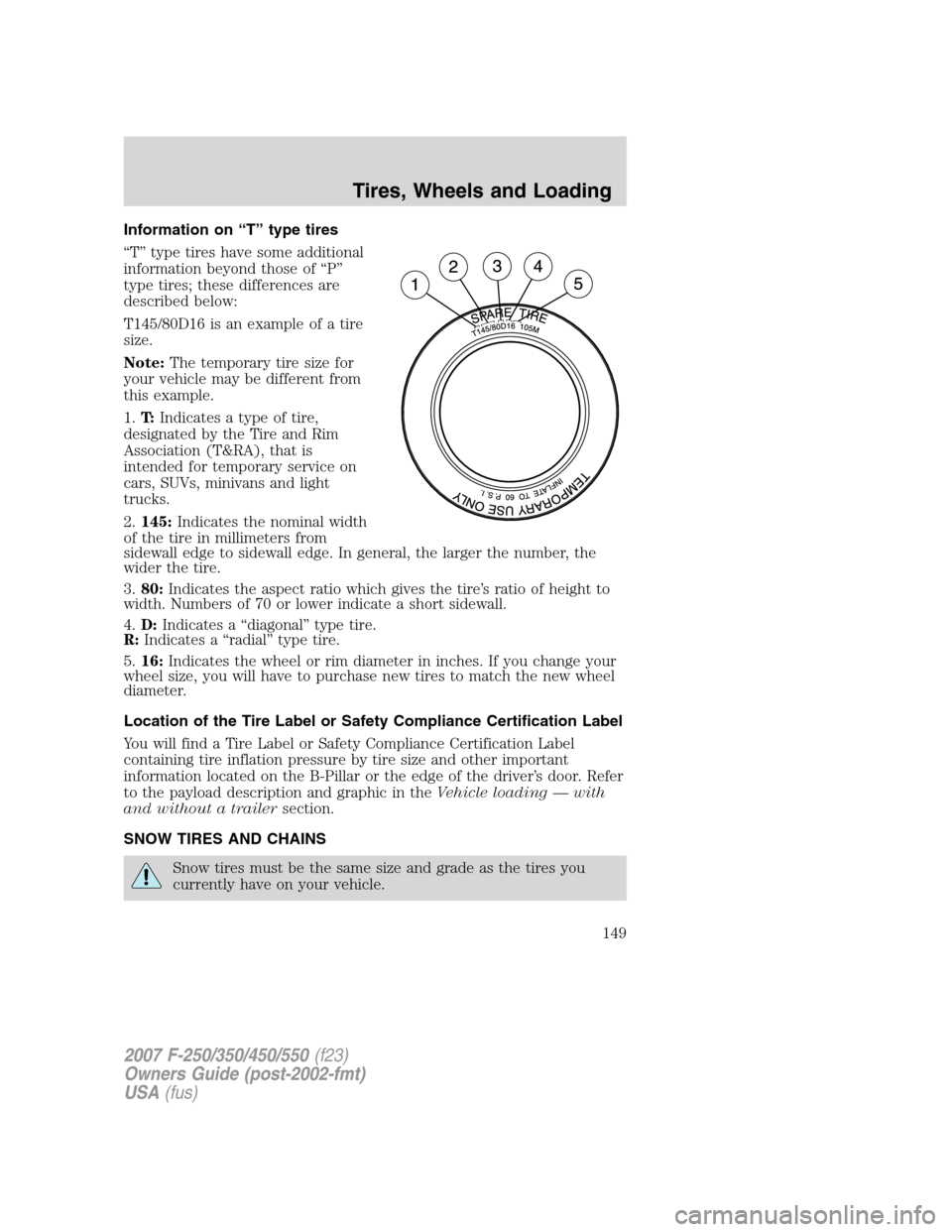

FORD SUPER DUTY 2007 1.G Owners Manual Information on “T” type tires
“T” type tires have some additional
information beyond those of “P”
type tires; these differences are
described below:
T145/80D16 is an example of a tire
size

Page 150 of 312

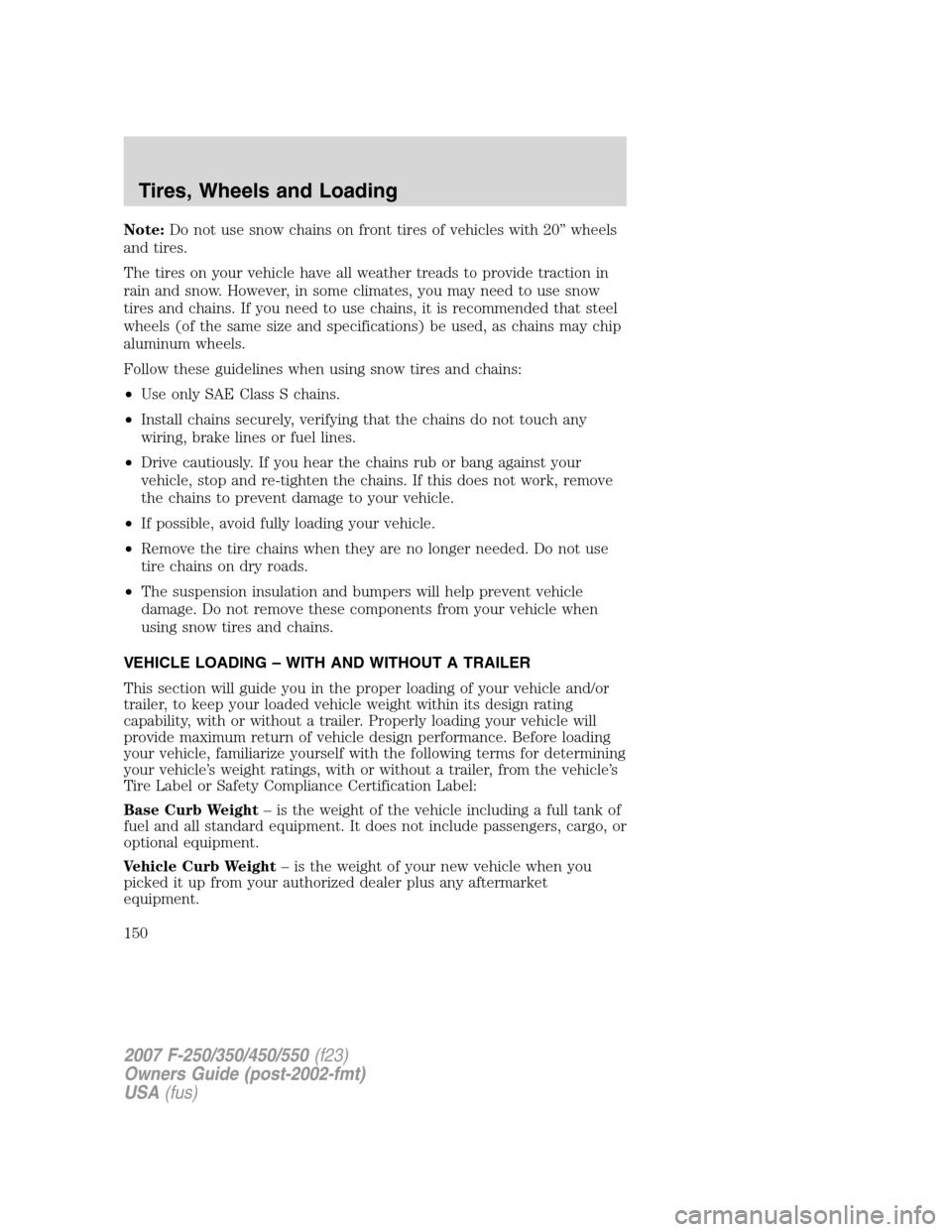

FORD SUPER DUTY 2007 1.G Owners Manual Note:Do not use snow chains on front tires of vehicles with 20” wheels
and tires.
The tires on your vehicle have all weather treads to provide traction in
rain and snow. However, in some climates, y

Page 151 of 312

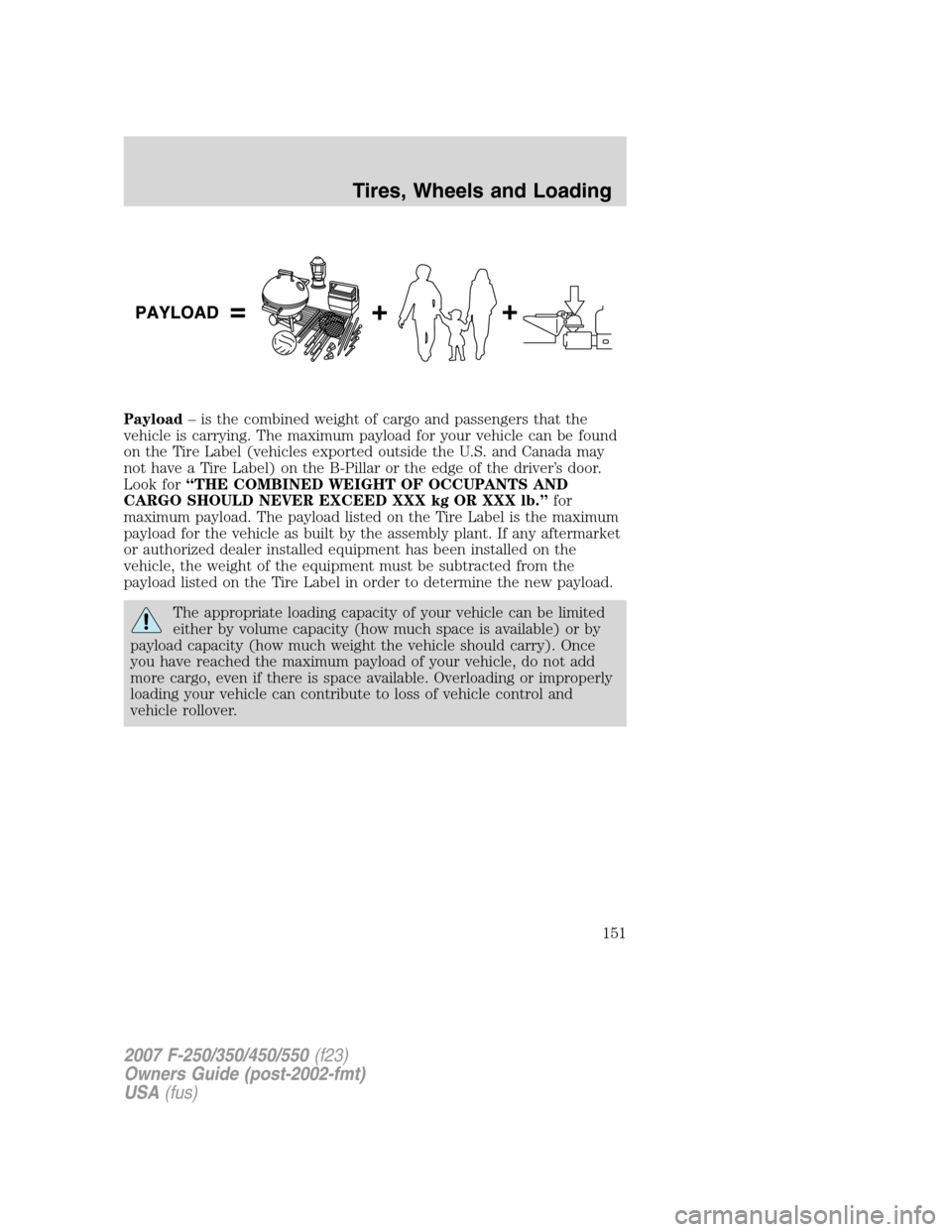

FORD SUPER DUTY 2007 1.G Owners Manual Payload– is the combined weight of cargo and passengers that the
vehicle is carrying. The maximum payload for your vehicle can be found
on the Tire Label (vehicles exported outside the U.S. and Cana

Page 152 of 312

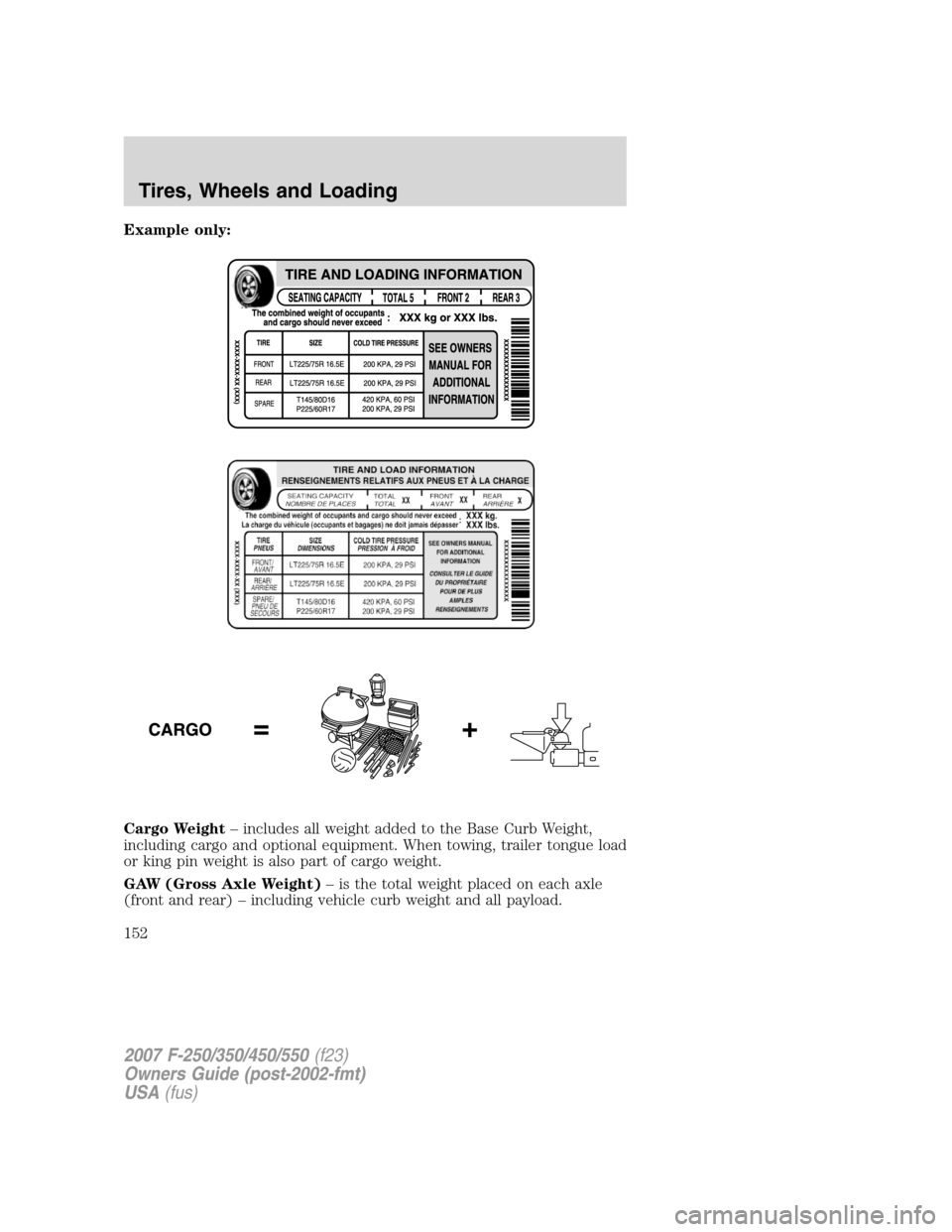

FORD SUPER DUTY 2007 1.G Owners Manual Example only:
Cargo Weight– includes all weight added to the Base Curb Weight,
including cargo and optional equipment. When towing, trailer tongue load
or king pin weight is also part of cargo weigh
